Kemet 1 pc(s) MKP suppression capacitor Radial lead 2.2 µF 560 V DC, 275 V AC 20 % 27.5 mm (L x W x H) 32.0 x 13.0 x 22.
Part number:
Item no:
Packaging type
Single
Product type
MKP suppression capacitor
Type
Radial lead
Capacity (elec.)
2.2 µF
Nominal voltage
560 V DC
275 V AC
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.09
10
8% = € 0.16
€ 1.93
25
11% = € 0.22
€ 1.87
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.09 / piece)
€ 2.09
plus VAT.
14-day return policy included
Highlights & Details

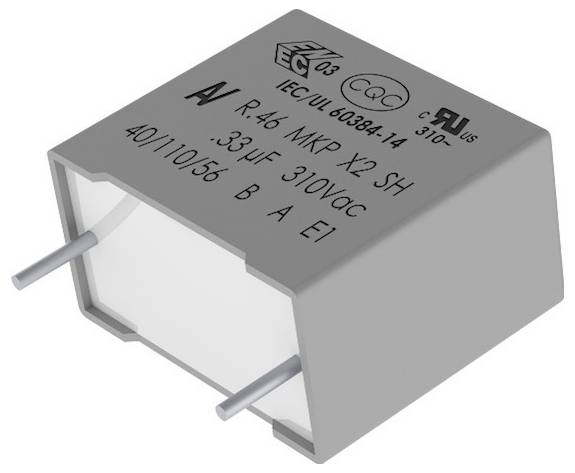

Kemet MKP suppression capacitor
Our service for you
Technical specifications
- ESD Packaging: No ESD
- Series R46
- Approvals: ENEC03, cULus, CQC
- Design_1: Radial
- Applications: Class X2 radio interference suppression applications for use in electromagnetic interference (EMI) suppression in cross-line applications requiring X2 safety classification. VIntended for use in situations where a capacitor failure would not result in an electrical shock. Not for use in "series connection with mains" applications.
- Mounting type_1: THT
- Delivery form_1: Loose
- Connections_1: 2-pin
- Properties_1: • Winding technology, class X2
- • Polypropylenfolie dielectric, coating: Vacuum-metallized
- • Flame-retardant plastic casing (UL94V-0) with resin cast, no impregnation
- • damping arm
- • Low loss factor
- • High pulse load (dV/dt)
- • High insulation resistance
- Wire diameter 0.8 mm.
- Pitch_1:27.5 mm
- Climate category IEC 40/110/56
- Capacity 2.2 µF
- Capacity_1: 2.2
- Unit of capacity: µF
- Capacity Tolerance 20%
- Dielectric: Metallized PP film
- Nominal voltage DC 560 V
- Nominal voltage AC 275 V
- Pulse load 150 V/µs
- Class X2
- Packaging type
Single
- Product type
MKP suppression capacitor
- Type
Radial lead
- Dim
(L x W x H) 32.0 x 13.0 x 22.0 mm
- Capacity (elec.)
2.2 µF
- Nominal voltage
560 V DC
275 V AC
- Flank steepness
150 V/µs
- Tolerance ±
20 %
- Material
Film
- Connection
THT
- Length
32.0 mm
- Width
13.0 mm
- Height
22.0 mm
- CS
27.5 mm
- Min. temperature
40 °C
- Max. temperature
110 °C
- Content
1 pc(s)
- Cable Ø
0.8 mm
- RoHS-compliant
Yes
- Type
R46KR422000P0M
Documents & Downloads
Datasheet
Datasheet 3523519 Kemet 1 pc(s) MKP suppression capacitor Radial lead 2.2 µF 560 V DC, 275 V AC 20 % 27.5 mm (L x W x H) 32.0 x 13.0 x 22.
User & Safety Instructions
User & Safety Instructions 3523519 Kemet 1 pc(s) MKP suppression capacitor Radial lead 2.2 µF 560 V DC, 275 V AC 20 % 27.5 mm (L x W x H) 32.0 x 13.0 x 22.
Description
MKP suppression capacitors class X2 2
