Name: Kemet 1 pc(s) MKT thin film capacitor Radial lead 220 nF 100 V DC, 63 V AC 5 % 7.5 mm (L x W x H) 10.5 x 3.5 x 8.5 mm
Brand: Kemet
SKU: 3463874

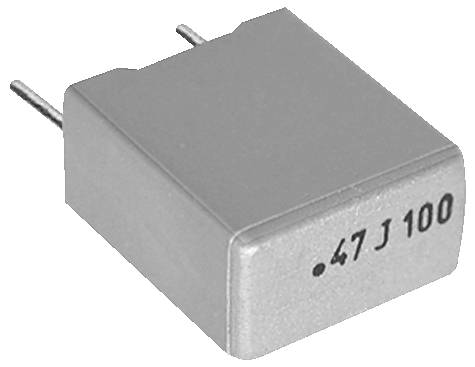

A rectangular, gray electronic component with two metallic leads. The marking on the side reads '47 J 100', indicating its specifications.

Product type

MKT thin film capacitor

Type

Radial lead

Capacity (elec.)

220 nF

Nominal voltage

100 V DC

63 V AC

Tolerance ±

5 %

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Kemet MKT thin film capacitor

Our service for you

Technical specifications

ESD Packaging: No ESD
Series R66
Design_1: Radial
Applications: Block, bypass, coupling and decoupling, radio interference in low-voltage applications
Mounting type_1: THT
Delivery form_1: Loose
Connections_1: 2-pin
Properties_1: Dielectric made of polyethylene terephthalate (PET) Foil, Metallization: Aluminium coated; applied under vacuum
Tin-plated connections
Flame-retardant plastic housing (UL94V-0) with an resin cast
damping arm
S-types in layer technology
Pitch_1:7.5 mm
Climate category IEC 55/105/56
Capacitance 220 nF
Capacity_1: 220
Capacitance unit: NF
Capacity Tolerance 5%
Dielectric: Metallized PET film
Nominal voltage DC 100 V
Nominal voltage AC 63 V
Pulse load 6 V/µs
Reliability: 1.0 fit
Lifetime_1: 200,000 h

Product type: MKT thin film capacitor

Type: Radial lead

Dim: (L x W x H) 10.5 x 3.5 x 8.5 mm

Capacity (elec.): 220 nF

Nominal voltage: 100 V DC
63 V AC

Flank steepness: 6 V/µs

Tolerance ±: 5 %

Material: Polyethylene terephthalate

Length: 10.5 mm

Width: 3.5 mm

Height: 8.5 mm

CS: 7.5 mm

Min. temperature: 55 °C

Max. temperature: 105 °C

Content: 1 pc(s)

RoHS-compliant: Yes

Type: R66ED3220AA7AJ

Operating temperature (max.): 105 °C

Operating temperature (min.): -55 °C

Certification marks: AEC-Q200
