Kemet 1 pc(s) MKT thin film capacitor SMD 1812 220 nF 63 V DC 10 % (L x W x H) 4.5 x 3.2 x 2.3 mm Tape
Part number:
Item no:
Packaging type
Tape
Product type
MKT thin film capacitor
Type
SMD
Type
1812
Capacity (elec.)
220 nF
Datasheet (PDF)
Highlights & Details
Kemet MKT thin film capacitor
Our service for you
Technical specifications
- ESD packing ESD
- MSL 3 - 1 W AT ≤30°C/60%RH
- Series: LDE
- Design_1: 1812
- Applications: Typical applications include filters, timing, bypass, and coupling.
- Mounting type_1: SMD

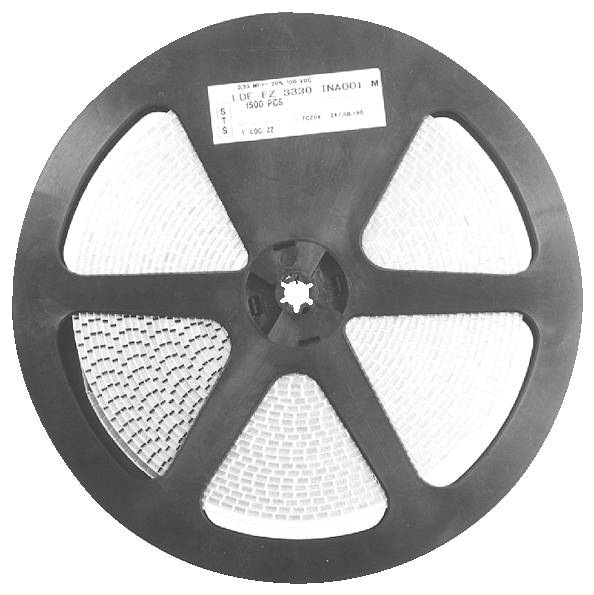

- Delivery form_1: Taped
- Properties_1: Unencapsulated stacked chip
- Dielectric made of Polyethylene-phthalate (PEN)
- Metallization: Aluminium vaporized; applied under vacuum, tin plated connections
- Layer technology
- Low attenuation, low ESR
- impulse proof
- Climate category IEC 55/125/56
- Capacitance 220 nF
- Capacity_1: 220
- Capacitance unit: NF
- Capacity Tolerance 10%
- Dielectric: Metallized PEN film
- Nominal voltage DC 63 V
- Pulse load 100 V/µs
- Reliability: 1 fit
- Insulation resistance_1: 1,000 MOhm
- Packaging type
Tape
- Product type
MKT thin film capacitor
- Type
SMD
- Type
1812
- Dim
(L x W x H) 4.5 x 3.2 x 2.3 mm
- Capacity (elec.)
220 nF
- Nominal voltage
63 V DC
- Tolerance ±
10 %
- Material
Film
- Length
4.5 mm
- Width
3.2 mm
- Height
2.3 mm
- Min. temperature
-55 °C
- Max. temperature
125 °C
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
LDEDC3220KA5N0
- Operating temperature (max.)
125 °C
- Operating temperature (min.)
-55 °C
Documents & Downloads
Datasheet
Datasheet 3463878 Kemet 1 pc(s) MKT thin film capacitor SMD 1812 220 nF 63 V DC 10 % (L x W x H) 4.5 x 3.2 x 2.3 mm Tape
User & Safety Instructions
User & Safety Instructions 3463878 Kemet 1 pc(s) MKT thin film capacitor SMD 1812 220 nF 63 V DC 10 % (L x W x H) 4.5 x 3.2 x 2.3 mm Tape
Description
SMD MKT Capacitors
