Name: Kemet C317C103K1R5TA7317 Ceramic capacitor Radial lead 10 nF 100 V DC 10 % (L x W x H) 3.8 x 2.5 x 5.8 mm 1 pc(s) Tape
Brand: Kemet
SKU: 3523460
Availability: InStock

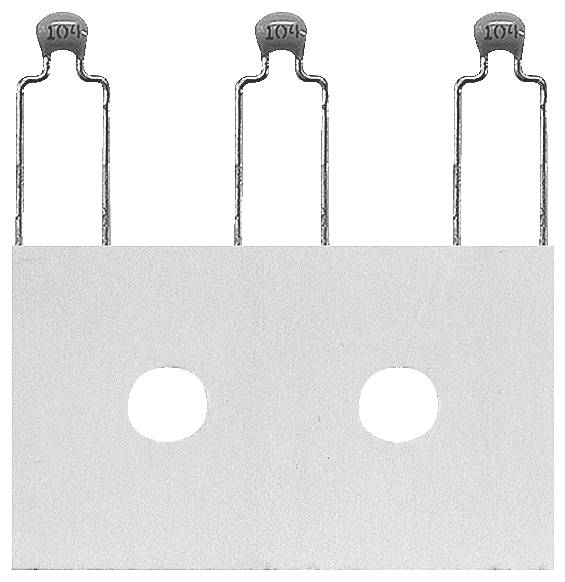

A piece of paper with two holes at the bottom, supported by three metal brackets labeled '104'.

Packaging type

Tape

Product type

Ceramic capacitor

Type

Radial lead

Nominal voltage

100 V DC

Capacity (elec.)

10 nF

Datasheet (PDF)

Fast track dispatch on Fri 16 Oct

217 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 3

Total (€ 0.26439 / piece)

€ 0.79

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

ESD Packaging: No ESD
C317C series
Designation: Goldmax
Design_1: Radial
Typical applications: Critical time control, tuning, low loss circuits, pulsed switches, high current, de-coupling, bypass, Filtering, suppression of transient voltages, blocking and saving of power
Ceramic type X7R
Technology: Ceramic multilayer capacitor
Mounting type_1: THT
Delivery form_1: Taped
Connections_1: 2-pin
Properties_1: Ceramic type: X7R
Artificial resin coating
Radial connections made of tin-plated Cu-wire
Wire diameter 0.5 mm.
Pitch_1:5.08 mm
Climate category IEC 55/125/56
Capacitance 10 nF
Capacity_1: 10
Capacitance unit: NF
Capacity Tolerance 10%
Dielectric X7R
Nominal voltage DC 100 V
Class II
Insulation resistance_1: 100 ohms
Belt standards: IEC286-2

Packaging type: Tape

Product type: Ceramic capacitor

Type: Radial lead

Nominal voltage: 100 V DC

Capacity (elec.): 10 nF

Tolerance ±: 10 %

Content: 1 pc(s)

Material properties: tin plated

Length: 3.8 mm

Width: 2.5 mm

Height: 5.8 mm

CS: 5.08 mm

Min. temperature: -55 °C

Max. temperature: 125 °C

Dim: (L x W x H) 3.8 x 2.5 x 5.8 mm

Dielectric: X7R

Material: Ceramic

RoHS-compliant: Yes

Type: C317C103K1R5TA7317

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Type

Content

Max. temperature

Capacity (elec.)

Nominal voltage

Tolerance ±

Kemet C317C103K1R5TA7317 Ceramic capacitor Radial lead 10 nF 100 V DC 10 % (L x W x H) 3.8 x 2.5 x 5.8 mm 1 pc(s) Tape

Item no:3523460

Fast track dispatch on Fri 16 Oct

217 Piece(s)Conrad Electronic

This article

Radial lead

1 pc(s)

125 °C

10 nF

100 V DC

5.08 mm

10 %

Piece(s)

Minimum order quantity: 3

Multiple: 1

€ 0.26439^*

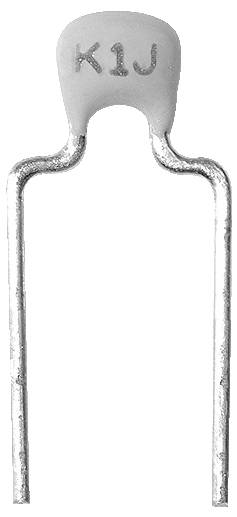

Kemet C317C101J1G5TA Ceramic capacitor Radial lead 0.1 nF 100 V DC 5 % (L x W x H) 3.8 x 2.5 x 5.0 mm 1 pc(s) Bulk

Item no:3523471

Fast track dispatch on Fri 16 Oct

90 Piece(s)Conrad Electronic

Radial lead

1 pc(s)

125 °C

0.1 nF

100 V DC

5.08 mm

5 %

Piece(s)

Minimum order quantity: 3

Multiple: 1

€ 0.30076^*

Kemet C317C102K1R5TA Ceramic capacitor Radial lead 1 nF 100 V DC 10 % (L x W x H) 3.8 x 2.5 x 5.8 mm 1 pc(s) Bulk

Item no:3523467

Dispatches on Tue 27 Oct

Conrad Electronic

Radial lead

1 pc(s)

125 °C

1 nF

100 V DC

5.08 mm

10 %

Piece(s)

Minimum order quantity: 3

Multiple: 1

€ 0.28501^*

Kemet C317C102K1R5TA7317 Ceramic capacitor Radial lead 1 nF 100 V DC 10 % (L x W x H) 3.8 x 2.5 x 5.8 mm 1 pc(s) Tape

Item no:3527531

Dispatches on Tue 27 Oct

Conrad Electronic

Radial lead

1 pc(s)

125 °C

1 nF

100 V DC

5.08 mm

10 %

Piece(s)

Minimum order quantity: 3

Multiple: 1

€ 0.27033^*

Kemet C317C222K1R5TA Ceramic capacitor Radial lead 2.2 nF 100 V DC 10 % (L x W x H) 3.8 x 2.5 x 5.8 mm 1 pc(s) Bulk

Item no:3527533

Dispatches on Tue 27 Oct

Conrad Electronic

Radial lead

1 pc(s)

125 °C

2.2 nF

100 V DC

5.08 mm

10 %

Piece(s)

Minimum order quantity: 5

Multiple: 1

€ 0.19235^*

Kemet C317C331J1G5TA Ceramic capacitor Radial lead 0.33 nF 100 V DC 5 % (L x W x H) 3.8 x 2.5 x 5.0 mm 1 pc(s)

Item no:3523476

Dispatches on Thu 22 Oct

Conrad Electronic

Radial lead

1 pc(s)

0.33 nF

100 V DC

5.08 mm

5 %

Piece(s)

Minimum order quantity: 3

Multiple: 1

€ 0.22836^*

Kemet C317C471J1G5TA Ceramic capacitor Radial lead 0.47 nF 100 V DC 5 % (L x W x H) 3.8 x 2.5 x 5.0 mm 1 pc(s)

Item no:3523480

Fast track dispatch on Fri 16 Oct

50 Piece(s)Conrad Electronic

Radial lead

1 pc(s)

125 °C

0.47 nF

100 V DC

5.08 mm

5 %

Piece(s)

Minimum order quantity: 3

Multiple: 1

€ 0.28536^*

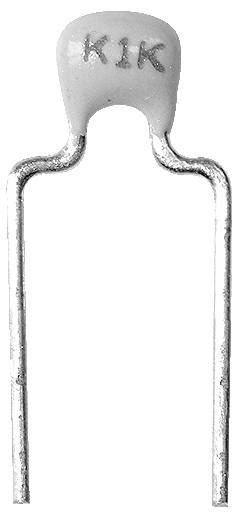

Kemet C317C472K1R5TA Ceramic capacitor Radial lead 4.7 nF 100 V DC 10 % (L x W x H) 3.8 x 2.5 x 5.8 mm 1 pc(s) Bulk
