Name: Kemet C330C105M5U5TA7317 Ceramic capacitor Radial lead 1.000 nF 63 V DC 20 % (L x W x H) 5.0 x 3.1 x 7.5 mm 1 pc(s) Tape
Brand: Kemet
SKU: 3523495
Availability: BackOrder

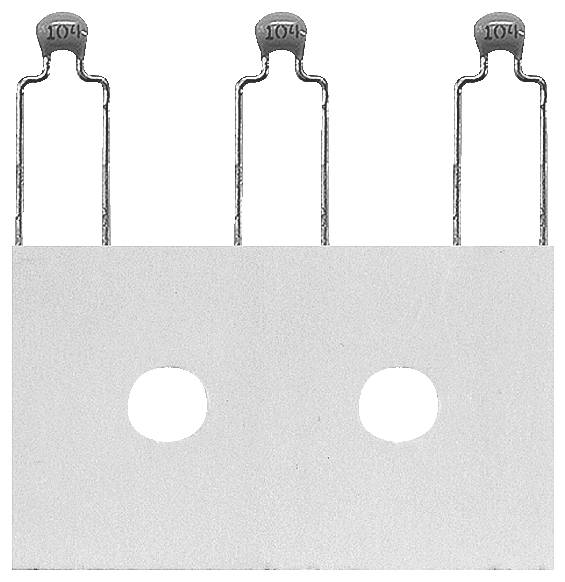

Three thin metal rods with round tops labeled '104' are attached to a rectangular white base with two circular cutouts.

Packaging type

Tape

Product type

Ceramic capacitor

Type

Radial lead

Nominal voltage

63 V DC

Capacity (elec.)

1.000 nF

Datasheet (PDF)

Dispatches on Fri 30 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 0.53156 / piece)

€ 0.53

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

ESD Packaging: No ESD
Series C330C
Designation: Goldmax
Design_1: Radial
Typical applications: Temperature limitation, decoupling and bypass
Ceramic type Z5U
Technology: Ceramic multilayer capacitor
Mounting type_1: THT
Delivery form_1: Taped
Connections_1: 2-pin
Properties_1: Dielectric: Z5U
Artificial resin coating
Radial connections made of tin-plated Cu-wire
Wire diameter 0.6 mm.
Pitch_1:5.08 mm
Climate category IEC 10/085/56
Capacitance 1,000 nF
Capacity_1: 1,000
Capacitance unit: NF
Capacity Tolerance 20%
Dielectric Z5U
Nominal voltage DC 63 V
Class III.
Insulation resistance_1: 10 ohms
Belt standards: IEC286-2

Packaging type: Tape

Product type: Ceramic capacitor

Type: Radial lead

Nominal voltage: 63 V DC

Capacity (elec.): 1.000 nF

Tolerance ±: 20 %

Content: 1 pc(s)

Length: 5.0 mm

Width: 3.1 mm

Height: 7.5 mm

CS: 5.08 mm

Min. temperature: 10 °C

Max. temperature: 85 °C

Dim: (L x W x H) 5.0 x 3.1 x 7.5 mm

Material: Ceramic

RoHS-compliant: Yes

Type: C330C105M5U5TA7317

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3523495 Kemet C330C105M5U5TA7317 Ceramic capacitor Radial lead 1.000 nF 63 V DC 20 % (L x W x H) 5.0 x 3.1 x 7.5 mm 1 pc(s) Tape

User & Safety Instructions

User & Safety Instructions 3523495 Kemet C330C105M5U5TA7317 Ceramic capacitor Radial lead 1.000 nF 63 V DC 20 % (L x W x H) 5.0 x 3.1 x 7.5 mm 1 pc(s) Tape

Description

Ceramic multilayer capacitors Z5U Gu

This text is machine translated.

Hints

The labeling 50/63V corresponds to the DIN standard and EN standard. One standard is for the European market 63V and the other for the American and Far East markets 50V

Description

Ceramic multilayer capacitors Z5U Gu

This text is machine translated.

Hints

The labeling 50/63V corresponds to the DIN standard and EN standard. One standard is for the European market 63V and the other for the American and Far East markets 50V
