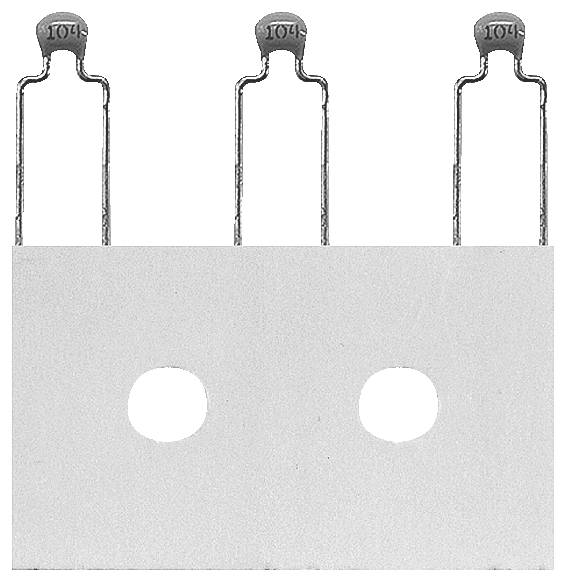

Kemet Ceramic capacitor Radial lead 100 nF 63 V DC 20 % (L x W x H) 3.8 x 2.5 x 5.8 mm 1 pc(s) Tape
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 0.24980
50
9% = € 0.02
€ 0.22704
100
13% = € 0.03
€ 0.21795
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 0.2498 / piece)
€ 0.25
plus VAT.
Technical specifications
- ESD Packaging: No ESD
- C317C series
- Designation: Goldmax
- Design_1: Radial
- Typical applications: Temperature limitation, decoupling and bypass
- Ceramic type Z5U
- Technology: Ceramic multilayer capacitor
- Mounting type_1: THT
- Delivery form_1: Taped
- Connections_1: 2-pin
- Properties_1: Dielectric: Z5U
- Artificial resin coating
- Radial connections made of tin-plated Cu-wire
- Wire diameter 0.5 mm.
- Pitch_1:5.08 mm
- Climate category IEC 10/085/56
- Capacitance 100 nF
- Capacity_1: 100
- Capacitance unit: NF
- Capacity Tolerance 20%
- Dielectric Z5U
- Nominal voltage DC 63 V
- Class III.
- Insulation resistance_1: 10 ohms
- Belt standards: IEC286-2
- Packaging type
Tape
- Nominal voltage
63 V DC
- Tolerance ±
20 %
- Material properties
tin plated
- Length
3.8 mm
- Width
2.5 mm
- Height
5.8 mm
- CS
5.08 mm
- Min. temperature
10 °C
- Max. temperature
85 °C
- Content
1 pc(s)
- Dim
(L x W x H) 3.8 x 2.5 x 5.8 mm
- Material
Ceramic
- Type
Radial lead
- Type
C317C104M5U5TA7301
- Capacity (elec.)
100 nF
- RoHS-compliant
Yes
- Product type
Ceramic capacitor
Documents & Downloads
Datasheet
Datasheet 3523483 Kemet Ceramic capacitor Radial lead 100 nF 63 V DC 20 % (L x W x H) 3.8 x 2.5 x 5.8 mm 1 pc(s) Tape
User & Safety Instructions
User & Safety Instructions 3523483 Kemet Ceramic capacitor Radial lead 100 nF 63 V DC 20 % (L x W x H) 3.8 x 2.5 x 5.8 mm 1 pc(s) Tape
Description
Ceramic multilayer capacitors Z5U Gu
This text is machine translated.
This text is machine translated.
Hints
The labeling 50/63V corresponds to the DIN standard and EN standard. One standard is for the European market 63V and the other for the American and Far East markets 50V
