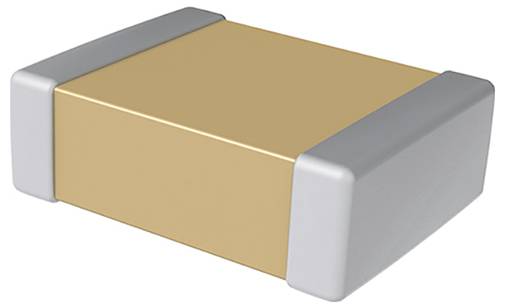

Kemet Ceramic capacitor SMD 0402 100 nF 16 V 10 % (L x W) 1 mm x 0.5 mm 1 pc(s) Tape
Part number:
Item no:
Packaging type
Tape
Nominal voltage
16 V
Content
1 pc(s)
Type
SMD
Capacity (elec.)
100 nF
Datasheet (PDF)
Highlights & Details
Kemet SMD-vs-condenser 100nF 16V 10% X7R 0402
Our service for you
Technical specifications
- ESD Packaging: No ESD
- Series C0402C
- Design_1: 0402
- Typical applications include decoupling, bypass, filtering and transient voltage suppression.
- Ceramic type X7R
- Technology: Ceramic multilayer capacitor
- Mounting type_1: SMD
- Delivery form_1: Taped
- FEATURES_1: Free from lead (Pb), RoHS and REACH compliant
- Temperature-stable dielectric
- Polar, which minimizes installation problems
- 100% pure, matte tin-plated connection end for excellent solderability
- Capacitance 100 nF
- Capacity_1: 100
- Capacitance unit: NF
- Capacity Tolerance 10%
- Dielectric X7R
- Nominal voltage DC 16 V
- Class II
- Packaging type
Tape
- Nominal voltage
16 V
- Tolerance ±
10 %
- Length
1 mm
- Width
0.5 mm
- Content
1 pc(s)
- Dim
(L x W) 1 mm x 0.5 mm
- Dielectric
X7R
- Material
Ceramic
- Type
0402
- Type
SMD
- Type
C0402C104K4RAC7867
- Capacity (elec.)
100 nF
- Operating temperature (max.)
125 °C
- Operating temperature (min.)
-55 °C
- RoHS-compliant
Yes
- Product type
Ceramic capacitor
Documents & Downloads
Datasheet
Datasheet 3463686 Kemet Ceramic capacitor SMD 0402 100 nF 16 V 10 % (L x W) 1 mm x 0.5 mm 1 pc(s) Tape
User & Safety Instructions
User & Safety Instructions 3463686 Kemet Ceramic capacitor SMD 0402 100 nF 16 V 10 % (L x W) 1 mm x 0.5 mm 1 pc(s) Tape
Description
Kemet SMD-MLCCs X7R
