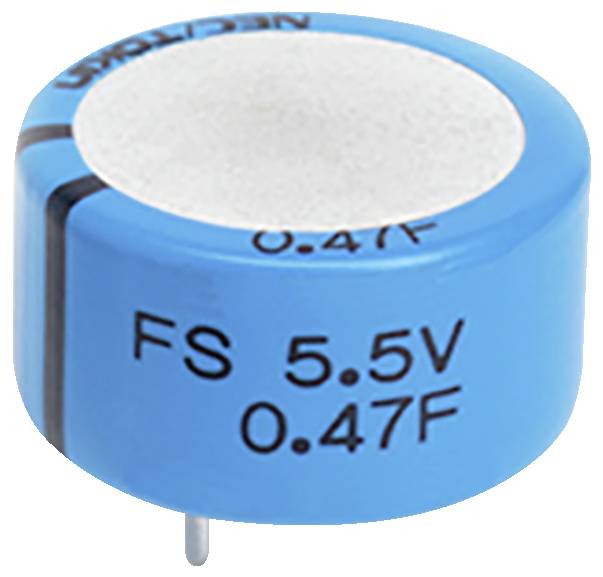

Kemet FS0H474ZF Supercapacitor (SC) 5.5 V DC 80 % 1 pc(s)
Part number:
Item no:
Product type
Supercapacitor (SC)
Nominal voltage
5.5 V DC
Tolerance ±
80 %
Content
1 pc(s)
Type
Radial lead
Datasheet (PDF)
Technical specifications
- ESD Packaging: No ESD
- Series: FS
- Weight: 10 g
- Solder-able 245°C / 5s
- Name: SuperCap
- Design_1: Radial
- Applications: Supercapacitors can be used like a secondary battery when used in a DC circuit. Suitable for use in low-voltage DC bridging applications such as embedded microprocessor systems with flash memory
- Technology: Electric double-layer capacitor (EDLCs)
- Mounting type_1: THT
- Delivery form_1: Loose
- Connections_1: 2-pin
- Features_1: Operating voltage, max. 5.5 VDC
- Temperature range: 25 to +70°C
- Maintenance free
- Highly reliable against liquid leakage
- Lead-free and RoHS compliant
- Soldering temperature, max. 245°C/5s
- Pitch_1:7.62 mm
- Capacity 0.47 F
- Capacity_1: 0.47
- Unit of capacity: F
- Capacity Tolerance 80%
- Max. Current 0.00071 A.
- Equivalent Series Resistance (ESR): 13 ohms
- Nominal voltage DC 5.5 V
- Product type
Supercapacitor (SC)
- Type
Radial lead
- Nominal voltage
5.5 V DC
- Tolerance ±
80 %
- Height
13.0 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
FS0H474ZF
- Operating temperature (max.)
70 °C
- Operating temperature (min.)
-25 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3464767 Kemet FS0H474ZF Supercapacitor (SC) 5.5 V DC 80 % 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3464767 Kemet FS0H474ZF Supercapacitor (SC) 5.5 V DC 80 % 1 pc(s)
Description
GoldCap SMD series FSH
