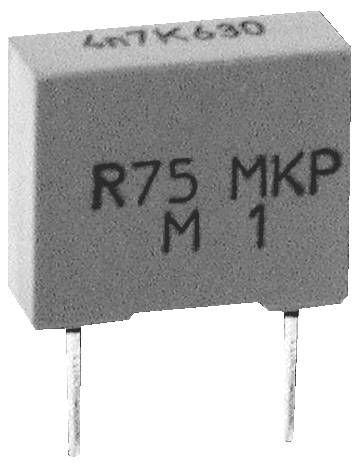

Kemet MKP thin film capacitor Radial lead 680 nF 400 V DC, 220 V AC 10 % (L x W x H) 26.5 x 10.0 x 18.5 mm 1 pc(s) Piece
Part number:
Item no:
Packaging type
Piece
Product type
MKP thin film capacitor
Type
Radial lead
Nominal voltage
400 V DC
220 V AC
Capacity (elec.)
680 nF
Datasheet (PDF)
Highlights & Details
Kemet MKP 680nF 400V 10% RM22,5
Our service for you
Technical specifications
- ESD Packaging: No ESD
- Series R75
- Design_1: Radial
- Mounting type_1: THT
- Delivery form_1: Loose
- Connections_1: 2-pin
- Properties_1: Dielectric made of polyethylene terephthalate (PET) foil, metallization: Aluminium evaporated; applied under vacuum
- Tin-plated connections
- Flame-retardant plastic housing (UL94V-0) with an resin cast
- damping arm
- Pitch_1:22.5 mm
- Climate category IEC 55/100/56
- Capacitance 680 nF
- Capacity_1: 680
- Capacitance unit: NF
- Capacity Tolerance 10%
- Dielectric: Metallized PP film
- Nominal voltage DC 400 V
- Nominal voltage AC 220 V
- Pulse load 180 V/µs
- Insulation resistance_1: 44.12 ohms
- Packaging type
Piece
- Product type
MKP thin film capacitor
- Type
Radial lead
- Nominal voltage
400 V DC
220 V AC
- Capacity (elec.)
680 nF
- Tolerance ±
10 %
- Content
1 pc(s)
- Length
26.5 mm
- Width
10.0 mm
- Height
18.5 mm
- CS
22.5 mm
- Min. temperature
-55 °C
- Max. temperature
100 °C
- Dim
(L x W x H) 26.5 x 10.0 x 18.5 mm
- Material
Ceramic
- RoHS-compliant
Yes
- Type
R75MN3680AA30K
- Operating temperature (max.)
105 °C
- Operating temperature (min.)
-55 °C
Documents & Downloads
Datasheet
Datasheet 3463898 Kemet MKP thin film capacitor Radial lead 680 nF 400 V DC, 220 V AC 10 % (L x W x H) 26.5 x 10.0 x 18.5 mm 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3463898 Kemet MKP thin film capacitor Radial lead 680 nF 400 V DC, 220 V AC 10 % (L x W x H) 26.5 x 10.0 x 18.5 mm 1 pc(s) Piece
Description
MKP capacitors R75 RM15 to RM37.5 10
