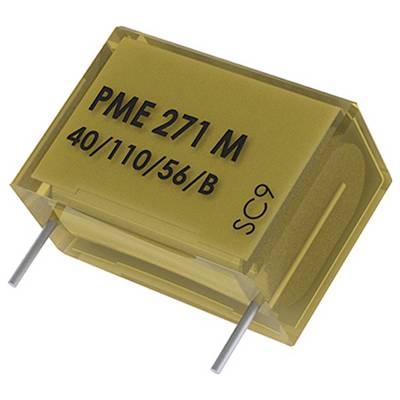

Kemet PME271M547MR30 Suppression capacitor Radial lead 47 nF 275 V AC 20 % 1 pc(s)
Part number:
Item no:
Product type
Suppression capacitor
Type
Radial lead
Connection
Soldering
Capacity (elec.)
47 nF
Tolerance ±
20 %
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.09
10
8% = € 0.16
€ 1.93
25
11% = € 0.22
€ 1.87
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.09 / piece)
€ 2.09
plus VAT.
14-day return policy included
Technical specifications
- Series PME271M
- Approvals: ENEC,cULus
- Design_1: Radial
- Applications: • In DC applications: Recommended voltage max. 630V DC
- Mounting type_1: THT
- Delivery form_1: Loose
- Connections_1: 2-pin
- Characteristics_1: • Class X2 Noise suppression applications for compliance with the EMC regulations
- • Multi-layer metalized capacitor paper dielectric, impregnated with self-extinguishing material (corresponds to UL94V-0)
- • The impregnation paper ensures high stability and good reliability, especially for continuous operation applications
- • Good resistance to ionization
- • High safety in terms of active and passive flammability
- • Good self-healing properties for a long life even with frequent overvoltage
- • High DV/dt capability for the most demanding applications
- • For temperatures up to +110°C.
- • 100% Shield factory test at 2.150V DC
- Pitch_1:15.2 mm
- Climate category IEC 40/110/56
- Capacitance 47 nF
- Capacity_1: 47
- Capacitance unit: NF
- Capacity Tolerance 20%
- Loss factor tan δ: 1.3%
- Dielectric: Metallized paper
- Nominal voltage AC 275 V
- Pulse load 1,200 V/µs
- Class X2
- Insulation resistance_1: 12,000 MOhm
- Product type
Suppression capacitor
- Type
Radial lead
- Connection
Soldering
- Capacity (elec.)
47 nF
- Nominal voltage
275 V AC
- Tolerance ±
20 %
- Length
18.5 mm
- Width
6.0 mm
- Height
12.5 mm
- CS
15.2 mm
- Material
Paper
- Min. temperature
-40 °C
- Max. temperature
110 °C
- Content
1 pc(s)
- Dim
(L x W x H) 18.5 x 6.0 x 12.5 mm
- RoHS-compliant
Yes
- Type
X2 THT Kondensator: Papier ±20% 275VAC 47nF Rastermaß: 15,2mm
- Operating temperature (max.)
110 °C
- Operating temperature (min.)
40 °C
- Certification marks
EN/IEC 60384-14, UL60384-14, CAN/CSA-EE60384-14-09
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3462876 Kemet PME271M547MR30 Suppression capacitor Radial lead 47 nF 275 V AC 20 % 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3462876 Kemet PME271M547MR30 Suppression capacitor Radial lead 47 nF 275 V AC 20 % 1 pc(s)
Description
MP SUPPRESSION CAPACITORS PME271M X2
