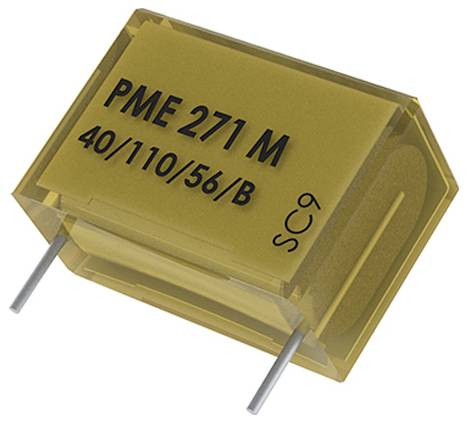

Name: Kemet PME271MD6220KR30 Suppression capacitor Radial lead 275 V AC 10 % 1 pc(s)
Brand: Kemet
SKU: 3462879

Product type

Suppression capacitor

Type

Radial lead

Tolerance ±

10 %

Height

19.0 mm

Nominal voltage

275 V AC

Datasheet (PDF)

Unavailable

Sales and shipping:

Highlights & Details

Kemet MP suppression capacitor 220nF 275V RM22,5

Series PME271M
Approvals: ENEC,cULus
Design_1: Radial
Applications: • In DC applications: Recommended voltage max. 630V DC
Mounting type_1: THT
Delivery form_1: Loose
Connections_1: 2-pin
Characteristics_1: • Class X2 Noise suppression applications for compliance with the EMC regulations
• Multi-layer metalized capacitor paper dielectric, impregnated with self-extinguishing material (corresponds to UL94V-0)
• The impregnation paper ensures high stability and good reliability, especially for continuous operation applications
• Good resistance to ionization
• High safety in terms of active and passive flammability
• Good self-healing properties for a long life even with frequent overvoltage
• High DV/dt capability for the most demanding applications
• For temperatures up to +110°C.
• 100% Shield factory test at 2.150V DC
Pitch_1:22.5 mm
Climate category IEC 40/110/56
Capacitance 220 nF
Capacity_1: 220
Capacitance unit: NF
Capacity Tolerance 10%
Loss factor tan δ: 1.3%
Dielectric: Metallized paper
Nominal voltage AC 275 V
Pulse load 600 V/µs
Class X2
Insulation resistance_1: 12,000 MOhm
