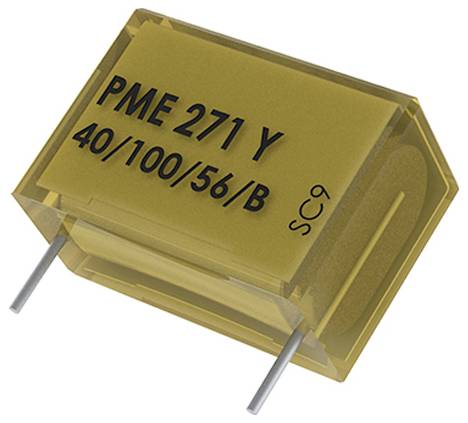

Buy Kemet PME271Y522MR30 Suppression capacitor Radial lead 22 nF 250 V AC 20 % 1 pc(s) Bulk

Packaging type

Bulk

Product type

Suppression capacitor

Type

Radial lead

Capacity (elec.)

22 nF

Tolerance ±

20 %

Datasheet (PDF)

Unavailable

Sales and shipping:

Highlights & Details

Series PME271Y
Approvals: CULus, CQC, ENEC
Design_1: Radial
Applications: • In DC applications: Recommended voltage max. 630V DC
Mounting type_1: THT
Delivery form_1: Loose
Characteristics_1: • Class Y2 Interference suppression applications to comply with EMC regulations
• Multi-layer metalized capacitor paper dielectric, impregnated with self-extinguishing material (corresponds to UL94V-0)
• The impregnation paper ensures high stability and good reliability, especially for continuous operation applications
• Good resistance to ionization
• High safety in terms of active and passive flammability
• Good self-healing properties for a long life even with frequent overvoltage
• High DV/dt capability for the most demanding applications
• 100% Shield factory test at 3.000V DC
Pitch_1:15.2 mm
Climate category IEC 40/110/56
Capacitance 22 nF
Capacity_1: 22
Capacitance unit: NF
Capacity Tolerance 20%
Loss factor tan δ: 1.3%
Dielectric: Metallized paper
Nominal voltage AC 250 V
Pulse response: 1,400 V²/µs
Class Y2
Insulation resistance_1: 12,000 MOhm
