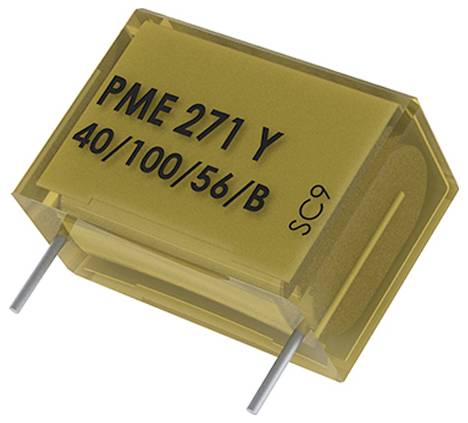

Kemet PME271YA4470MR30 Suppression capacitor Radial lead 4.7 nF 300 V AC 20 % 1 pc(s) Bulk
Part number:
Item no:
Packaging type
Bulk
Product type
Suppression capacitor
Type
Radial lead
Connection
THT
Capacity (elec.)
4.7 nF
Datasheet (PDF)
Technical specifications
- Series PME271Y
- Approvals: CULus, CQC, ENEC
- Design_1: Radial
- Applications: • In DC applications: Recommended voltage max. 630V DC
- Mounting type_1: THT
- Delivery form_1: Loose
- Characteristics_1: • Class Y2 Interference suppression applications to comply with EMC regulations
- • Multi-layer metalized capacitor paper dielectric, impregnated with self-extinguishing material (corresponds to UL94V-0)
- • The impregnation paper ensures high stability and good reliability, especially for continuous operation applications
- • Good resistance to ionization
- • High safety in terms of active and passive flammability
- • Good self-healing properties for a long life even with frequent overvoltage
- • High DV/dt capability for the most demanding applications
- • 100% Shield factory test at 3.000V DC
- Pitch_1:10.2 mm
- Climate category IEC 40/110/56
- Capacitance 4.7 nF
- Capacity_1: 4.7
- Capacitance unit: NF
- Capacity Tolerance 20%
- Loss factor tan δ: 1.3%
- Dielectric: Metallized paper
- Nominal voltage AC 300 V
- Pulse response: 2,000 V²/µs
- Class Y2
- Insulation resistance_1: 12,000 MOhm
- Packaging type
Bulk
- Product type
Suppression capacitor
- Type
Radial lead
- Connection
THT
- Capacity (elec.)
4.7 nF
- Nominal voltage
300 V AC
- Tolerance ±
20 %
- Length
13.5 mm
- Width
5.1 mm
- Height
10.5 mm
- CS
10.2 mm
- Material
Paper
- Min. temperature
-40 °C
- Max. temperature
110 °C
- Content
1 pc(s)
- Dim
(L x W x H) 13.5 x 5.1 x 10.5 mm
- RoHS-compliant
Yes
- Type
PME271YA4470MR30
- Operating temperature (max.)
115 °C
- Operating temperature (min.)
-40 °C
- Certification marks
EN/IEC 60384-14, UL60384-14, CAN/CSA-EE60384-14-09
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3462884 Kemet PME271YA4470MR30 Suppression capacitor Radial lead 4.7 nF 300 V AC 20 % 1 pc(s) Bulk
User & Safety Instructions
User & Safety Instructions 3462884 Kemet PME271YA4470MR30 Suppression capacitor Radial lead 4.7 nF 300 V AC 20 % 1 pc(s) Bulk
Description
MP-RADIO SUPPRESSION CAPACITORS PME271Y Y2
