Kemo M113A TDR Component 2 s - 23 min
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 13.44
3
6% = € 0.74
€ 12.70
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 13.44 / piece)
€ 13.44
plus VAT.
Highlights & Details
Kemo M113A TDR Component 2 s - 23 min
Technical specifications
- Flat plug, 6.3 x 0.8 mm
- Operating voltage
12 - 15 V DC
- Current consumption
80 mA
- Output rating
-
- Time range
2 s - 23 min
- Version
Component

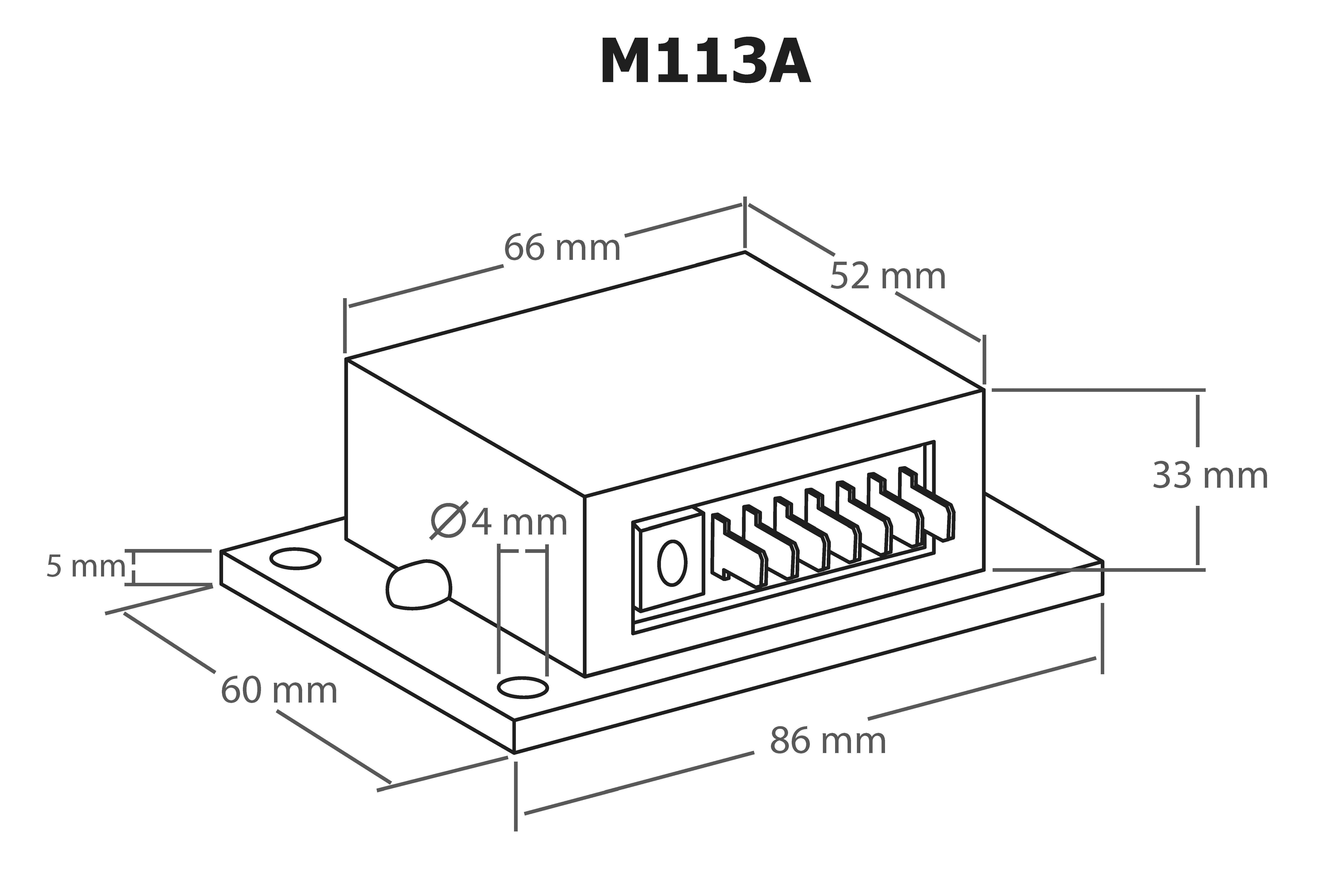

- Dim
(L x W x H) 86 x 60 x 38 mm
- Height
38 mm
- Length
86 mm
- Width
60 mm
- No. of relay outputs
1
- Time range (max.)
23 min
- Time range (min.)
2 s
- Product type
TDR
Documents & Downloads
Datasheet
Datasheet 190407 Kemo M113A TDR Component 2 s - 23 min
User & Safety Instructions
User & Safety Instructions 190407 Kemo M113A TDR Component 2 s - 23 min
Description

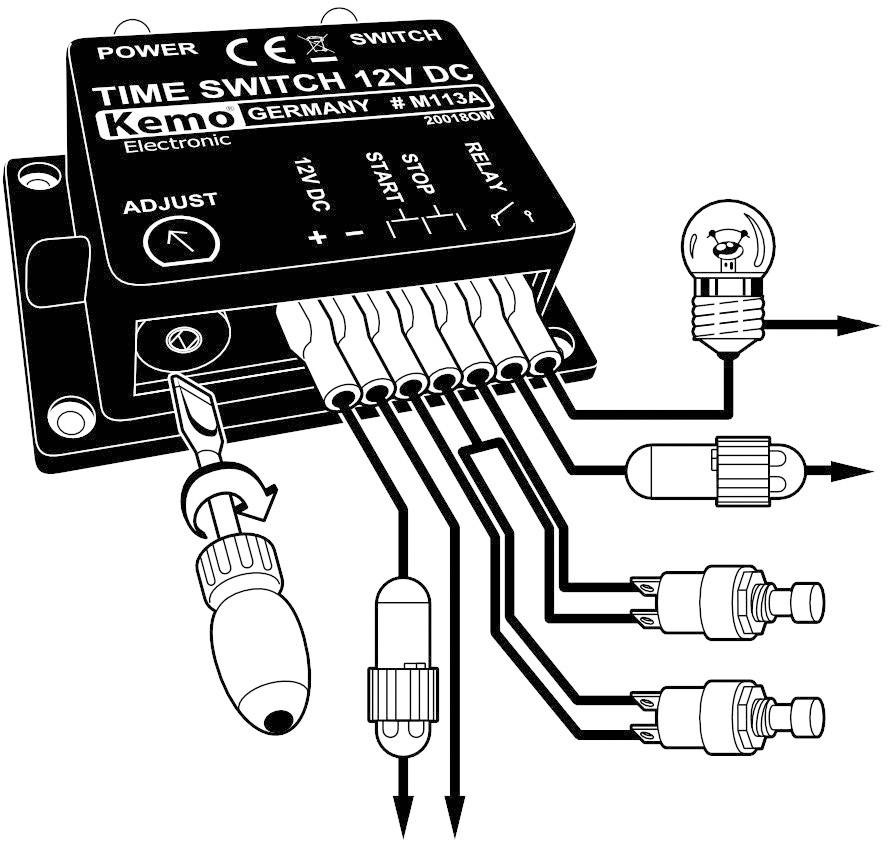

Switches on other devices with the built-in relay contact after pushing the button and automatically switches them off again after a set time. The time can be stopped any point by pressing the second button. Two push buttons are required for use.
Features
- Connection via flat plug on the module
- 2 LED display (1 x LED operating voltage, 1 x LED relay "ON" ).
