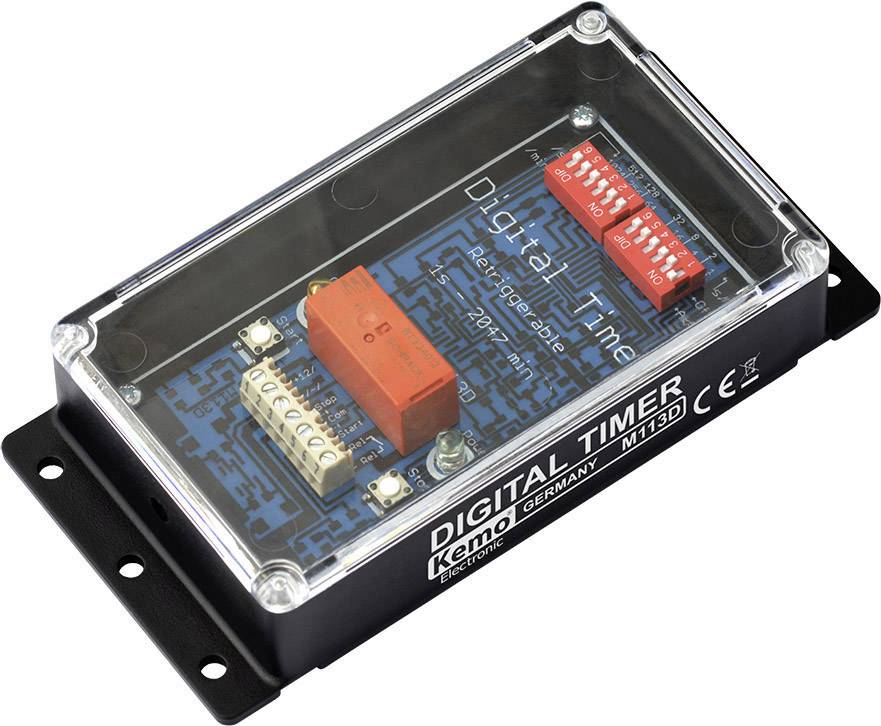

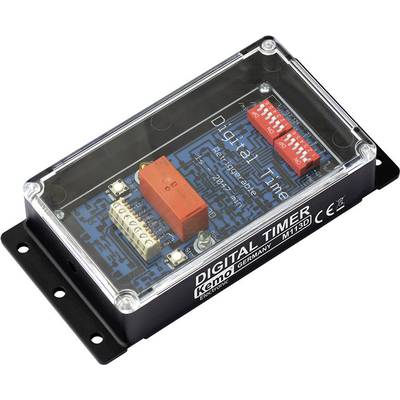

Kemo M113D Digital TDR Assembled 12 V DC
EAN:
Part number:
Item no:
Number
Total (€ 34.45 / piece)
€ 34.45
plus VAT.
Only 8 Piece(s) available
Technical specifications
- Version
Assembled
- Dim
(L x W x H) 120 x 70 x 30 mm
- Height
30 mm
- Length
120 mm
- Width
70 mm
- No. of relay outputs
1
- Operating voltage
12 V DC
- Product type
Digital TDR
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1969626 Kemo M113D Digital TDR Assembled 12 V DC
Description
Timer with adjustable times between 1 second and 2047 seconds or 1 minute and 2047 minutes. After pressing the button, the timer switches on and off again after the set time. A second button can be used to stop the time sequence at any time. External push buttons can be connected (not included). The timer can also be started by external control impulses (3 - 24 V/DC) or automatically after switching on with connection of an electrolytic capacitor (22 μF 50 V) and a resistance (33 Ω 0.25 W).
This text is machine translated.
This text is machine translated.
Features
- Current consumption: Off-state:< 6 mA, on-state:< 50 mA
- Switch contact: 1x ON, max. 24 V 10 A AC or DC
- Connection: Terminal strip for additional one-button, off-button, switch contact, 12 V operating voltage connection
- Display: One LED each for operation and switching on
- Adjustable switch-on times: 1 second to 2047 seconds in 1 second steps or 1 minute to 2047 minutes in 1 minute steps
- Accuracy of the set times: Approx. +- 10%
Scope of delivery
- Time switch
- User manual.
