Kensington USB-C® docking station
EAN:
Part number:
Item no:
Highlights & Details

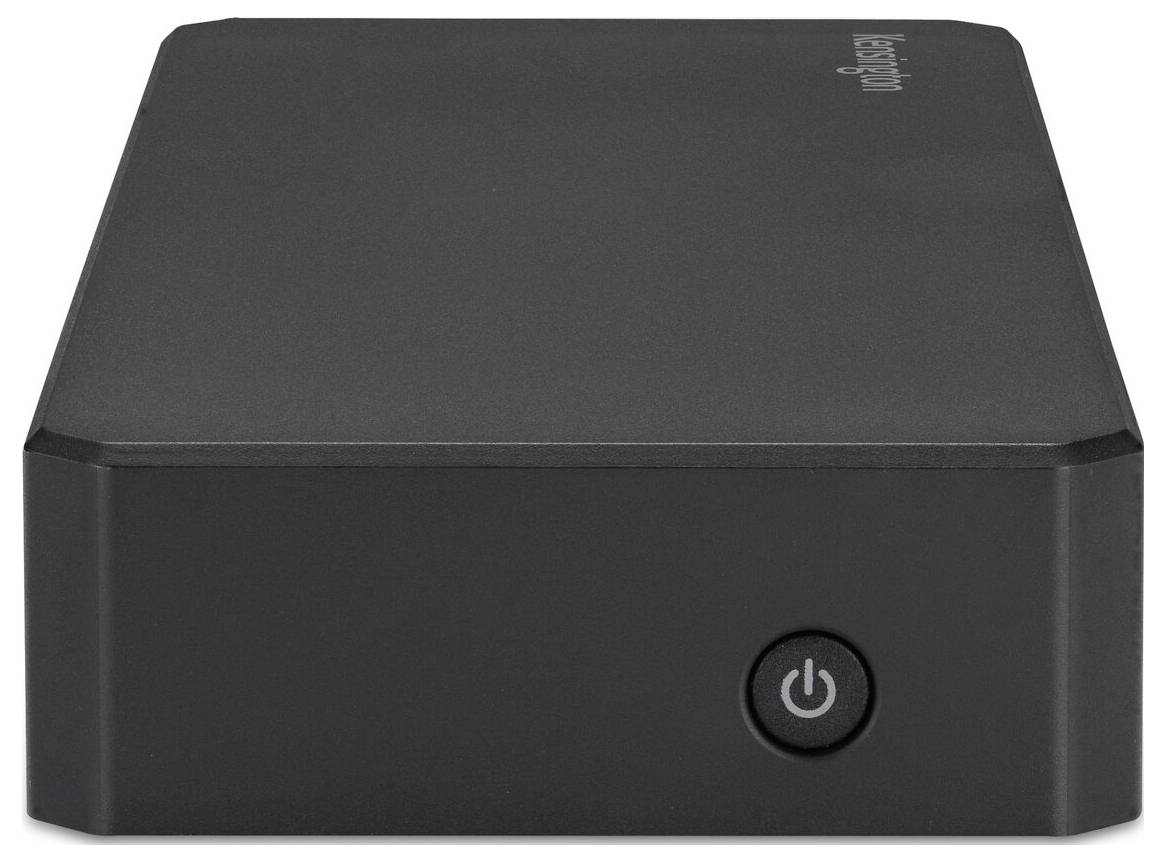

Kensington SD4843P EQ USB-C triple video docking station
- USB Power Delivery
- Ethernet / LAN 10.1000 Mbit / s
- Plug & Play
Technical specifications
- Data transfer rate 10 Gbps
- HD type 4K Ultra HD
- Product type
USB-C® docking station
- Type A
1x USB-C®
- Type B
1x USB-C®
4x USB-A
DisplayPort
HDMI®
RJ45
Headphones/mic combo (3.5 mm jack)
- Suitable for
Notebook
PC
Universal
- Supported monitors
3
- Cable length
0 cm
- Factory colour
Black
- No. of USB ports
5 x
- No. of USB 3.2 2nd Gen (USB 3.1)
1 x
- Charging method (Power Delivery)
with USB Power Delivery
- UKCA
yes
- Ethernet LAN
yes
- Master (outer) case gross weight
9 kg
- Quantity per pack
1 Stück(e)
- Master (outer) case length
485 mm
- Products per master (outer) case
6 Stück(e)
- Master (outer) case net weight
9 kg
- Card reader integrated
no
- USB Power Delivery up to
100 W
- Master (outer) case height
190 mm
- Master (outer) case width
280 mm
- Package weight
1.4 kg
- Plug and Play
yes
- Combo headphone/mic port
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3787573 Kensington USB-C® docking station
Description

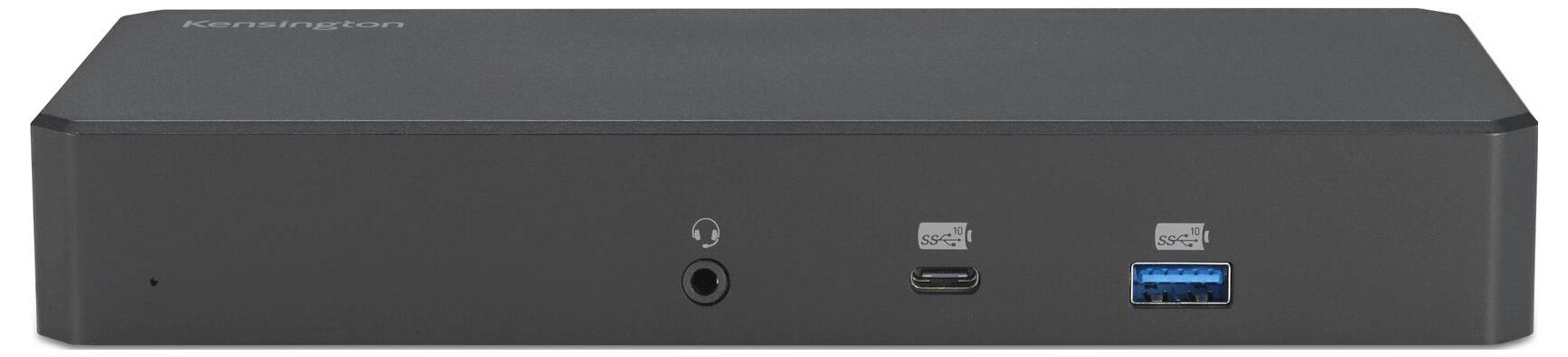

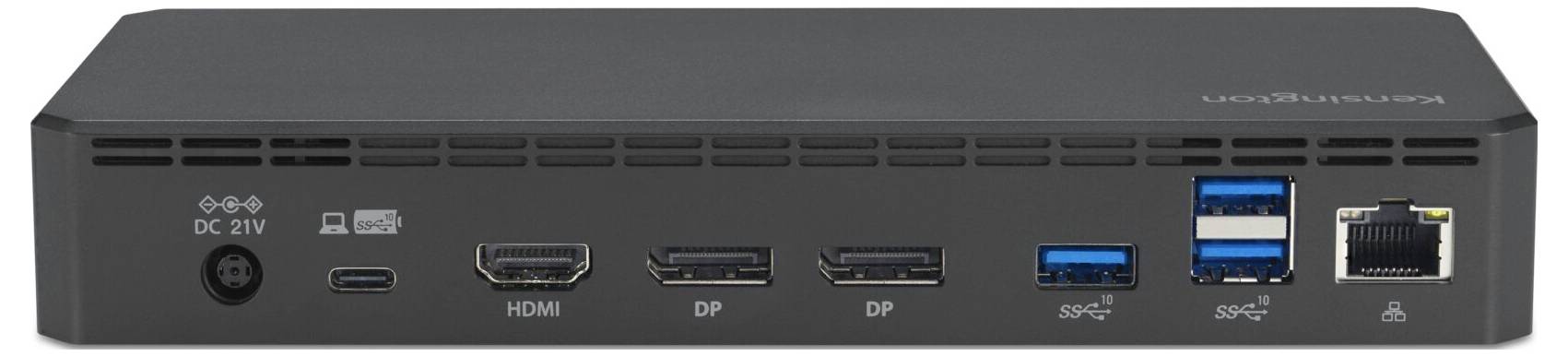

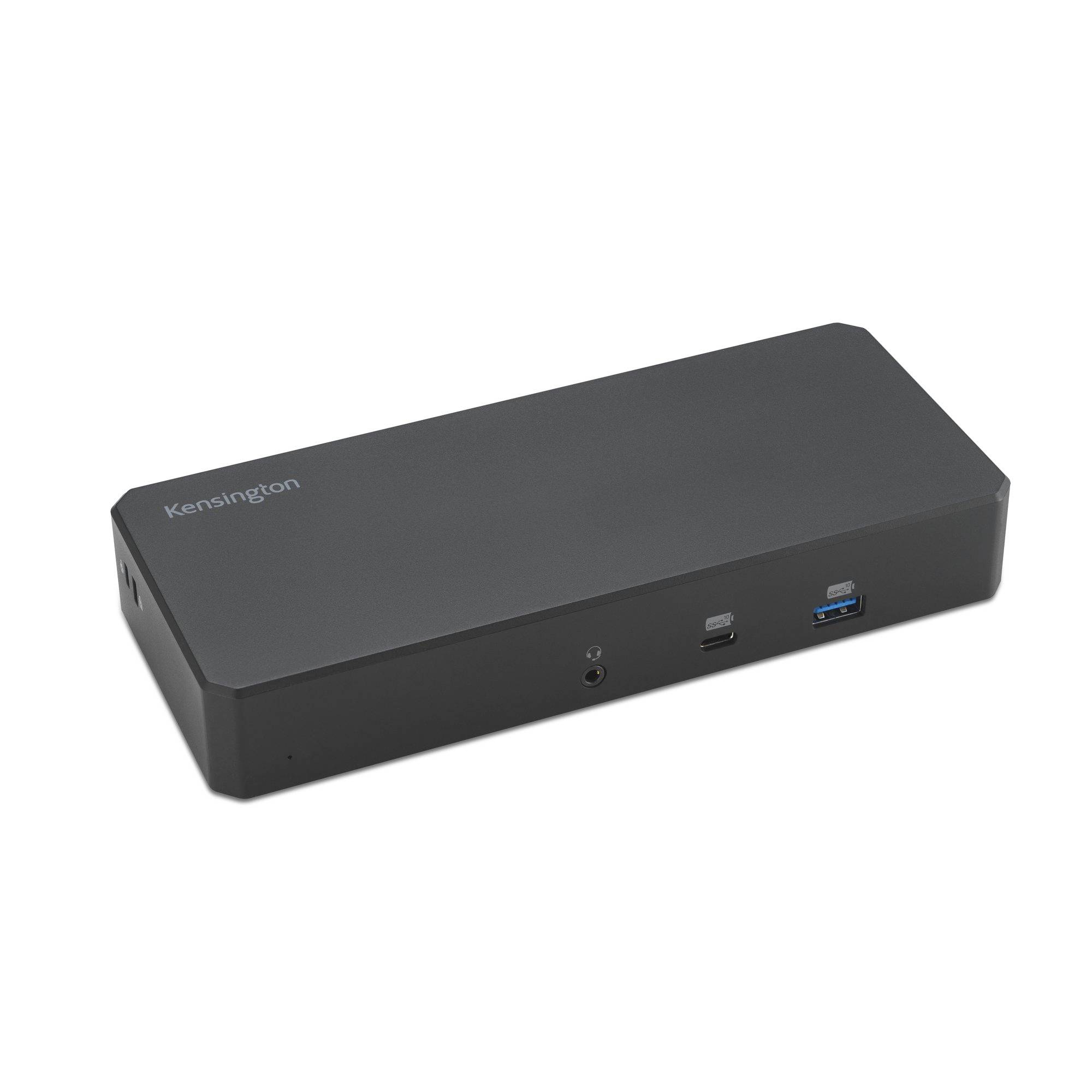

The SD4843P EQ USB-C® Triple Video Docking Station is a versatile docking station that supports Thunderbolt™ 5, Thunderbolt™ 4, USB4®, and USB-C® Alt Mode laptops with up to three external monitors. 1 x HDMI® and 2 x DisplayPort™ (DP) connectors support up to three times 4K at 30 Hz* or up to simple 8K at 30 Hz*. The SD4843P offers up to 100 W dynamic power and is equipped with KonstantCharge™, which provides power to connected accessories even when the host laptop is not docked. The 10-in-1 design features five high-speed USB 3.2 Gen2 10 Gb/s (4 x USB-A and 1 x USB-C®) ports, three video ports, one combo audio jack and one Gigabit Ethernet port**. The docking station is made of recycled materials and includes locks slots, free Kensington DockWorks™ software.
* To achieve maximum resolution, the DSC-enabled laptop, docking station, monitor, and laptop must support DSC v1.2 (Display Stream Compression).
** This docking station supports the Gigabit Ethernet standard, which offers a maximum data rate of 1 Gbps. Actual Ethernet speeds may vary, but are not limited to, depending on Internet bandwidth, Ethernet cables, network switches, and host computer hardware and firmware performance.
This text is machine translated.
* To achieve maximum resolution, the DSC-enabled laptop, docking station, monitor, and laptop must support DSC v1.2 (Display Stream Compression).
** This docking station supports the Gigabit Ethernet standard, which offers a maximum data rate of 1 Gbps. Actual Ethernet speeds may vary, but are not limited to, depending on Internet bandwidth, Ethernet cables, network switches, and host computer hardware and firmware performance.
This text is machine translated.
Features
- Supports up to three external monitors via 1 x HDMI® and 2 x DisplayPort™ (DP) connectors.* * For maximum resolution, the DSC-enabled laptop, docking station, monitor, and laptop must support all DSC v1.2.
- Plug & Play solution for Thunderbolt™ 5, Thunderbolt™ 4, USB4®, and USB-C® Alt-Mode laptops with Windows 10 or Windows 11.
- Supports dynamic power output of up to 100 watts to the host laptop and connected accessories.

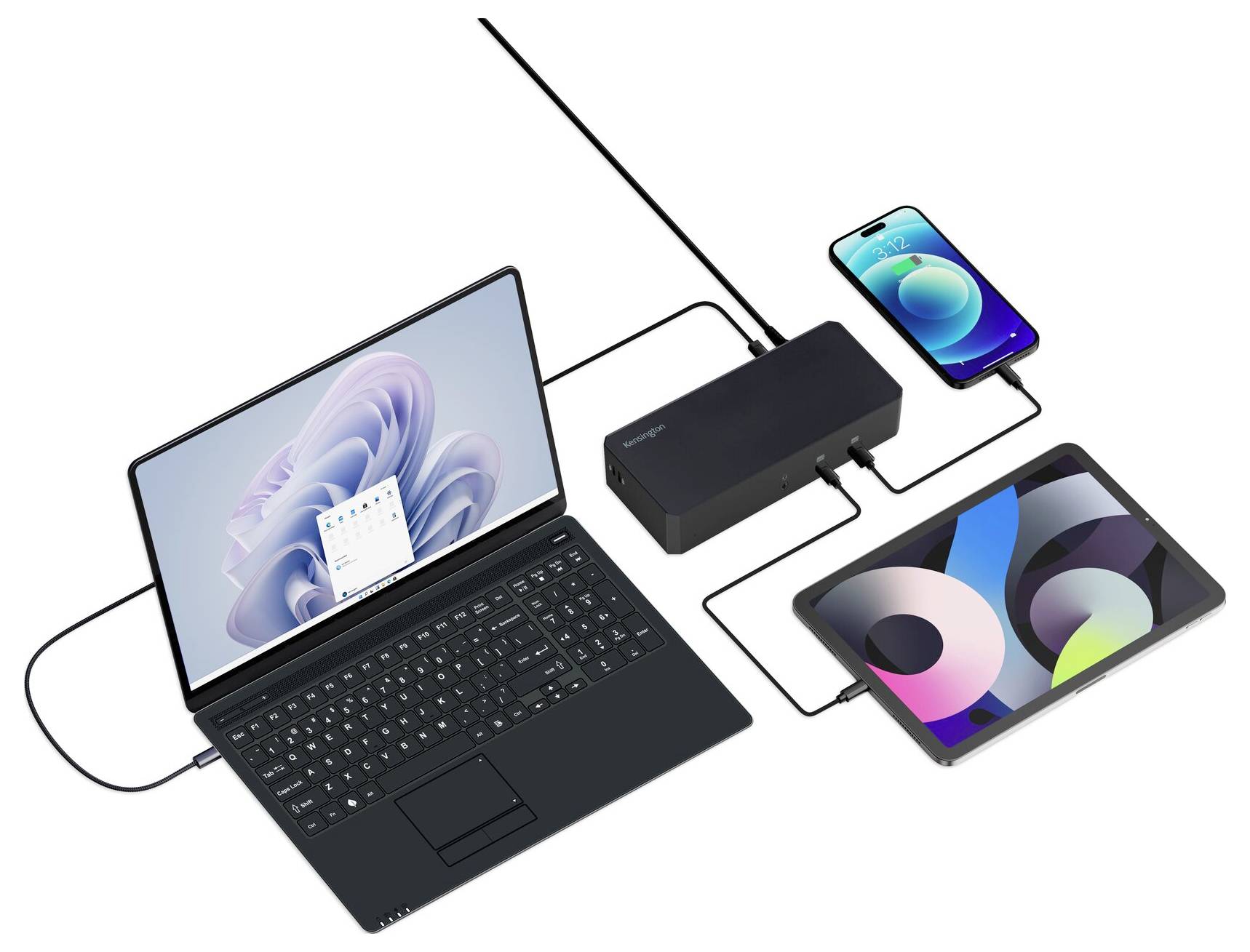

- All five high-speed USB ports are powered and continue to charge even when the host laptop is not docked.
- The 10-in-1 design offers a complete range of connections for the seamless connection of your accessories.
- The exterior housing of this docking station is 71% post consumer recycled material (PCR)* and is delivered in an FSC® certified packaging.

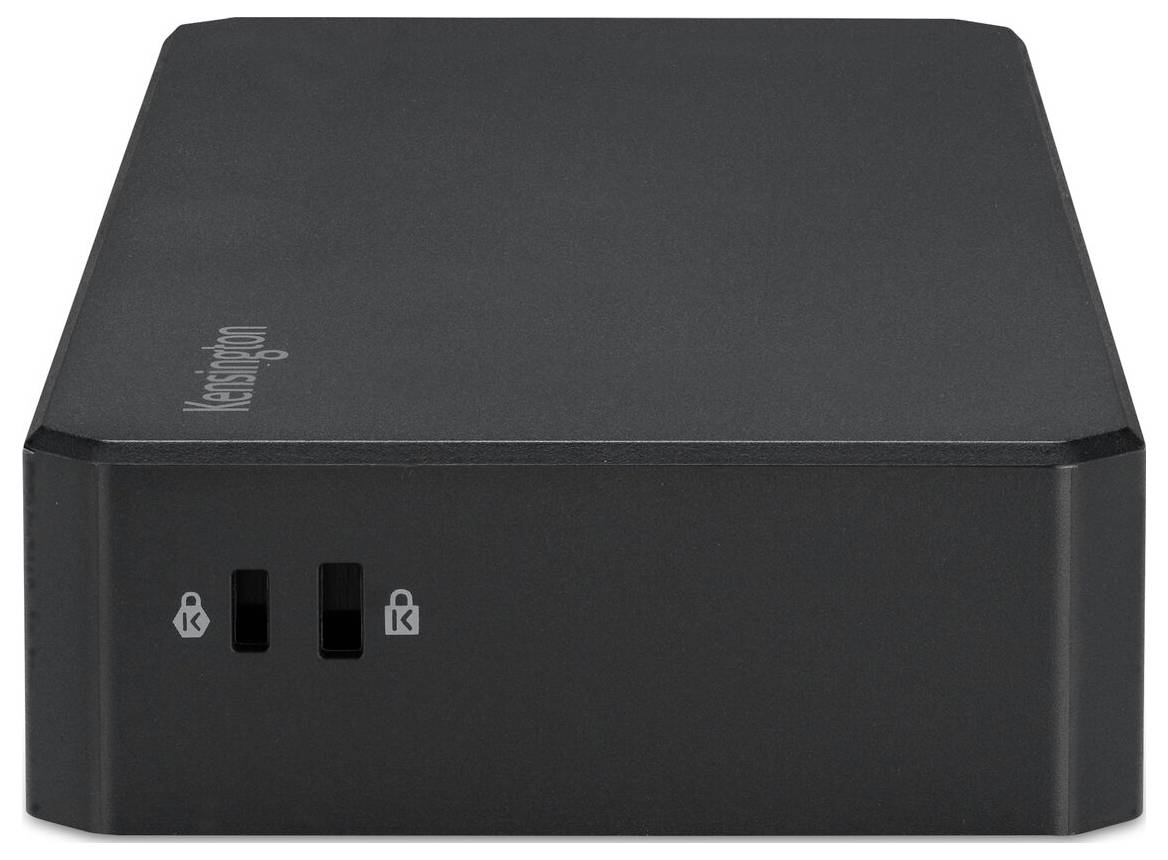

- Slots for security cable
