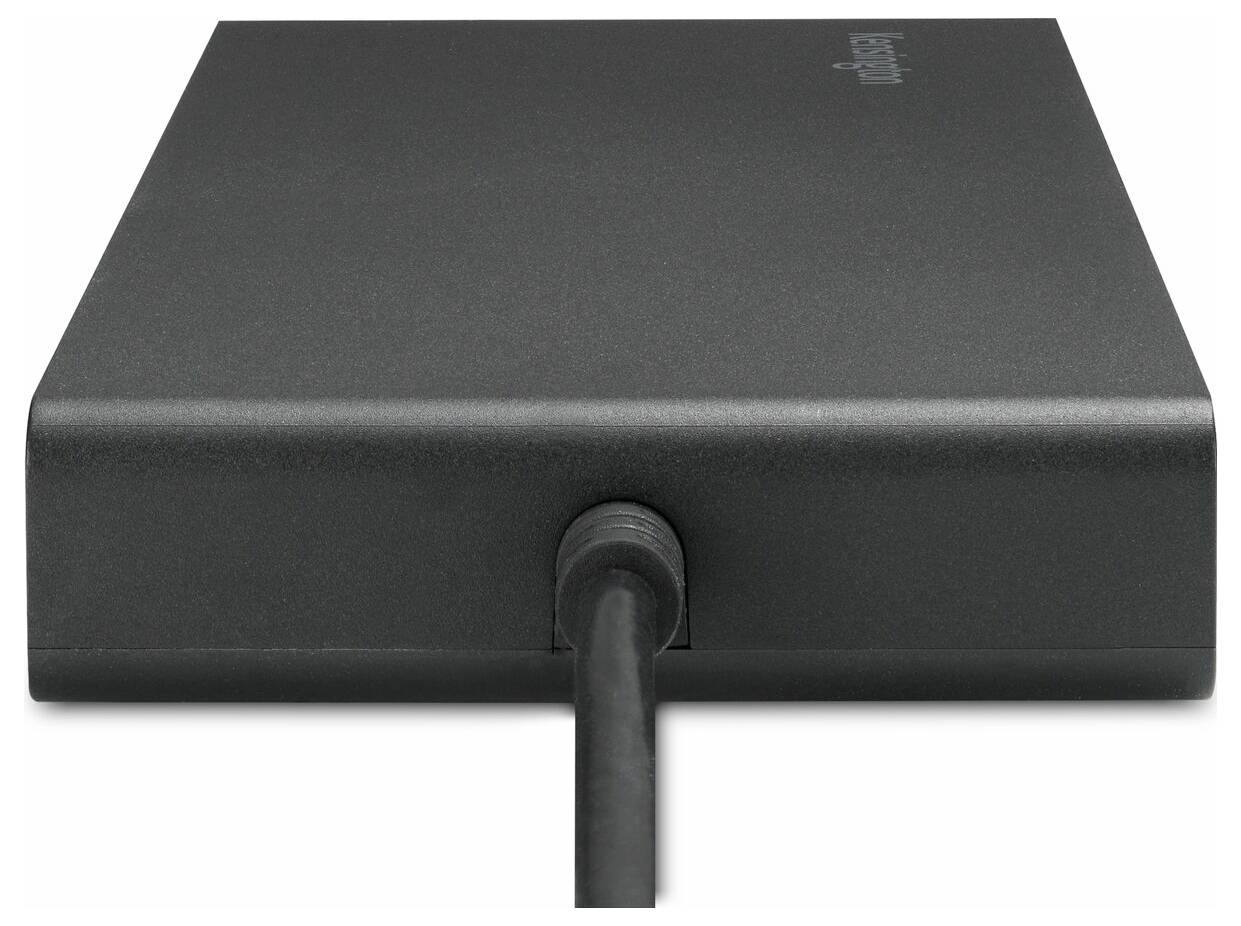

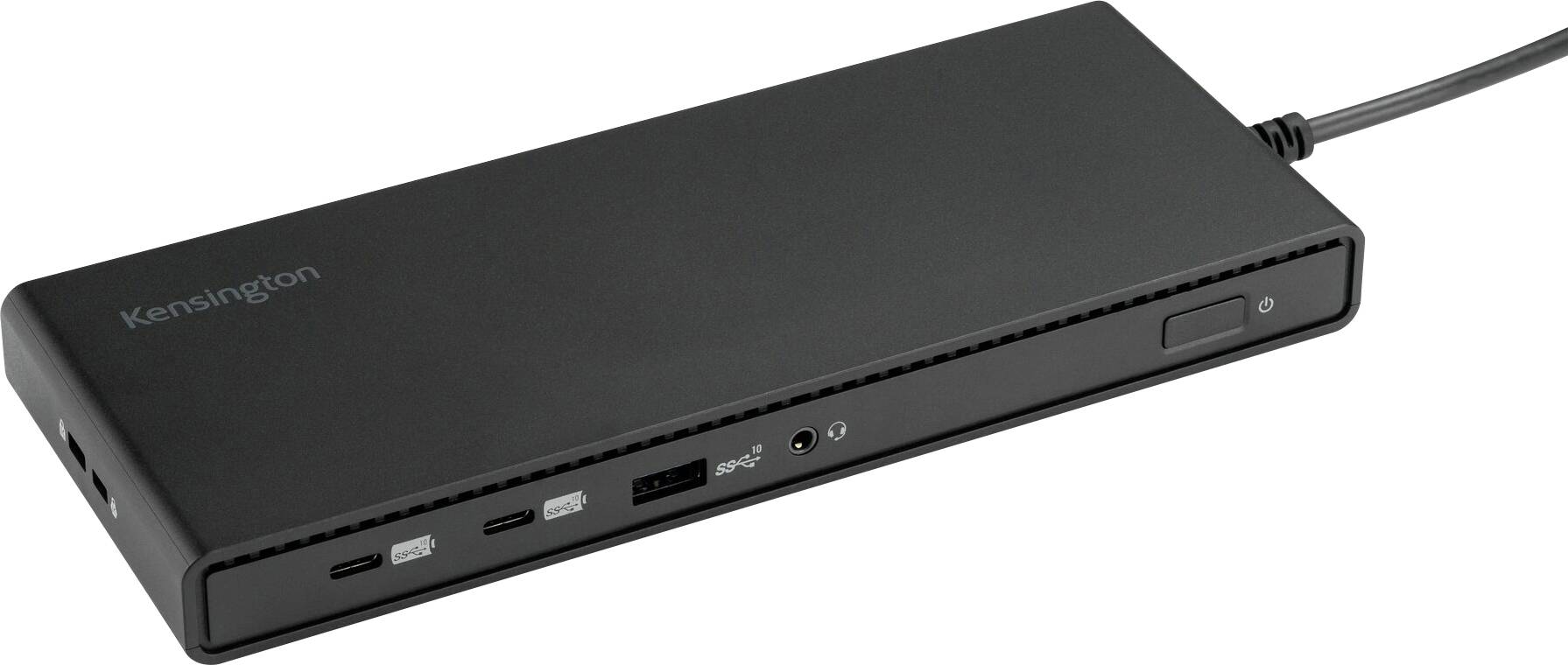

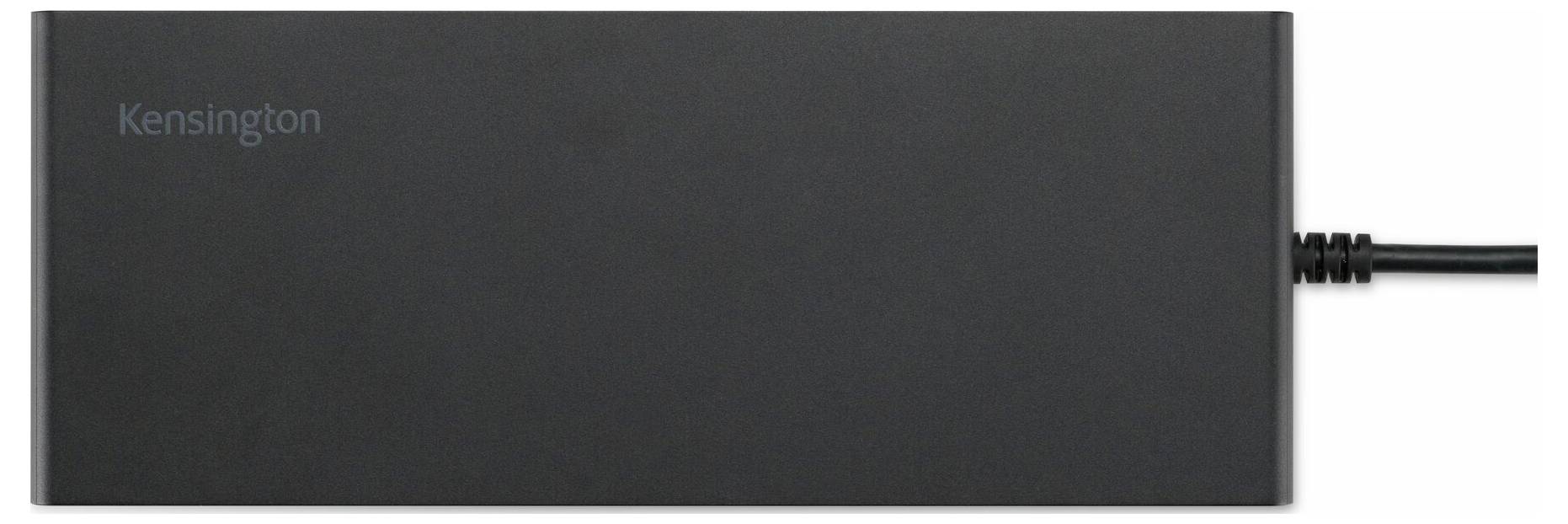

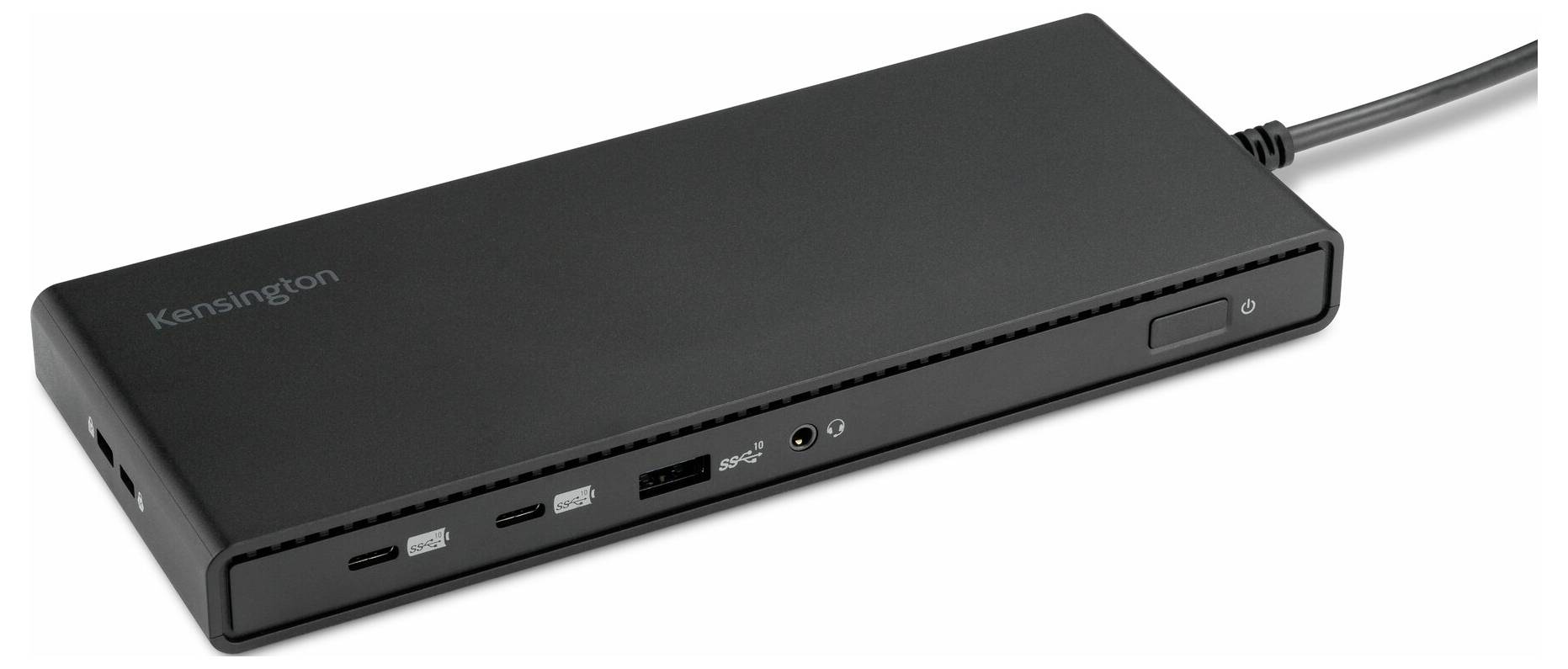

Kensington USB-C® docking station SD4842P EQ
EAN:
Part number:
Item no:
Kensington SD4842P EQ cable-connected USB 3.2 Gen 2 (3.1 Gen 2) Type C black
Highlights & Details
- Docking
- Host interface USB 3.2 1st Gen 2 (3.1 Gen 2) Type-C
- USB Power Delivery
- Ethernet / LAN 10,100,1000 Mbit / s
- Cable lock slot
- Plug & Play
- This text is machine translated.
Technical specifications
- Transmission technology: Docking
- Host interface USB 3.2 1st Gen 2 (3.1 Gen 2) Type-C
- USB 3.2 Gen 2 (3.1 Gen 2) Number of ports Type A: 3
- USB 3.2 Gen 2 (3.1 Gen 2) Number of C-type connectors: 2
- USB Power delivery: Yes
- USB Power Supply Revision: 3.0
- USB power supply up to 100 W

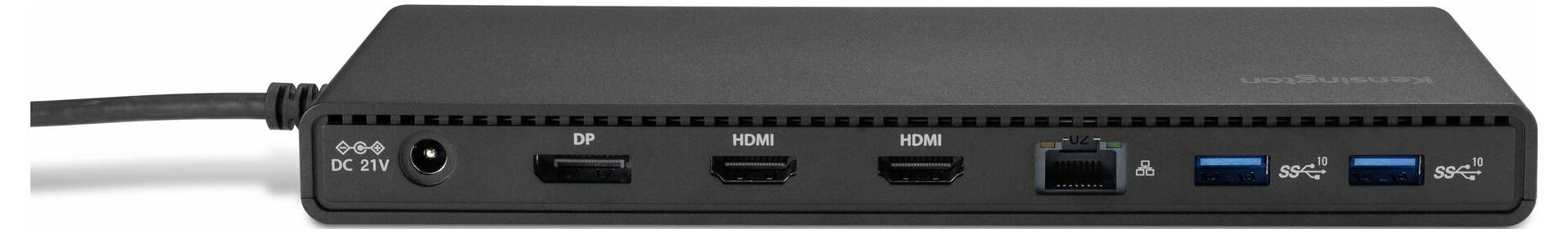

- Number of HDMI connections: 2
- HDMI version 2.1
- Number of DisplayPort connections: 1
- Display Ports Version: 1.4
- Combined headphone/microphone connection: Yes
- Headphone outputs: 1
- 3.5 mm headphone jack
- DC connection (DC): Yes
- HDCP: Yes
- USB-Type-C DisplayPort switching mode: Yes
- Ethernet/LAN: Yes
- Number of Ethernet LAN connections (RJ-45): 1
- Ethernet LAN data transfer rates of 10,100,1000 Mbit/s.
- Built-in card reader: No.
- Data transfer rate 10 Gbps
- HD type 8K Ultra HD
- Number of display supported: 3
- Maximum frame rate 120 Hz

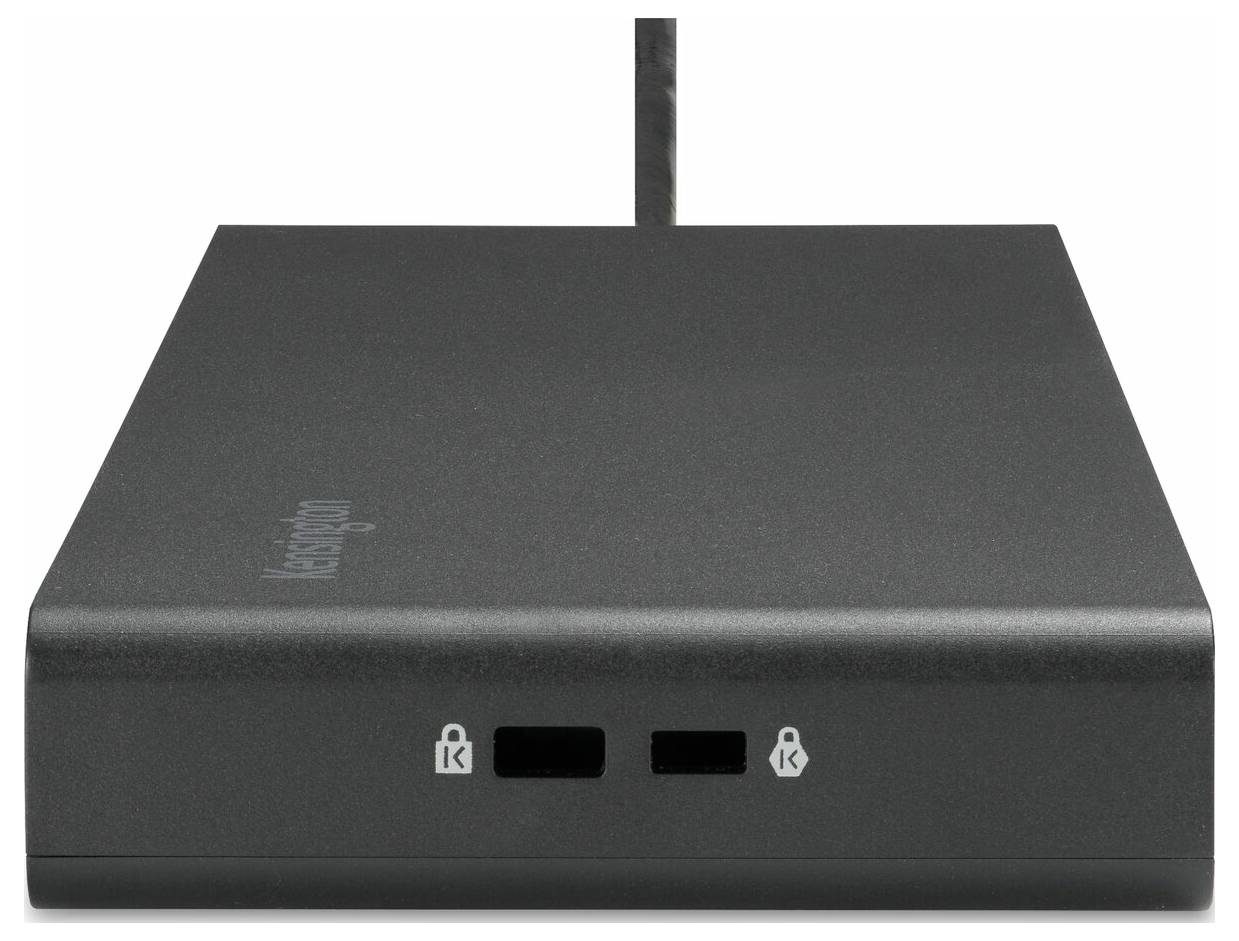

- Cable lock slot: Yes
- Slot type cable lock Kensington, Nano
- On/off switch: Yes
- LED indicators: Yes
- Plug & Play: Yes
- Housing material: Acrylonitrile-butadiene-styrene (ABS), polycarbonate (PC)
- Power source: Direct current
- AC input voltage 100 - 240 V
- Input current 2.5 A
- Output voltage 21 V
- Output current: 7.1 A
- Compatible plug types: EU, UK
- Supports Windows operating systems: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
- Operating temperature: 0 - 40 °C
- Temperature range during storage -18 - 60 °C.
- Operating relative humidity: 0 - 55%
- Sustainability Compliance: Yes
- Sustainability certificates: ERP
- Guarantee card: Yes
- Supplied cable: AC

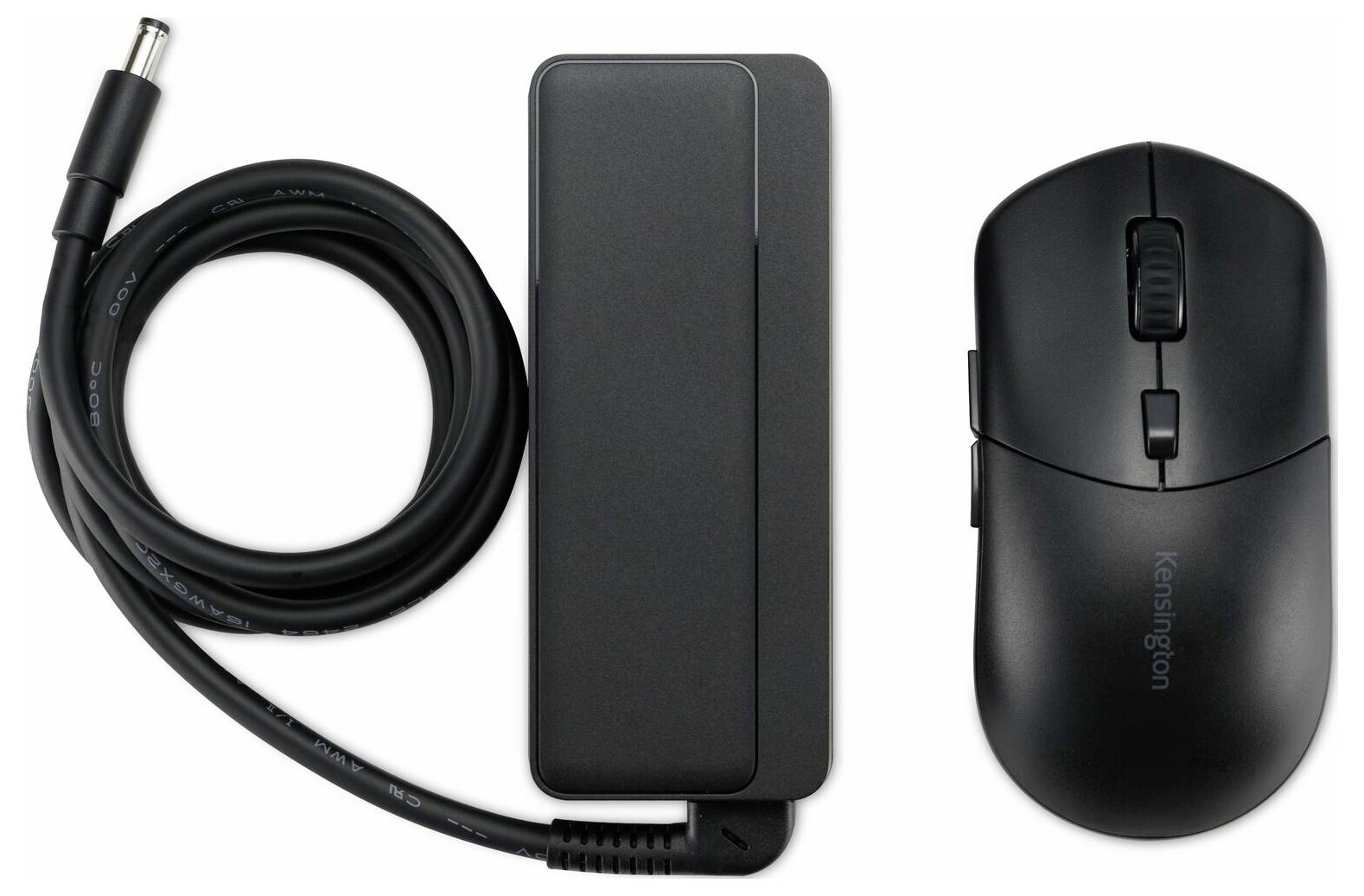

- AC mains adapter: Yes
- Quick start overview: Yes

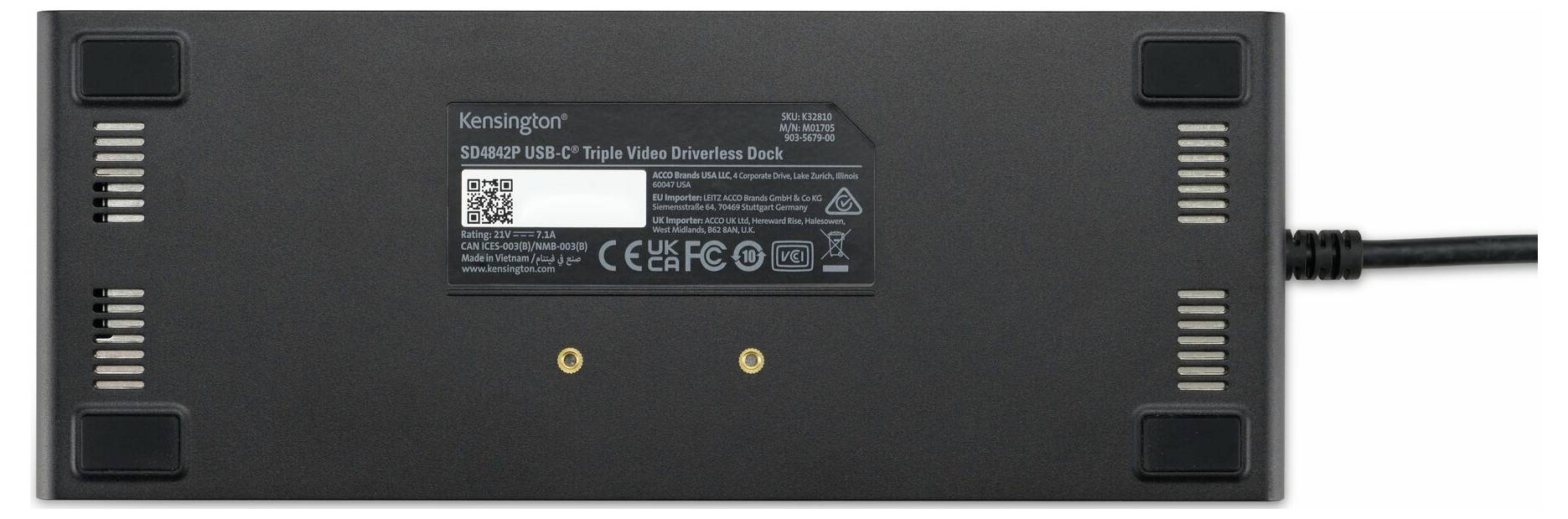

- Compliance certificates: CB, CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA, VCCI
- Number of products per shipping box: 6 pieces(s)
- Product type
USB-C® docking station
- Type A
USB
- Type B
USB
- Interfaces
3x USB 3.2 2nd Gen (USB 3.1)
- Suitable for
Notebook
- Supported monitors
3
- Cable length
0 cm
- Factory colour
Black
- Features
Charging function
- Width
195 mm
- Height
36 mm
- Depth
104 mm
- Weight
293 g
- Dim
(W x H x D) 195 x 36 x 104 mm
- Control LEDs
Yes
- Frame rate
120 Hz
- Design height
36 mm
- No. of 10 Gb LAN ports
1 x
- No. of DisplayPort
1 x
- No. of HDMI ports
2 x
- No of. USB type A 3.1 /3.2 2nd gen
3 x
- HDCP
Yes
- LAN transfer rate
1000 MBit/s
- Power supply (LOV)
mains-powered
- No. of HDMI connections
2
- Power supply (details)
100 - 240 V
- Transfer rate
10 GBit/s
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3221880 Kensington USB-C® docking station SD4842P EQ
Description
Features
- Transmission technology: Cable-bound
- Host interface USB 3.2 1st Gen 2 (3.1 Gen 2) Type-C
- USB power supply up to 100 W
- Ethernet LAN data transfer rates of 10,100,1000 Mbit/s.
- Product color: Black
- Data transfer rate 10 Gbps
- HD type 8K Ultra HD
- Power source: Direct current
- AC input voltage 100 - 240 V
- Input current 2.5 A
- Supports Windows operating systems: Windows 10
- Windows 10 Education
- Windows 10 Education x64
- Windows 10 Enterprise
- Windows 10
