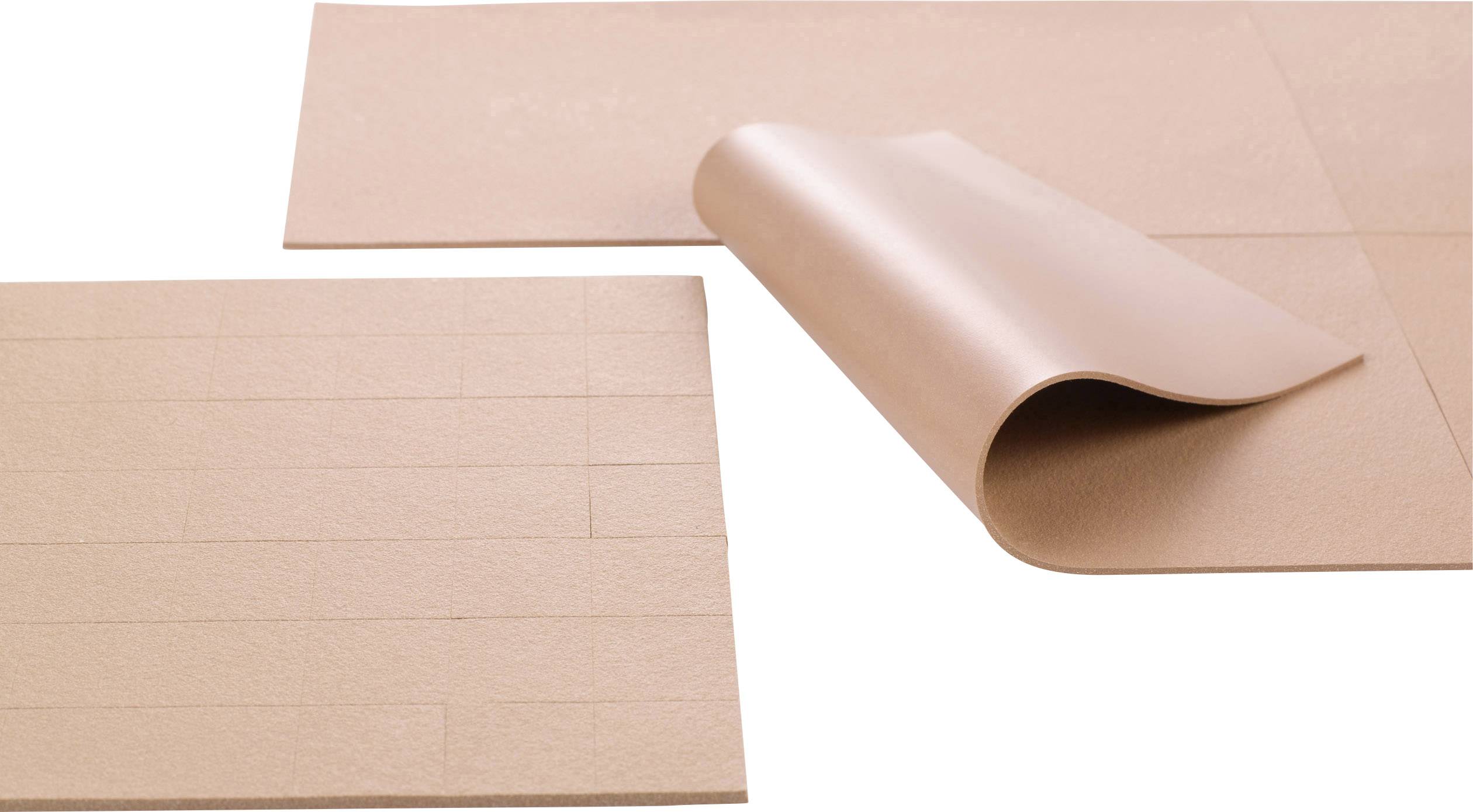

Kerafol SOFTTHERM 86/450 SOFTTHERM 86/450 Thermally conductive pad 0.5 mm 4.5 W/mK (L x W) 210 mm x 147 mm
EAN:
Part number:
Item no:
Product type
Thermally conductive pad
Thermal conductivity
4.5 W/mK
Material
Film
Material thickness
0.5 mm
Length
210 mm
Datasheet (PDF)
Highlights & Details
Thermal conductive pad Softtherm® - 86/450
- Thermal conductivity: 4.5 W/mK
Our service for you
Technical specifications
- Product type
Thermally conductive pad
- Type
SOFTTHERM 86/450
- Content
1 pc(s)
- Thermal conductivity
4.5 W/mK
- Dielectric strength
10 kV/mm
- Factory colour
Brown
- Material
Film
- Material thickness
0.5 mm
- Dim
(L x W) 210 mm x 147 mm
- Length
210 mm
- Width
147 mm
- RoHS-compliant
Yes
- Max. temperature
+180 °C
- Min. temperature
-40 °C
Documents & Downloads
Datasheet
Datasheet 1841875 Kerafol SOFTTHERM 86/450 SOFTTHERM 86/450 Thermally conductive pad 0.5 mm 4.5 W/mK (L x W) 210 mm x 147 mm
User & Safety Instructions
User & Safety Instructions 1841875 Kerafol SOFTTHERM 86/450 SOFTTHERM 86/450 Thermally conductive pad 0.5 mm 4.5 W/mK (L x W) 210 mm x 147 mm
Description
The 86/450, with its extremely high heat conductivity. The single-Film without glass fiber reinforcement is indulgent and compressible. The good dimensional stability this film ensures an orderly and automated processing.
