Name: Kern ABT 120-5DNM+C Analytical scales Calibrated to (DAkkS standards) Weight range 120 g Readability 0.00001 g, 0.0001 g
Brand: Kern
SKU: 2237308

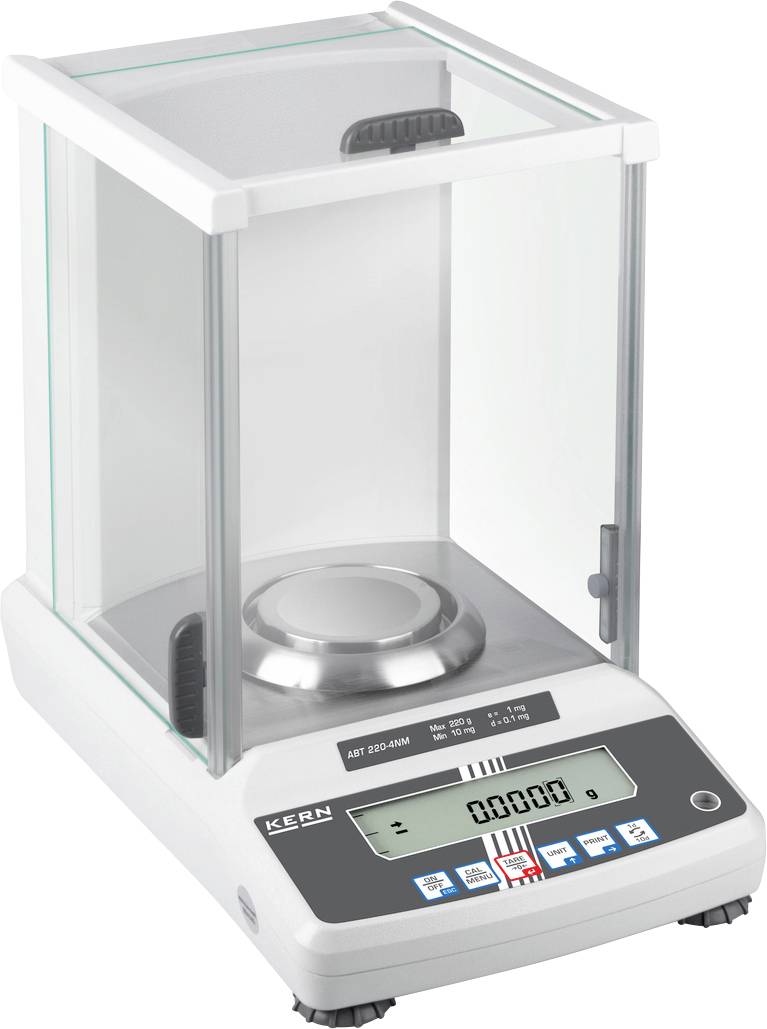

Precision balance with digital display, showing '0.0000 g'. Surrounded by a transparent chamber for accurate measurements.

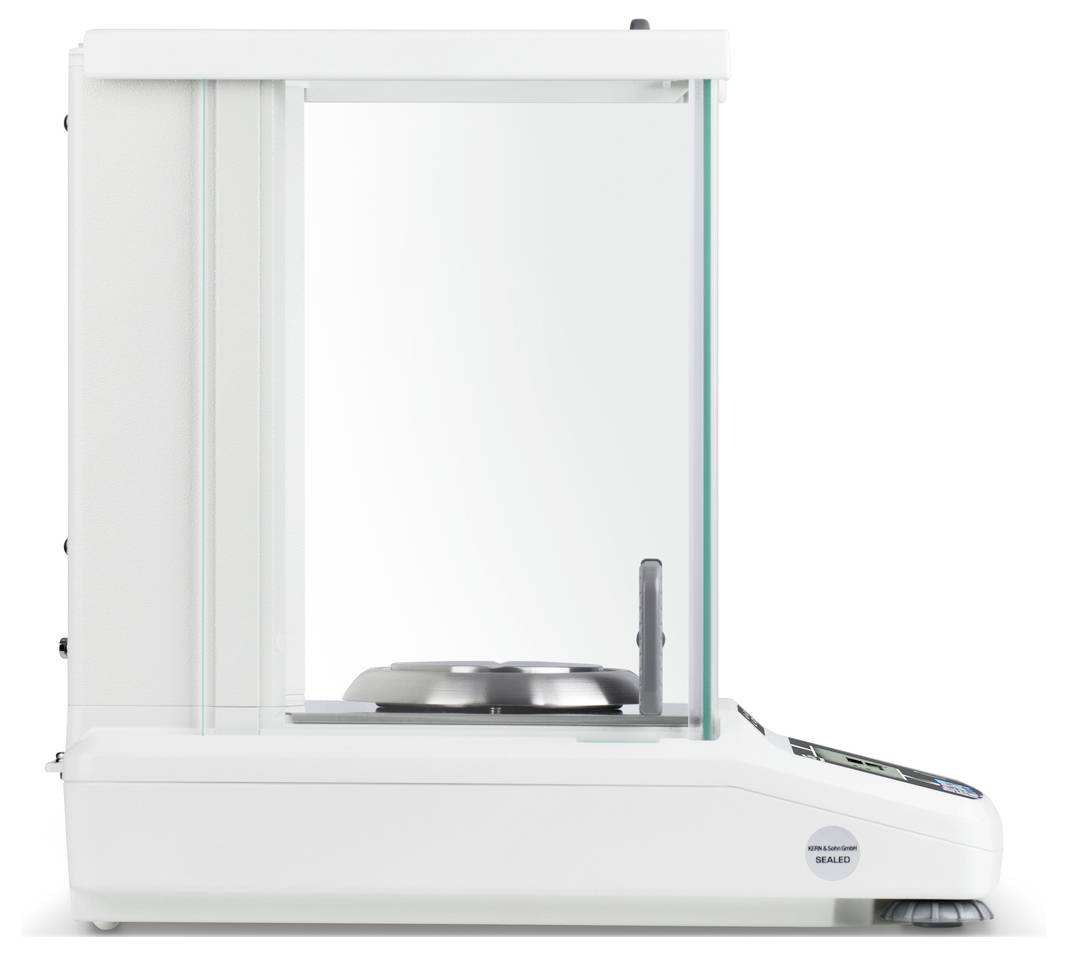

Digital laboratory balance with transparent protective housing and digital display, suitable for precise measurements in the laboratory environment.

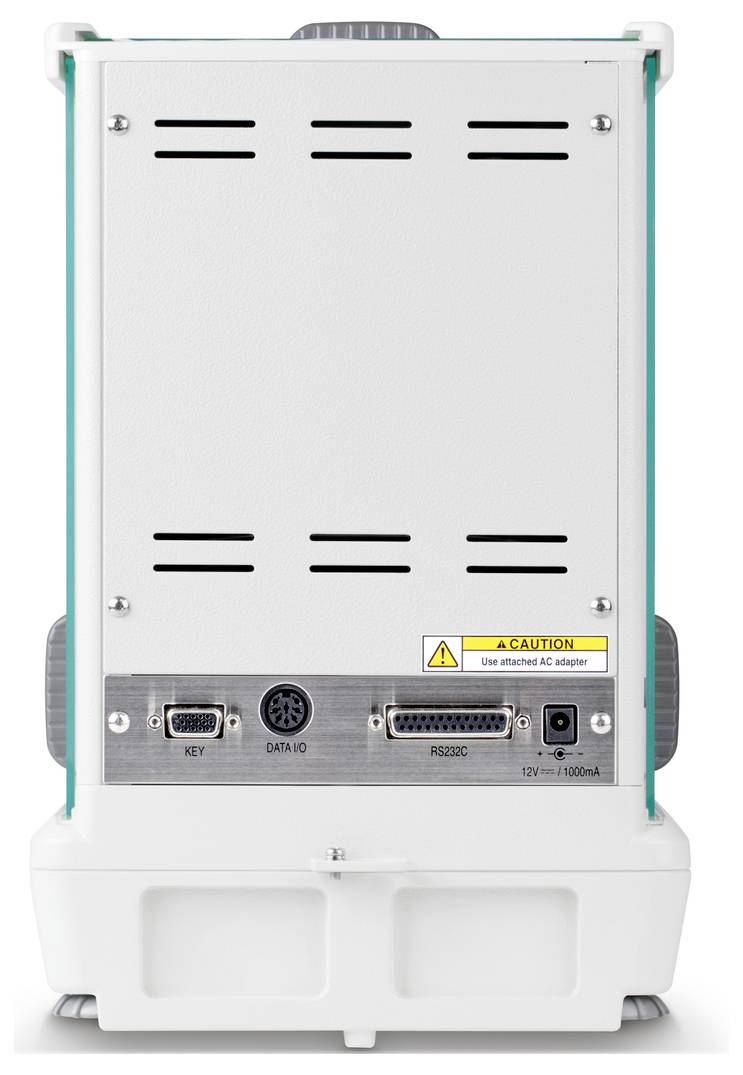

Rear view of an electronic device with various ports: KEY, DATA I/O, RS232C; note regarding the use of the correct power supply.

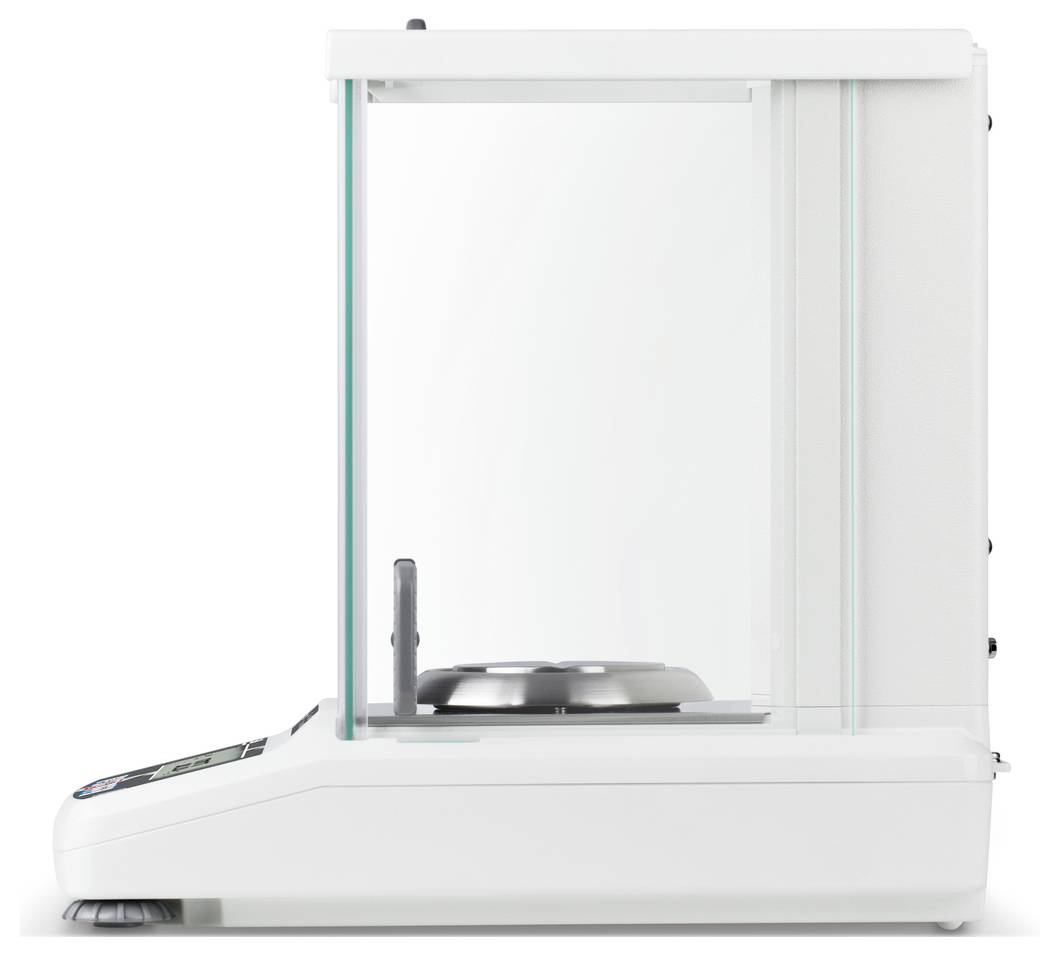

Electronic laboratory balance with glass walls, enabling precise measurements of small samples. Primarily used in scientific research.

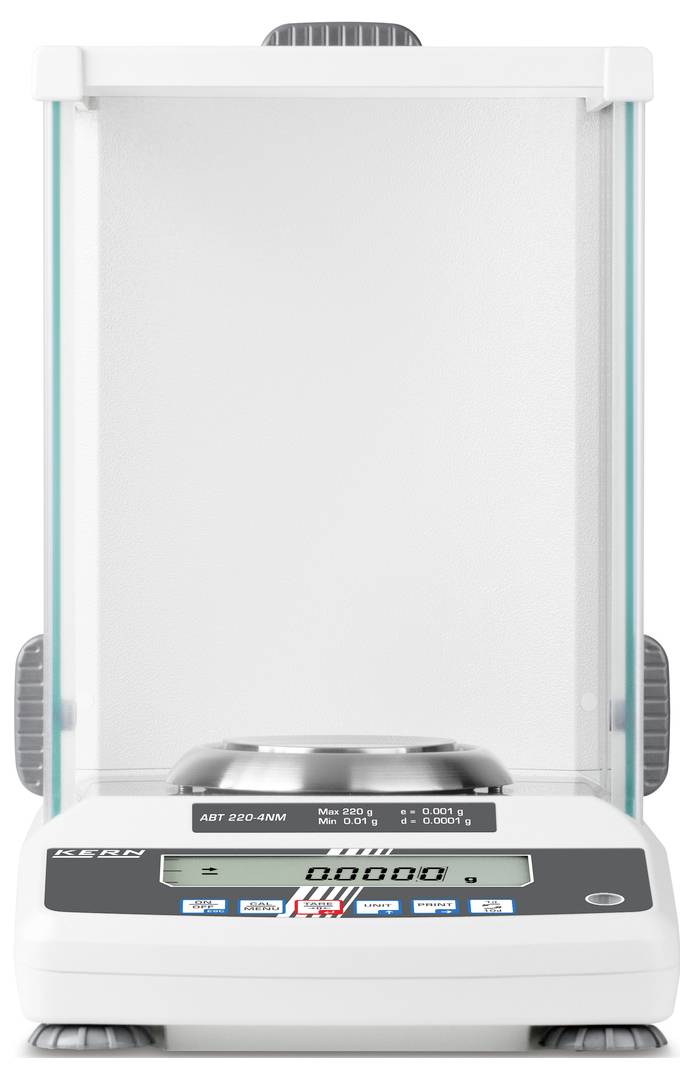

Digital precision balance with transparent casing, display and controls at the front, suitable for precise weighing in laboratory environments.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Kern ABT 120-5DNM+C Analytical scales Calibrated to (DAkkS standards) Weight range 120 g Readability 0.00001 g, 0.0001 g via PSU Multicolour

Internal adjustment mechanism for temperature changes from 0.5 °C and time-controlled every 4 hours
Dosing aid: High stability mode and other filter settings can be selected
Convenient recipe/document with combined tare/print function. In addition, the mixing components of the recipe are automatically numbered and printed out with number/weight value
Weighing identification number: 4-digit, freely programmable, is printed in the calibration protocol
Automatic data output to the PC/printer after each standstill of the scale
Single-cell top technology:
Fully automatic production of the load cell from one piece
Stable temperature behavior
Short settling time: Stable weighing values within approx. 5 seconds under laboratory conditions
High mechanical robustness
High corner load safety
This text is machine translated.

Technical specifications

Series: ABT

Weight range: 120 g

Product type: Analytical scales

Weight resolution: 0.00001 g

Readability: 0.00001 g
0.0001 g

Weighing plate dimensions: 80 mm

Load capacity: 120 g

Display: Digital

Power supply (LOV): via PSU

: DAkkS standards

Factory colour: Multicolour

Power supply (details): 220 V - 240 V AC, 50 HZ

Dim: (L x W x H) 340 x 215 x 335 mm

Weight: 8 kg

Calibratable: Yes

Calibration service: 963-101

Weighing plate: Stainless steel

Width: 215 mm

Height: 335 mm

Length: 340 mm

Reproducibility: 0.00002 g
0.0001 g

Type: ABT 120-5DNM+C

Features: Calibratable
Counting
Calibratable

Top plate (Ø): 80 mm

Documents & Downloads

Datasheet

Datasheet 2237308 Kern ABT 120-5DNM+C Analytical scales Calibrated to (DAkkS standards) Weight range 120 g Readability 0.00001 g, 0.0001 g

User & Safety Instructions

User & Safety Instructions 2237308 Kern ABT 120-5DNM+C Analytical scales Calibrated to (DAkkS standards) Weight range 120 g Readability 0.00001 g, 0.0001 g
