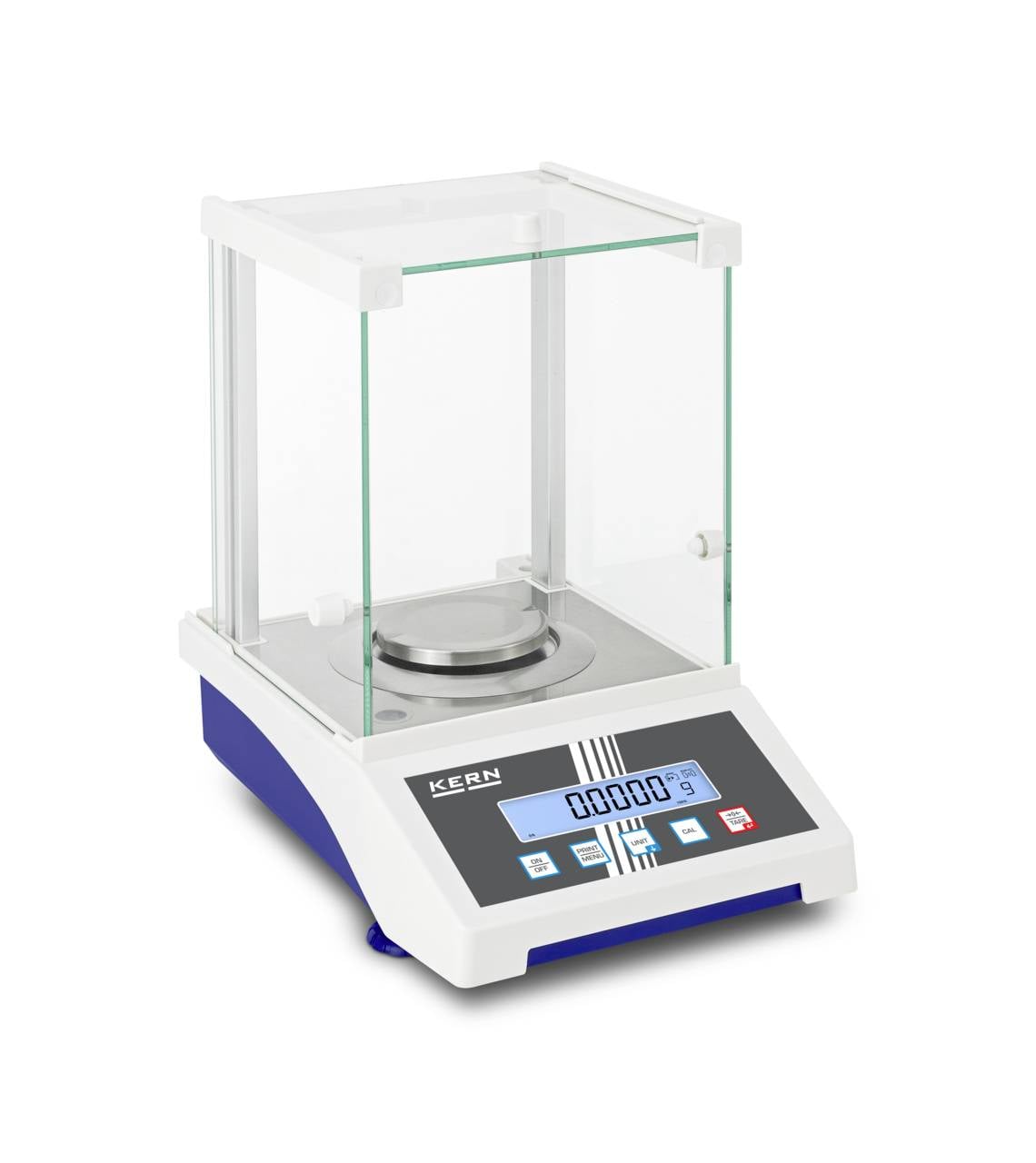

Kern AXS 100-4 Analytical scales Weight range 120 g Readability 0.0001 g via PSU
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Kern AXS 100-4 Analytical scales Weight range 120 g Readability 0.0001 g via PSU
- Entry-level analysis scale with compact casing and external adjustment
- This text is machine translated.
Technical specifications
- Reproducibility 0.0005 g
- Linearity: ± 0.0007 g
- Minimum part weight when counting parts - under laboratory conditions: 1 mg
- Minimum part weight when counting parts - under normal conditions: 10 mg
- Weighing system: Power compensation
- Start-up time 3 seconds
- Material housing: ABS plastic
- Dimensions of housing (WxDxH) 195×300×295 mm
- Material of weighing plate: Stainless steel
- Display type: LCD
- Display digit height: 16 mm
- Units: G; mg; ct; oz
- Supplied power supply: Power supply
- Input voltage power supply/current [Max]: 100 V - 240 V AC, 50 / 60 Hz
- Mains power supply/adapter for countries - included in delivery: EURO,UK,US,CH
- Mains power supply/adapter for countries - Optional: EURO,UK,US,CH
- Wall power supply type: Wall power supply
- Power supply included: Yes / No: Yes
- Battery included: Yes / No: No.
- Battery included: Yes / No: No.
- Interfaces: RS-232 standard
- Series
AXE
- Weight range
120 g
- Product type
Analytical scales
- Readability
0.0001 g
- Power supply (LOV)
via PSU
Manufacturer's standards (no certificate)
- Weight
5000 g
- Weighing plate
Stainless steel
- Type
AXS 100-4
- Top plate (Ø)
80 mm
- Enclosure material
ABS plastic
- Max. ambient temperature
25 °C
- Min. ambient temperature
15 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3776593 Kern AXS 100-4 Analytical scales Weight range 120 g Readability 0.0001 g via PSU
User & Safety Instructions
User & Safety Instructions 3776593 Kern AXS 100-4 Analytical scales Weight range 120 g Readability 0.0001 g via PSU
Information
Information 3776593 Kern AXS 100-4 Analytical scales Weight range 120 g Readability 0.0001 g via PSU
Description
Features
- Very fast display: Robust weighing values within ca. 3 s.
- Calibration program CAL for adjustment of the accuracy, external test weights for additional price
- Easy and convenient 5-button operation
- Large glass windguard, standard, weighing room B×T×H 175×150×205 mm
- Main areas of application:
- - Jewelry industry
- - Quality laboratories
- - Schools and universities ;
