Kern BXC 600K-1SM Platform scales BXC 600K-1SM Weight range 600 kg Readability 200 g via PSU
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

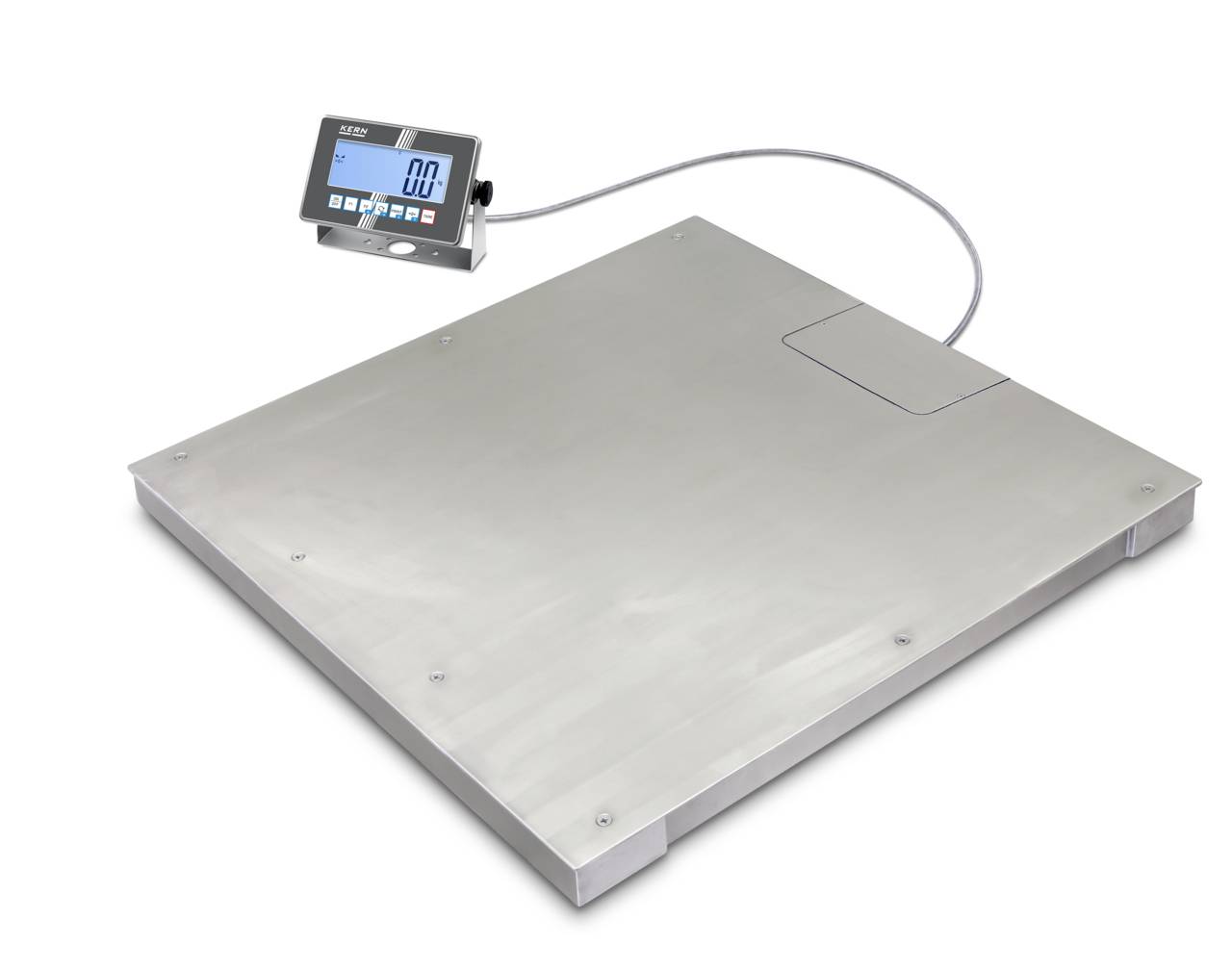

IoT line floor scales Kern BXC 600K-1SM
- Stainless steel floor scales with screw-on weighing plate (IP67) and stainless steel evaluation unit (IP68), optionally with calibration
- This text is machine translated.
Technical specifications
- Calibration value [e]: 0.2 kg
- Class of calibration / accuracy class III.
- Minimum weight [Min]: 4 kg
- Reproducibility 0.2 kg
- Linearity: ± 0.6 kg
- Minimum part weight when counting parts - under laboratory conditions: 200 g.
- Minimum part weight when counting parts - under normal conditions: 2 kg
- Weighing system: Stretch measurement strips
- Start-up time 3 seconds
- Material of weighing plate: Stainless steel
- Weighing platform dimensions (WxTxH) 1000×1000×85 mm
- Display type: LCD
- Display digit height: 48 mm
- Units: Kg; g; FFA; PCS; %
- Supplied power supply: Power supply
- Li-Ion rechargeable battery type
- Battery optional: Battery optional - internal
- Battery charging time 8 h
- Battery life - backlight on 11 hours
- Battery life - backlight off: 22 hours
- Auto-off interval(s) in battery/rechargeable battery mode: 5 min,2 min,1 min,30 min,60 min,30 sec.
- Battery: No battery
- Input voltage power supply/current [Max]: 110 V - 240 V AC
- Plug-in power supply/adapter for countries – included in delivery: EURO
- Plug-in power supply type: Built-in power supply
- Power supply included: Yes / No: Yes
- Battery included: Yes / No: No.
- Battery included: Yes / No: No.
- Interfaces: RS-232 (optional, factory),Ethernet (optional, factory),WLAN (optional, factory),Alibi memory (optional, factory),analogue (0 - 10 V) (optional, factory),analog (4 - 20 mA) (optional, factory),Bluetooth BLE (v4.0) (optional, factory),USB device (optional, factory)
- Load cell connection: 6-conductor
- Weight range
600 kg
- Product type
Platform scales
- Readability
200 g
- Display
Digital
- Power supply (LOV)
via PSU
Manufacturer's standards (no certificate)
- Dim
(L x W x H) 1000 x 1000 x 85 mm
- Weight
100000 g
- Weight resolution
200 g
- Calibratable
Yes
- Weighing plate
Stainless steel
- Width
1000 mm
- Height
85 mm
- Length
1000 mm
- Reproducibility
0.2 kg
- Type
BXC 600K-1SM
- Features
Calibratable
- Top plate (width)
1000 mm
- Top plate (length)
1000 mm
- Series
BXC
- Accuracy class
III
- Max. ambient temperature
40 °C
- Min. ambient temperature
-10 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3776605 Kern BXC 600K-1SM Platform scales BXC 600K-1SM Weight range 600 kg Readability 200 g via PSU
User & Safety Instructions
User & Safety Instructions 3776605 Kern BXC 600K-1SM Platform scales BXC 600K-1SM Weight range 600 kg Readability 200 g via PSU
Information
Information 3776605 Kern BXC 600K-1SM Platform scales BXC 600K-1SM Weight range 600 kg Readability 200 g via PSU
Description
Features
- Heavy industry standard suitable for rough use
- Weighing plate screwed down from above with stainless steel screws, thereby easy to remove and hygienic and easy to clean
- Weighing bridge: Stainless steel, extremely bending-resistant thanks to high material thickness, 4 hermetically sealed stainless steel load cells, dust and splash-water protection IP68
- Convenient leveling of the weighing bridge as well as access to the junction box from above
- Evaluation device: Stainless steel, dust and splash-protection IP68, for details see Kern KXC-TM
- IoT Line: Connectable scale with a comfortable operating philosophy
- Industry 4.0: Exchange of data and control commands optionally via up to four interfaces according to individual requirements: Two wired and two radio interfaces, for details see Kern KXC-TM
- Optionally with Alibi storage for paperless archiving of the weighing results. This means that the results of the calibrated weighing can also be electronically evaluated and processed in accordance with the regulations
- Table stand including wall bracket for serial evaluation unit;
