Kern Chair scales MCF 300K-1M Weight range 300 kg
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

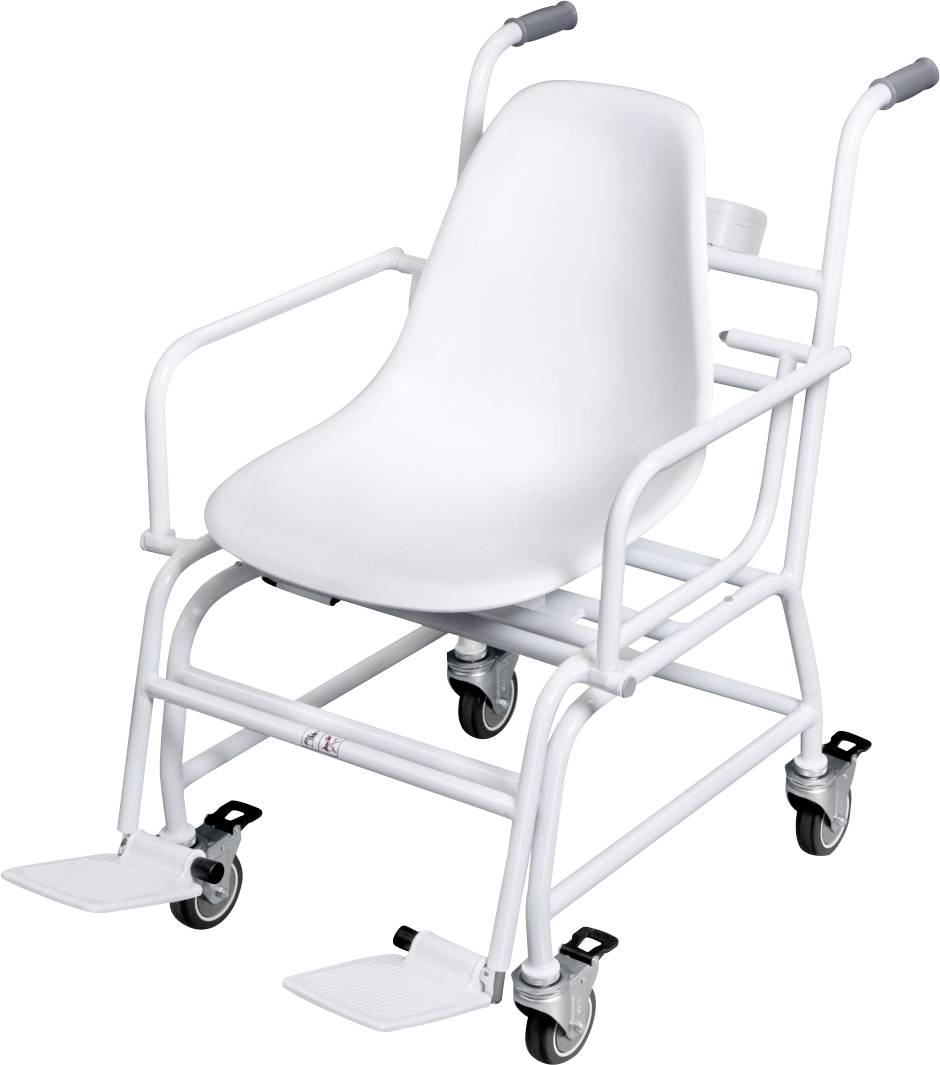

Chair scales Kern MCF 300K-1M
- Mobile chair scales with four steered wheels for medical diagnostics, optionally with calibration
- This text is machine translated.
Technical specifications
- Weight range
300 kg
- Product type
Chair scales
Manufacturer's standards (no certificate)
- Dim
(W x H x D) 647 x 910 x 860 mm
- Weight
21.55 kg
- Weight resolution
0.1 kg
- Calibratable
Yes
- Width
647 mm
- Height
910 mm
- Type
MCF 300K-1M
- Features
Incl. Bluetooth
- Top plate (width)
465 mm
- Top plate (length)
530 mm
- Cable length
1.80 m
- Depth
860 mm
- Enclosure material
ABS plastic
- Series
MCF
- Max. ambient temperature
40 °C
- Min. ambient temperature
10 °C
Documents & Downloads
Datasheet
Datasheet 3702175 Kern Chair scales MCF 300K-1M Weight range 300 kg
User & Safety Instructions
User & Safety Instructions 3702175 Kern Chair scales MCF 300K-1M Weight range 300 kg
Information
Information 3702175 Kern Chair scales MCF 300K-1M Weight range 300 kg
Description
Features
- Calibration class III (optional)
- Medical approval according to VO (EU) 2017/745
- Thanks to the integrated WLAN interface, this model is ready for wireless transmission of weight values directly into the digital patient chart. This eliminates any documentation or transmission errors that may occur during manual data transfer. With this technology, this model can be integrated into existing or future EMR and EHR systems, and ensures the future viability of your investment
- Kern universal port (KUP): Allows the connection of external KUP interface adapters, such as RS-232, USB, Bluetooth, WLAN or Ethernet, for the exchange of data and control commands, without installation effort
- This networked chair scale is the ideal measuring instrument for clinics, medical practices, nursing homes and rehabilitation centers with Hohem patient volume, including weighing in the obese area

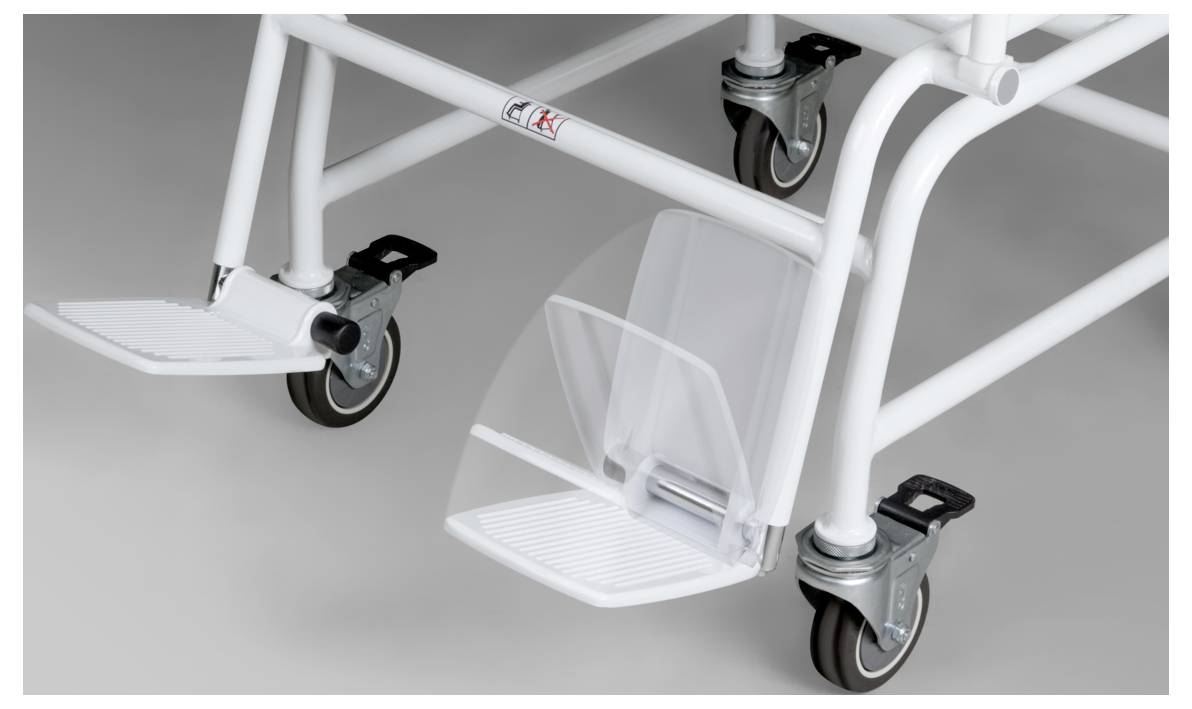

- Mobile design with particularly comfortable parking brakes on all four wheels
- With its four wheels, this chair scale ensures maximum mobility when moving to the patient. This results in a higher time efficiency for clinicians and improved patient safety that can be weighed in their usual environment

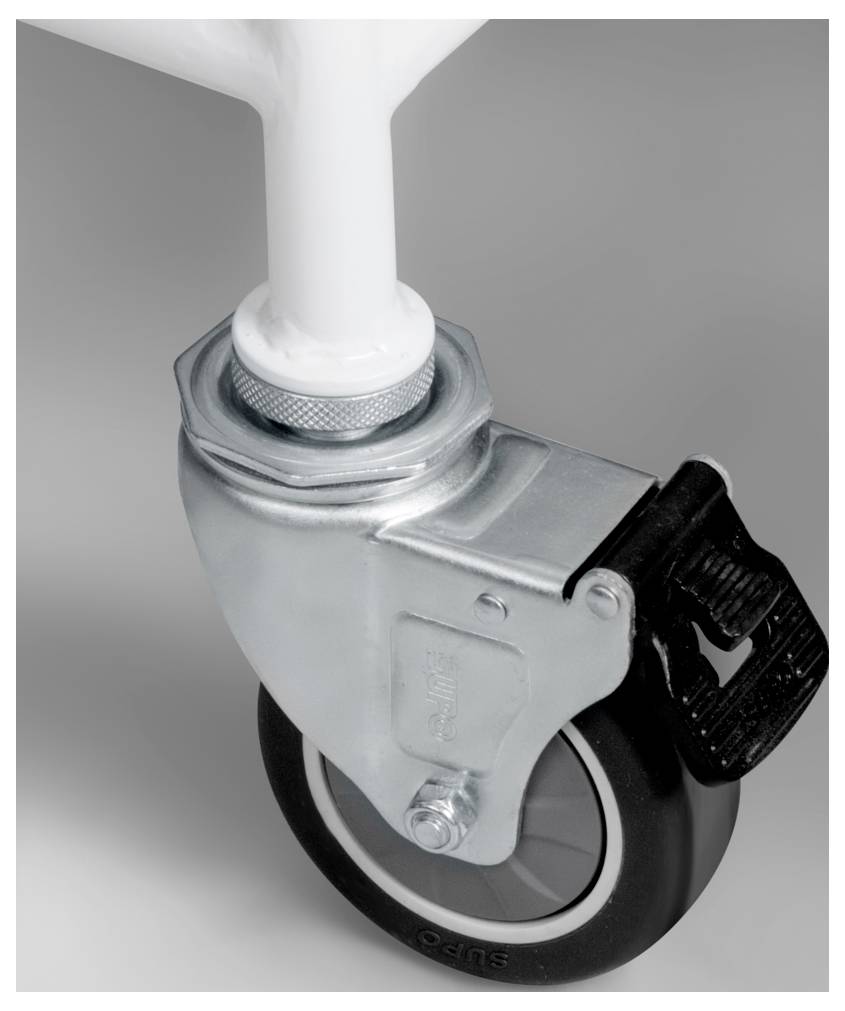

- The four steerable rollers allow a comfortable crossing of door sleepers, edges and gaps of passenger elevators, thanks to their large cross-section
- For fragile patients, the comfortable, ergonomically optimized seat shell provides secure support during weighing

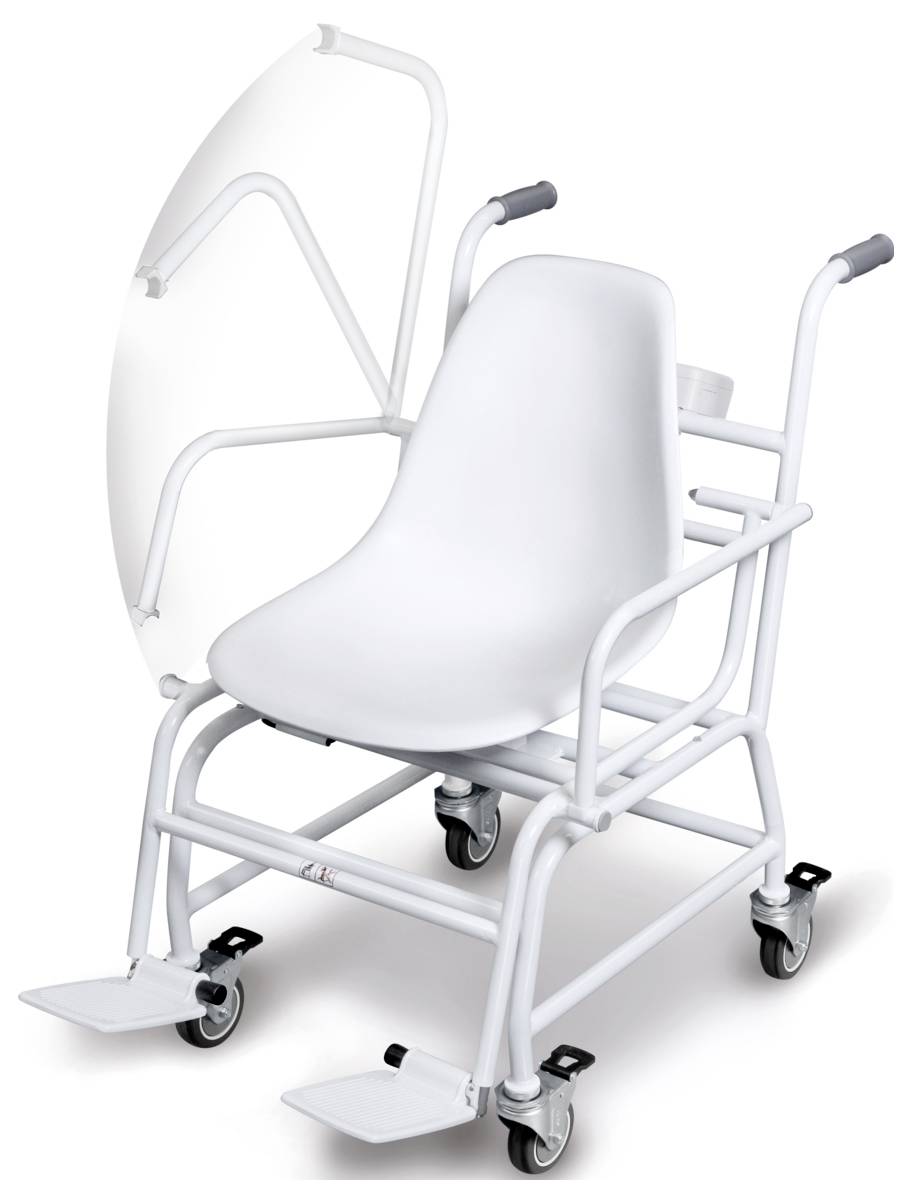

- Two fold-down armrests and foot rests make it easy to seat. Ideal for overweight patients or for barrier-free transfer, for example from bed to chair scales
- Hold function: In the case of unstable patients, a stable weighing value is determined and "frozen" by means of mean value formation. This leaves enough time to devote to the patient and then read off the weighing value
- BMI function for determining the low weight/normal weight/excess weight
- Battery and mains operation possible, battery operation optional;
