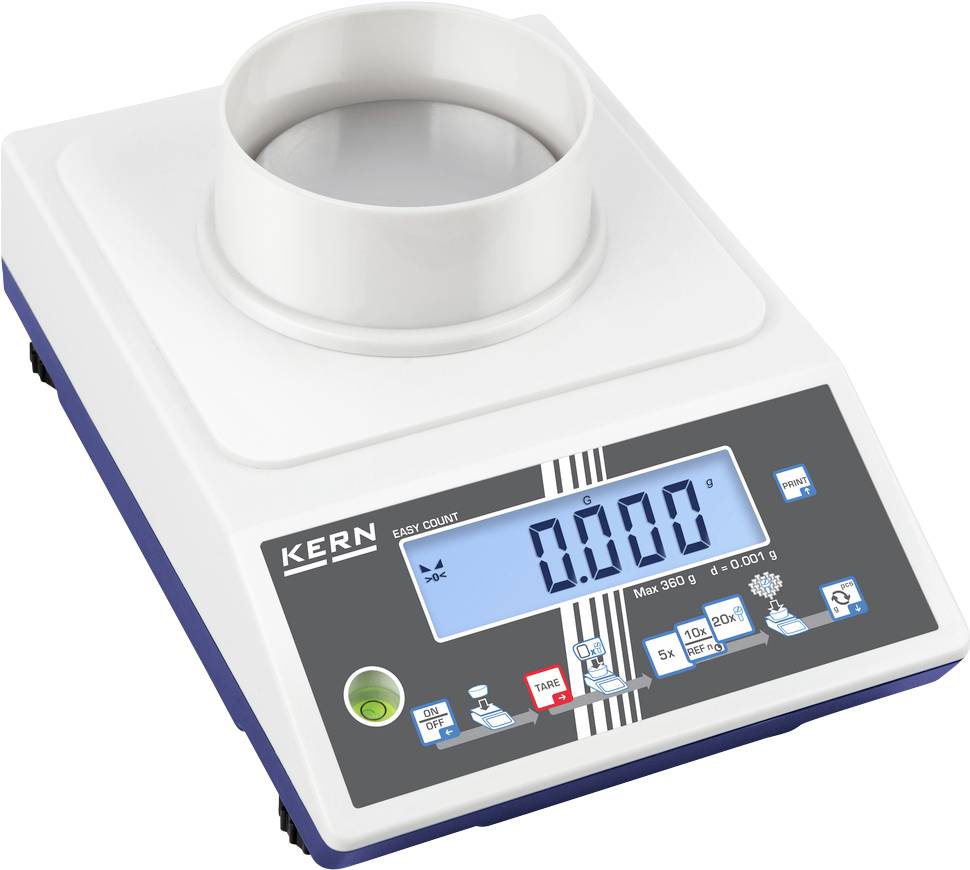

Kern CKE 360-3 Counting scales CKE 360-3 Weight range 360 g Readability 1 mg via PSU Light grey (semi-gloss)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Counting scales max 360 g; d=0.001 g
- Self-explanatory graphics-supported control panelPrecise countingTwo scales in oneWork protection hood
Technical specifications
- Weight range
360 g
- Product type
Counting scales
- Readability
1 mg
- Display
Digital
- Power supply (LOV)
via PSU
Manufacturer's standards (no certificate)
- Factory colour
Light grey (semi-gloss)
- Dim
(L x W x H) 65 x 163 x 65 mm
- Weight
0.85 kg
- Weight resolution
1 mg
- Calibratable
No
- Weighing plate
Plastic
- Width
163 mm
- Height
65 mm
- Length
65 mm
- Reproducibility
0.001 g
- Type
CKE 360-3
- Features
Counting
Calibratable
- Top plate (width)
90 mm
- Top plate (length)
90 mm
- Top plate (Ø)
82 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2758352 Kern CKE 360-3 Counting scales CKE 360-3 Weight range 360 g Readability 1 mg via PSU Light grey (semi-gloss)
User & Safety Instructions
User & Safety Instructions 2758352 Kern CKE 360-3 Counting scales CKE 360-3 Weight range 360 g Readability 1 mg via PSU Light grey (semi-gloss)
Information
Information 2758352 Kern CKE 360-3 Counting scales CKE 360-3 Weight range 360 g Readability 1 mg via PSU Light grey (semi-gloss)
Description

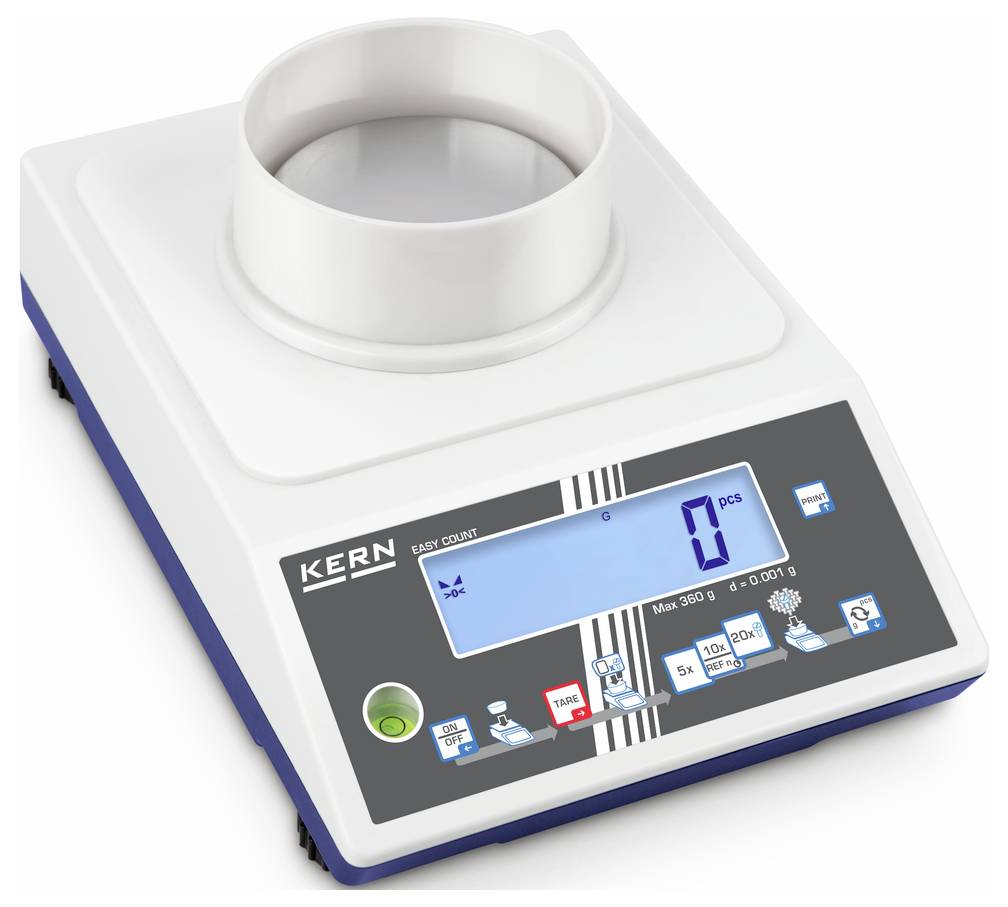

Easy-to-understand, graphic-supported control panel, straightforward procedure of the work steps even without operating instructions. Visualized procedure avoids operating errors, the 4 work steps are carried out from left to right. Place the empty container onto the weighing plate and trench by pressing a button (TARE). Fill the reference number of the count quantity into the container (5, 10 or 20 pieces). Confirm the selected reference number by pressing the button (5, 10 or 20). Fill the tank with the amount of count. The number of items is shown directly on the display. Precise counting: Automatic reference optimization gradually improves the average value of the part weight. Kern universal port (KUP): Permits the connection of external KUP interface adapter, such as B. RS-232, USB, Bluetooth or Ethernet, for exchanging data and control commands, without any installation effort. Kern communication protocol (KCP): The KCP allows the querying and remote control of the scale via external control devices or computers. Uniform, simplified operating philosophy.A safety cover over the evaluation device is included in the delivery.
This text is machine translated.
This text is machine translated.
Features
- Weighing range 360 g.Readability 0,001 g
