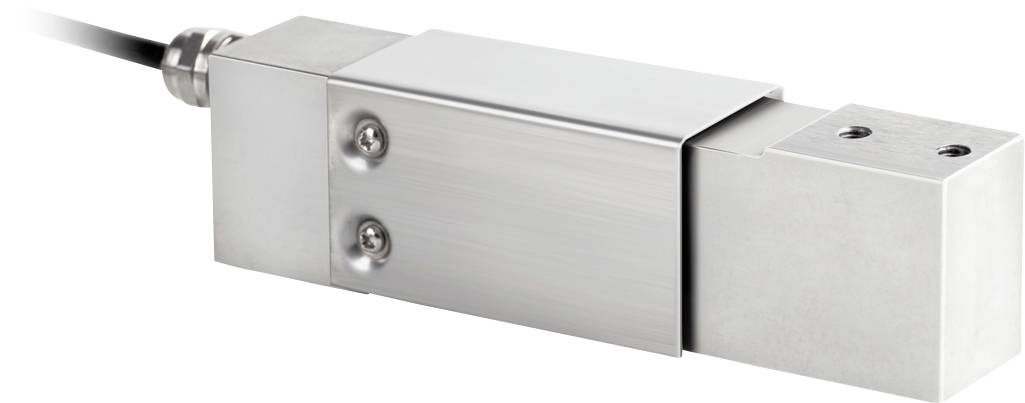

Kern CP 30-3P7 Load cell CP 30-3P7, OIML class C3, weighing range 30 kg
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Weighing range (max.): 30 kg
- Product type
Load cell
- Dim
(W x H x D) 150 x 40 x 25.4 mm
- Calibratable
No
- Weighing plate
Stainless steel
- Height
40 mm
- Depth
25.4 mm
- Width
150 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2498306 Kern CP 30-3P7 Load cell CP 30-3P7, OIML class C3, weighing range 30 kg
User & Safety Instructions
User & Safety Instructions 2498306 Kern CP 30-3P7 Load cell CP 30-3P7, OIML class C3, weighing range 30 kg
Information
Information 2498306 Kern CP 30-3P7 Load cell CP 30-3P7, OIML class C3, weighing range 30 kg
Description
Features
- Accuracy according to OIML R60 C3
- RoHS compliant
- Dust and splash protection IP67 (according to EN 60529)
- Stainless steel
- Application area: Weight and pressure force measurements under harsh environmental conditions
- suitable for price-calculating scales, table scales, platform scales, etc.
- Maximum platform size 400x400 mm 6-conductor connection nominal value: 2 mV/V Note: Design according to OIML R60 C4 on request
- This text is machine translated.
