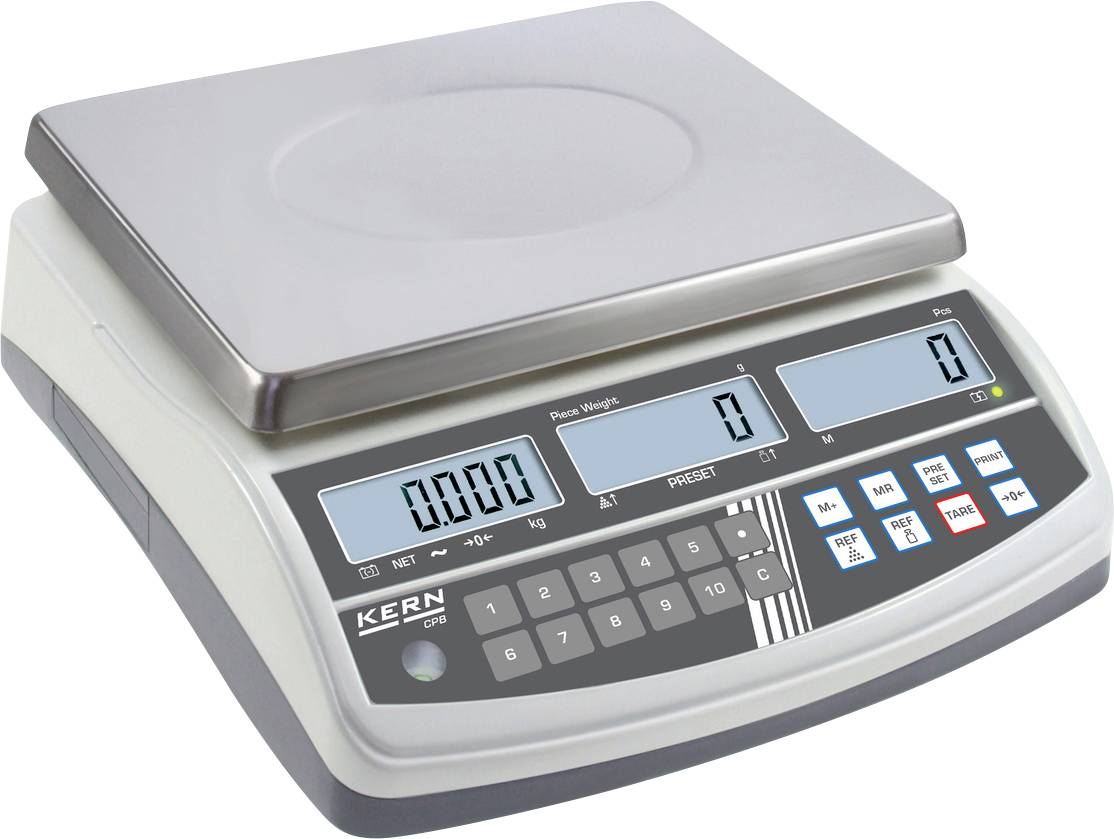

Kern CPB 15K0.2N+C Counting scales CPB 15K0.2N+C Calibrated to (DAkkS standards) Weight range 15 kg Readability 0.2 g vi
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Counting Scale CPB
- Automatic optimisation of reference weight
- Programmable using numerical key pad
Technical specifications
- Linearity ± 0.0004 kg
- Ambient temperature: 0 - 40°C
- Display: LCD
- Weight range
15 kg
- Product type
Counting scales
- Readability
0.2 g
- Display
Digital
- Power supply (LOV)
via PSU
DAkkS standards
- Factory colour
Silver
- Power supply (details)
230 V/AC, optional battery
- Dim
(L x W x H) 100 x 315 x 100 mm
- Weight
3.4 kg
- Calibratable
No
- Weighing plate
Stainless steel
- Width
315 mm
- Height
100 mm
- Length
100 mm
- Reproducibility
0.0004 kg
- Type
CPB 15K0.2N+C
- Features
Counting
Calibratable
- Top plate (width)
295 mm
- Top plate (length)
225 mm
Documents & Downloads
Datasheet
Datasheet 2111671 Kern CPB 15K0.2N+C Counting scales CPB 15K0.2N+C Calibrated to (DAkkS standards) Weight range 15 kg Readability 0.2 g vi
User & Safety Instructions
User & Safety Instructions 2111671 Kern CPB 15K0.2N+C Counting scales CPB 15K0.2N+C Calibrated to (DAkkS standards) Weight range 15 kg Readability 0.2 g vi
Information
Information 2111671 Kern CPB 15K0.2N+C Counting scales CPB 15K0.2N+C Calibrated to (DAkkS standards) Weight range 15 kg Readability 0.2 g vi
Description
Precise counting: The automatic optimisation of reference weight gradually improves the average value of the piece weight
Programmable using numerical key pad:
- required reference quantity
- known reference weight
Target piece input check-weighing with an audible signal
Counting results memory: adds up all individual counting operations, result is shown in total weight and total pieces
Audible Fill-to-target: target quantity or target weight can be programmed. When the target value is reached, a signal will
sound
High mobility: thanks to battery operation (optional), compact, flat construction and low weight, it is suitable for use in several locations (production, warehouse, dispatch department,...)
Programmable using numerical key pad:
- required reference quantity
- known reference weight
Target piece input check-weighing with an audible signal
Counting results memory: adds up all individual counting operations, result is shown in total weight and total pieces
Audible Fill-to-target: target quantity or target weight can be programmed. When the target value is reached, a signal will
sound
High mobility: thanks to battery operation (optional), compact, flat construction and low weight, it is suitable for use in several locations (production, warehouse, dispatch department,...)
Features
- 3 displays: Weight, reference weight, total number of pieces
- Target quantity for check-weighing can be programmed with an acoustic signal
- Total counting memory
- Target quantity or weight can be programmed; beeps upon reaching the target value.
Scope of delivery
- Power supply
- User manual.
