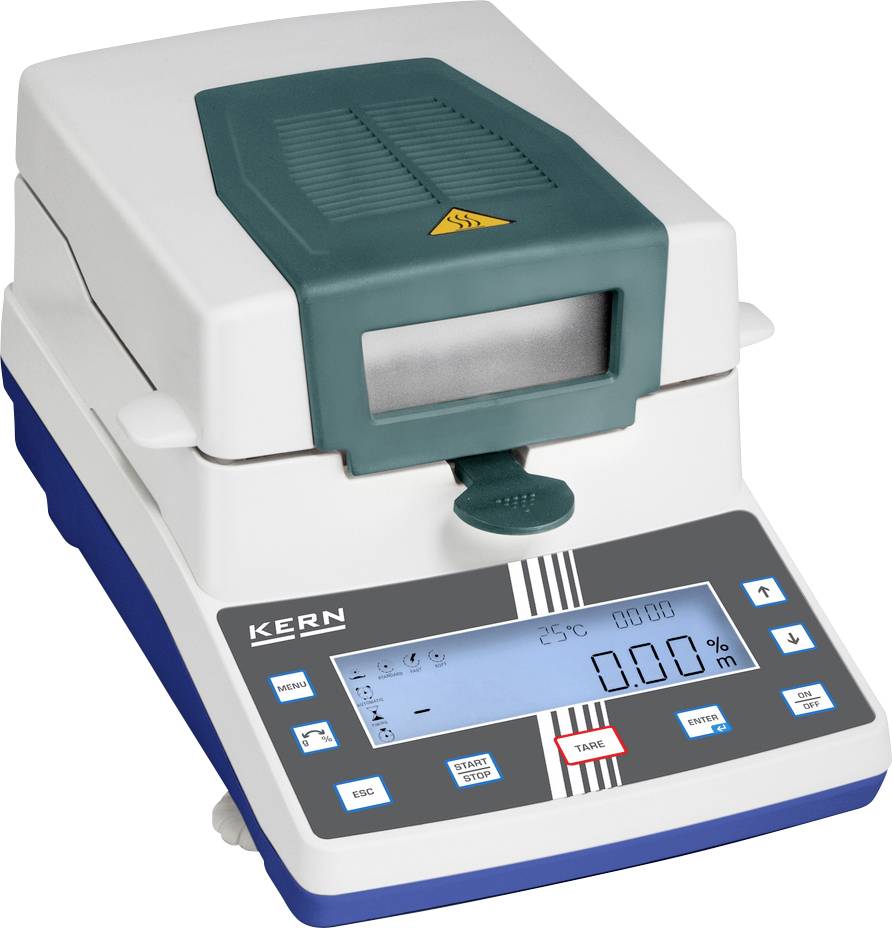

A moisture analyser shows an expected moisture indication at 0.00%. Switching keys are visible on the display.

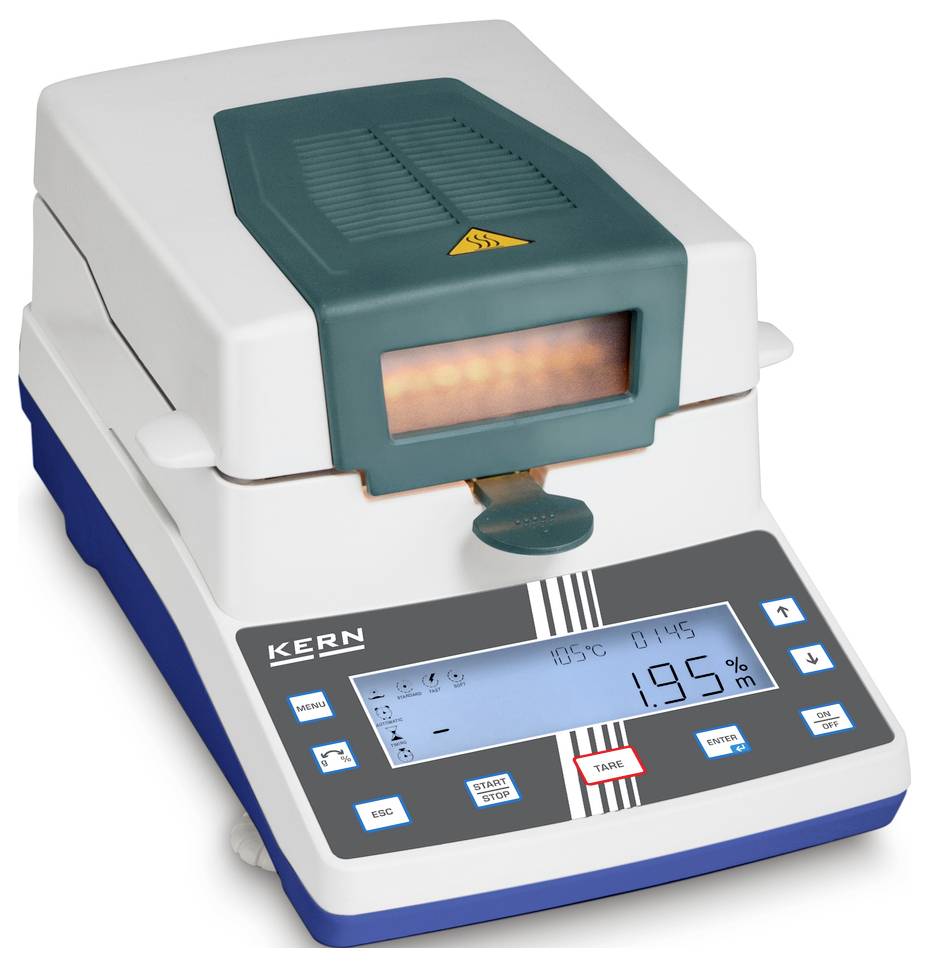

A moisture measuring device displays on a digital screen '105°C, 01:45, 1.95%'. A sample chamber is illuminated.

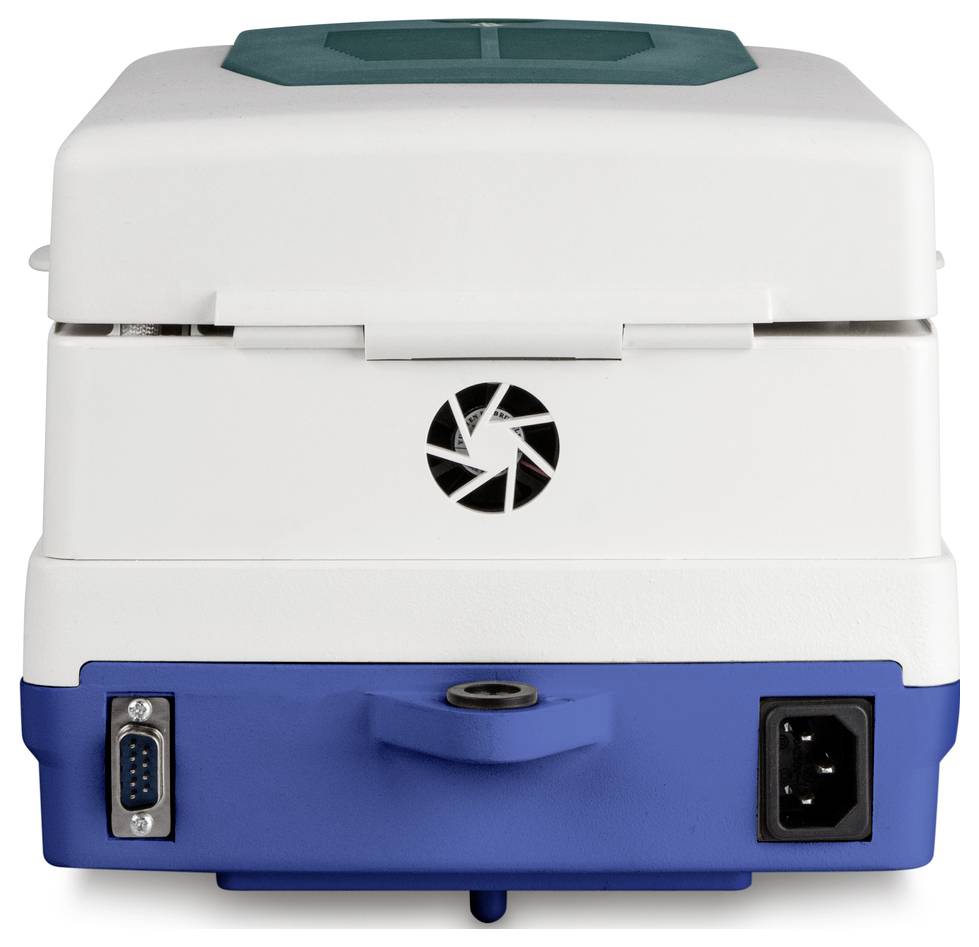

An electrical laboratory device in blue and white. The front panel displays connections and ventilation grilles, presumably for technical purposes.

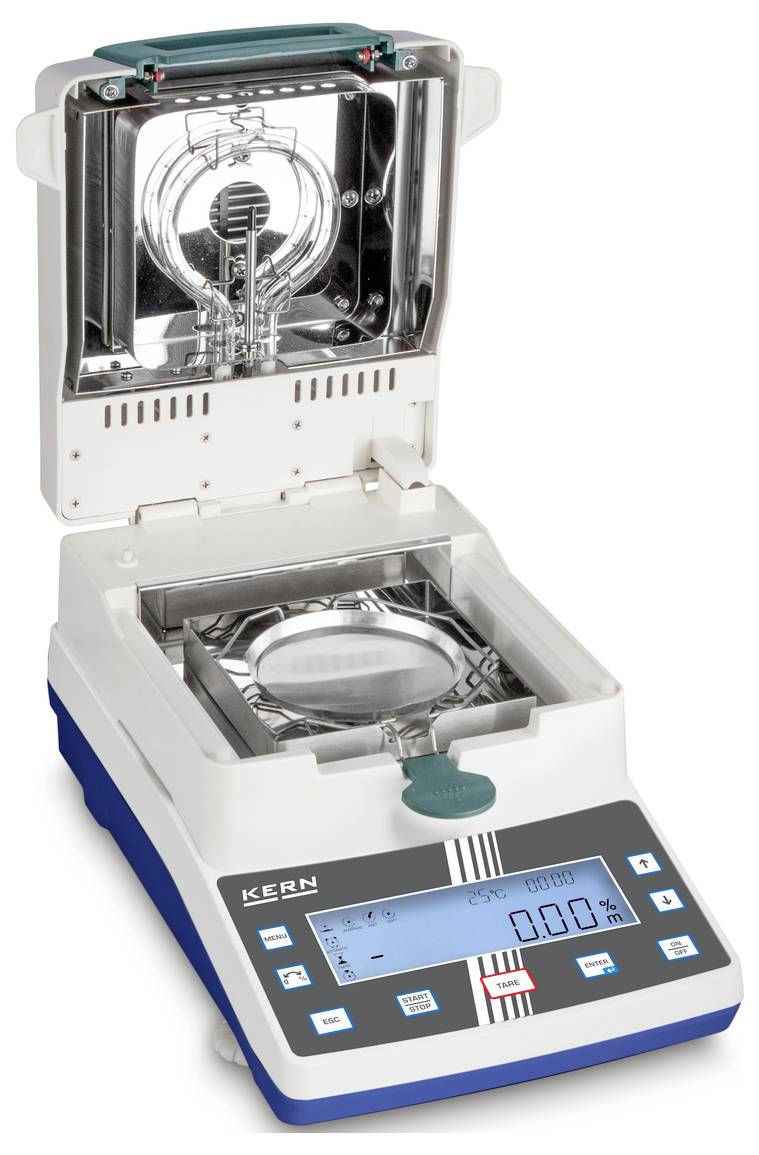

A laboratory moisture analyser, open, shows a sample under a heating lamp. Front panel with digital display and control buttons.

1/4

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Kern DAB 100-3 Moisture scales Weight range 110 g Readability 0.001 g via PSU Multicolour

Features
Background lit LCD-display, 14 mm digit height
Drying process active
Active heating profile
Active switch-off criterion
Previous drying time
Current Temperature
Display in humidity%
Intermediate result in humidity%
Halogen quartz glass beamer 400 W
Viewing window on the sample, very useful for initial setup
In-scale storage for automatic operation of 15 drying programs and 5 drying processes
The last measured value remains in the display until it is overwritten by a new measurement
50 sample trays included
Application manual: On the Internet you will find a practical application manual for each CORE moisture analyzer with many examples, experience reports, settings and tips,
This text is machine translated.

Technical specifications

Series: DAB

Weight range: 110 g

Product type: Moisture scales

Weight resolution: 0.001 g

Readability: 0.001 g

Weighing plate dimensions: 92 mm

Load capacity: 110 g

Display: Digital

Power supply (LOV): via PSU

: Manufacturer's standards (no certificate)

Factory colour: Multicolour

Power supply (details): 230 V/AC, 50 Hz

Dim: (L x W x H) 365 x 240 x 180 mm

Weight: 5 kg

Calibratable: No

Calibration service: 963-127

Weighing plate: Aluminium

Width: 240 mm

Height: 180 mm

Length: 365 mm

Reproducibility: 0.001 g

Type: DAB 100-3

Features: Calibratable
Counting

Top plate (Ø): 92 mm

UKCA: yes
