Kern DC 50-Y2 Tachometer 50 N (max.) Manufacturer's standards (no certificate)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

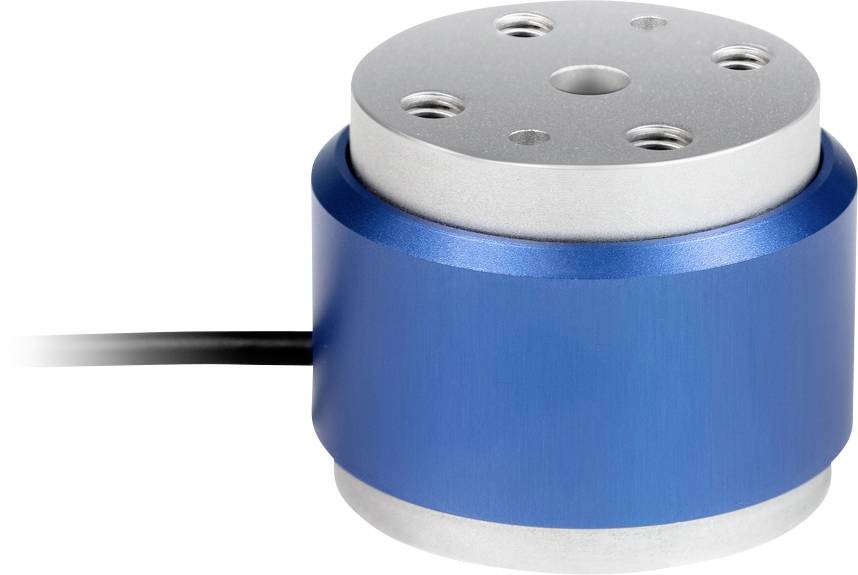

Kern DC 50-Y2 Tachometer 50 N (max.) Manufacturer's standards (no certificate)
- High precision (combined error 0.5% F.s.)RoHS compliantIP65 dust and splash-proof (in accordance with EN 60529)Suitable for monitoring or measuring static torques, testing manual torque wrenches or transmitting static load torquesRated value: 1.0~1.5mV/V (depending on nominal load)Supply voltage max. 10V DC4-conductor connectionHigh torsion resistance
- This text is machine translated.
Technical specifications
- Material: SteelCable length: 2 mLoad cell connection: 4-conductor
- Product type
Tachometer
- Force reading range (max.)
50 N
Manufacturer's standards (no certificate)
- Factory colour
Silver
Blue
- Weight
35 g
- Basic accuracy
0.5 %
- Force reading range
50 N (max.)
- Interfaces
4-wire
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2758391 Kern DC 50-Y2 Tachometer 50 N (max.) Manufacturer's standards (no certificate)
User & Safety Instructions
User & Safety Instructions 2758391 Kern DC 50-Y2 Tachometer 50 N (max.) Manufacturer's standards (no certificate)
Information
Information 2758391 Kern DC 50-Y2 Tachometer 50 N (max.) Manufacturer's standards (no certificate)
Description
Features
- Rated load 50 Nm
