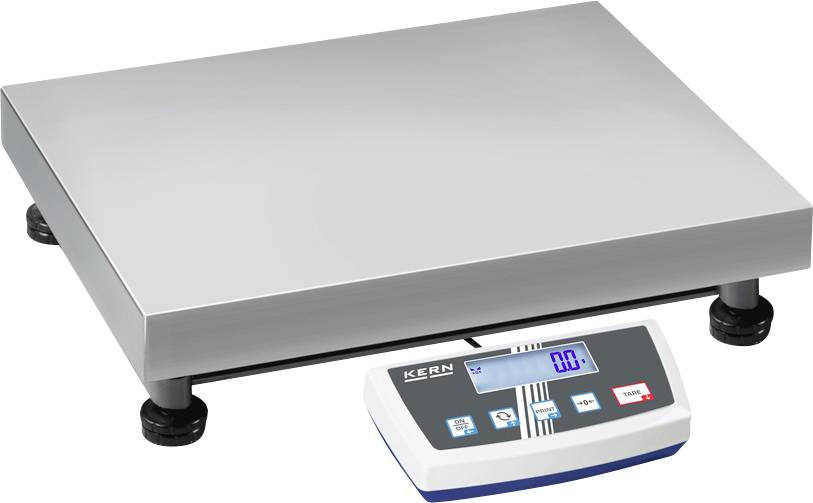

Kern DS100K05 Platform scales DS 100K0.5 Weight range 100 kg Readability 5 mg via PSU
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Platform scales DS 100K0.5, weighing range 100 kg, readability 0.0005 kg
- Precision industrial scale with laboratory accuracy, Ideal for the versatile possibilities of industrial 4.0 applications
Technical specifications
- Linearity: ± 0.0015 kg
- Start-up time 3 seconds
- Dimensions of weighing platform height: 125 mm
- Display type: LCD
- Weight range
100 kg
- Product type
Platform scales
- Readability
5 mg
- Display
Digital
- Power supply (LOV)
via PSU
Manufacturer's standards (no certificate)
- Dim
(L x W x H) 400 x 500 x 125 mm
- Weight
19 kg
- Calibratable
No
- Weighing plate
Stainless steel
- Width
500 mm
- Height
125 mm
- Length
400 mm
- Reproducibility
0.0005 kg
- Type
DS100K05
- Features
Calibratable
- Top plate (width)
500 mm
- Top plate (length)
400 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3061386 Kern DS100K05 Platform scales DS 100K0.5 Weight range 100 kg Readability 5 mg via PSU
User & Safety Instructions
User & Safety Instructions 3061386 Kern DS100K05 Platform scales DS 100K0.5 Weight range 100 kg Readability 5 mg via PSU
Information
Information 3061386 Kern DS100K05 Platform scales DS 100K0.5 Weight range 100 kg Readability 5 mg via PSU
Description
High-capacity precision scale, ideal for large or heavy samples that need to be weighed with high accuracy; operation step by step via Yes/No dialog in the display; numeric tare deduction for known container weight. Useful for filling quantity controls; exact counting: The automatic reference optimization gradually improves the average value of the part weight; freely programmable weighing unit, e.g. display directly in wire length g/m, surface weight g/m² (paper, material, sheet, etc.) or similar; Kern universal port (KUP): allows the connection of external KUP interface adapters, such as RS-232, USB, Bluetooth, WLAN or Ethernet, for the exchange of data and control commands, without installation effort; Kern communication protocol (KCP): The KCP allows the querying and remote control of the scales via external control devices or computers; uniform, simplified operating philosophy; safety cover included in the scope of delivery;
This text is machine translated.
This text is machine translated.
Scope of delivery
- Mains adaptor included
