Kern EG 220-3NM Precision scales Weight range 220 g Readability 0.001 g via PSU Silver
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 1,108.40 / piece)
€ 1,108.40
plus VAT.
Highlights & Details
Precision balance with type approval, class II 0,001 g : 220 g
- Top of the range cost-effectiveness
- with EC type approval [M]
Technical specifications
- Weight range
220 g
- Factory colour
Silver
- Power supply (details)
220 V - 240 V/AC 50 Hz
- Dim
(L x W x H) 235 x 180 x 75 mm
- Weight
2 kg
- Height
75 mm
- Length
235 mm
- Width
180 mm
- Calibratable
Yes
Manufacturer's standards (no certificate)
- Display
Digital
- Weighing plate
Stainless steel
- Features
Calibratable
Counting
Calibratable
- Power supply (LOV)
via PSU
- Type
EG 220-3NM
- Top plate (Ø)
118 mm
- Readability
0.001 g
- Reproducibility
0.001 g
- Weighing plate dimensions
118 mm
- Product type
Precision scales
Documents & Downloads
Datasheet
Datasheet 755496 Kern EG 220-3NM Precision scales Weight range 220 g Readability 0.001 g via PSU Silver
User & Safety Instructions
User & Safety Instructions 755496 Kern EG 220-3NM Precision scales Weight range 220 g Readability 0.001 g via PSU Silver
Information
Information 755496 Kern EG 220-3NM Precision scales Weight range 220 g Readability 0.001 g via PSU Silver
Description
- Only the EC NM: Internal Justierschaltung (CAL) via rotary knob on the side guarantees high accuracy and makes the location - only EW-NM: Adjustment program CAL to adjust the accuracy, external test weights against more price-capacity display: an increasing light strip shows the remaining weighing range of accurate figures: The automatic reference optimisation gradually improves the average value of the piece weight-wagon with tolerance range (programd): Enter a upper/lower limit. A visual signal supports the portioned, dosing and sorting-wind protection standard for models with weighing plate size. Removable cover with opening for pipetting, 158 x 130 x 78 mmTechnische weighing room wxdxh data - Large LCD display, digit height 17 mm dimensions weighing plate (stainless steel)-mm, large illustrated - 170 x 142 mm 180 x 160 mm overall dimensions (without wind protection), 182 x 235 x 75 mm - WXDXH - 192 x 265 x 87 mm, weight approx. 1.3 kg-permitted ambient temperature range 10°C / 30°C
This text is machine translated.
This text is machine translated.
Features

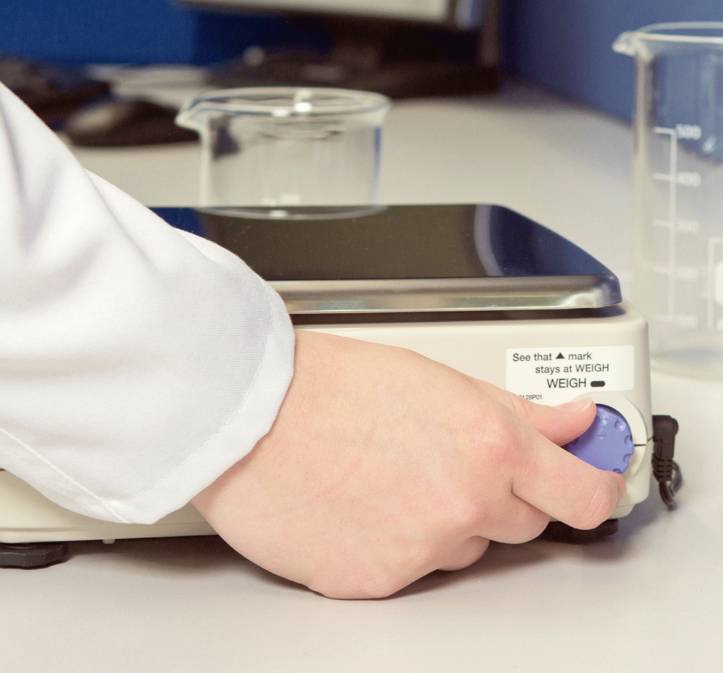

- only EG-NM: Internal adjustment (CAL) by rotary knob on the side. Guarantees high degree of accuracy and makes the location irrelevant
- only EW-NM: Adjusting program CAL for quick setting of the balance accuracy, external test weights at an additional price
- Capacity display: A bar lights up to show how much of the weighing range is still available
- Precise counting: The automatic optimisation of reference weight gradually improves the average value of the piece weight
- Weighing with tolerance range (checkweighing): Input of an upper/lower limit value. A visual signal assists with portion division or grading
- Draft shield standard for models with weighing plate sizes . Removable metal cover with pipette opening, weighing space WxDxH 158x130x78 mm|Technical data
- Large LCD display, digit height 17 mm
- Dimensions of weighing plate (stainless steel)
- mm, see larger picture
- 170x142 mm
- 180x160 mm
- Overall dimensions (without draft shield) WxDxH
- , 182x235x75 mm
- 192x265x87 mm
- Net weight approx. 1,3 kg
- Permissible ambient temperature 10 °C / 30 °C
Hints
The selected product is a calibration approved part.If there is a need to be calibrated according to EU directives, please order the conformity assessment (calibration) via the optional accessories.Subsequent initial calibration is not possible.In the case of articles with first-time verification, the right of withdrawal is fundamentally excluded.Under the EU Directive 2014/31/EU, scales must be officially conformity-assessed ("calibrated") when used as follows:a) in the course of business, if the price of a commodity is determined by weighing.b) in the manufacture of medicinal products in pharmacies and in analyzes in the medical and pharmaceutical laboratories.c) for official purposes.d) in the manufacture of prepackages.e) in medicine.
