Name: Kern FCB30K4 Table top scales FCB 30K-4 Weight range 30 kg Readability 2 g via PSU
Brand: Kern
SKU: 3061394

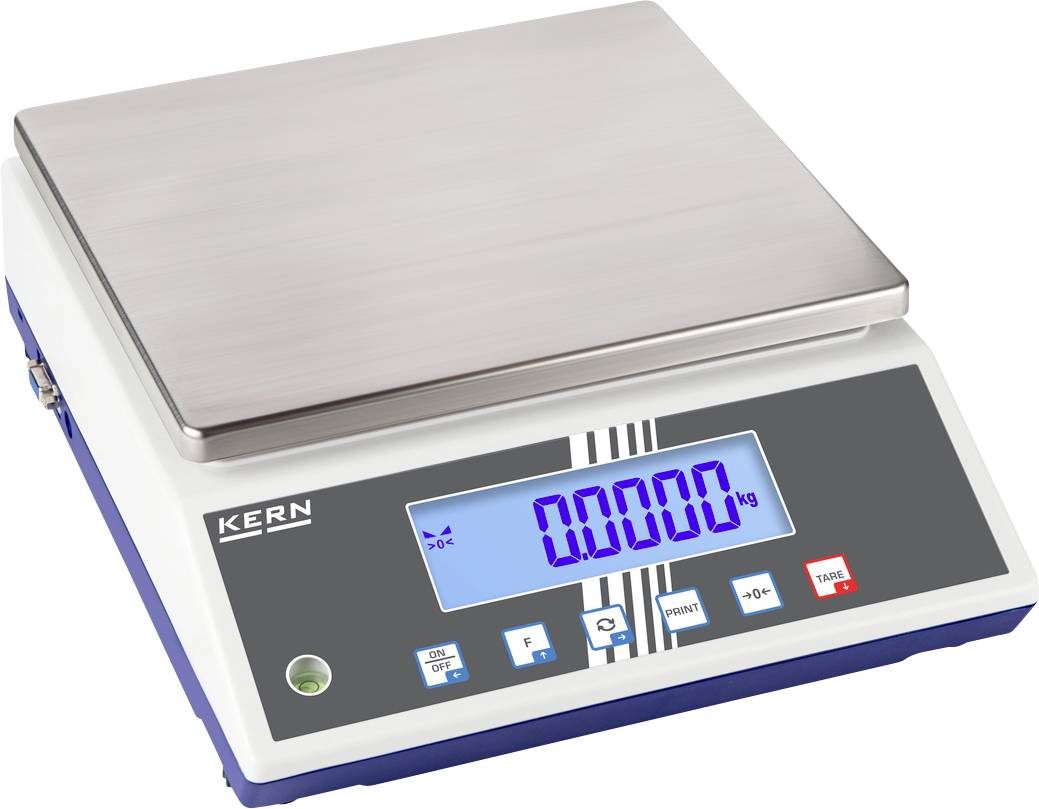

Digital scales with a stainless steel weighing surface and blue backlit display, showing '0.0000 kg'.

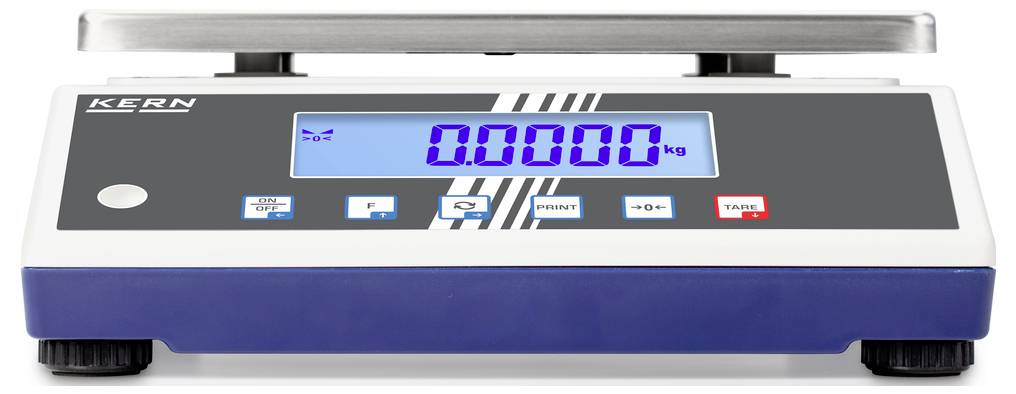

Electronic scales with a digital display showing '0.000 kg'. The scales have functions such as zeroing, tare and print.

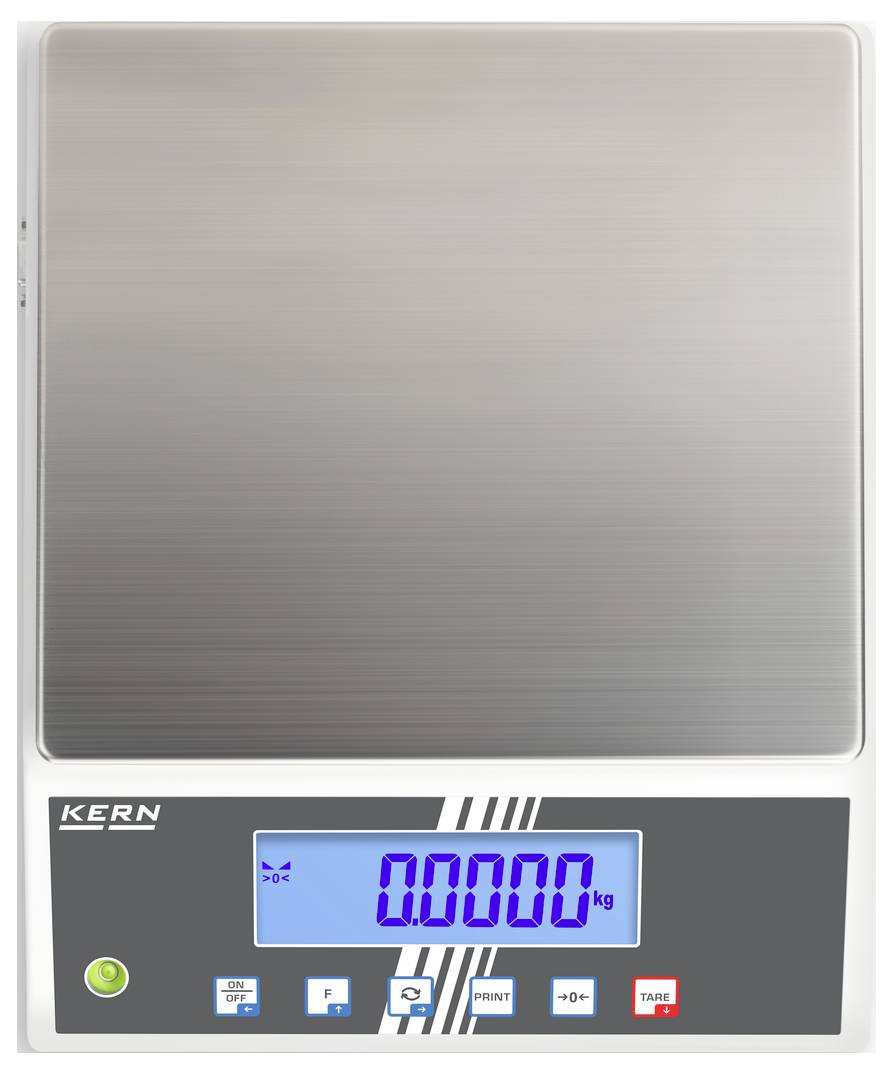

Electronic scales with a digital display showing '0.000 kg'. Beneath are buttons for functions such as tare, print and unit change.

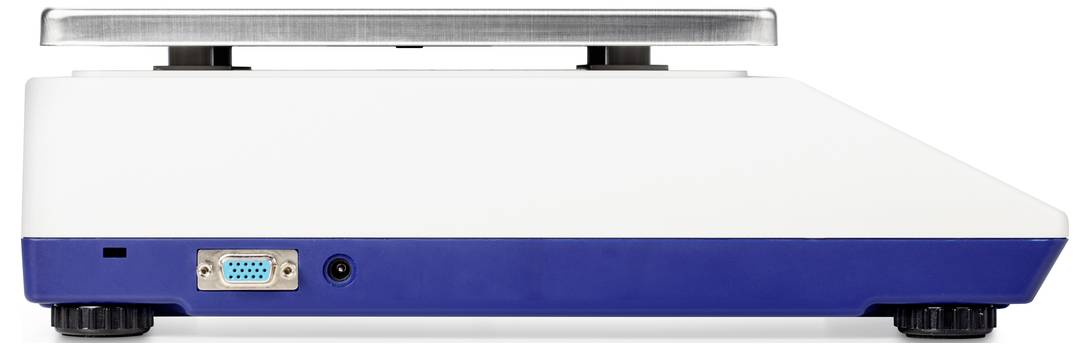

Side view of a digital scale with a blue base and silver platform. It features a serial interface and power connection.

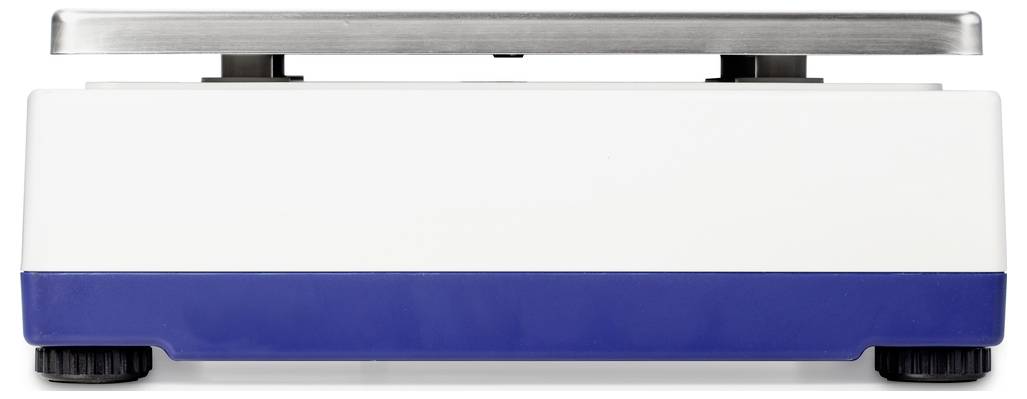

Electronic scales with a blue and white casing and stainless steel plate, side view.

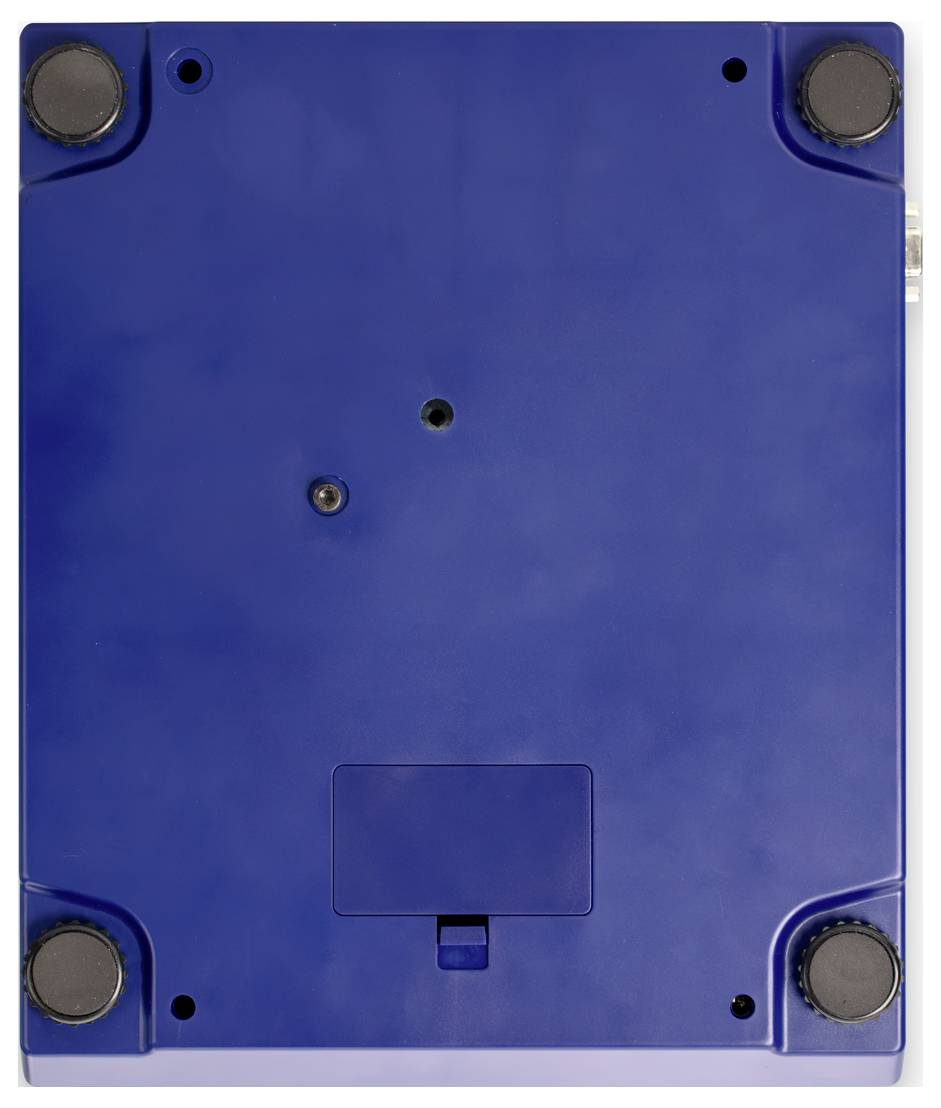

The back of a blue electronic device with four round rubber feet at the corners, with a small indentation centrally located.

1/6

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Table scale FCB 30K-4, weighing range 30 kg, readability 0.0002 kg

The new FCB: Control and portioning scales with up to three interfaces

Technical specifications

Weight range: 30 kg

Product type: Table top scales

Readability: 2 g

Display: Digital

Power supply (LOV): via PSU

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 91 x 322 x 91 mm

Weight: 4 kg

Weight resolution: .00020000000000000001 kg

Calibratable: No

Weighing plate: Stainless steel

Width: 322 mm

Height: 91 mm

Length: 91 mm

Reproducibility: 0.0002 kg

Type: FCB30K4

Features: Calibratable

Top plate (width): 252 mm

Top plate (length): 225 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3061394 Kern FCB30K4 Table top scales FCB 30K-4 Weight range 30 kg Readability 2 g via PSU

User & Safety Instructions

User & Safety Instructions 3061394 Kern FCB30K4 Table top scales FCB 30K-4 Weight range 30 kg Readability 2 g via PSU

Information

Information 3061394 Kern FCB30K4 Table top scales FCB 30K-4 Weight range 30 kg Readability 2 g via PSU

Description

Uniform, comfortable Kern operating philosophy, consistent across products in design, menu structure, key functions, interface connection and interface protocol; compact dimensions, Beneficial with limited space; Industrial 4.0: The Kern universal port allows data and control commands to be exchanged via an interface, which can be connected to the housing, or via a KUP extension box via three parallel interfaces. Optionally the following interfaces are available: RS-232, USB, Ethernet, WLAN, Bluetooth; Query and remote control of the scale via computer or CRM/ERP systems using Kern communication protocol; high mobility: thanks to battery operation/battery operation (optional) and compact, lightweight design suitable for use at several locations (production, storage, shipping, etc.); weighing with tolerance range (check-weighing): input of two upper and two lower limit values via four arrow keys. An optical and acoustic signal supports portioning, dosing or sorting; summation of weight values; safety cover included in the scope of delivery;
