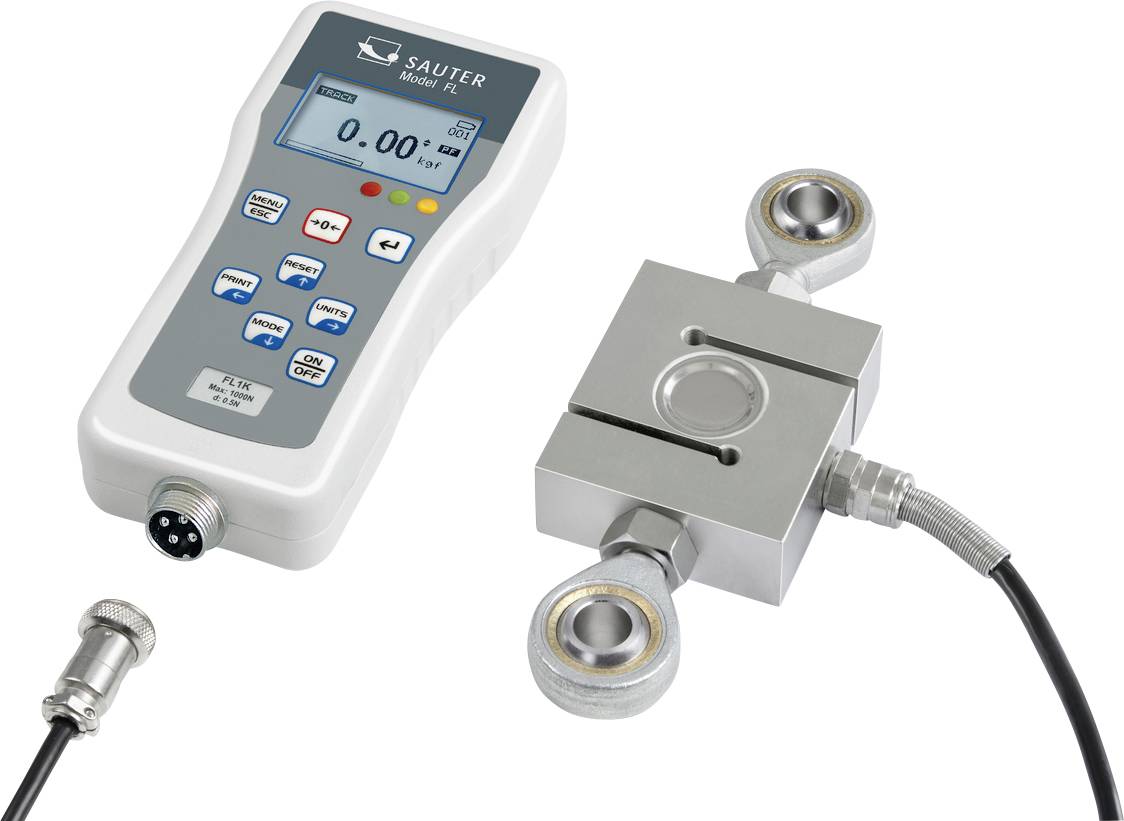

Handheld measuring device with display unit and a connected sensor, surrounded by cables and connectors. Displays measurement data on the digital screen.

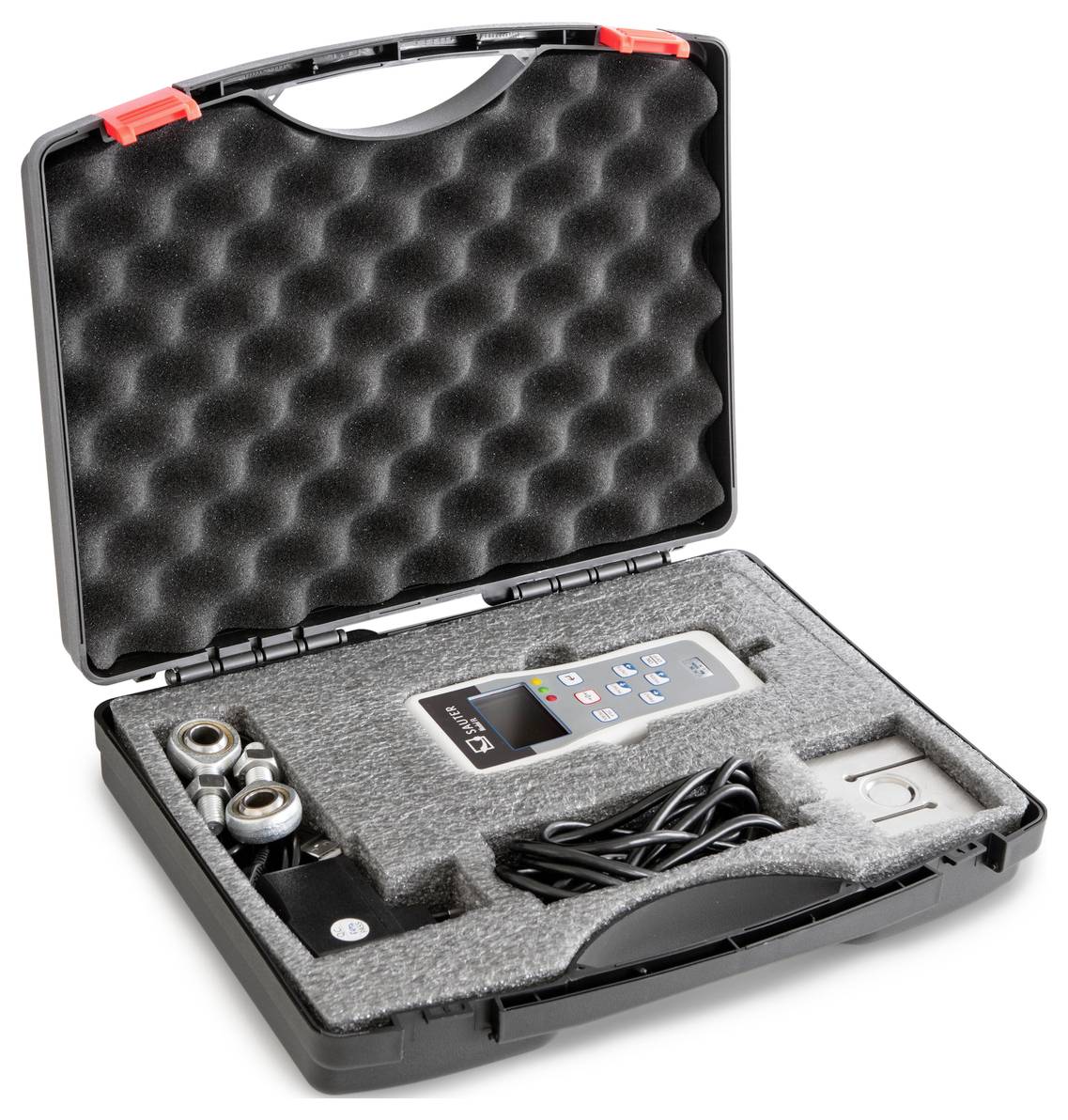

An open black case with foam lining displays a digital measuring device with cables and two sensors.

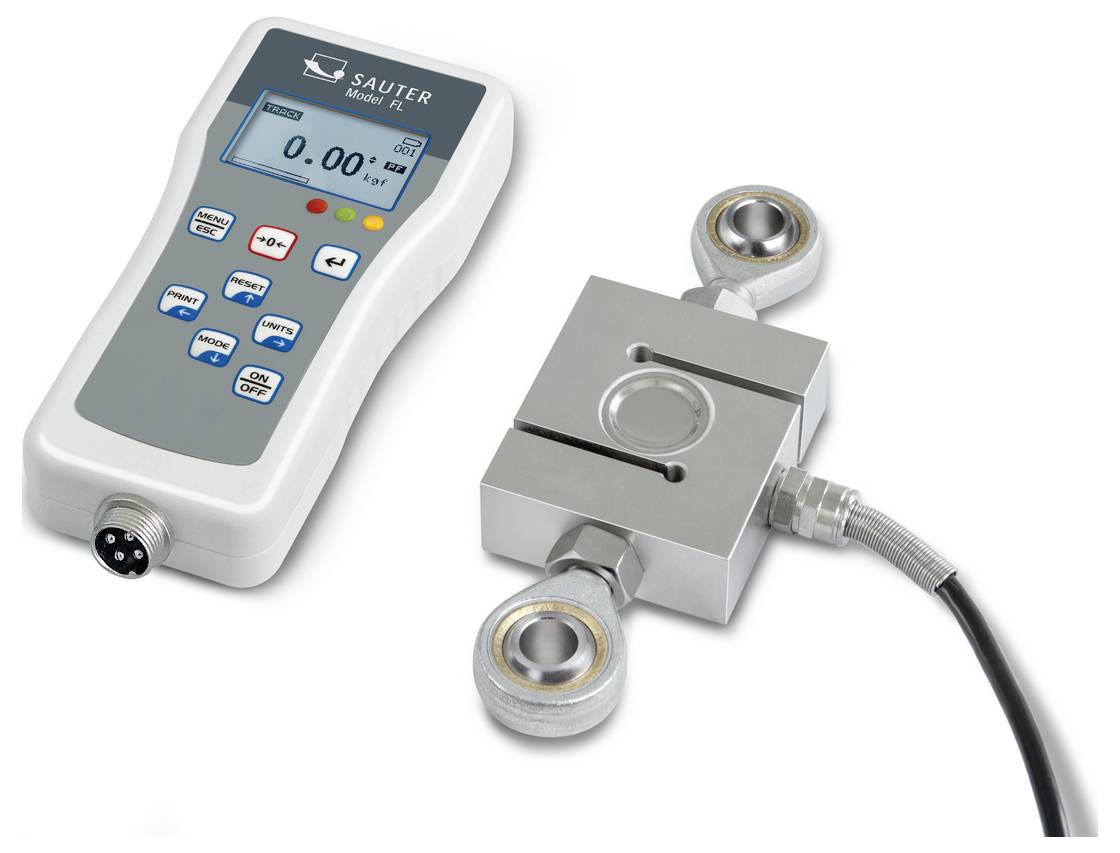

Power measuring device with digital display and robust sensor. Display shows '0.00'. Suitable for precise measurements in laboratories or industry.

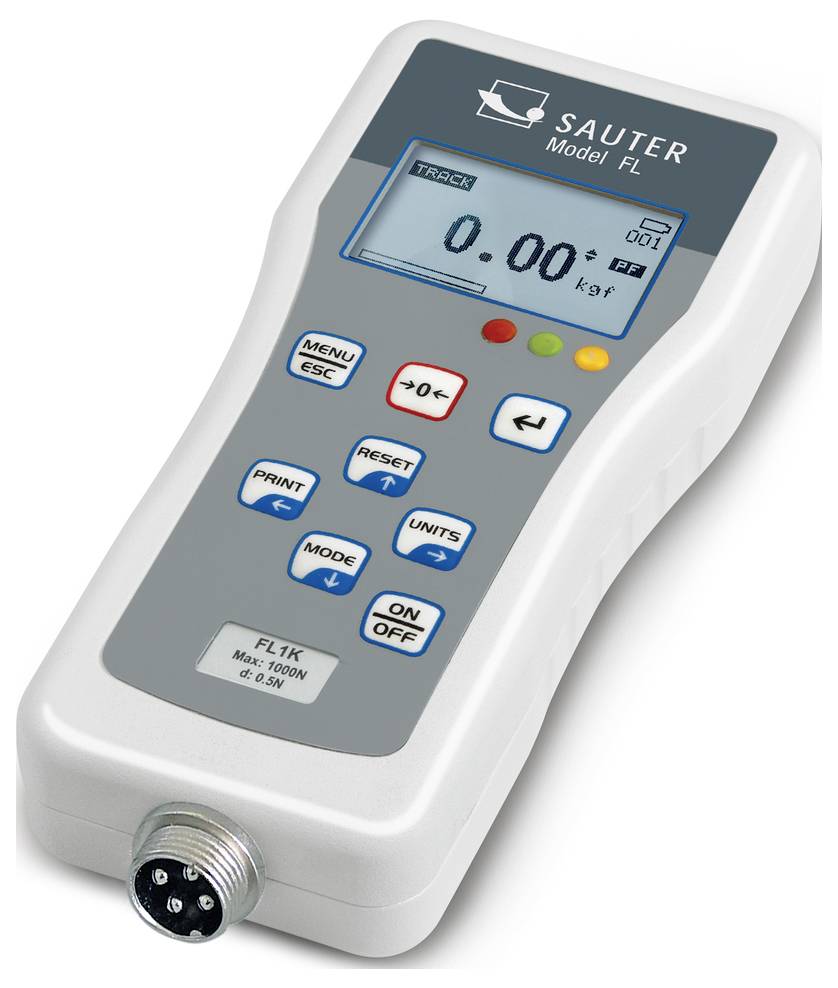

Digital Force Measuring Device 'Sauter Model FL' with display showing 0.00 kgf. Operating buttons for menu, print, reset and mode on the front panel.

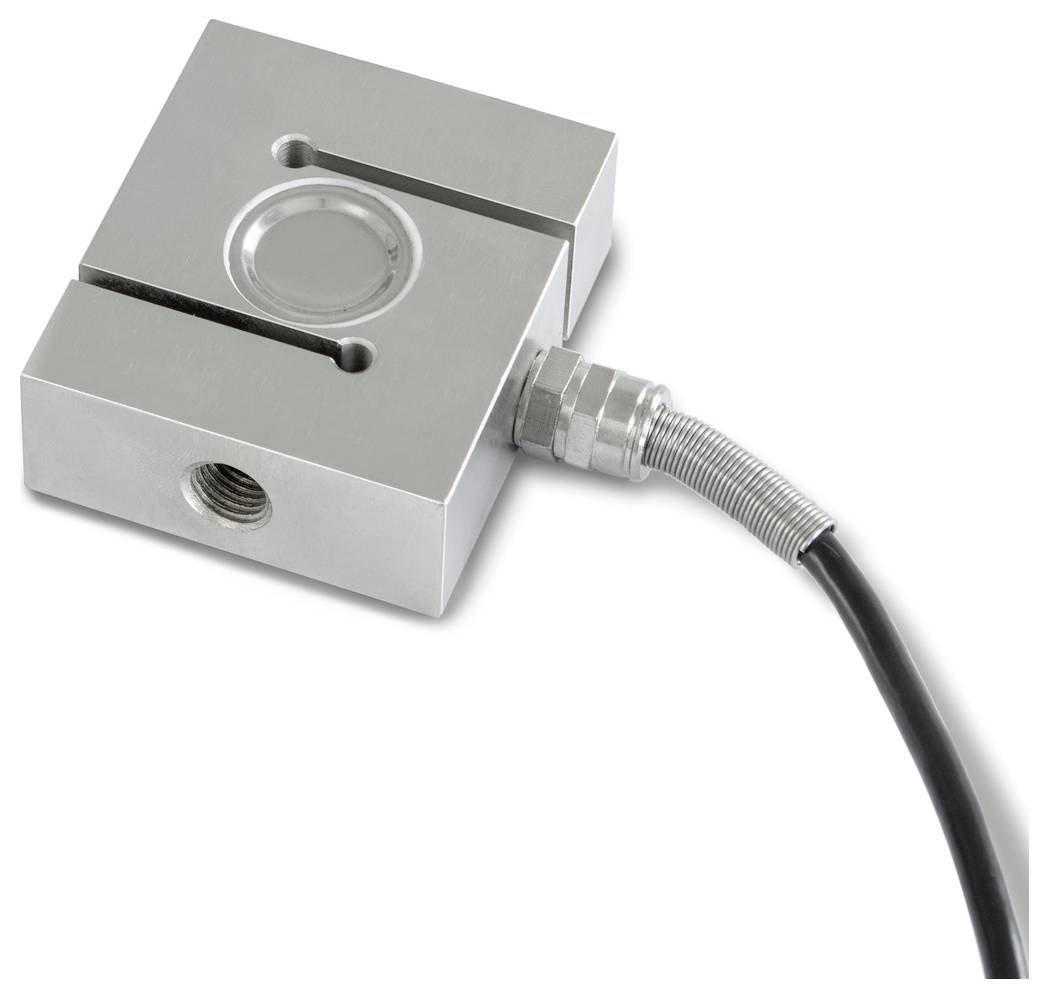

A silver force sensor with cable connection, commonly used for measuring pressure or tensile forces in technical applications.

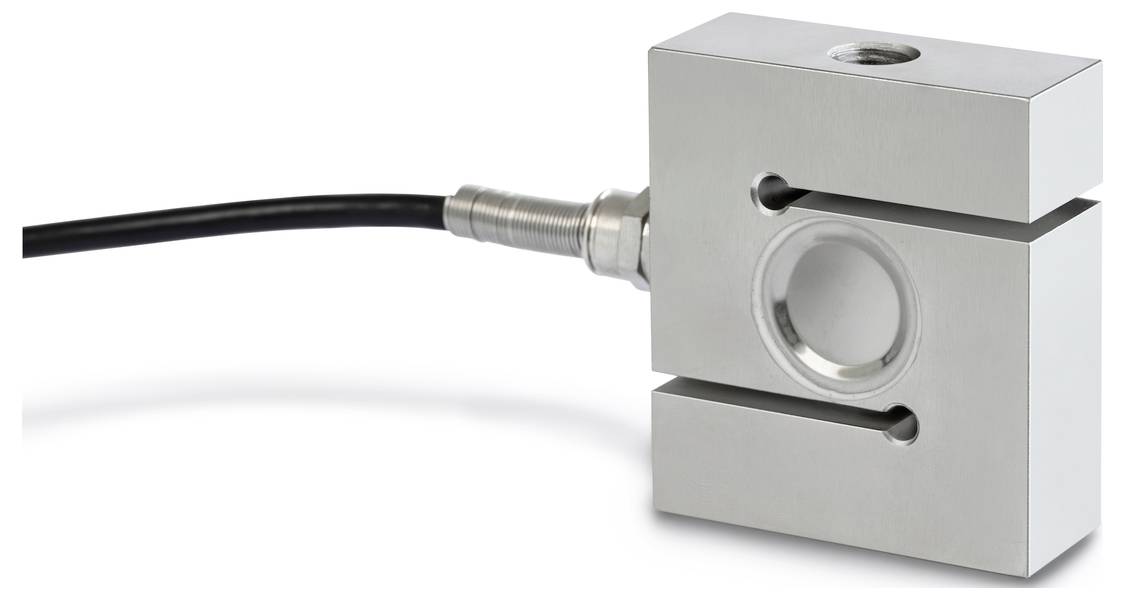

'Metal block with a circular hole and connected cable, used for sensor or measurement applications in technical devices.'

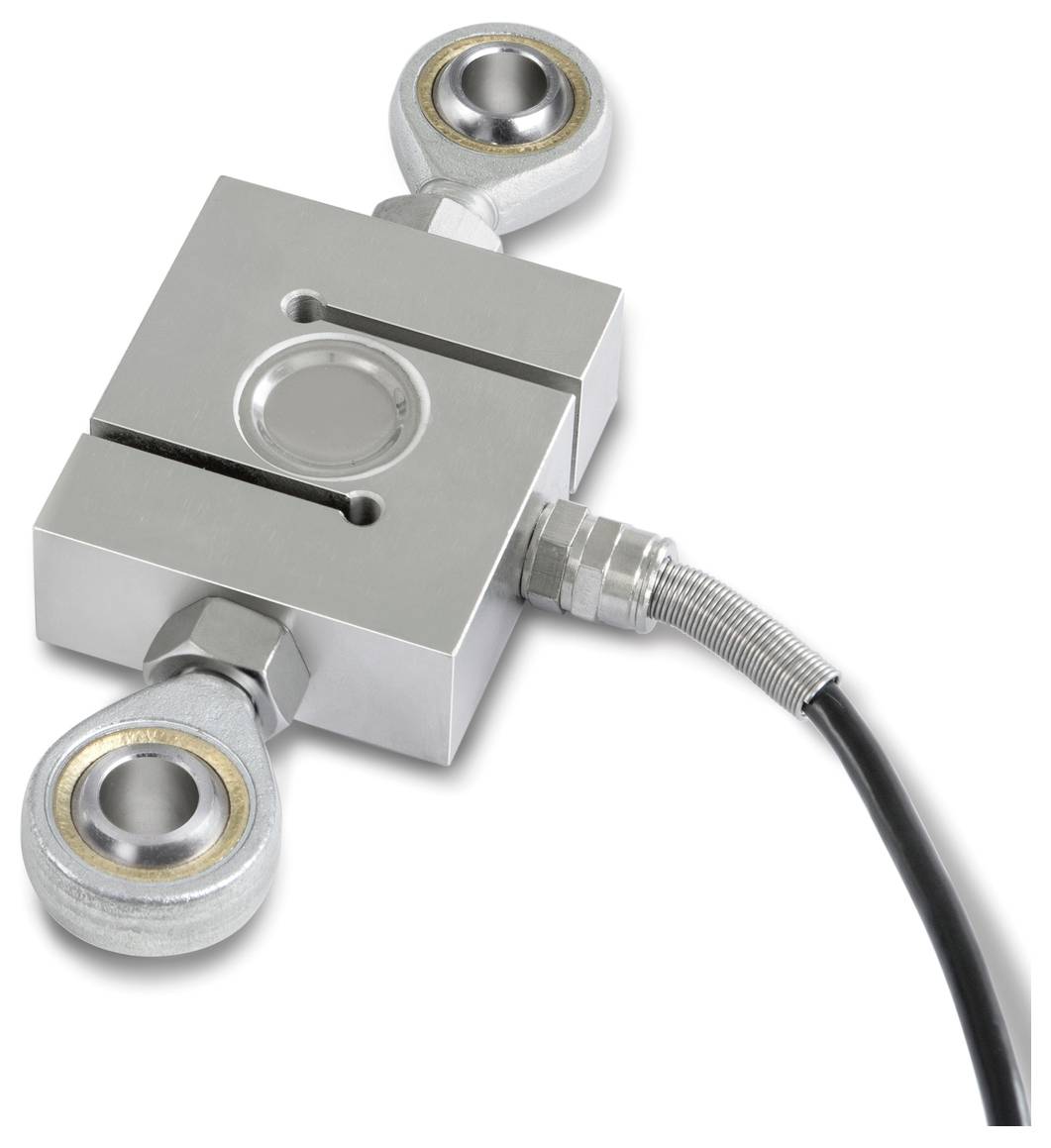

Metal sensor with cable connection and two round mountings at the ends; possibly for industrial applications.

1/7

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Kern FL 10K Force gauge 10000 N (max.) Manufacturer's standards (no certificate)

Premium force meter with graphic supported display for tensile and compressive force measurements with external Measuring cell

Technical specifications

Product type: Force gauge

Display: LCD

Force reading range (max.): 10000 N

: Manufacturer's standards (no certificate)

Factory colour: Multicolour

Power supply (details): 9 V, 500 mA

Dim: (L x W x H) 175 mm x 17.5 cm x 3 cm

Weight: 550 g

Resolution (force): 5 N

Force reading range: 10000 N (max.)

Reading frequency: 1000 Hz

Width: 17.5 cm

Height: 3 cm

Length: 175 mm

Interfaces: USB
RS232

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2252501 Kern FL 10K Force gauge 10000 N (max.) Manufacturer's standards (no certificate)

User & Safety Instructions

User & Safety Instructions 2252501 Kern FL 10K Force gauge 10000 N (max.) Manufacturer's standards (no certificate)

Information

Information 2252501 Kern FL 10K Force gauge 10000 N (max.) Manufacturer's standards (no certificate)

Description

Premium force meter with external measuring cell, towing eyes and pressure plates included in delivery. Reversible backlit display. Peak hold function for recording the peak value or track function for continuous measurement display. Metal housing for permanent use in rugged environmental conditions. Can be mounted on all SAUTER test benches. Capacity indicator: An increasing light band indicates the remaining measuring range. Measurement with tolerance range (limit function): Upper and lower limit value can be programd, in the direction of pull and pressure. The measurement process is supported by an acoustic and optical signal. Internal data memory for up to 500 values. Continuous analogue output: Linear voltage signal depending on the load (-2 to +2 V). Selectable units: N, kN, kg, oz, lb. Supplied in a robust carrying case.
