Buy Kern FL 20K Force gauge 20000 N (max.) Manufacturer's standards (no certificate)

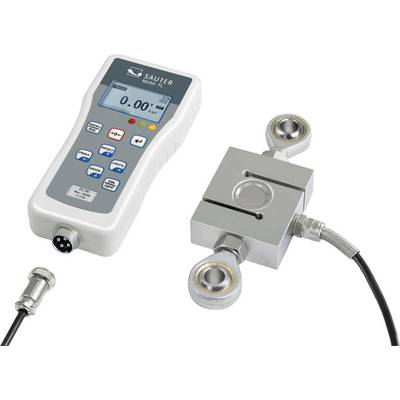

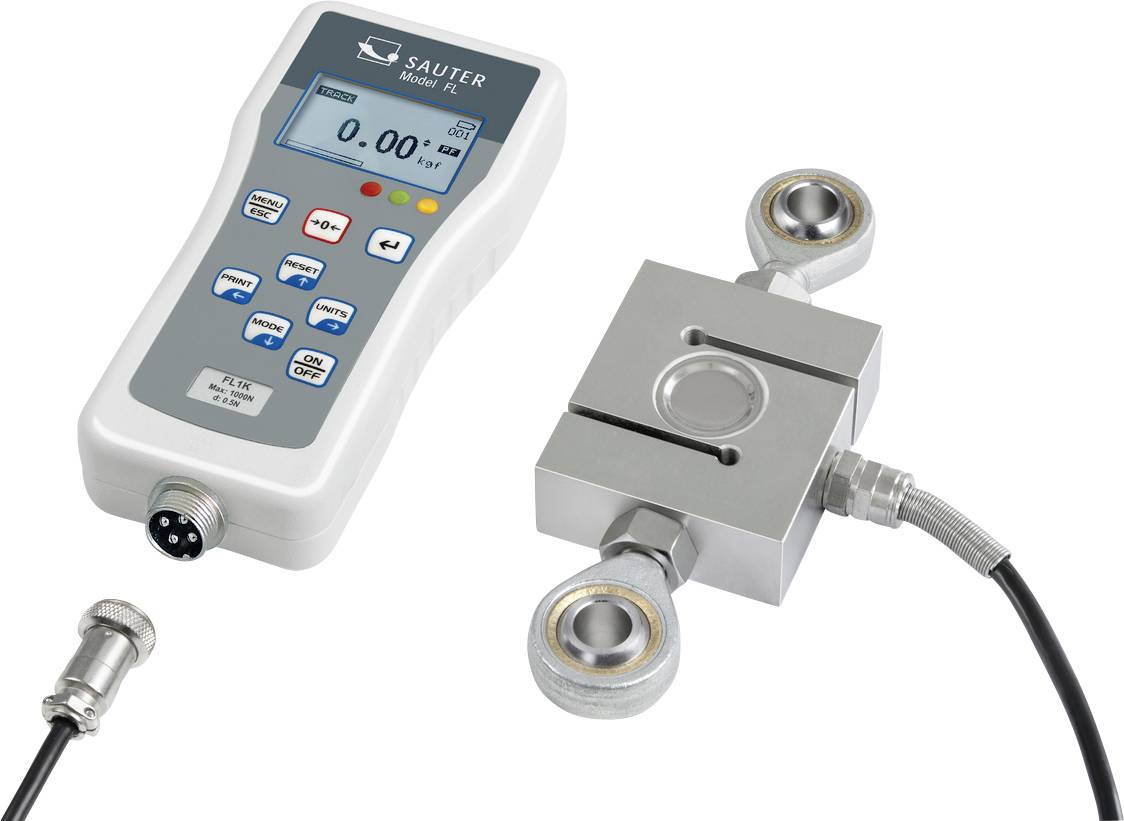

Hand-held force measurement device with digital display, keypad and coupled sensor in metal construction. Suitable for technical applications.

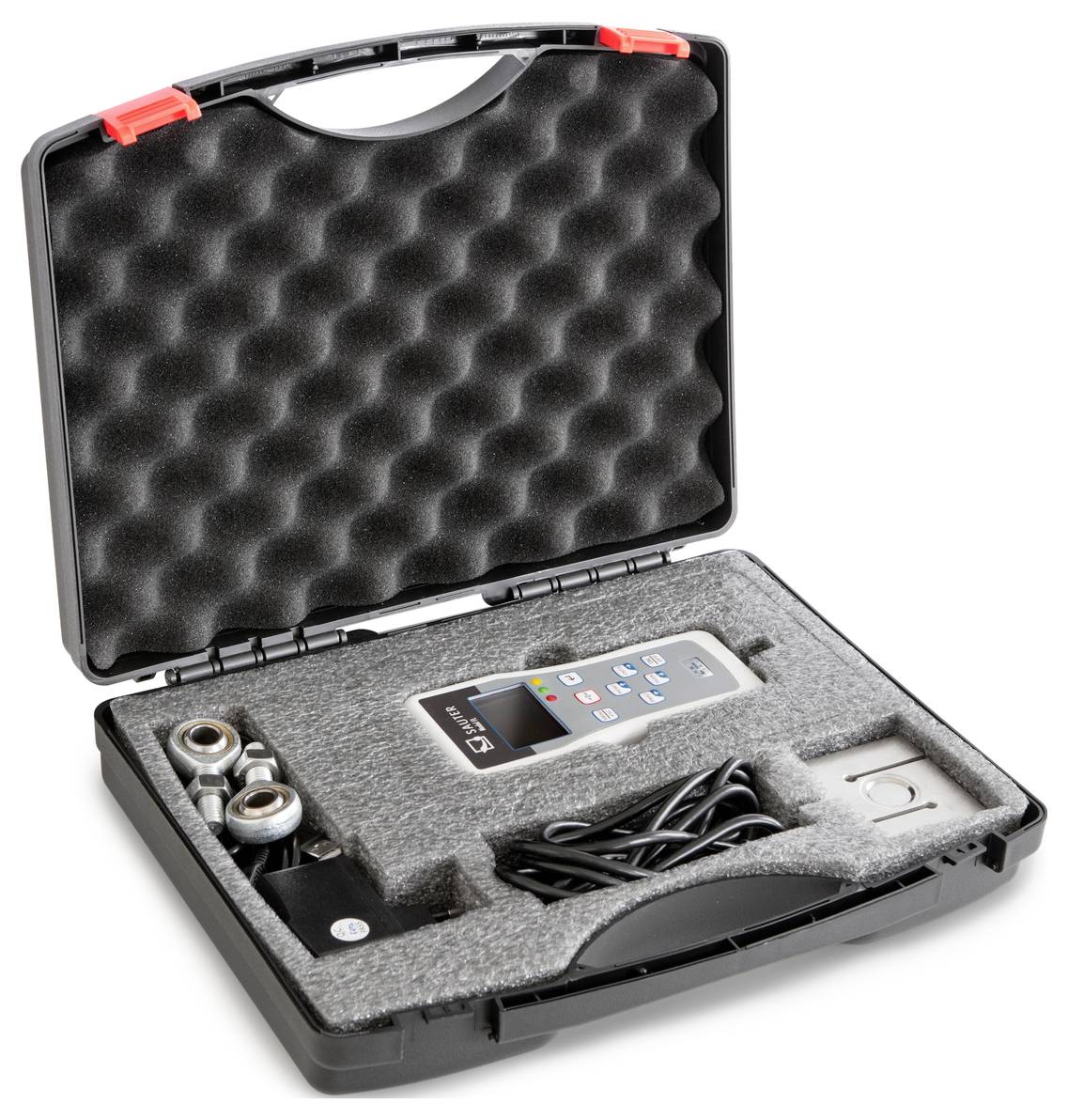

Open hard-shell case with foam lining, containing a digital device, cables, and accessories, ready for transport.

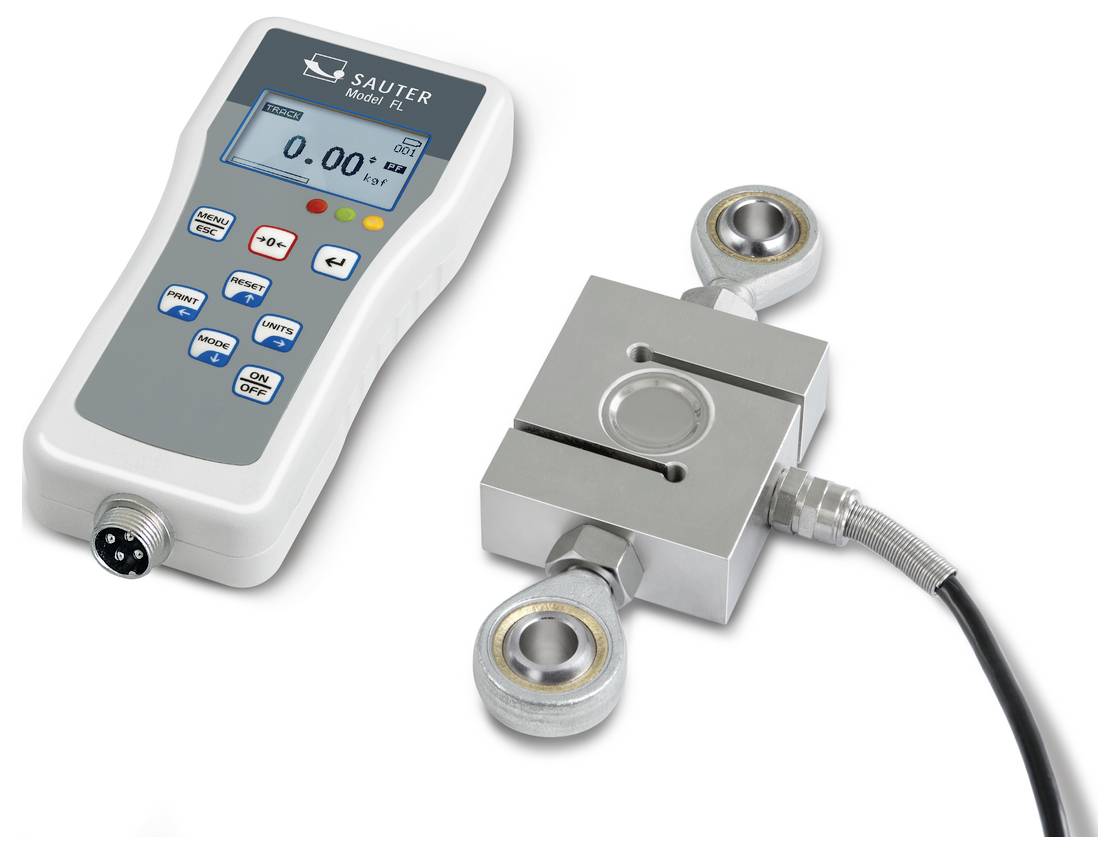

A digital force measuring device shows '0.00' on the display. Next to it lies a sensor with two ball bearings and an attached cable.

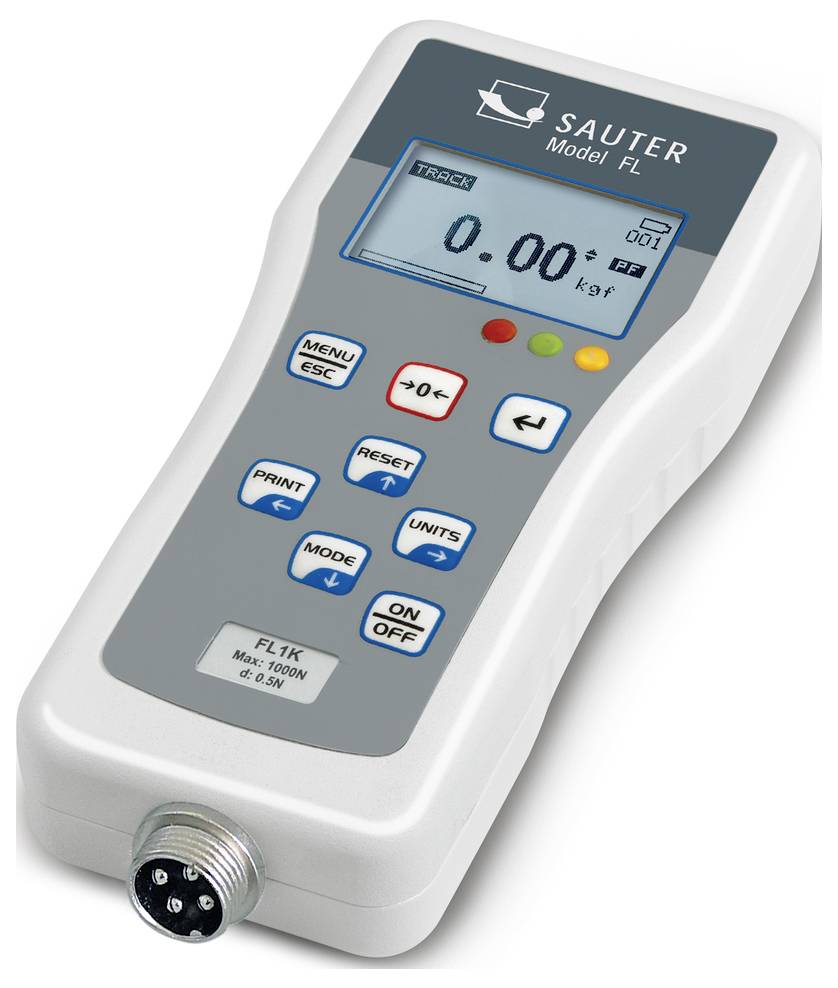

Digital Sauter FL Force Measurement Device with Display Showing '0.00 kgf'. Buttons: Menu, Reset, Mode, Power. Connection Socket Located at Bottom.

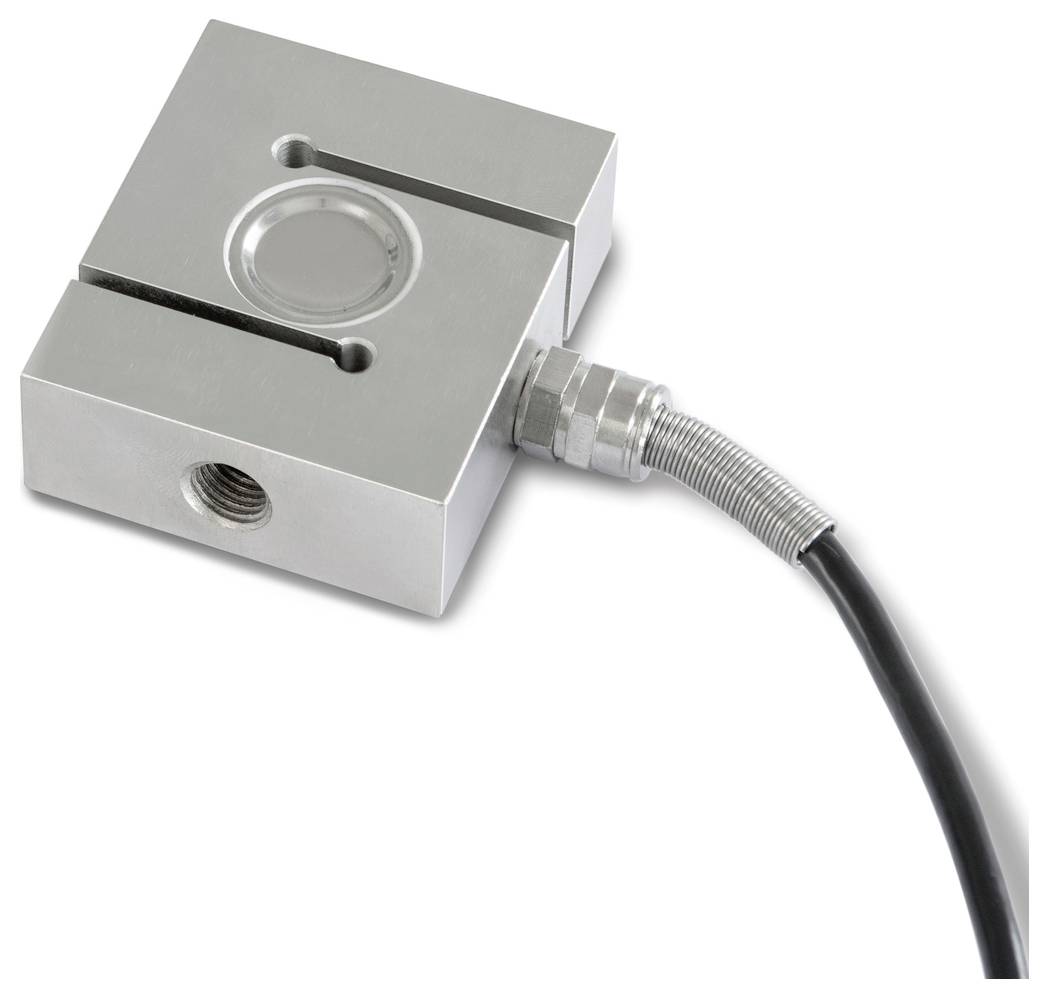

Metal load sensor with cable connection; rectangular shape, silver-coloured, smooth surface; used in industrial applications.

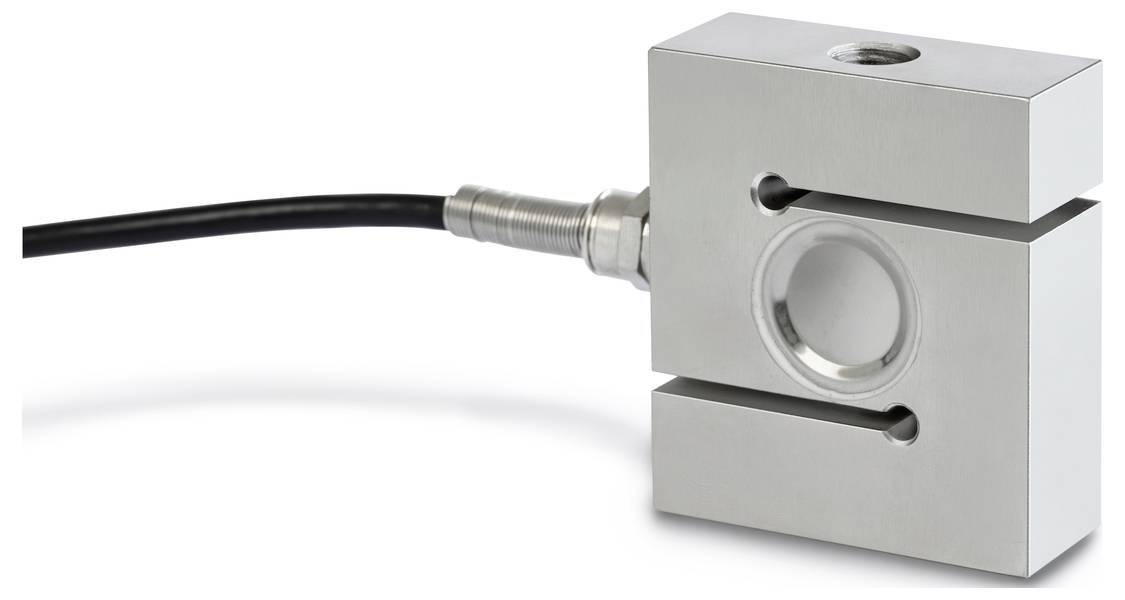

Metal sensor with cable connection, rectangular shape, used for load measurement. Ideal for industrial applications.

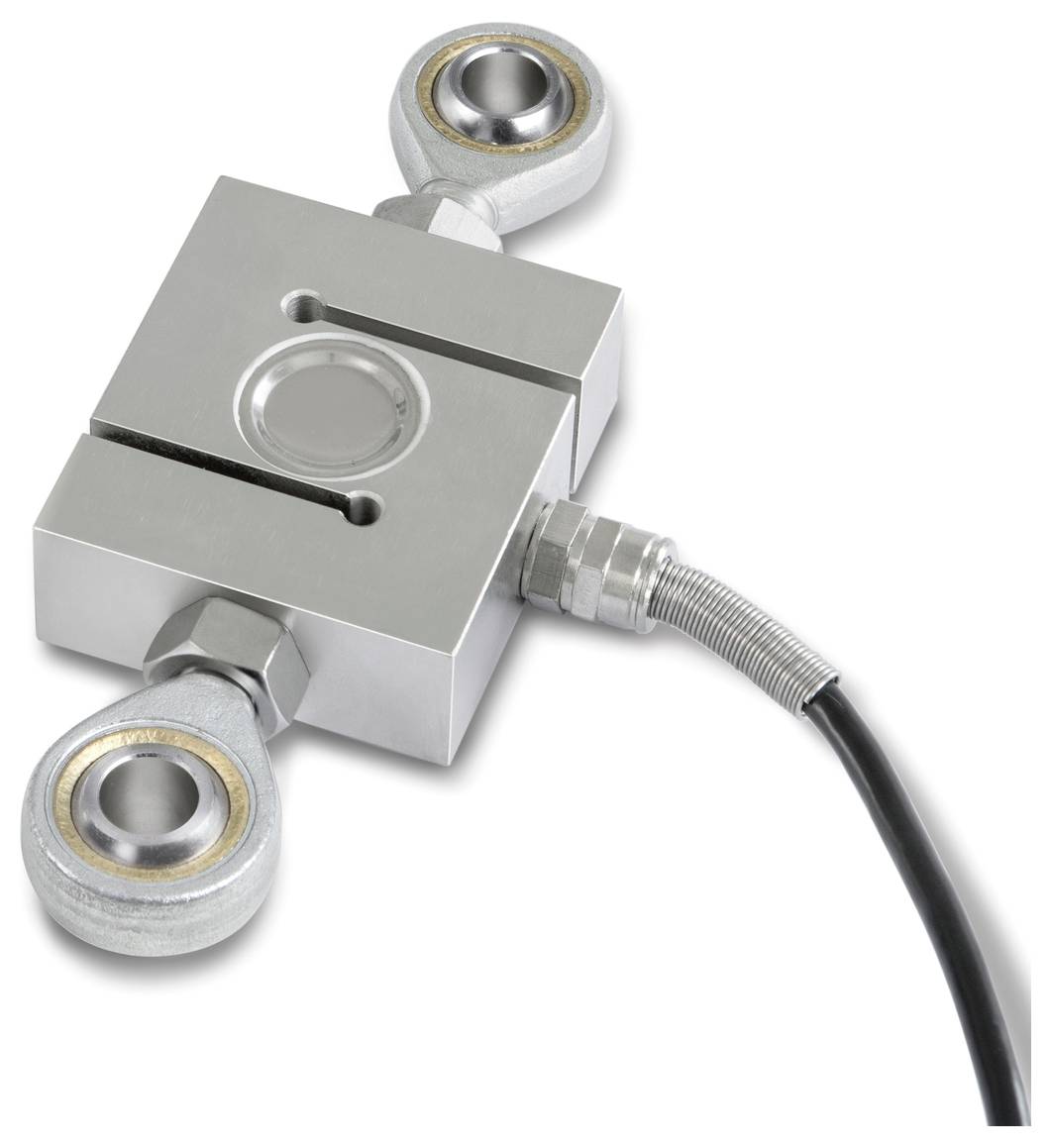

Metal sensor with two circular connectors and an attached cable on a white background, typical design of a force sensor.

1/7

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Kern FL 20K Force gauge 20000 N (max.) Manufacturer's standards (no certificate)

Premium force meter with graphic supported display for tensile and compressive force measurements with external Measuring cell

Technical specifications

Product type: Force gauge

Display: LCD

Force reading range (max.): 20000 N

: Manufacturer's standards (no certificate)

Factory colour: Multicolour

Power supply (details): 9 V, 500 mA

Dim: (L x W x H) 75 mm x 17.5 cm x 3 cm

Weight: 550 g

Resolution (force): 10 N

Force reading range: 20000 N (max.)

Reading frequency: 1000 Hz

Width: 17.5 cm

Height: 3 cm

Length: 75 mm

Interfaces: USB
RS232

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2252506 Kern FL 20K Force gauge 20000 N (max.) Manufacturer's standards (no certificate)

User & Safety Instructions

User & Safety Instructions 2252506 Kern FL 20K Force gauge 20000 N (max.) Manufacturer's standards (no certificate)

Information

Information 2252506 Kern FL 20K Force gauge 20000 N (max.) Manufacturer's standards (no certificate)

Description

Premium force meter with external measuring cell, towing eyes and pressure plates included in delivery. Reversible backlit display. Peak hold function for recording the peak value or track function for continuous measurement display. Metal housing for permanent use in rugged environmental conditions. Can be mounted on all SAUTER test benches. Capacity indicator: An increasing light band indicates the remaining measuring range. Measurement with tolerance range (limit function): Upper and lower limit value can be programd, in the direction of pull and pressure. The measurement process is supported by an acoustic and optical signal. Internal data memory for up to 500 values. Continuous analogue output: Linear voltage signal depending on the load (-2 to +2 V). Selectable units: N, kN, kg, oz, lb. Supplied in a robust carrying case.

This text is machine translated.
