Buy Kern HCD 100K-2D Crane scales HCD 100K-2D Weight range 150 kg Readability 20 g, 50 g battery-powered Multicolour

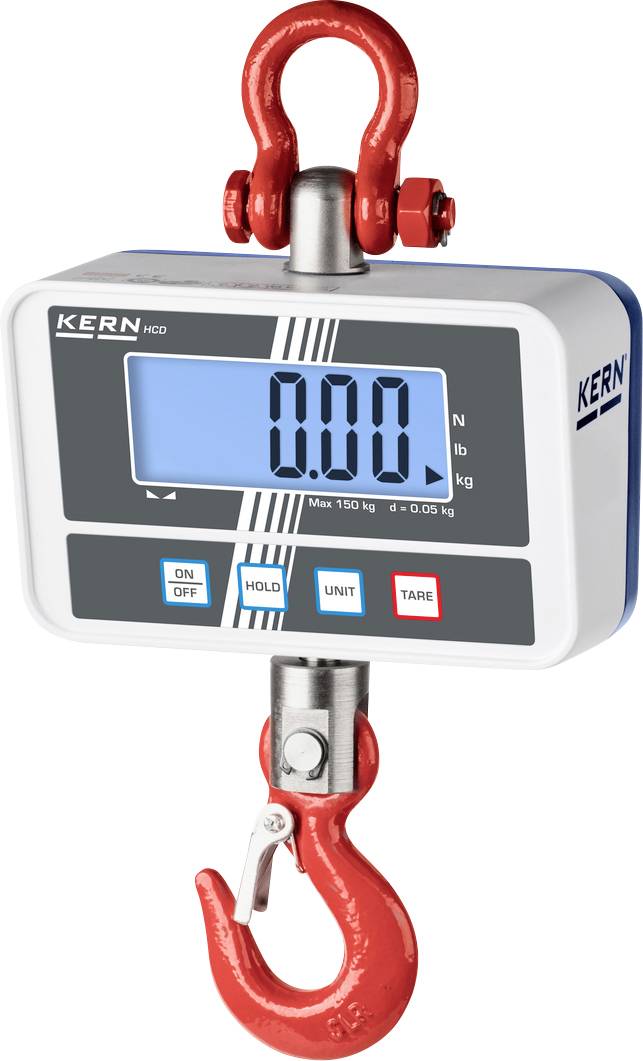

Digital crane scale with large display, red hooks top and bottom, for measurements up to 150 kg.

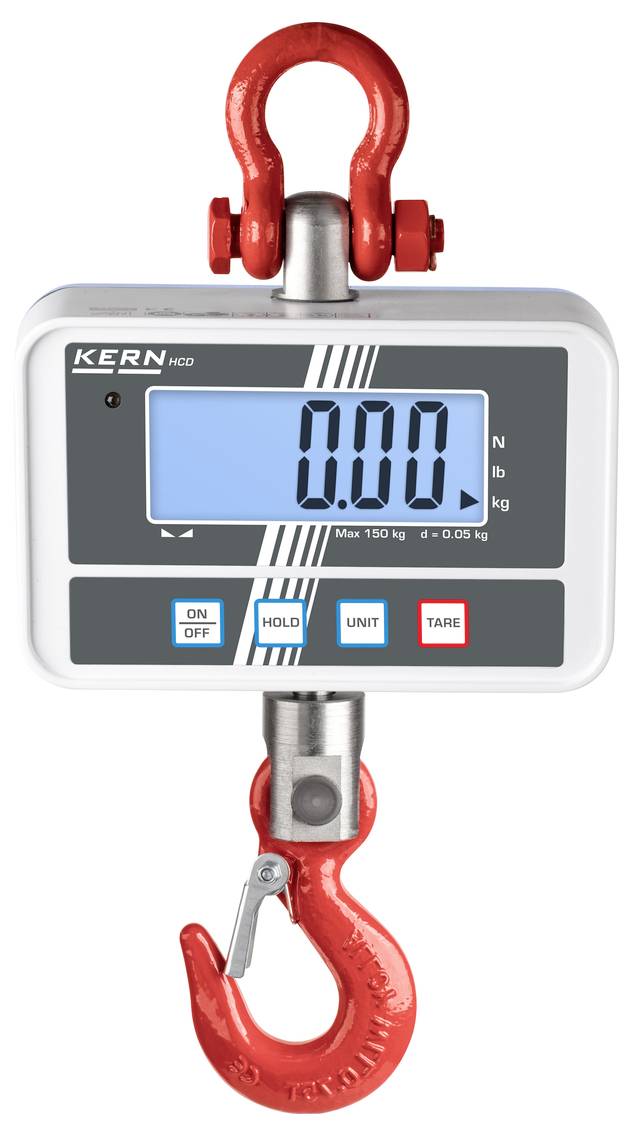

Digital crane scale with red hook, displaying '0.00' on the screen. Control panels at the top include On/Off, Hold, Units, Tare.

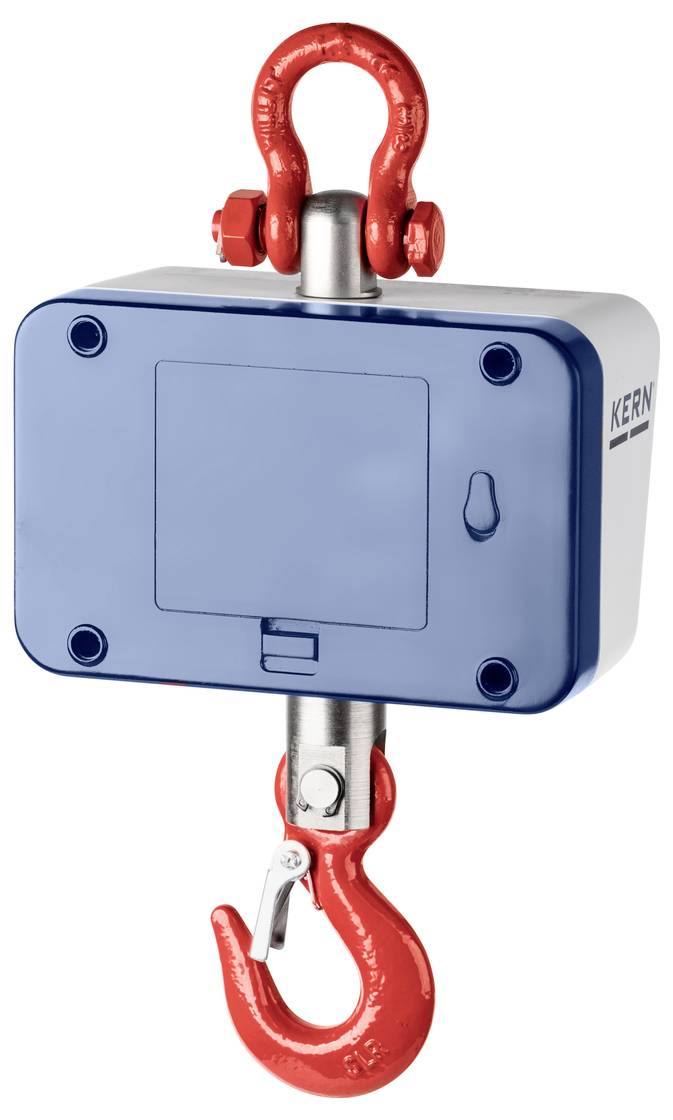

Industrial crane scale with blue casing, red hook and silver connecting piece, manufactured by Kern. Suitable for load measurement.

Kern HCD 100K-2D Crane scales HCD 100K-2D Weight range 150 kg Readability 20 g, 50 g battery-powered Multicolour-4

'Figure A: Suspension hook; B: Weighing hook; C: Battery cover; D: Housing; E: Display; F: Hanging loop; G: Infrared receiver.'

1/6

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Hanging scale

High-resolution hanging scales for loads up to 300 kg

Technical specifications

Weight range: 150 kg

Product type: Crane scales

Readability: 20 g
50 g

Display: Digital

Power supply (LOV): battery-powered

: Manufacturer's standards (no certificate)

Factory colour: Multicolour

Dim: (L x W x H) 97 x 150 x 97 mm (Casing)

Weight: 1.2 kg

Weight resolution: 20 g g

Calibratable: No

Dim. (add. text): Casing

Width: 150 mm

Height: 97 mm

Length: 97 mm

Reproducibility: 0.02 kg
0.05 kg

Type: HCD 100K-2D

Features: Calibratable
Incl. hook

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2108033 Kern HCD 100K-2D Crane scales HCD 100K-2D Weight range 150 kg Readability 20 g, 50 g battery-powered Multicolour

User & Safety Instructions

User & Safety Instructions 2108033 Kern HCD 100K-2D Crane scales HCD 100K-2D Weight range 150 kg Readability 20 g, 50 g battery-powered Multicolour

Information

Information 2108033 Kern HCD 100K-2D Crane scales HCD 100K-2D Weight range 150 kg Readability 20 g, 50 g battery-powered Multicolour

Conformity certificate

Conformity certificate 2108033 Kern HCD 100K-2D Crane scales HCD 100K-2D Weight range 150 kg Readability 20 g, 50 g battery-powered Multicolour

Description

New: full-fledged crane scales for lower to medium load ranges. The solid design provides for a plus at security (TÜV tested). Thanks to the large LCD-display and the standard remote control included in the delivery make sure to read even from a great distance and use
The scales correspond with the Approvals TUV meet the requirements of the standard EN 13155 (free load transducer) and EN 61010-1 (electrical safety)
High mobility: thanks to battery operation and compact, lightweight design suitable for use at several locations (production, storage, dispatch)
Hold function: when weighing is at a standstill, the weight display automatically up to the pressing the HOLD button ' ' FROZEN ''
Taring: reset the display to "0" at stress level. Now be removed or added is displayed directly loads
Battery status display, indicated by LED
Large, high-contrast display, facilitates the reading
Stand-by-function: Automatic switch-off of the display after 5 minutes without load change. Automatic activation in any button.
Hook with safety lock, rotatable

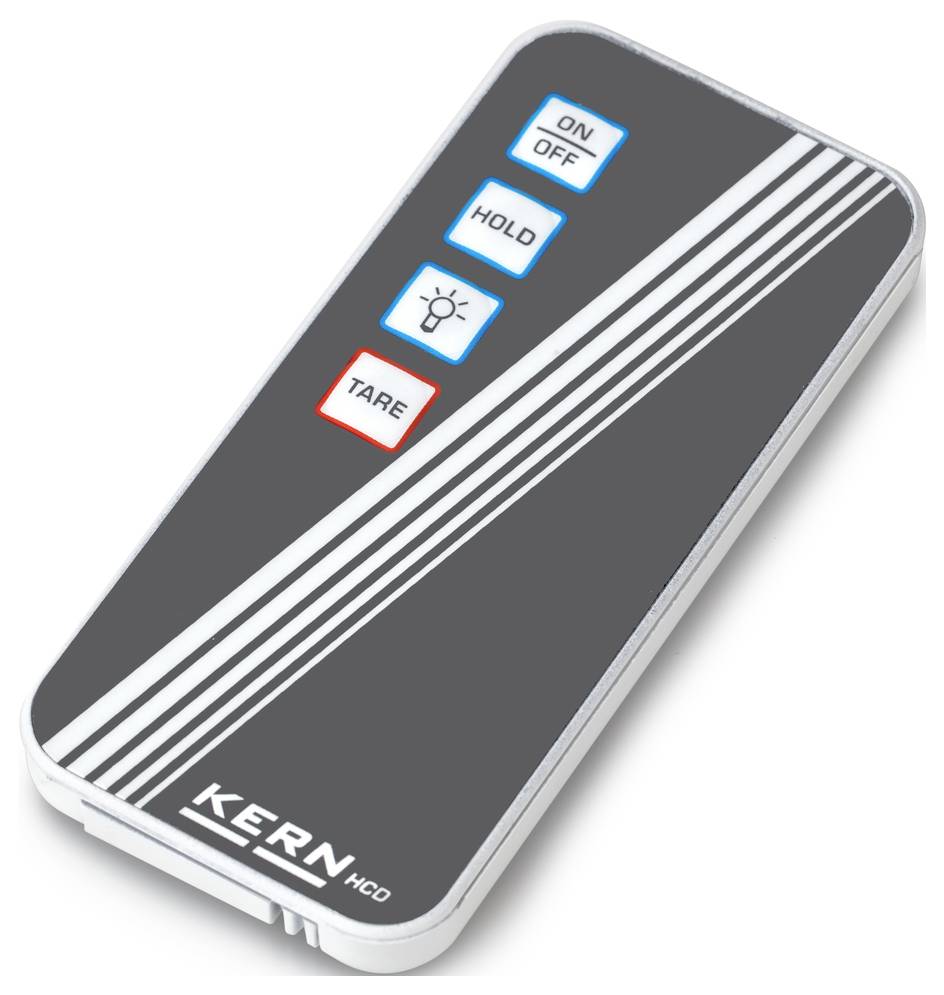

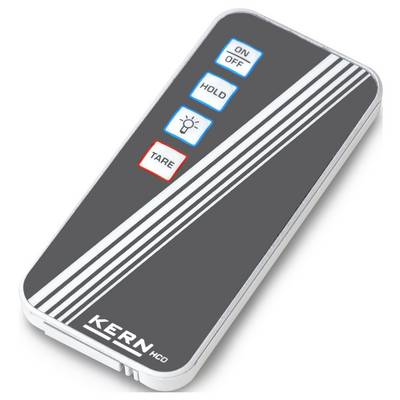

Infrared remote control as standard. Radio range up to 20 m. All the functions can be selected. Batteries included

This text is machine translated.
