Name: Kern HFD 10T-3M Crane scales HFD 10T-3M Weight range 12 t Readability 5000 g rechargeable, via PSU
Brand: Kern
SKU: 2340090

Digital hanging scale with a red casing, hooks at the top and bottom, displaying 0.0 kg.

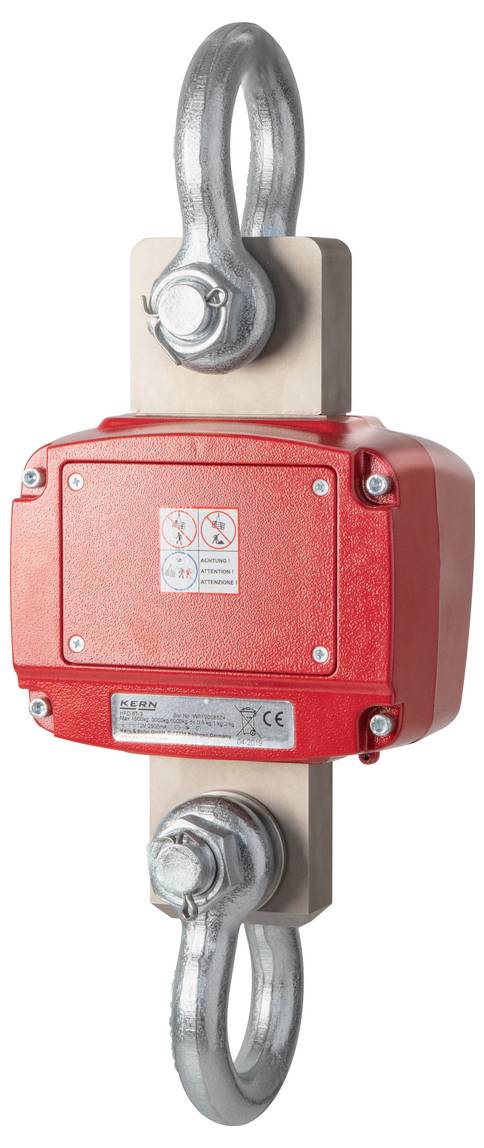

A red, rectangular load monitoring unit with two metal eyelets at the ends.

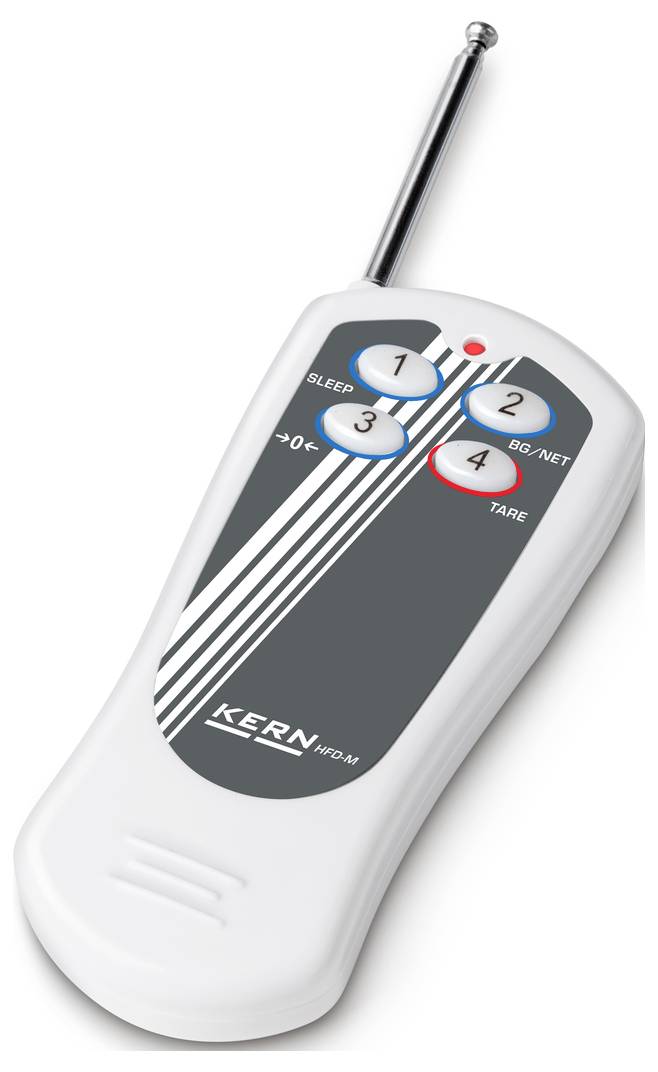

Remote control with four numbered buttons, a long antenna rod, and the inscription 'KERN' at the bottom.

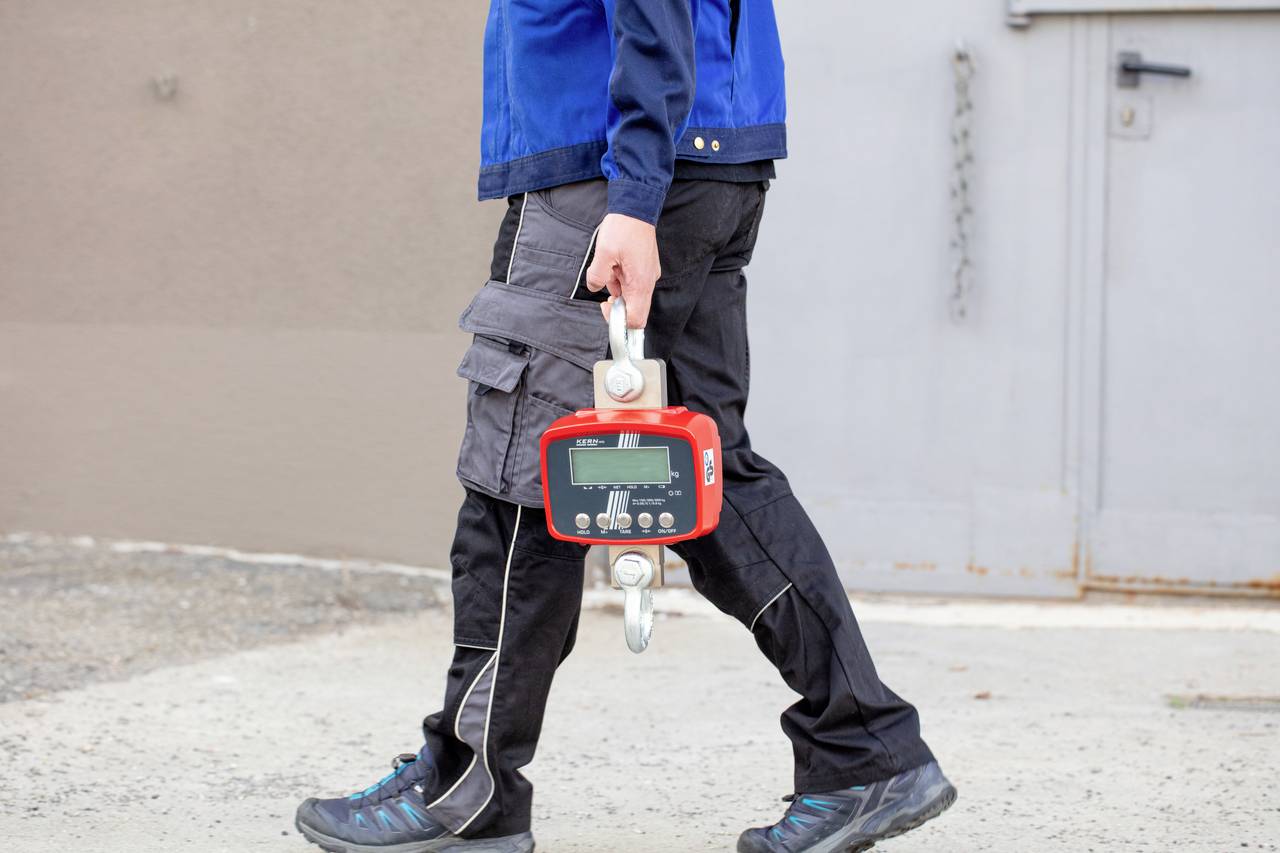

A person in work attire is carrying a handy, digital measuring device with a red casing while walking outside.

Figure shows an industrial scale with digital display (C), hook (A), unit of measurement in kilograms on the right (D), sensors at the top and bottom (B, F).

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

CRANE SCALES KERN HFD 10T-3M

Robust, high-resolution crane scales up to 12 tons, now also with calibration approval or degree of protection

Technical specifications

Weight range: 12 t

Product type: Crane scales

Readability: 5000 g

Display: Digital

Power supply (LOV): rechargeable
via PSU

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 180 x 584 x 180 mm

Weight: 20 kg

Weight resolution: 5 kg

Calibratable: Yes

Width: 584 mm

Height: 180 mm

Length: 180 mm

Reproducibility: 5 kg

Type: HFD 10T-3M

Features: Calibratable
Calibratable

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2340090 Kern HFD 10T-3M Crane scales HFD 10T-3M Weight range 12 t Readability 5000 g rechargeable, via PSU

User & Safety Instructions

User & Safety Instructions 2340090 Kern HFD 10T-3M Crane scales HFD 10T-3M Weight range 12 t Readability 5000 g rechargeable, via PSU

Information

Information 2340090 Kern HFD 10T-3M Crane scales HFD 10T-3M Weight range 12 t Readability 5000 g rechargeable, via PSU

Description

The models with the addition M have a calibration approval and are thus suitable for use in applications requiring calibration, such as Determination of a retail price according to weight[[1]] the scales correspond with the test mark TUV: The requirements of the standard: EN 13155 (loose load sensor/fracture safety) and EN 61010-1 (electrical safety); through the stable design and robust design: ideal for permanent use in industrial environments; high mobility: Thanks to battery operation and compact, light-weight design suitable for use at several locations (production, storage, dispatch etc.); Hold function: : at weighing stand, the weight display is automatically "frozen" until the hold button is pressed; taring:: Reset the display to "0" when the scale is loaded. Now removed or added loads are displayed directly; massive shackle, not rotatable; wireless remote control: Standard. Range up to 20 m. All functions can be selected (except ON/OFF). W×D×H 48x10x95 mm. Batteries including 2x 1.5 V AAA;

This text is machine translated.
