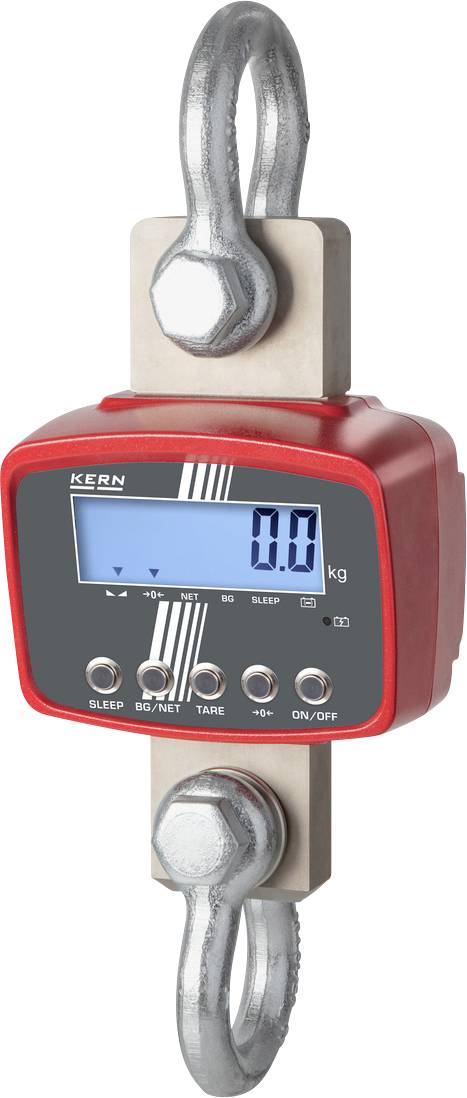

Kern HFD 600K-1M Crane scales HFD 600K-1M Weight range 600 kg Readability 200 g rechargeable, via PSU
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
CRANE SCALES KERN HFD 600K-1M
- Robust, high-resolution crane scales up to 12 tons, now also with calibration approval or degree of protection
Technical specifications
- Weight range
600 kg
- Product type
Crane scales
- Readability
200 g
- Display
Digital
- Power supply (LOV)
rechargeable
via PSU
Manufacturer's standards (no certificate)

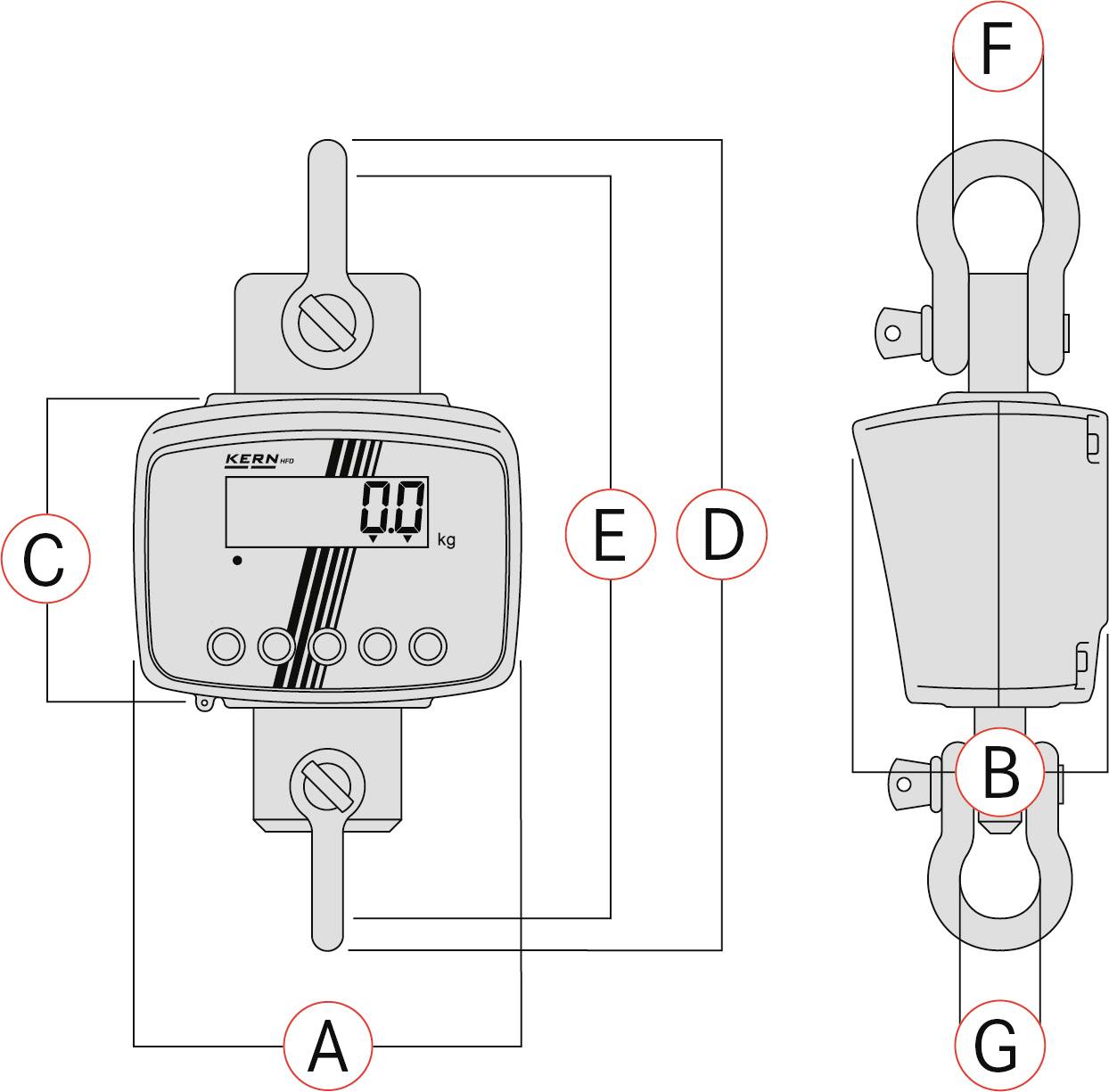

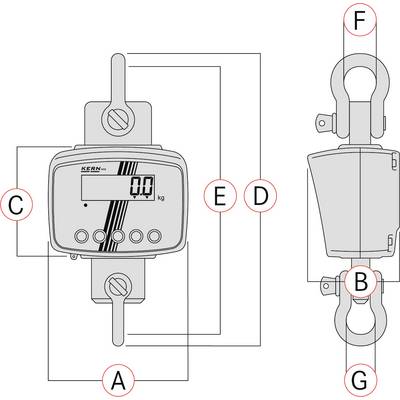

- Dim
(L x W x H) 129 x 422 x 129 mm
- Weight
9 kg
- Weight resolution
200 g
- Calibratable
Yes
- Width
422 mm
- Height
129 mm
- Length
129 mm
- Reproducibility
0.2 kg
- Type
HFD 600K-1M
- Features
Calibratable
Calibratable
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2340093 Kern HFD 600K-1M Crane scales HFD 600K-1M Weight range 600 kg Readability 200 g rechargeable, via PSU
User & Safety Instructions
User & Safety Instructions 2340093 Kern HFD 600K-1M Crane scales HFD 600K-1M Weight range 600 kg Readability 200 g rechargeable, via PSU
Information
Information 2340093 Kern HFD 600K-1M Crane scales HFD 600K-1M Weight range 600 kg Readability 200 g rechargeable, via PSU
Description

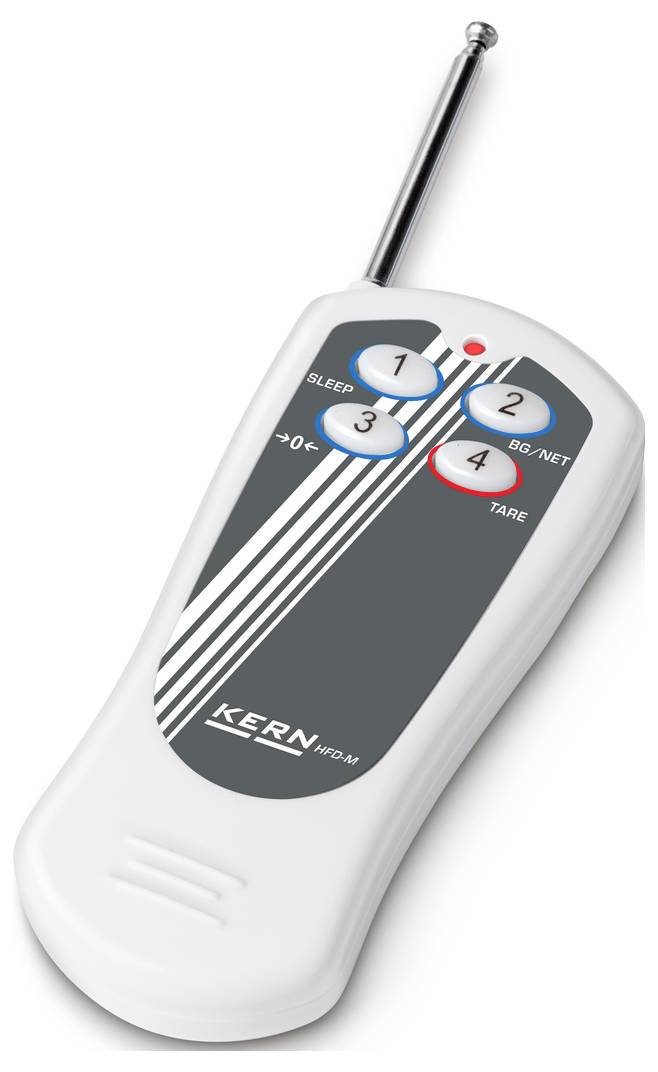

The models with the addition M have a calibration approval and are thus suitable for use in applications requiring calibration, such as Determination of a retail price according to weight[[1]] the scales correspond with the test mark TUV: The requirements of the standard: EN 13155 (loose load sensor/fracture safety) and EN 61010-1 (electrical safety); through the stable design and robust design: ideal for permanent use in industrial environments; high mobility: Thanks to battery operation and compact, light-weight design suitable for use at several locations (production, storage, dispatch etc.); Hold function: : at weighing stand, the weight display is automatically "frozen" until the hold button is pressed; taring:: Reset the display to "0" when the scale is loaded. Now removed or added loads are displayed directly; massive shackle, not rotatable; wireless remote control: Standard. Range up to 20 m. All functions can be selected (except ON/OFF). W×D×H 48x10x95 mm. Batteries including 2x 1.5 V AAA;
This text is machine translated.
This text is machine translated.
Scope of delivery
- - Battery & power supply (1×12V, type 23A)
- - Additional description
- - Operating instructions
- - Additional description
- - PLUG POWER SUPPLY (FROM,CH,EURO,UK,US) (KERN YKA-07)
- - rechargeable battery (Li-Ion, 7.4V, 5200mAh) (Kern HFD-A04
Hints
Crane scales pose considerable health risks. Mechanical failure of crane scales may result in lifethreatening injuries. This why the right to cancel does not apply to the purchase of crane scales. Crane scales may only be returned on condition that the product is in its orginal packaging, with the seal being fully intact.The selected product is a calibration approved part.If there is a need to be calibrated according to EU directives, please order the conformity assessment (calibration) via the optional accessories.Subsequent initial calibration is not possible.In the case of articles with first-time verification, the right of withdrawal is fundamentally excluded.Under the EU Directive 2014/31/EU, scales must be officially conformity-assessed ("calibrated") when used as followswill:a) in the course of business, if the price of a commodity is determined by weighing.b) in the manufacture of medicinal products in pharmacies and in analyzes in the medical and pharmaceutical laboratories.c) for official purposes.d) in the manufacture of prepackages.e) in medicine.
