Name: Kern HFD 6T-3+C Crane scales HFD 6T-3+C Calibrated to (DAkkS standards) Weight range 6000 kg Readability 500 g, 1000 g,
Brand: Kern
SKU: 2237392

A digital crane scale with a red casing and display showing '0.0 kg'. Sturdy hook at the top and bottom for attachment.

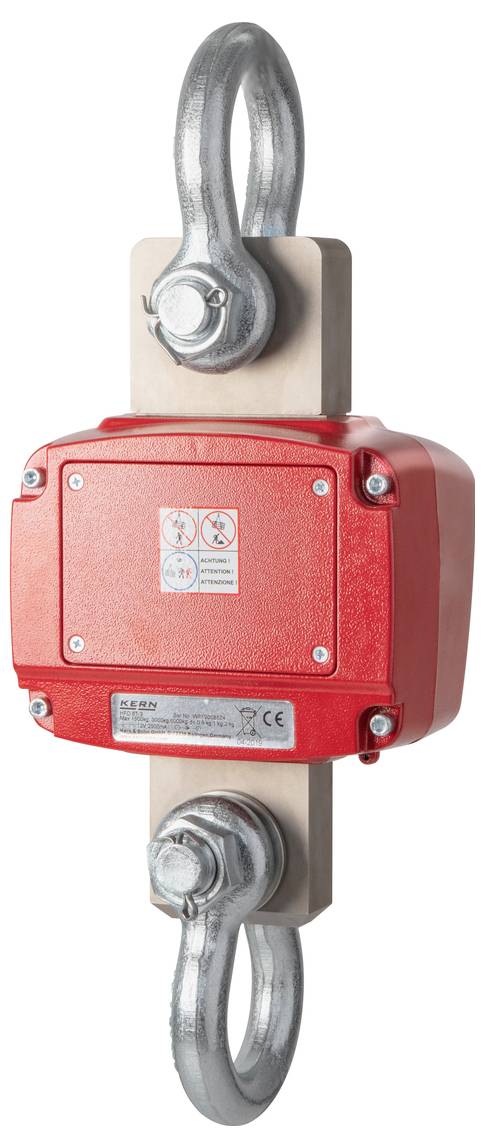

A red crane scale with a large hook and safety warnings on the front, suitable for industrial lifting operations.

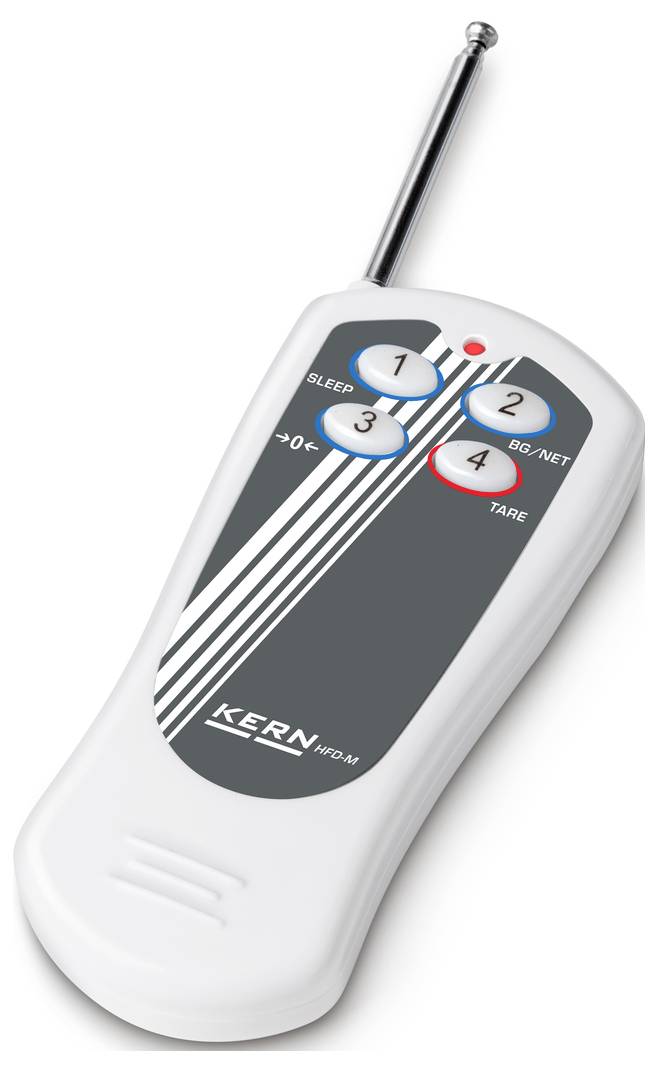

A white remote control with four numbered buttons and an aerial, labelled 'KERN HPB-A' on a grey area.

A person wearing work trousers and jacket is carrying a red measuring device with a digital display. A grey door is visible in the background.

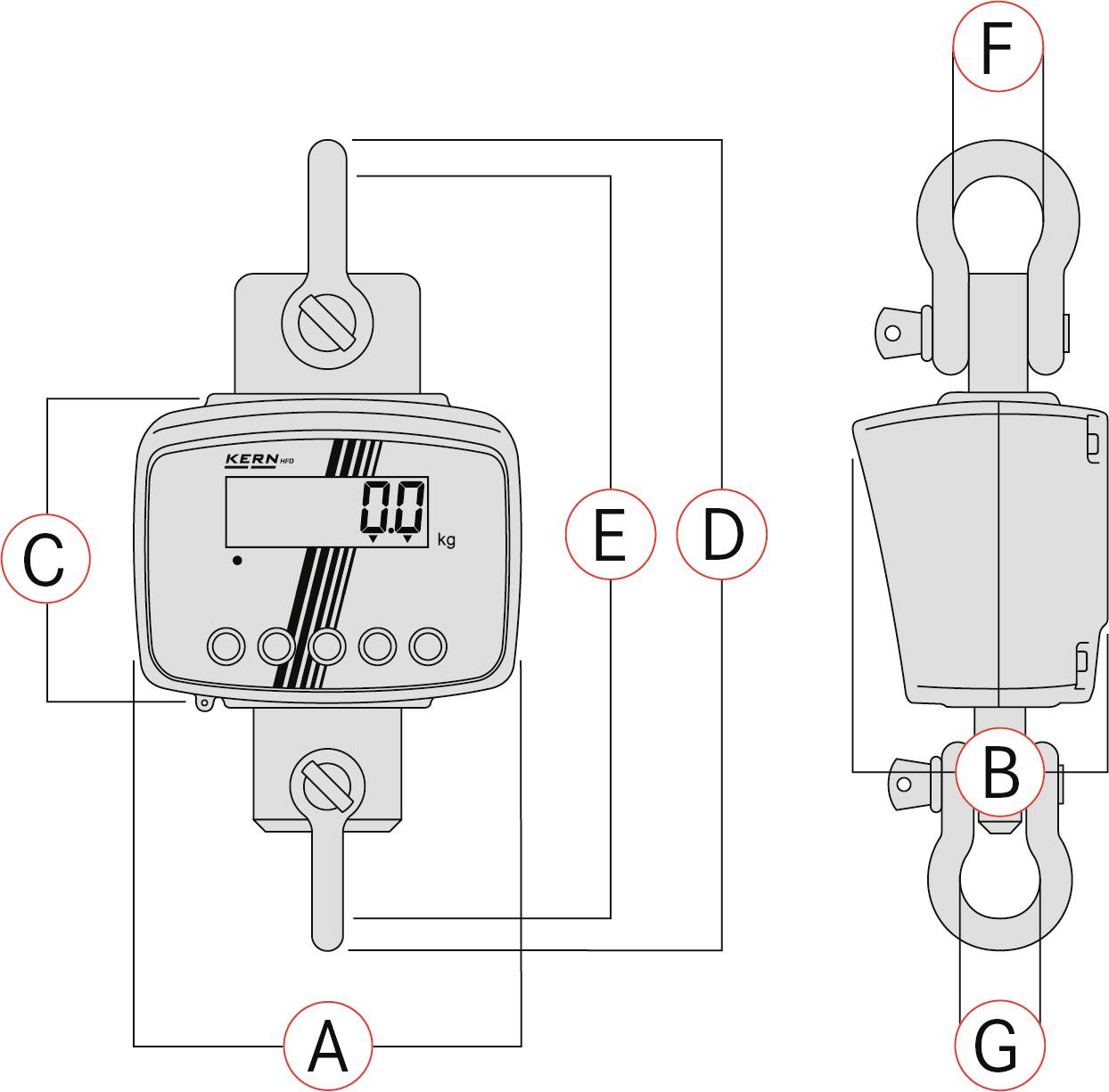

Figure of a digital crane scale with control elements and hook. Shows display and main components such as housing, upper and lower hooks.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Crane scale Max 1500 kg: 3000 kg: 6000 kg: d=0.5 kg: 1 kg: ...

Robust, high-resolution crane scale up to 12 tons

Technical specifications

Weight range: 6000 kg

Product type: Crane scales

Readability: 500 g
1000 g
2000 g

Display: Digital

Power supply (LOV): rechargeable
via PSU

: DAkkS standards

Factory colour: Multicolour

Power supply (details): 12 V DC, 2500mA

Dim: (L x W x H) 151 x 518 x 151 mm

Weight: 15 kg

Calibratable: No

Calibration service: 963-133H

Weighing plate: Steel

Width: 518 mm

Height: 151 mm

Length: 151 mm

Reproducibility: 0.5 kg
1 kg
2 kg

Type: HFD 6T-3+C

Features: Calibratable

Variants(All information is without VAT, plus shipping costs)

Weight range

Calibrated to

Readability

Kern HFD 6T-3+C Crane scales HFD 6T-3+C Calibrated to (DAkkS standards) Weight range 6000 kg Readability 500 g, 1000 g, 2000 g rechargeable, via PSU Multicolour

Item no:2237392

Unavailable

Conrad Electronic

This article

6000 kg

DAkkS standards

500 g

Piece(s)

Minimum order quantity: 1

Multiple: 1

Kern HFD 10T-3+C Crane scales HFD 10T-3+C Calibrated to (DAkkS standards) Weight range 12000 kg Readability 1000 g, 2000 g, 5000 g rechargeable, via PSU Multicolour

Item no:2237364

Unavailable

Conrad Electronic

12000 kg

DAkkS standards

1000 g

Piece(s)

Minimum order quantity: 1

Multiple: 1

Kern HFD 10T-3IP Crane scales HFD 10T-3IP Weight range 12 t Readability 1000 g, 2000 g, 5000 g rechargeable, via PSU Multicolour

Item no:2252507

Unavailable

Conrad Electronic

12 t

Manufacturer's standards (no certificate)

1000 g

Piece(s)

Minimum order quantity: 1

Multiple: 1

Kern HFD 1T-4 Crane scales HFD 1T-4 Weight range 1500 kg Readability 100 g, 200 g, 500 g rechargeable, via PSU Multicolour

Item no:2255680

Unavailable

Conrad Electronic

1500 kg

Manufacturer's standards (no certificate)

100 g

Piece(s)

Minimum order quantity: 1

Multiple: 1

Kern HFD 1T-4IP Crane scales HFD 1T-4IP Weight range 1500 kg Readability 100 g, 200 g, 500 g rechargeable, via PSU Multicolour

Item no:2252508

Unavailable

Conrad Electronic

1500 kg

Manufacturer's standards (no certificate)

100 g

Piece(s)

Minimum order quantity: 1

Multiple: 1

Kern HFD 3T-3+C Crane scales HFD 3T-3+C Calibrated to (DAkkS standards) Weight range 3000 kg Readability 200 g, 500 g, 1000 g rechargeable, via PSU Multicolour

Item no:2237365

Unavailable

Conrad Electronic

3000 kg

DAkkS standards

200 g

Piece(s)

Minimum order quantity: 1

Multiple: 1

Kern HFD 3T-3IP Crane scales HFD 3T-3IP Weight range 3000 kg Readability 200 g, 500 g, 1000 g rechargeable, via PSU Multicolour

Item no:2252509

Unavailable

Conrad Electronic

3000 kg

Manufacturer's standards (no certificate)

200 g

Piece(s)

Minimum order quantity: 1

Multiple: 1

Kern HFD 600K-1 Crane scales HFD 600K-1 Weight range 600 kg Readability 50 g, 100 g, 200 g rechargeable, via PSU Multicolour

Item no:2255681

Unavailable

Conrad Electronic

600 kg

Manufacturer's standards (no certificate)

50 g

Piece(s)

Minimum order quantity: 1

Multiple: 1

Kern HFD 600K-1IP Crane scales HFD 600K-1IP Weight range 600 kg Readability 50 g, 100 g, 200 g rechargeable, via PSU Multicolour

Item no:2252511

Unavailable

Conrad Electronic

600 kg

Manufacturer's standards (no certificate)

50 g

Piece(s)

Minimum order quantity: 1

Multiple: 1

Kern HFD 6T-3IP Crane scales HFD 6T-3IP Weight range 6 t Readability 500 g, 1000 g, 2000 g rechargeable, via PSU Multicolour

Item no:2252512

Unavailable

Conrad Electronic

6 t

Manufacturer's standards (no certificate)

500 g

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 2237392 Kern HFD 6T-3+C Crane scales HFD 6T-3+C Calibrated to (DAkkS standards) Weight range 6000 kg Readability 500 g, 1000 g,

User & Safety Instructions

User & Safety Instructions 2237392 Kern HFD 6T-3+C Crane scales HFD 6T-3+C Calibrated to (DAkkS standards) Weight range 6000 kg Readability 500 g, 1000 g,

Information

Information 2237392 Kern HFD 6T-3+C Crane scales HFD 6T-3+C Calibrated to (DAkkS standards) Weight range 6000 kg Readability 500 g, 1000 g,

Description

The scales comply with the requirements of standard EN 13155 (loose load sensors) and EN 61010-1 (electrical safety) with the TUV test mark
The robust construction and robust design ideal for long-term use in industrial environments
High mobility: Thanks to battery operation and compact design suitable for use at several locations
Hold function: When weighing stands, the weight display is automatically displayed until the HOLD button is pressed.
Tare: Resets the display to "0" when the scale is loaded. The removed or added loads are now displayed directly
Wireless remote control as standard. Range approx. 20 m. All functions (except ON/OFF) can be selected. B×T×H 48×10×95 mm, batteries size AAA (2×1.5 V) included
