Name: Kern KGP 100K-3 Pallet scales KGP 100K-3 Weight range 150 kg Readability 5 g via PSU Multicolour
Brand: Kern
SKU: 2340112

Electronic platform scale on four adjustable feet with an attached display, viewed from above.

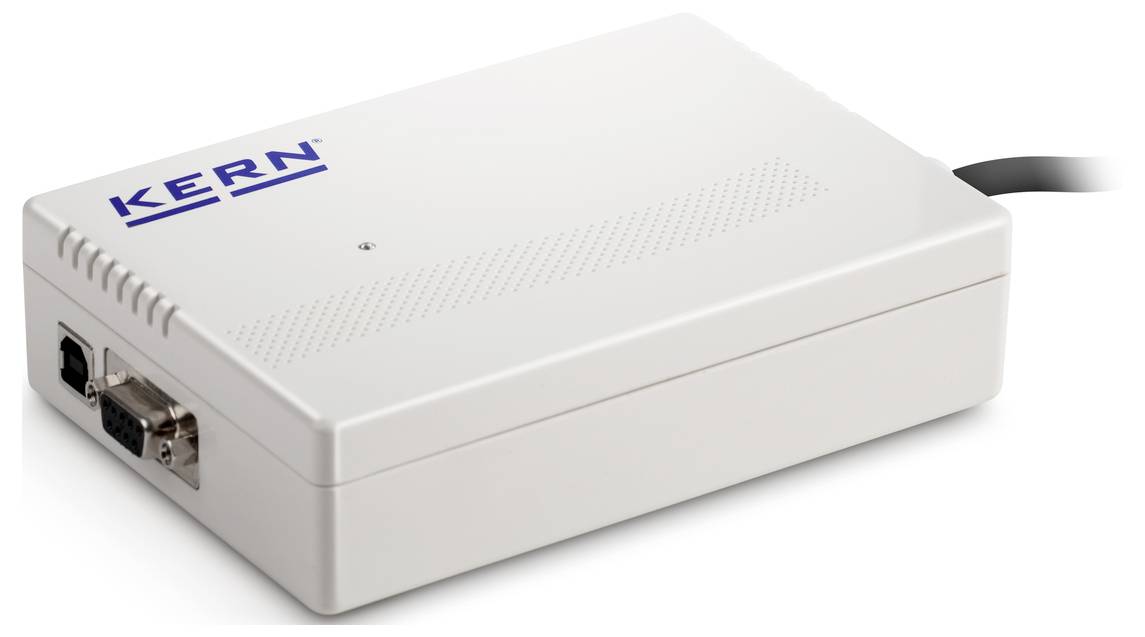

White electronic box with 'KERN' printed on it, connection cable and port. Likely used for data transmission.

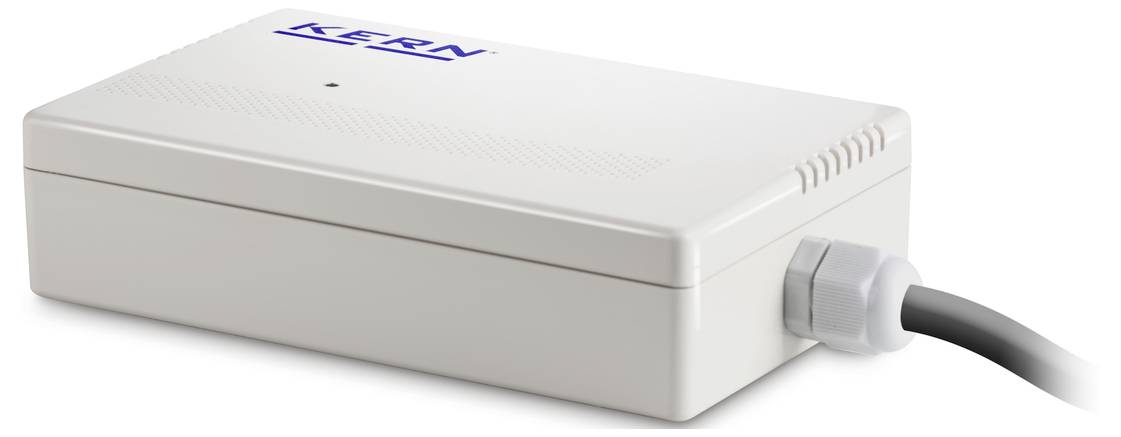

A white rectangular device with the word 'Kern' written on top, connected by a cable.

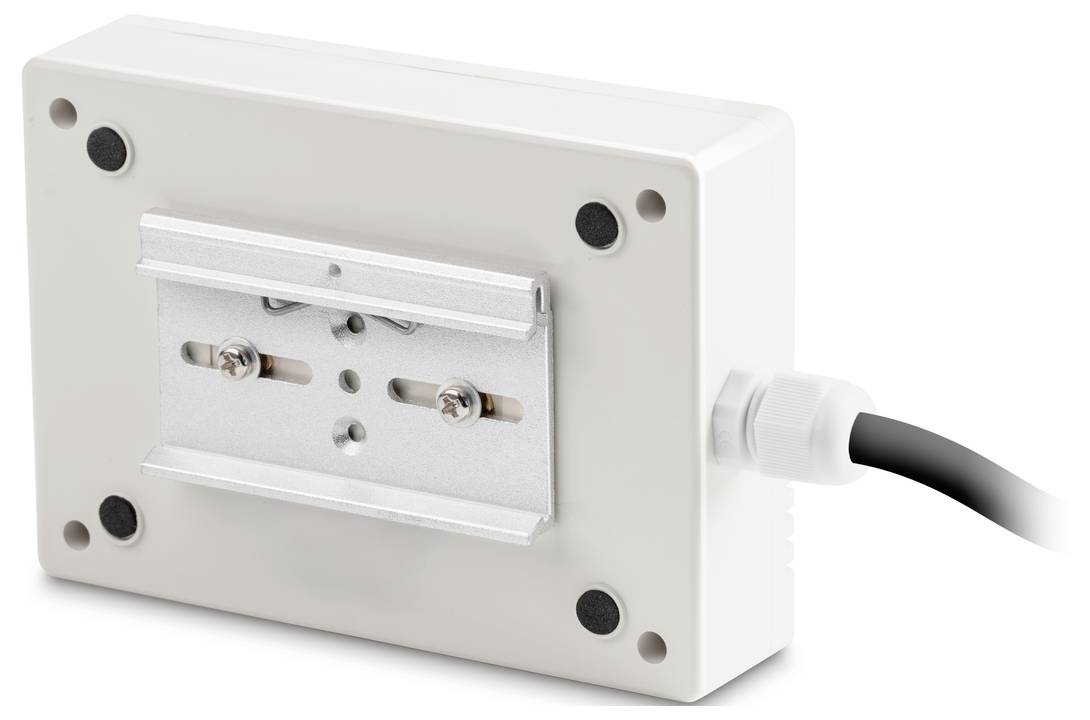

Back of a rectangular electronic device with mounting slots and an attached cable.

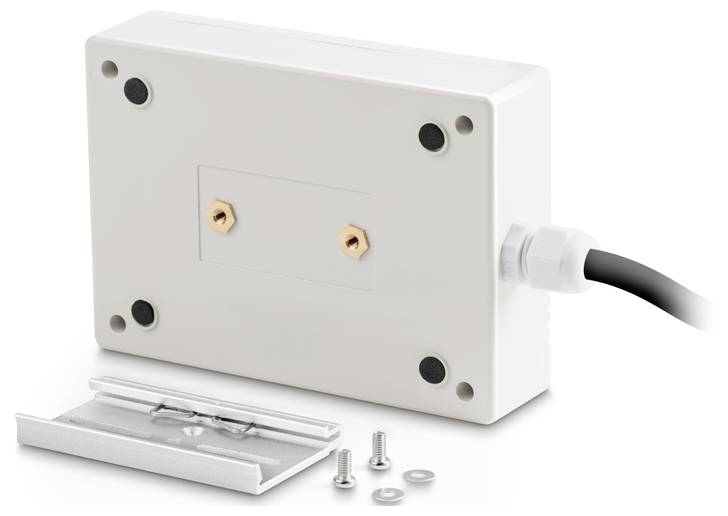

White electrical socket with cable, four screw holes and a metal mounting clip beside it.

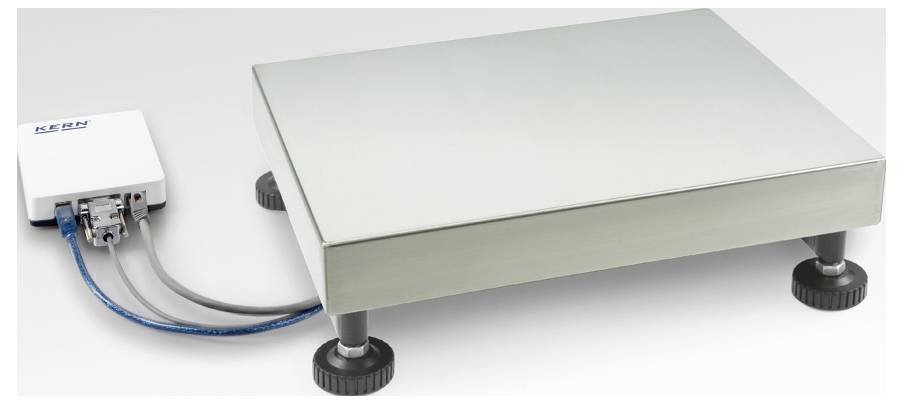

A rectangular metal electronic scale with four height-adjustable feet and a cable connection to a white control unit on the left.

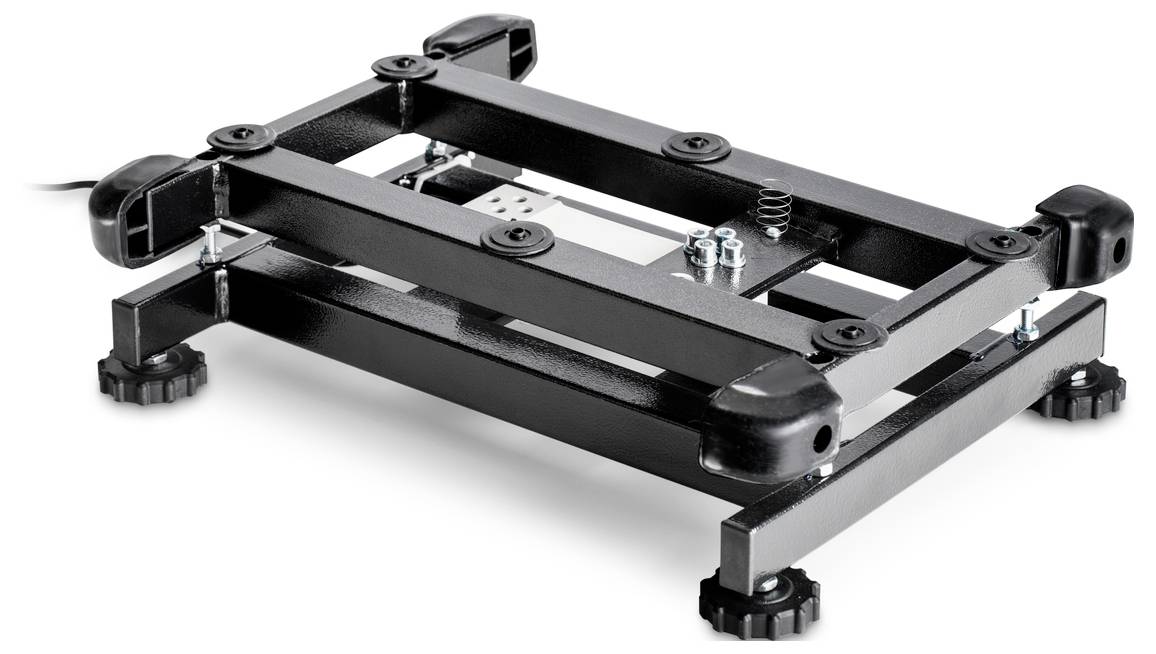

Black, height-adjustable metal platform with four rubber-mounted support feet, suitable for supporting heavy equipment or apparatus.

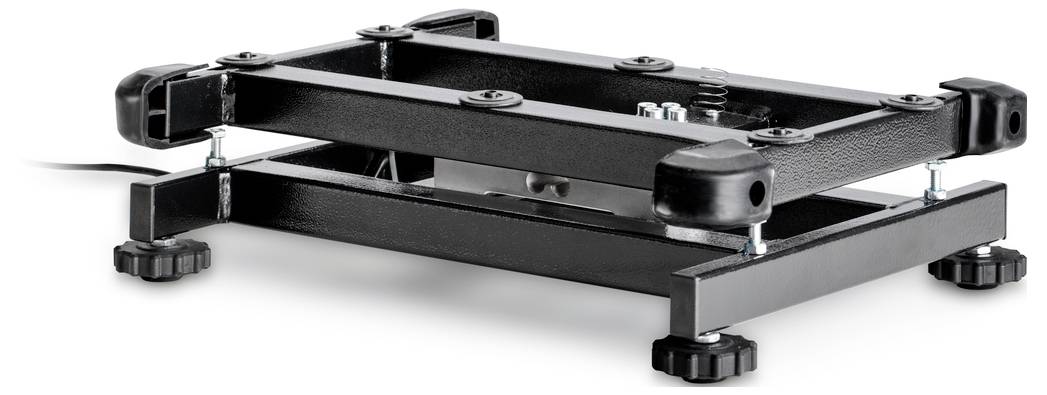

Black, height-adjustable metal platform with four legs and screws for stabilisation. Used to support equipment.

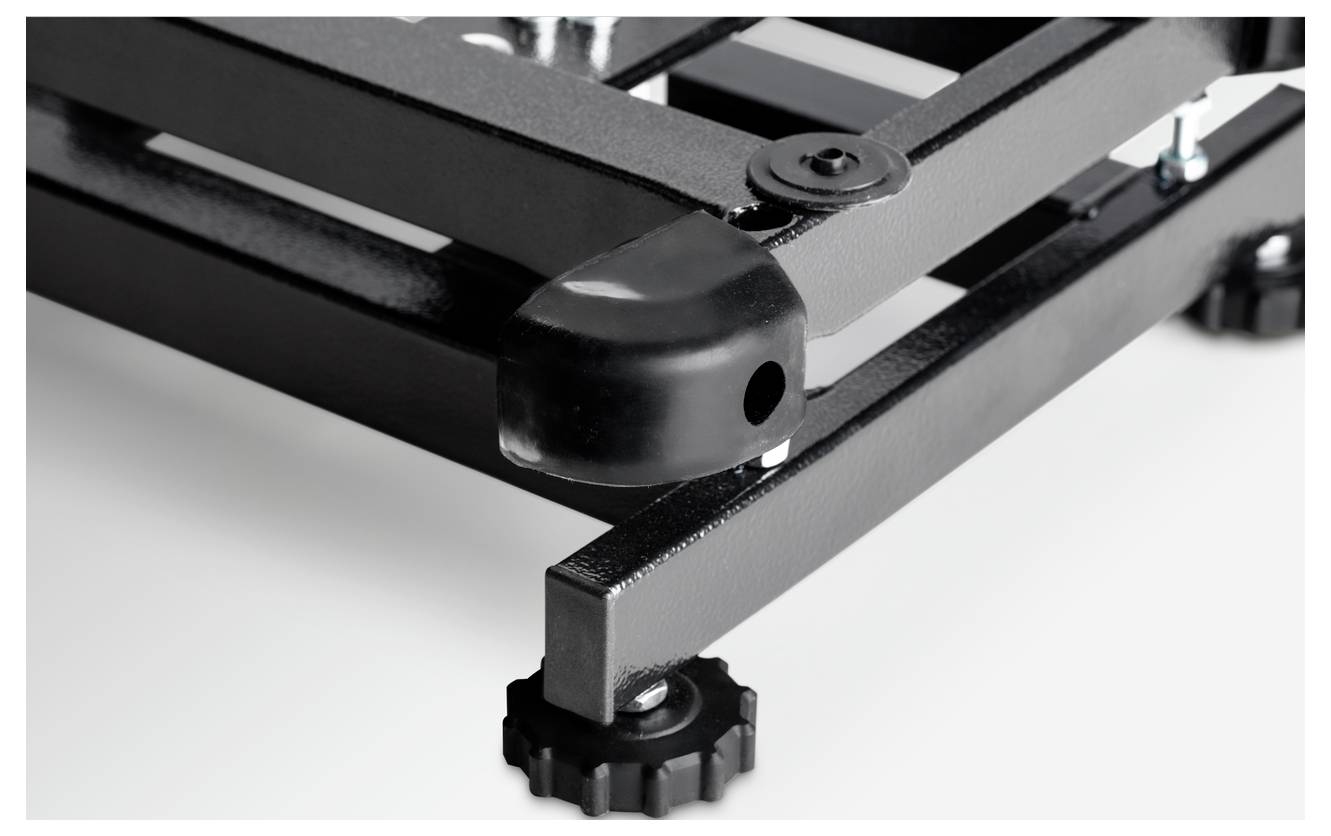

Metal frame of a piece of furniture with adjustable feet, in black colour and with a smooth surface.

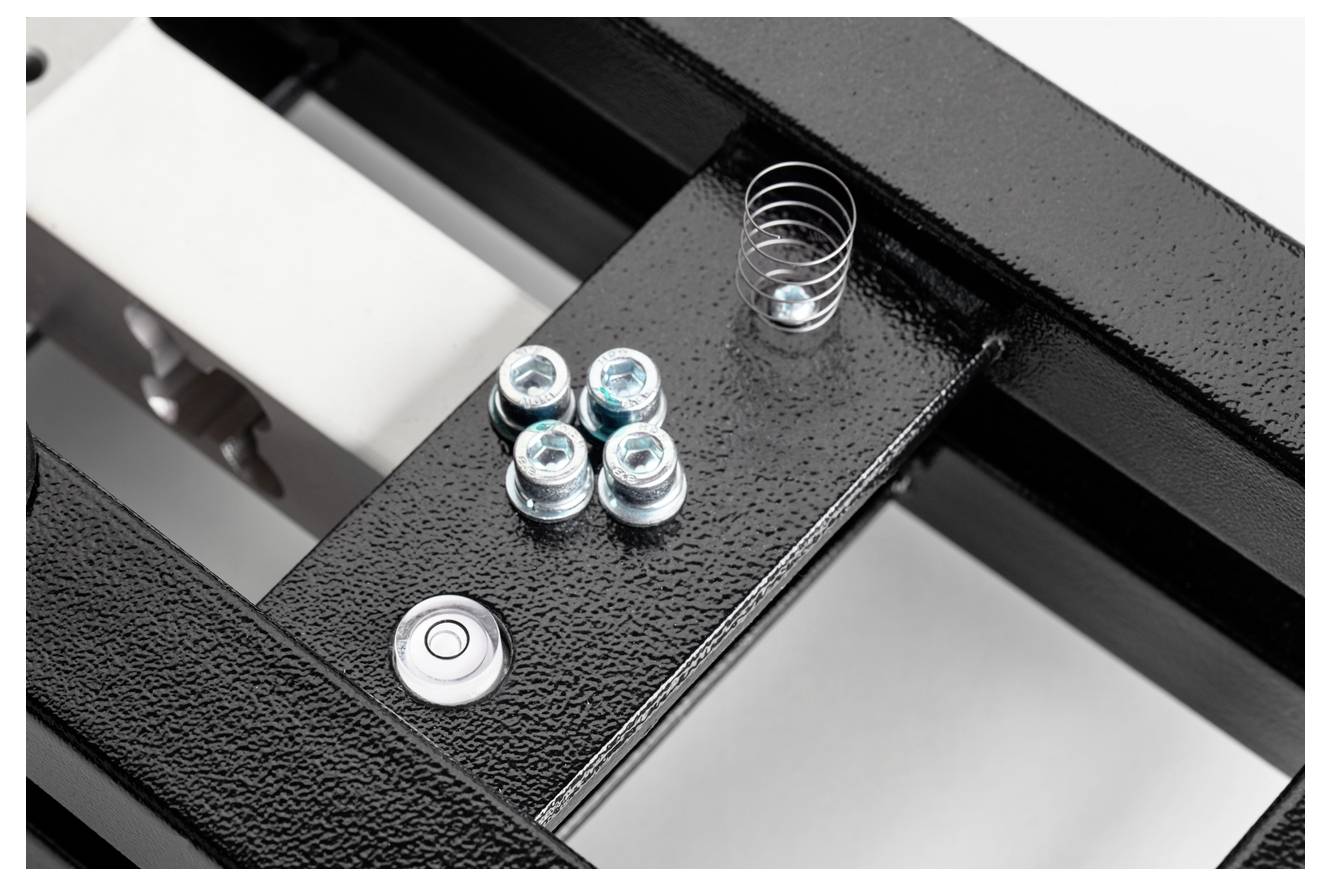

Black metal frame with four screws and a small spiral spring on the right side, pictured in close-up.

1/10

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Industrial platform with digital weighing transmitter Kern KGP 100K-3

Robust industrial platform with digital weighing transmitter, ideal for the wide range of possibilities of industry 4.0 applications

Technical specifications

Weight range: 150 kg

Product type: Pallet scales

Readability: 5 g

Display: Digital

Power supply (LOV): via PSU

: Manufacturer's standards (no certificate)

Factory colour: Multicolour

Dim: (L x W x H) 400 x 500 x 127 mm

Weight: 14 kg

Weight resolution: 5 g

Calibratable: No

Weighing plate: Stainless steel

Width: 500 mm

Height: 127 mm

Length: 400 mm

Reproducibility: 0.005 kg

Type: KGP 100K-3

Features: Calibratable

Top plate (width): 500 mm

Top plate (length): 400 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2340112 Kern KGP 100K-3 Pallet scales KGP 100K-3 Weight range 150 kg Readability 5 g via PSU Multicolour

User & Safety Instructions

User & Safety Instructions 2340112 Kern KGP 100K-3 Pallet scales KGP 100K-3 Weight range 150 kg Readability 5 g via PSU Multicolour

Description

With this combination of platform (Kern KFP V20 IP65) and digital weighing transmitter: (Kern YKV-01): Are your weighing processes fit for the requirements of Industry 4.0. Simple to set up platform, integrate digital weighing transmitter into the network and weigh it off; for fast transfer of weighing data to connected networks, computers etc.; USB and RS-232 data interface as standard, power supply via the USB interface Digital weighing transmitter with serial Ethernet data interface on request; functions: Weighing, taring; internal resolution 16 Mio parts; measurement frequency: 10 Hz display updates per minute; Convenient configuration via the supplied software; Kern YKV-01: Robust plastic die-cast housing; Kern YKV-02: Suitable for wall mounting and DIN rail mounting Kern ; Delivery scope:; Industrial platform Kern KGP 100K-3; Digital weighing transmitter Kern YKV-01: ; Bracket for DIN rail; Configuration software for adjusting and managing THE Kern YKV-01, for large-format display of the collected values on the PC and transfer of this data to other apps and programs. The result of the analysis can be converted into any format for communication with the various user programs, e.g. SAP, Oracle, etc.;
