Name: Kern KGP 60K-3 Pallet scales KGP 60K-3 Weight range 60 kg Readability 2 g via PSU Multicolour
Brand: Kern
SKU: 2340119

Kitchen scales with a stainless steel platform and digital display. Used for precise weighing of ingredients or small objects.

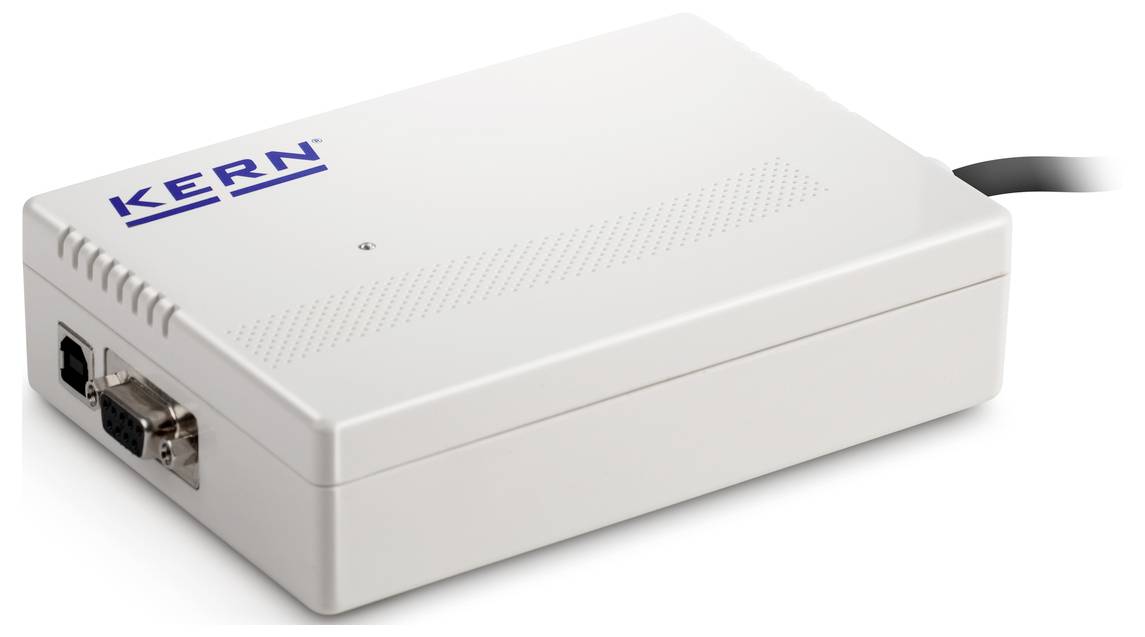

A white electronic box labelled 'KERN', fitted with connection ports, presumably for technical or scientific applications.

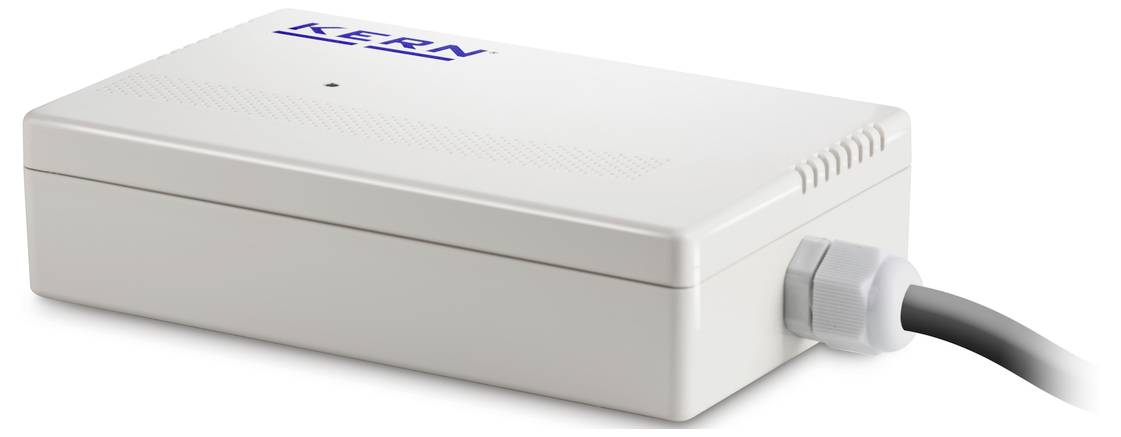

A rectangular, white electronic device with the inscription 'Kern'. The device has a cable connection on the right side.<br><br>Note: The translation is already in British English, which is very similar to the American English version in this case.

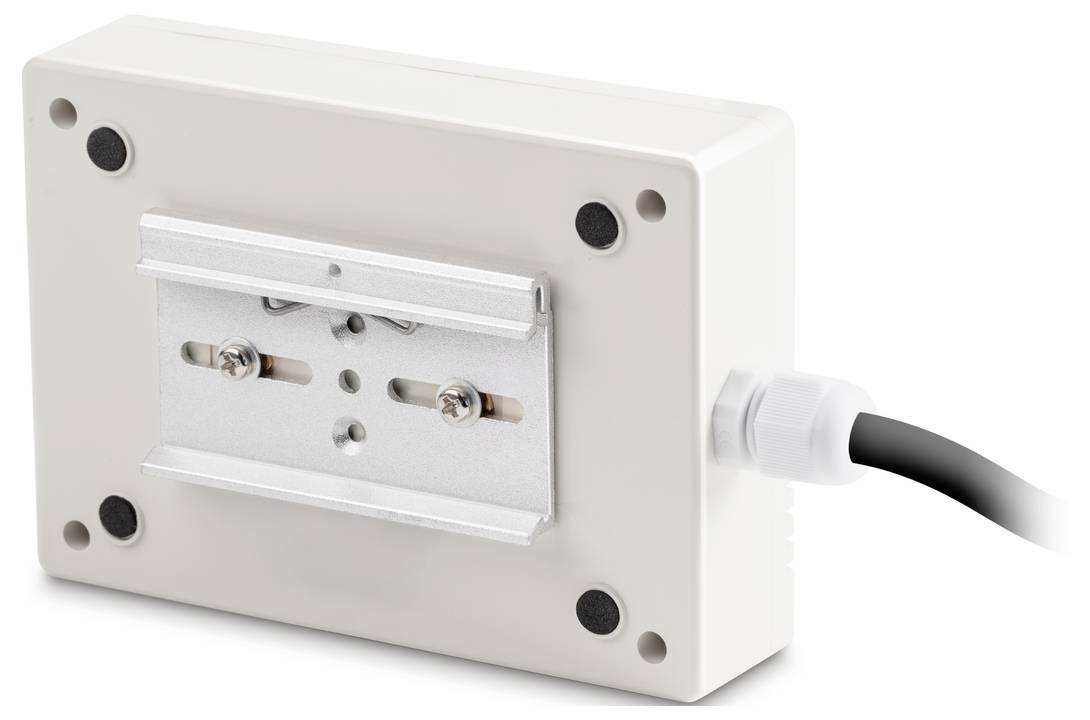

White wall mounting bracket with screw holes, cable connected on the left, suitable for electronic devices or monitors.

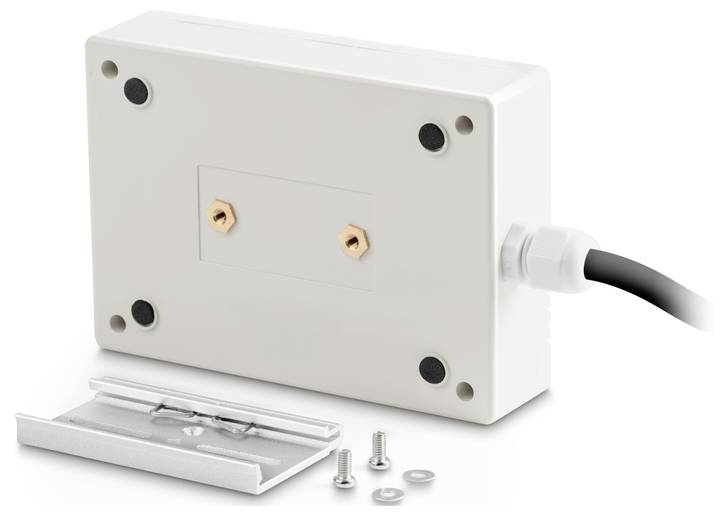

A rectangular white enclosure with holes at the corners, a cable connected on the right side and mounting accessories lying underneath.

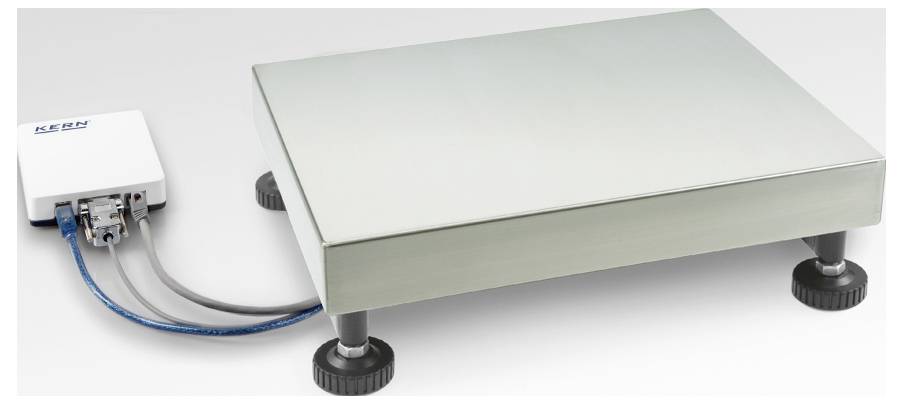

An electronic scale with a square stainless steel weighing surface and four adjustable feet. Several cables are connected to it.

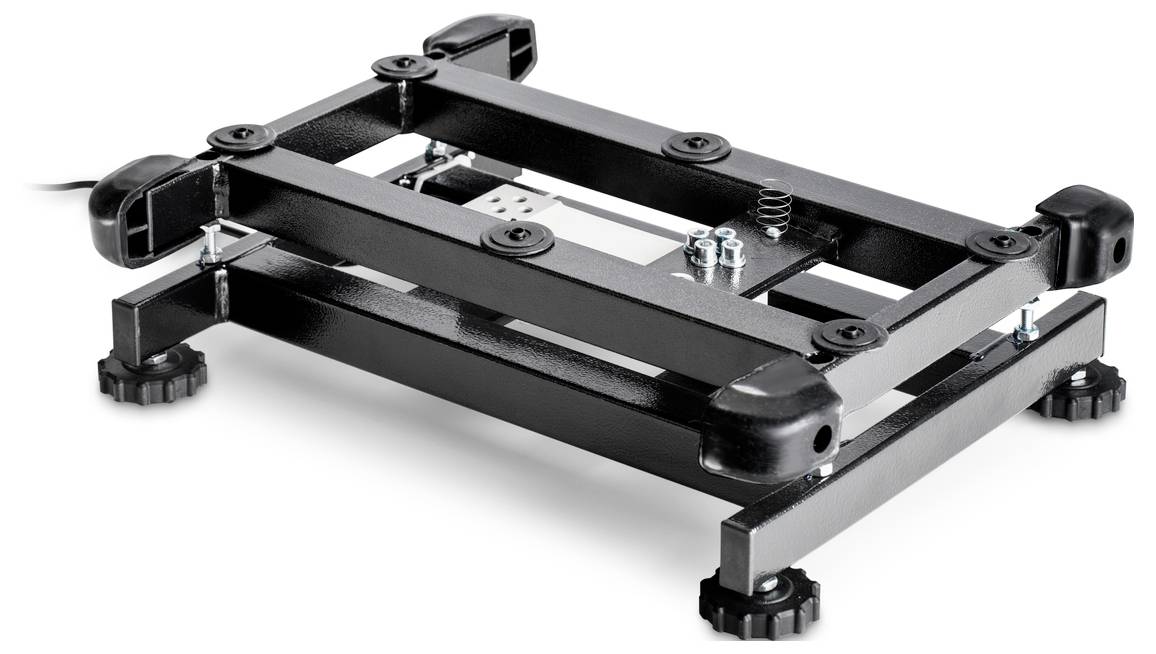

Kern KGP 60K-3 Pallet scales KGP 60K-3 Weight range 60 kg Readability 2 g via PSU Multicolour-6

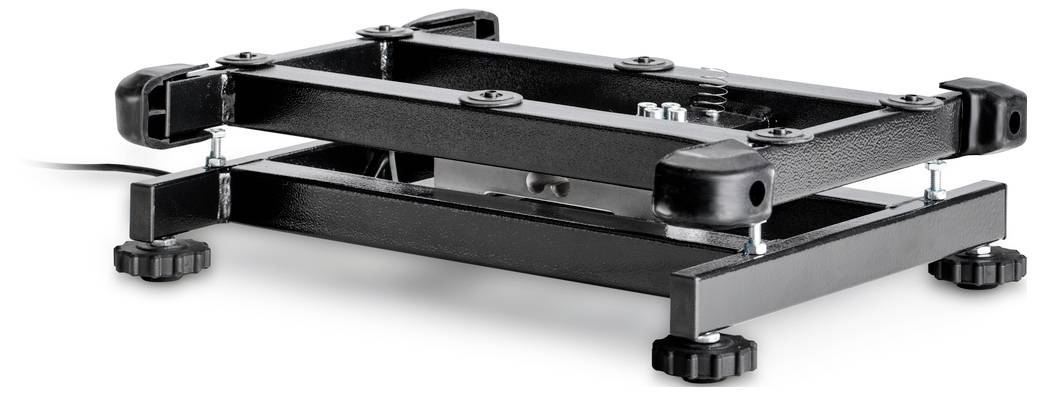

A black platform with adjustable height, mounted on four adjustable feet. It has a power connection on the side.

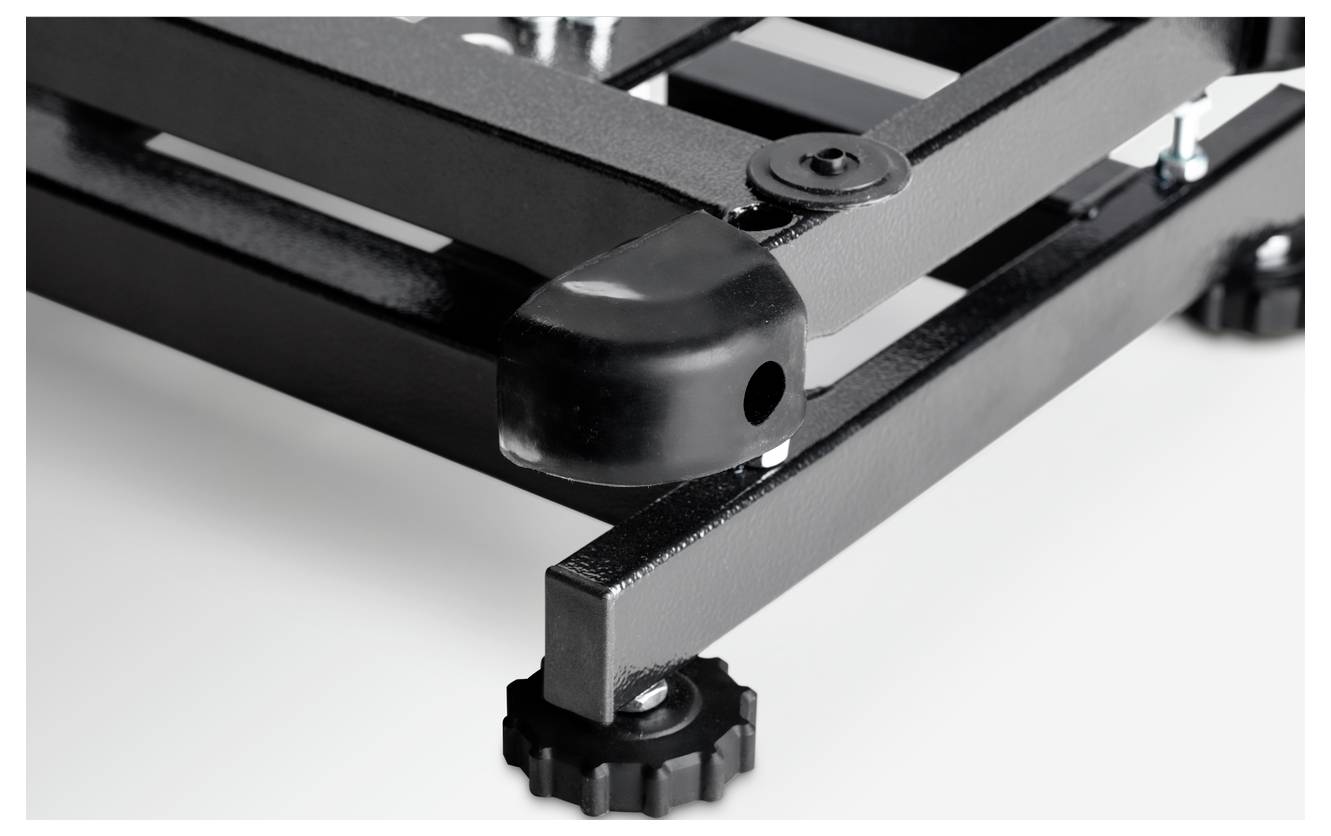

Black metal frame with plastic connectors and adjustment wheels. Suitable for supporting heavy objects or machinery.

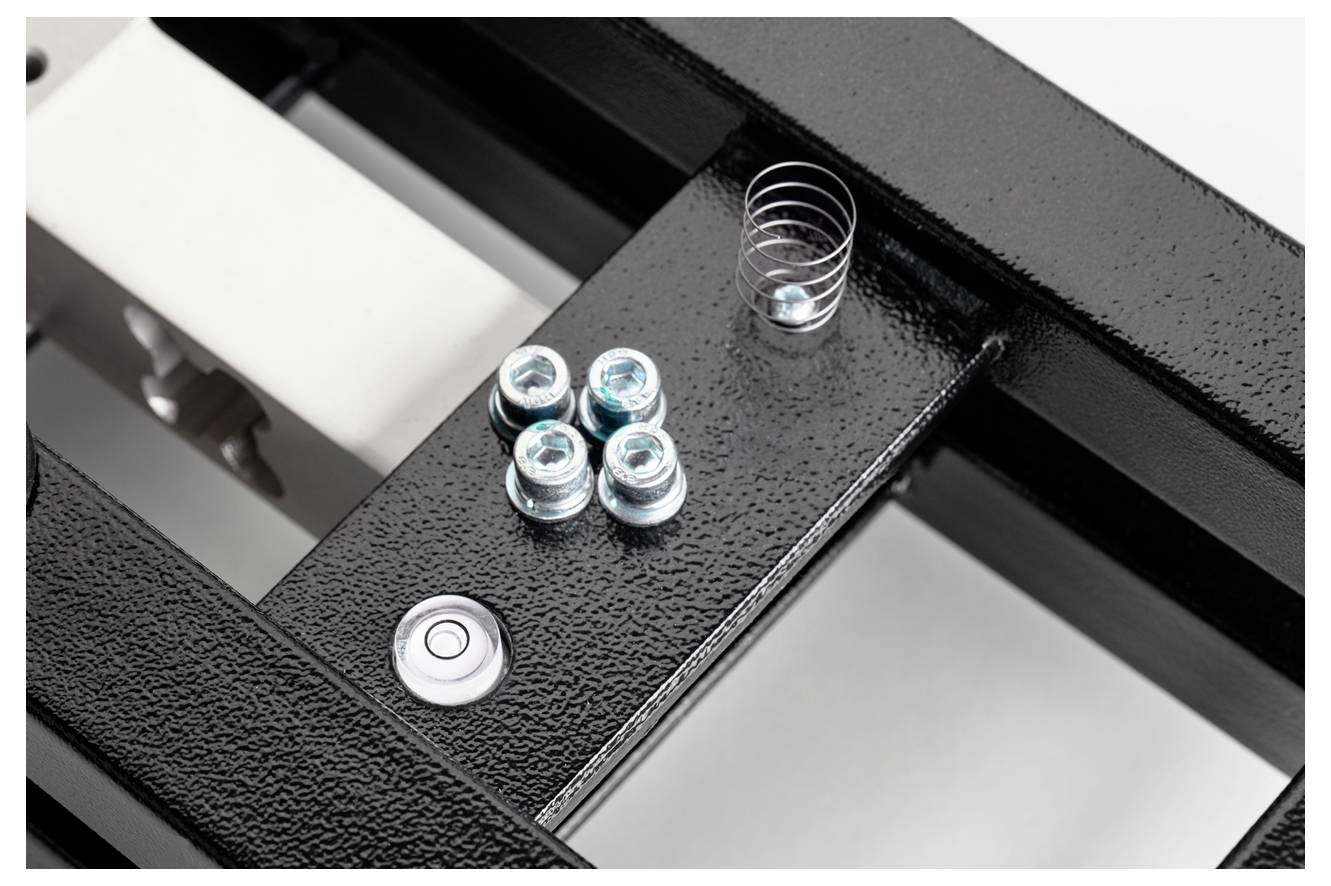

Metal plate with four screws and a loose spiral spring on a black metal frame.

1/10

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Industrial platform with digital weighing transmitter Kern KGP 60K-3

Robust industrial platform with digital weighing transmitter, ideal for the wide range of possibilities of industry 4.0 applications

Technical specifications

Weight range: 60 kg

Product type: Pallet scales

Readability: 2 g

Display: Digital

Power supply (LOV): via PSU

: Manufacturer's standards (no certificate)

Factory colour: Multicolour

Dim: (L x W x H) 300 x 400 x 117 mm (incl. packaging)

Weight: 10 kg

Weight resolution: 2 g

Calibratable: No

Weighing plate: Stainless steel

Dim. (add. text): incl. packaging

Width: 400 mm

Height: 117 mm

Length: 300 mm

Reproducibility: 0.002 kg

Type: KGP 60K-3

Features: Calibratable

Top plate (width): 400 mm

Top plate (length): 300 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2340119 Kern KGP 60K-3 Pallet scales KGP 60K-3 Weight range 60 kg Readability 2 g via PSU Multicolour

User & Safety Instructions

User & Safety Instructions 2340119 Kern KGP 60K-3 Pallet scales KGP 60K-3 Weight range 60 kg Readability 2 g via PSU Multicolour

Description

With this combination of platform (Kern KFP V20 IP65) and digital weighing transmitter: (Kern YKV-01): Are your weighing processes fit for the requirements of Industry 4.0. Simple to set up platform, integrate digital weighing transmitter into the network and weigh it off; for fast transfer of weighing data to connected networks, computers etc.; USB and RS-232 data interface as standard, power supply via the USB interface Digital weighing transmitter with serial Ethernet data interface on request; functions: Weighing, taring; internal resolution 16 Mio parts; measurement frequency: 10 Hz display updates per minute; Convenient configuration via the supplied software; Kern YKV-01: Robust plastic die-cast housing; Kern YKV-02: Suitable for wall mounting and DIN rail mounting Kern ; Delivery scope:; Industrial platform Kern KGP 60K-3; Digital weighing transmitter Kern YKV-01: ; Bracket for DIN rail; Configuration software for adjusting and managing THE Kern YKV-01, for large-format display of the collected values on the PC and transfer of this data to other apps and programs. The result of the analysis can be converted into any format for communication with the various user programs, e.g. SAP, Oracle, etc.;

This text is machine translated.
