Kern MCD 300K-1 Chair scales MCD 300K-1 Weight range=300 kg
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

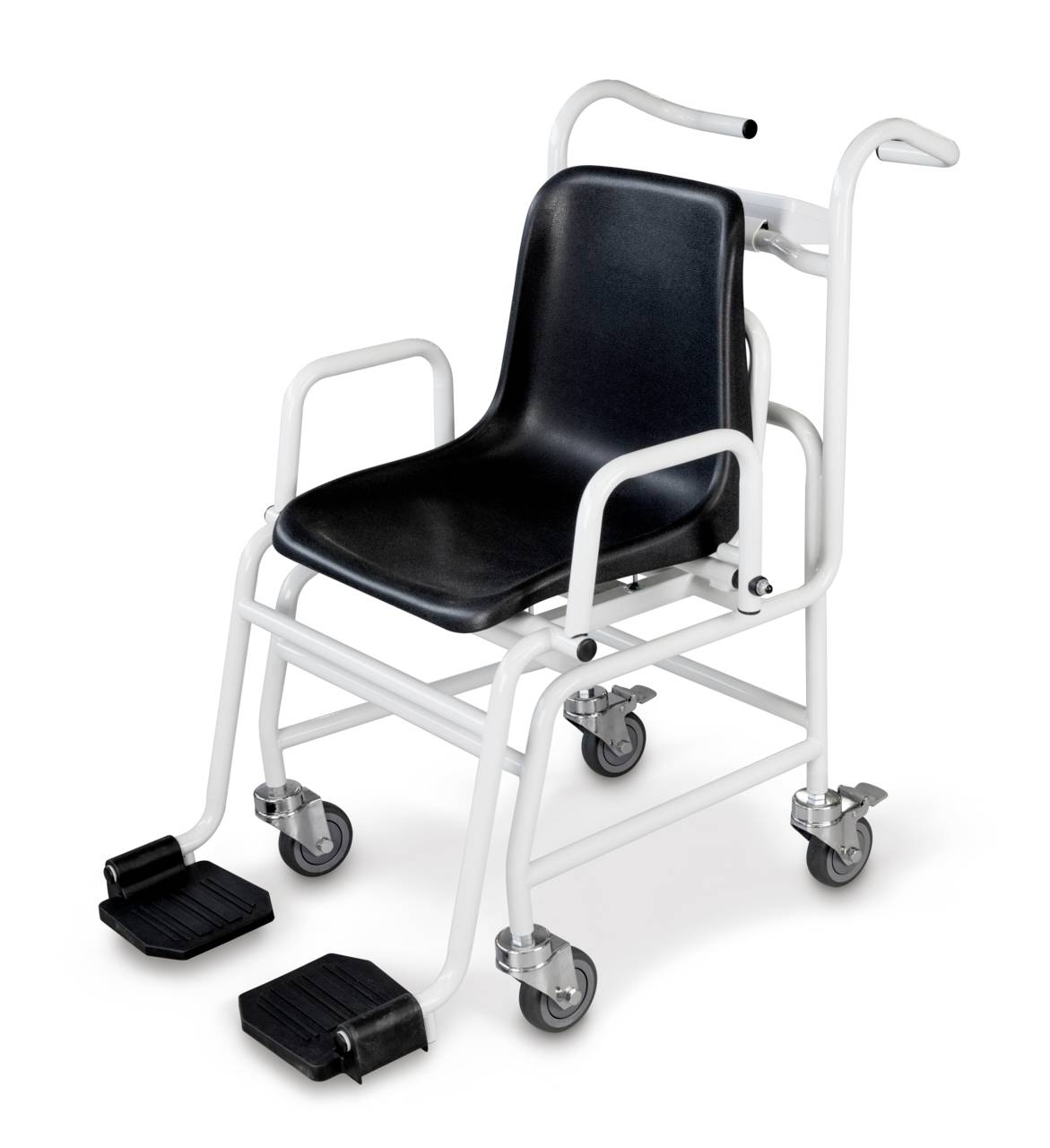

Chair scales Kern MCD 300K-1
- Mobile chair scale in ergonomically optimized design for safe and comfortable weighing
- This text is machine translated.
Technical specifications
- Reproducibility 0.1 kg
- Linearity: ± 0.1 kg
- Weighing system: Stretch measurement strips
- Start-up time 3 seconds
- Material housing: Steel, painted
- Dimensions completely mounted (WxTxH) 625×990×985 mm
- Material weighing plate: Plastic
- Weighing platform dimensions (WxTxH) 500×360×370 mm
- Display type: LCD
- Display digit height: 25 mm
- Units: Kg
- Supplied power supply: Battery
- Battery type: Alkaline(-manganese)
- Auto-Off Interval(s) in battery/rechargeable battery mode: Off,3, 5, 15, 30 min.
- Battery 6×1.5 V AA
- Battery life 40 h
- Power supply included: Yes / No: No.
- Battery included: Yes / No: Yes
- Battery included: Yes / No: No.
- Product type
Chair scales
- Weight range
300 kg
- Dim
(W x H x D) 625 x 985 x 990 mm
- Weight
22000 g
- Weighing plate
Plastic
- Width
625 mm
- Height
985 mm
- Depth
990 mm
- Power supply
AA battery (6x)
- Top plate (width)
360 mm
- Top plate (length)
390 mm
- Series
MCD
- Readability
100 g
- Max. ambient temperature
40 °C
- Min. ambient temperature
10 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3776636 Kern MCD 300K-1 Chair scales MCD 300K-1 Weight range=300 kg
User & Safety Instructions
User & Safety Instructions 3776636 Kern MCD 300K-1 Chair scales MCD 300K-1 Weight range=300 kg
Information
Information 3776636 Kern MCD 300K-1 Chair scales MCD 300K-1 Weight range=300 kg
Description
Features
- This chair scale is the ideal measuring instrument for the care of the elderly and for paramedics, including weighing in the obese range up to 300 kg
- Mobile version with four steered wheels and especially comfortable parking brakes at the rear
- With its four steered rollers, this chair scale ensures maximum mobility when moving to the patient. This will increase staff time efficiency and improve patient safety, which can be weighed in their usual environment
- The rollers allow a comfortable crossing of door sleepers, edges and gaps of passenger elevators, thanks to their large cross-section
- For fragile patients, the comfortable, ergonomically optimized seat shell provides secure support during weighing
- Seat and floor pads in clearly contrasting black, making Ideal suitable for dementia patients
- Two fold-down armrests and foot rests make it easy to seat. Ideal for overweight patients or for barrier-free transfer, for example from bed to chair scales
- Ergonomically arranged handles
- Hold function: In the case of unstable patients, a stable weighing value is determined and "frozen" by means of mean value formation. This leaves enough time to devote to the patient and then read off the weighing value
- BMI function for determining the low weight/normal weight/excess weight
- Convenient battery operation using standard batteries ensures great flexibility and independence from AC adapters, power sockets, chargers, etc.
- Fine display: By pressing a button, the readability [d] can be increased by 1 digit for 5 s.
- Occupational health and safety cover included in the scope of supply;
