Name: Kern NIB 300K-1 Drive-through scales NIB 300K-1 Weight range 300 kg Readability 100 g via PSU Multicolour
Brand: Kern
SKU: 2340132

Electronic floor scales with a digital display showing a weight of '0.00'. Weighing platform made of metal.

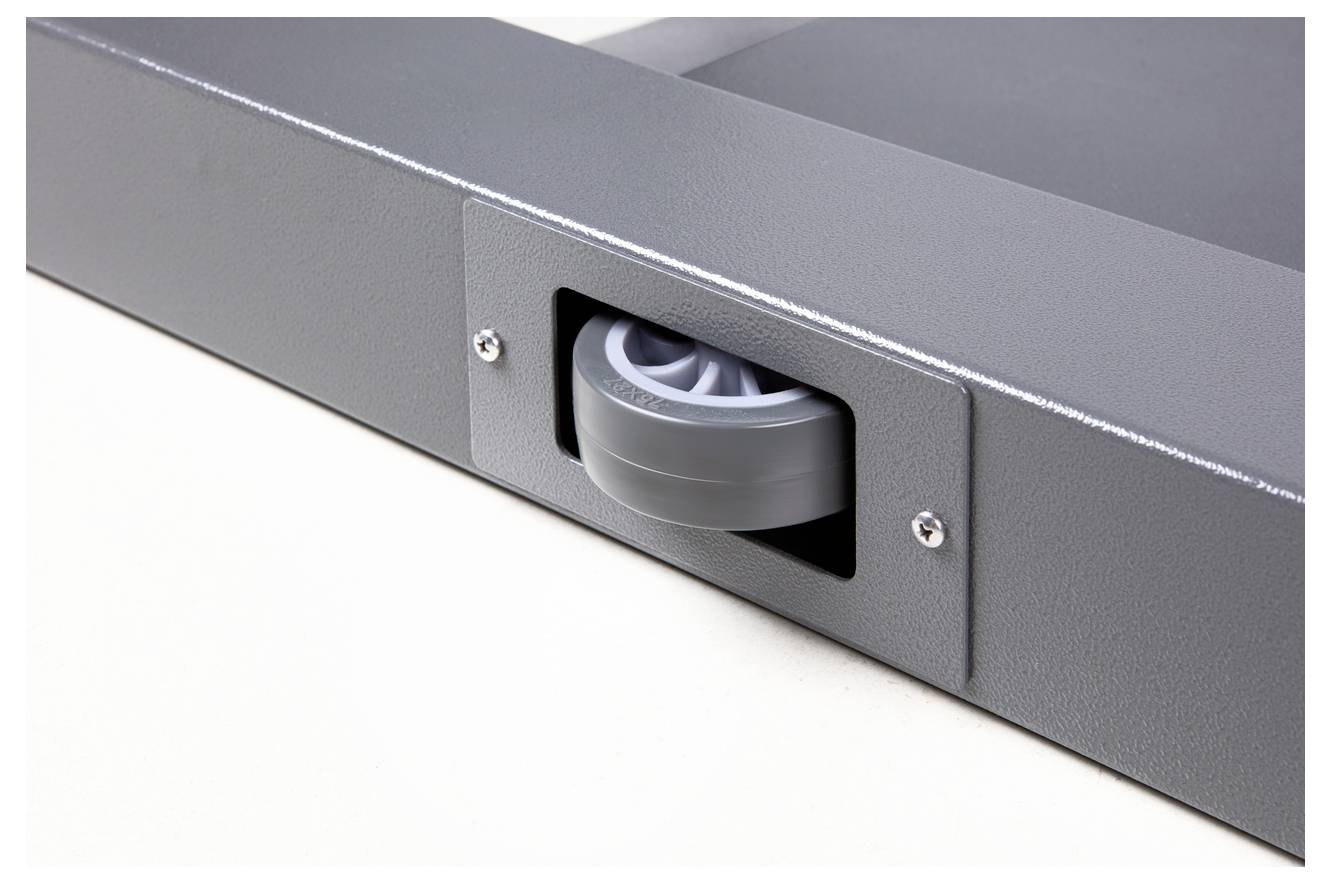

A grey roller is built into a rectangular metal housing. The roller is partially visible and serves to assist with movement.

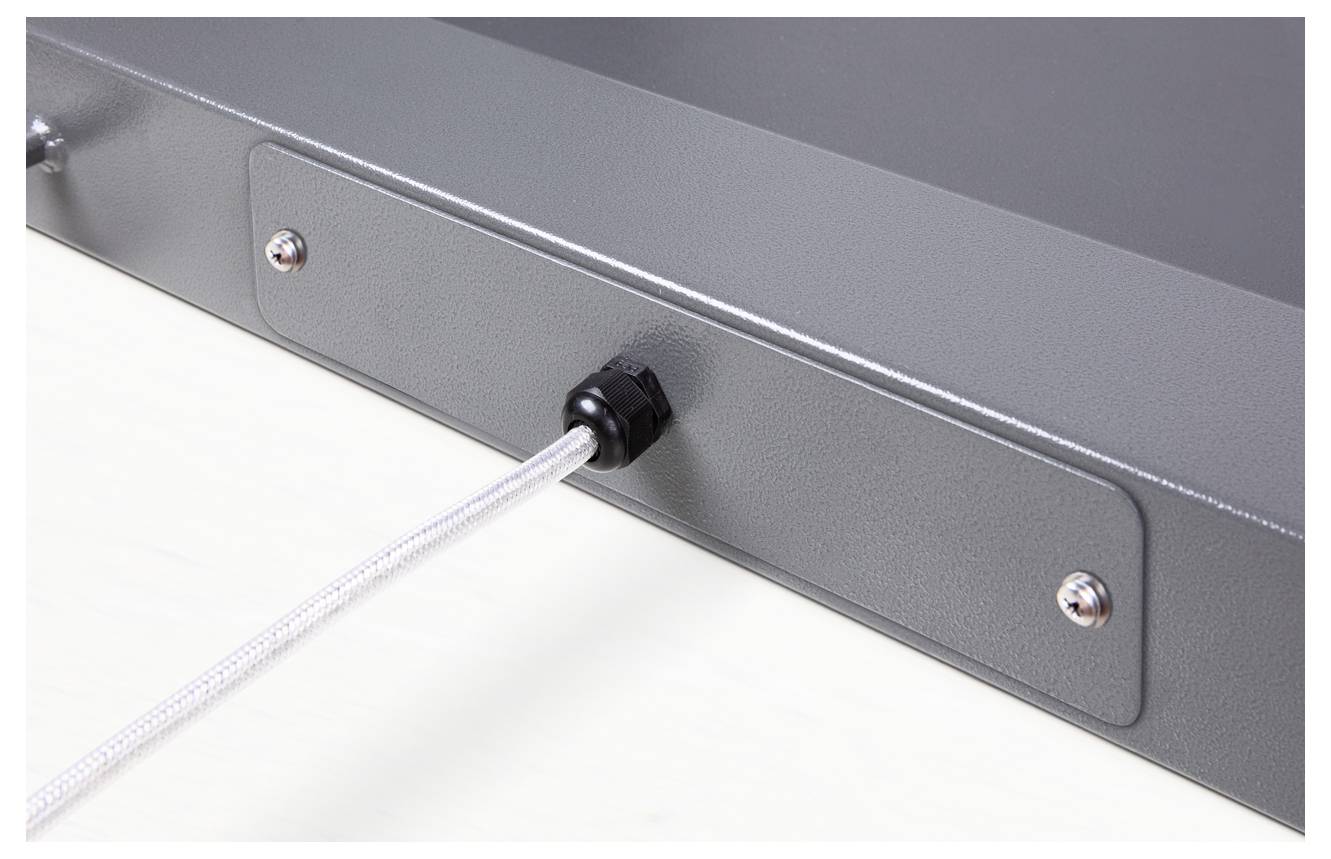

'Back of a metal enclosure with cable connection in the centre, screwed for fixing, lying on a light background.'

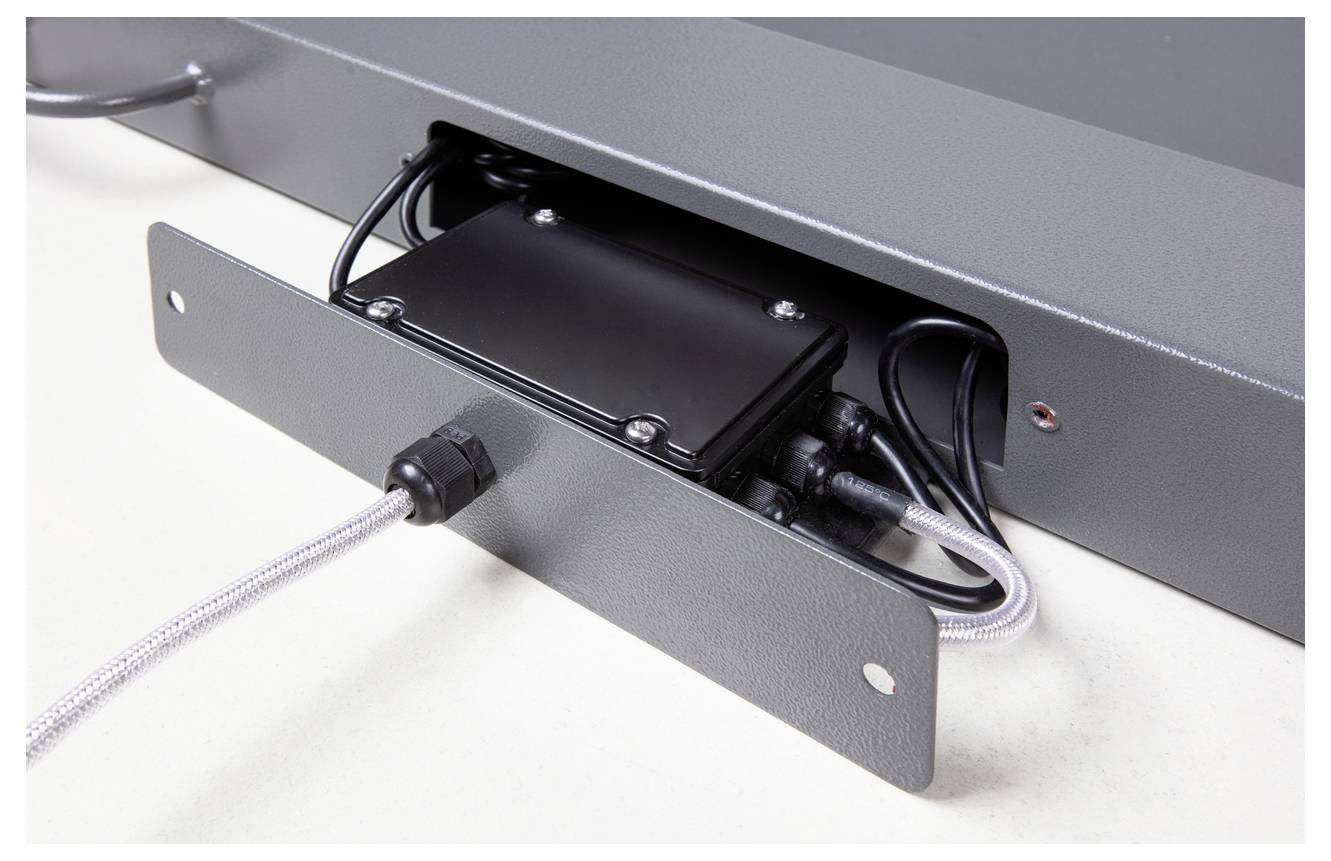

A black enclosure inside a metallic box, visible through an open flap, with several protruding cables.

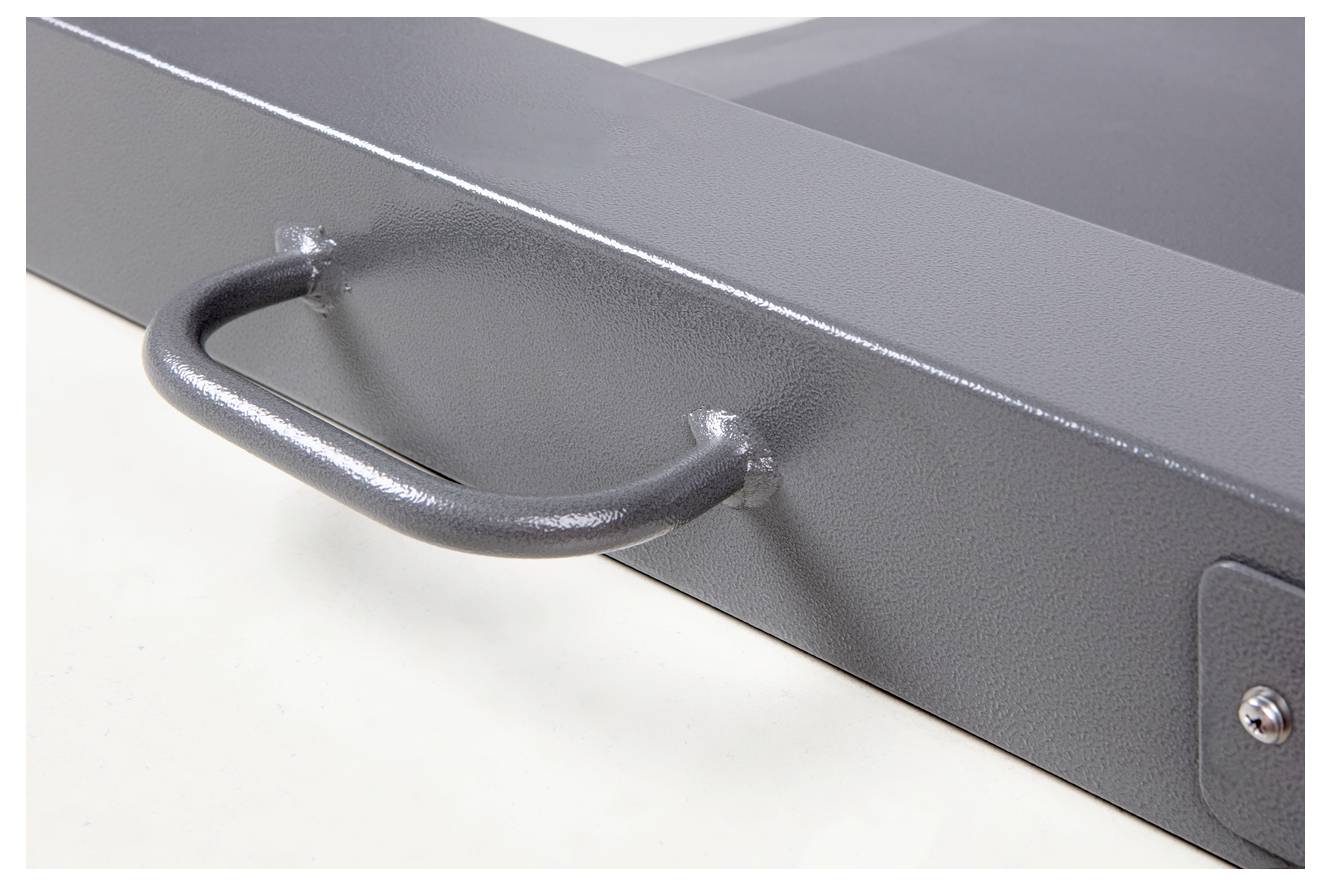

A grey, rectangular metal handle on a case, likely used for transport or handling, viewed from the side.

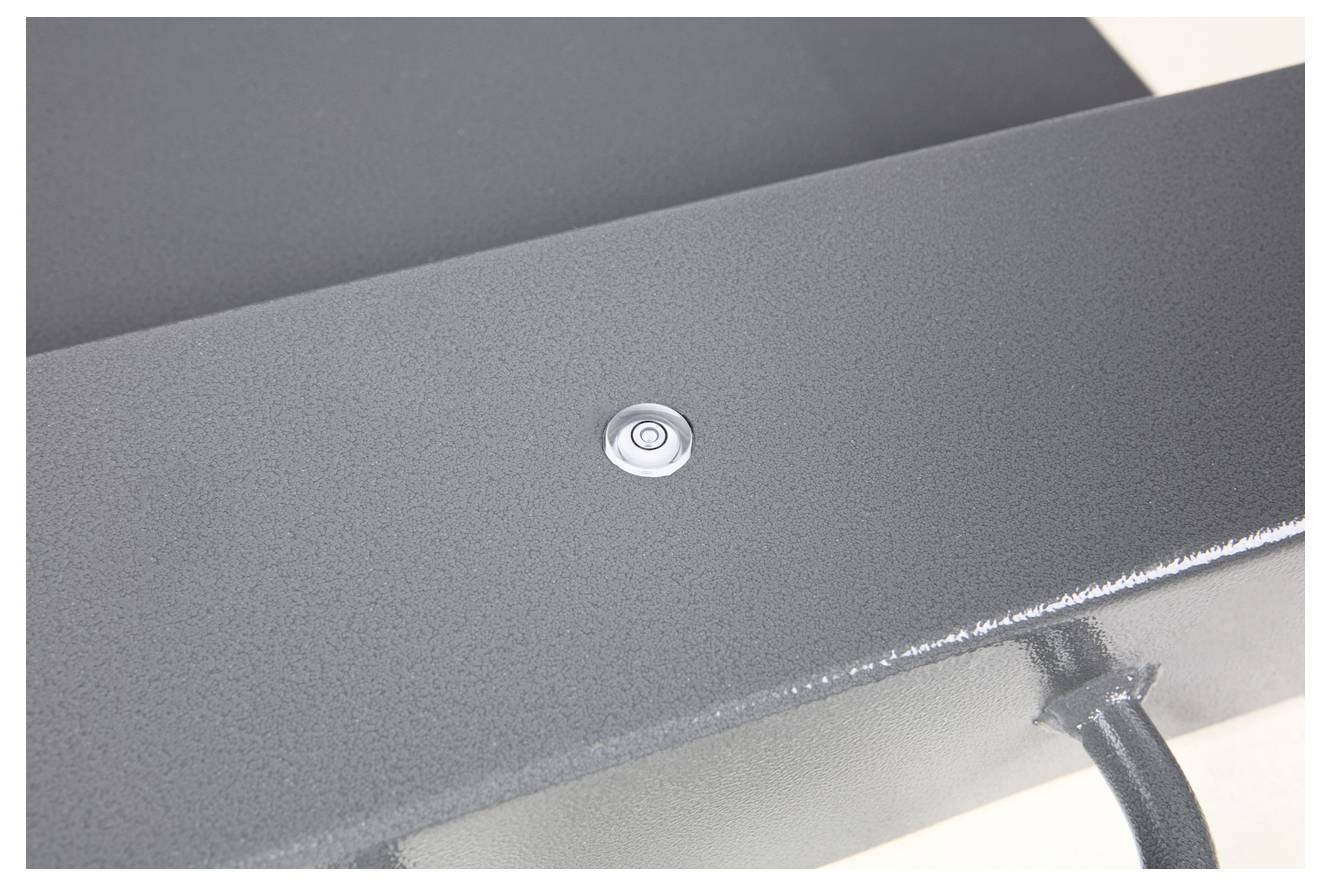

A small, round metal button on a grey-black metal surface.

Wooden crate on a pallet, ideal for the secure transportation of heavy or bulky items. Made from light-coloured wood, sturdy and robust.

A man is lifting a large wooden crate from a pallet in a warehouse. In the background, shelves with blue plastic containers are visible.

1/8

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

PASS-THROUGH BALANCE KERN NIB 300K-1

Pass-through balance with robust steel weighing bridge (IP67) and top price-performance ratio

Technical specifications

Weight range: 300 kg

Product type: Drive-through scales

Readability: 100 g

Display: Digital

Power supply (LOV): via PSU

: Manufacturer's standards (no certificate)

Factory colour: Multicolour

Dim: (L x W x H) 1000 x 1000 x 40 mm

Weight: 40 kg

Weight resolution: 100 g

Calibratable: No

Weighing plate: Steel (powder-coated)

Width: 1000 mm

Height: 40 mm

Length: 1000 mm

Reproducibility: 0.1 kg

Type: NIB 300K-1

Features: Calibratable

Top plate (width): 800 mm

Top plate (length): 800 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2340132 Kern NIB 300K-1 Drive-through scales NIB 300K-1 Weight range 300 kg Readability 100 g via PSU Multicolour

User & Safety Instructions

User & Safety Instructions 2340132 Kern NIB 300K-1 Drive-through scales NIB 300K-1 Weight range 300 kg Readability 100 g via PSU Multicolour

Information

Information 2340132 Kern NIB 300K-1 Drive-through scales NIB 300K-1 Weight range 300 kg Readability 100 g via PSU Multicolour

Description

Transit scale: For rapid weighing of, for example Wire box wagon, laundry wagon, floor wagon, container wagon, magazine wagon, transport carts, transport cases, lift trucks, roller containers, garbage bins etc.; low height: The platform as well as integrated drive-up ramps on both sides facilitate the drive-up. This means that no pit frame installation is necessary – this saves money; weighing bridge: Steel, powder-coated, 4 silicone-coated aluminum load cells, dust and splash-water protection IP67; spirit level for exact leveling of the scales as standard; scale can be transported and stowed comfortably by means of rollers : and grab handle : wall mounting: Standard for wall mounting of the evaluation unit; safety cover included in the delivery; Did you know? Our floor scales are delivered in a robust wooden box. This protects the high-quality weighing technology from environmental influences and loads during transport. Kern – always ahead of an idea;

This text is machine translated.
