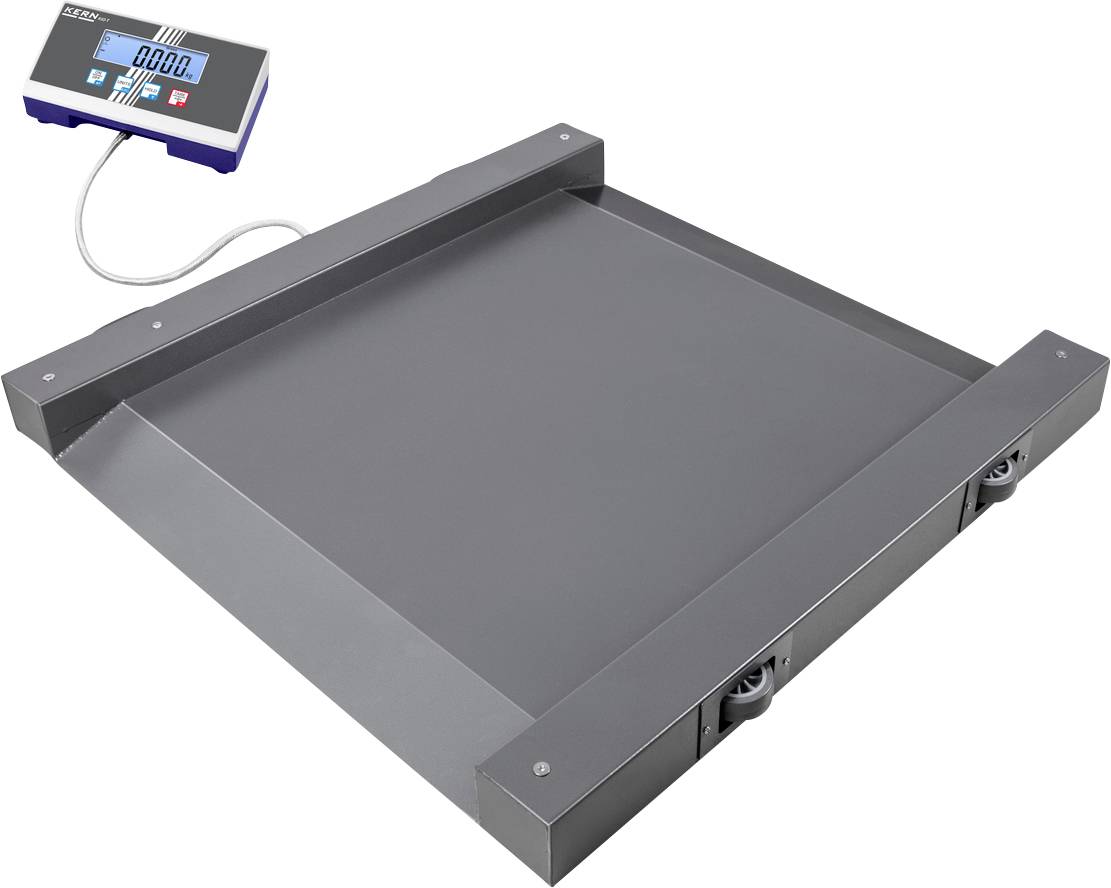

An electronic platform scale with a digital display that provides weight information in kilograms.

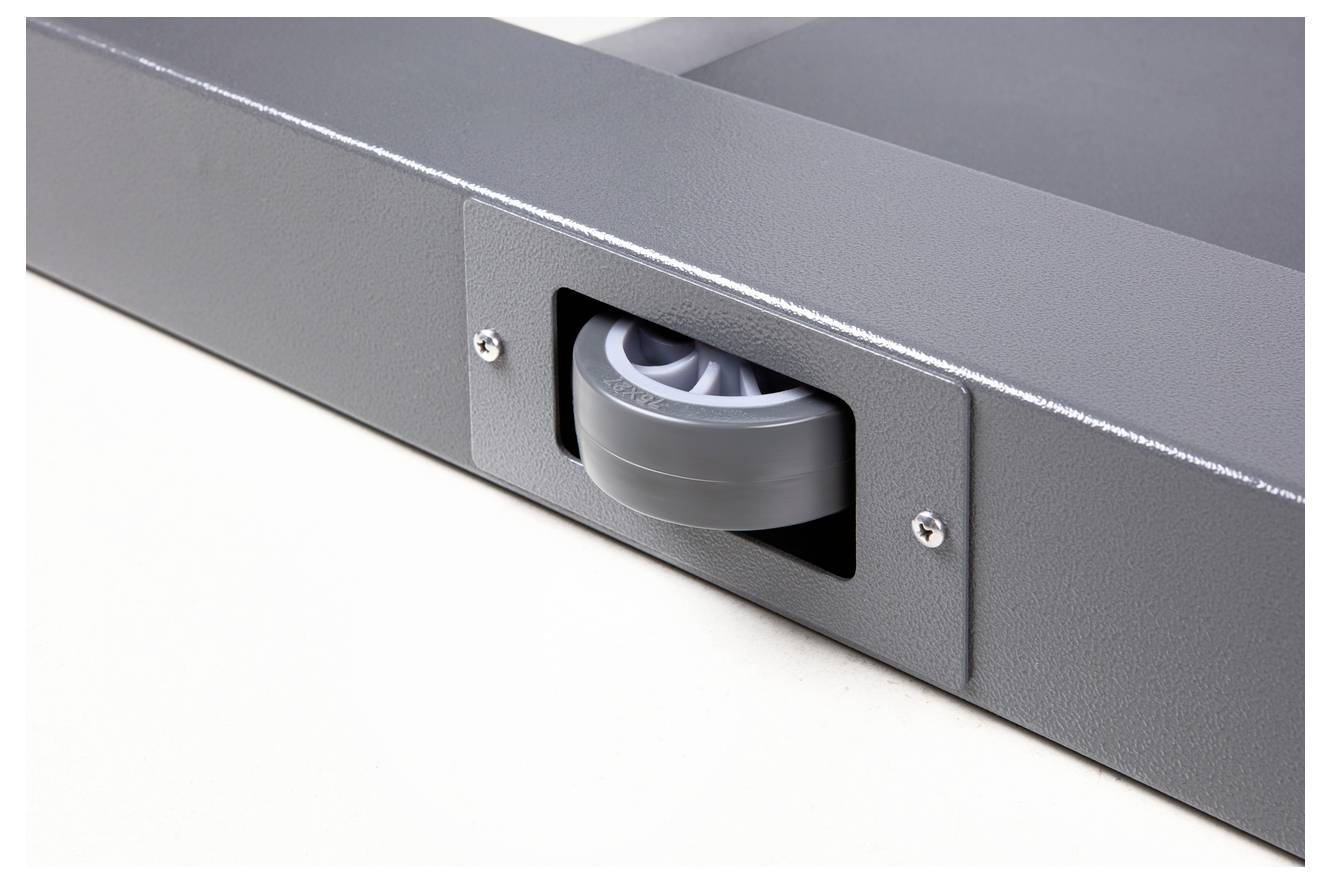

Grey wheel installed in a rectangular grey housing, appears sturdy and functional, possibly part of a piece of furniture.

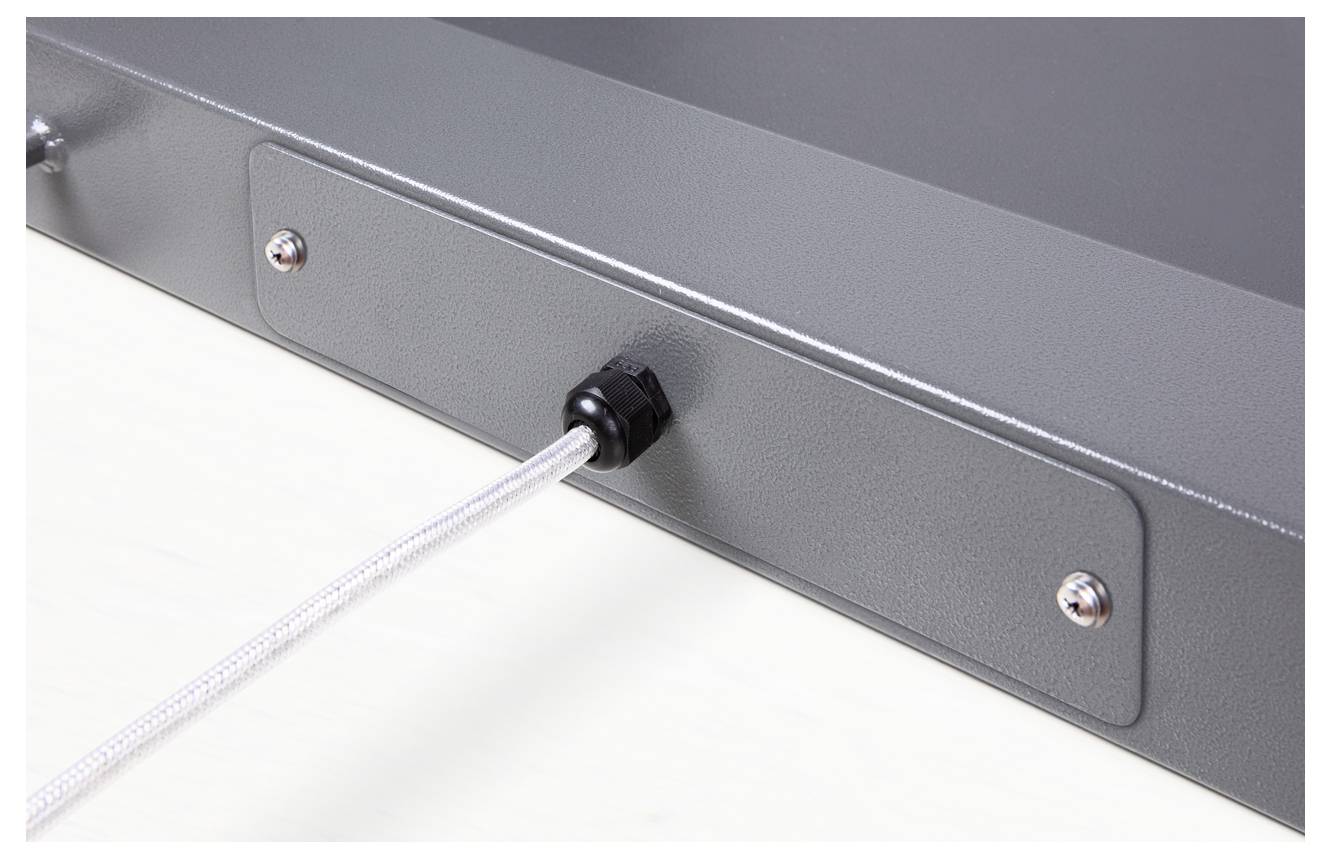

Grey metal casing with a white cable attached, running through a black connector. Screws visible.

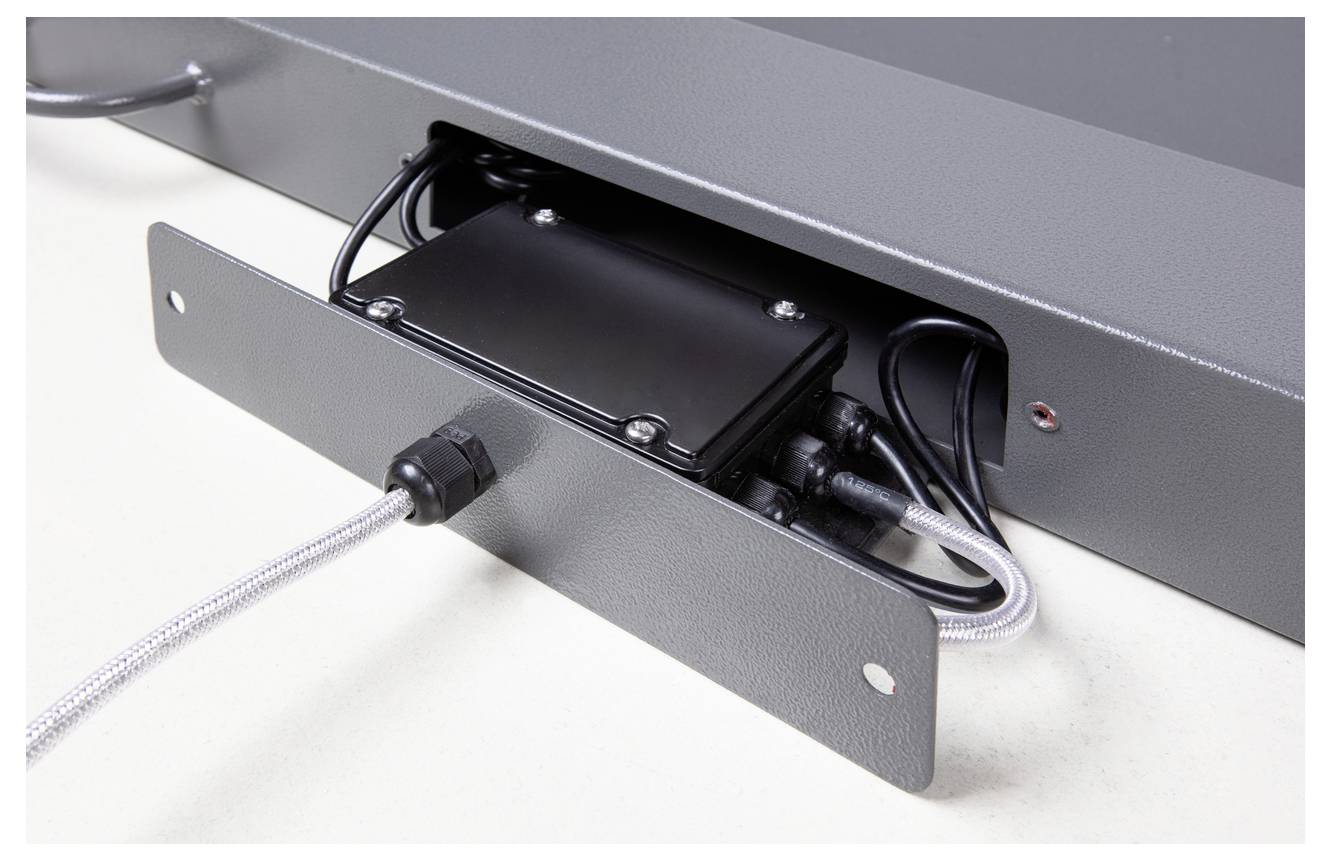

Electrical device in a metal casing with exposed cable connections; technical component for controls or electrical systems.

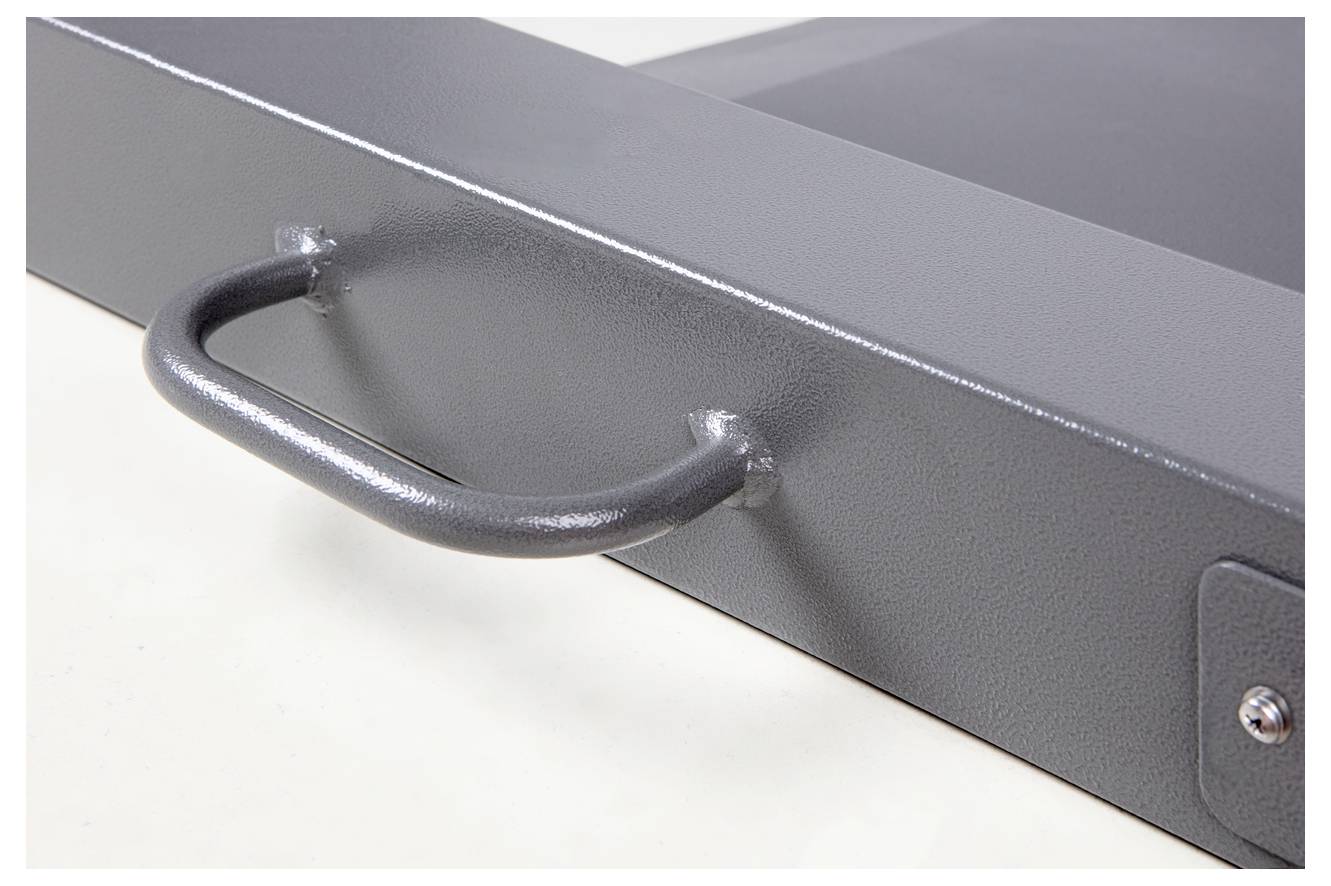

Metal handle attached to a rectangular, grey object, potentially a toolbox or drawer. Surface is slightly textured.

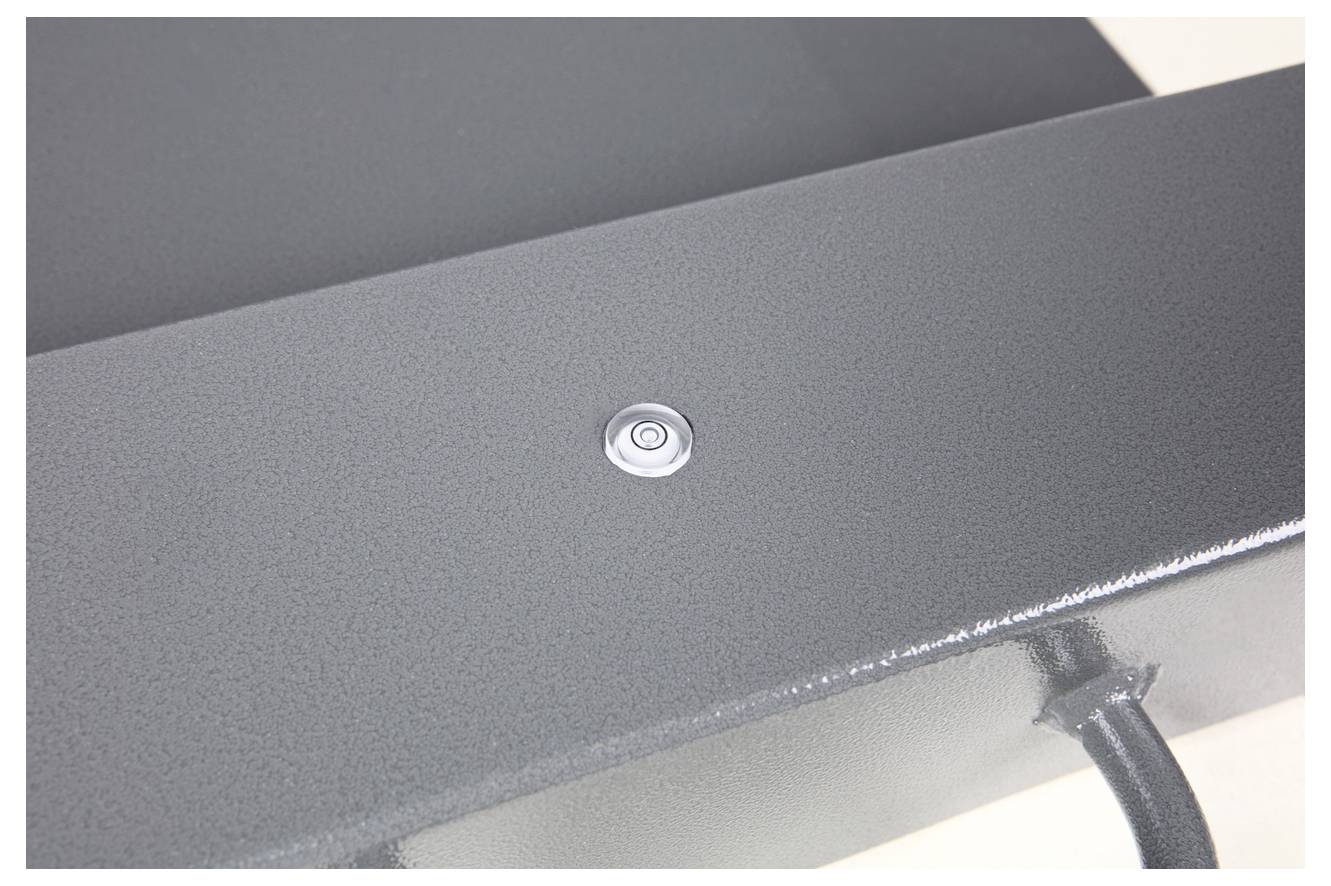

A grey metal table with a small, circular button in the centre. A cable leads away from the bottom right side of the table.

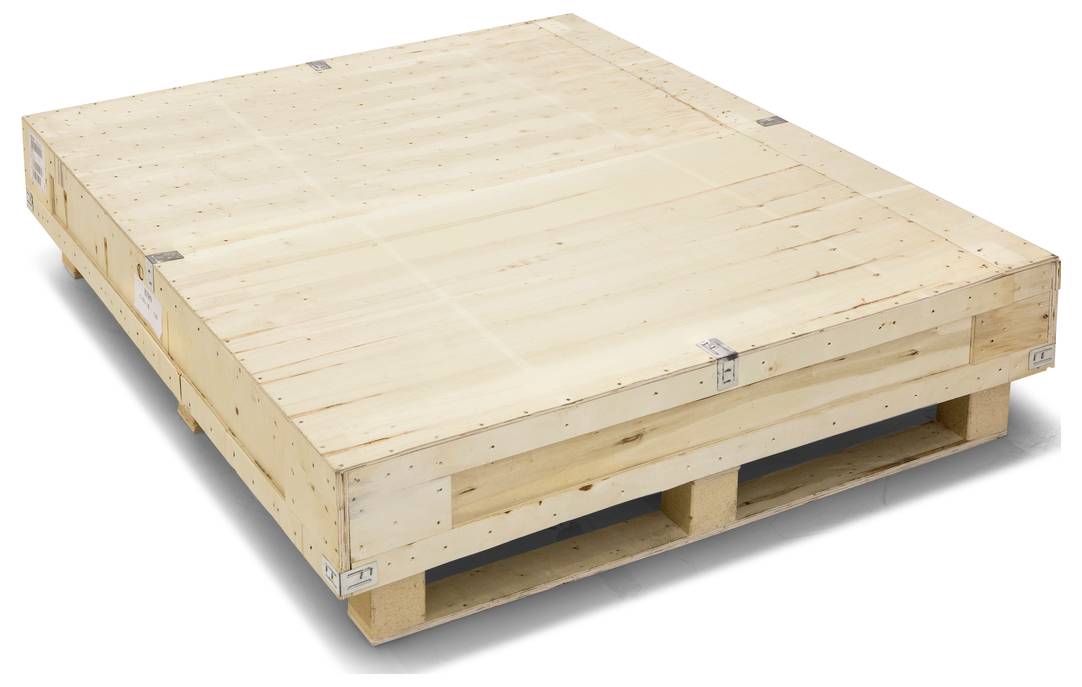

Wooden crate with lid on a pallet, suitable for transporting large and heavy items.

A man carefully lifts the lid of a large wooden crate. The crate is positioned on a pallet in a storage room with shelves in the background.

1/8

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

PASS-THROUGH BALANCE KERN NIB 600K-2

Pass-through balance with robust steel weighing bridge (IP67) and top price-performance ratio

Technical specifications

Weight range: 600 kg

Product type: Drive-through scales

Readability: 200 g

Display: Digital

Power supply (LOV): via PSU

: Manufacturer's standards (no certificate)

Factory colour: Multicolour

Dim: (L x W x H) 1000 x 1000 x 40 mm

Weight: 40 kg

Weight resolution: 200 g

Calibratable: No

Weighing plate: Steel (powder-coated)

Width: 1000 mm

Height: 40 mm

Length: 1000 mm

Reproducibility: 0.2 kg

Type: NIB 600K-2

Features: Calibratable

Top plate (width): 800 mm

Top plate (length): 800 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2340133 Kern NIB 600K-2 Drive-through scales NIB 600K-2 Weight range 600 kg Readability 200 g via PSU Multicolour

User & Safety Instructions

User & Safety Instructions 2340133 Kern NIB 600K-2 Drive-through scales NIB 600K-2 Weight range 600 kg Readability 200 g via PSU Multicolour

Information

Information 2340133 Kern NIB 600K-2 Drive-through scales NIB 600K-2 Weight range 600 kg Readability 200 g via PSU Multicolour

Description

Transit scale: For rapid weighing of, for example Wire box wagon, laundry wagon, floor wagon, container wagon, magazine wagon, transport carts, transport cases, lift trucks, roller containers, garbage bins etc.; low height: The platform as well as integrated drive-up ramps on both sides facilitate the drive-up. This means that no pit frame installation is necessary – this saves money; weighing bridge: Steel, powder-coated, 4 silicone-coated aluminum load cells, dust and splash-water protection IP67; spirit level for exact leveling of the scales as standard; scale can be transported and stowed comfortably by means of rollers : and grab handle : wall-mounting bracket: Standard for wall mounting of the evaluation unit; safety cover included in the delivery; Did you know? Our floor scales are delivered in a robust wooden box. This protects the high-quality weighing technology from environmental influences and loads during transport. Kern – always ahead of an idea;
