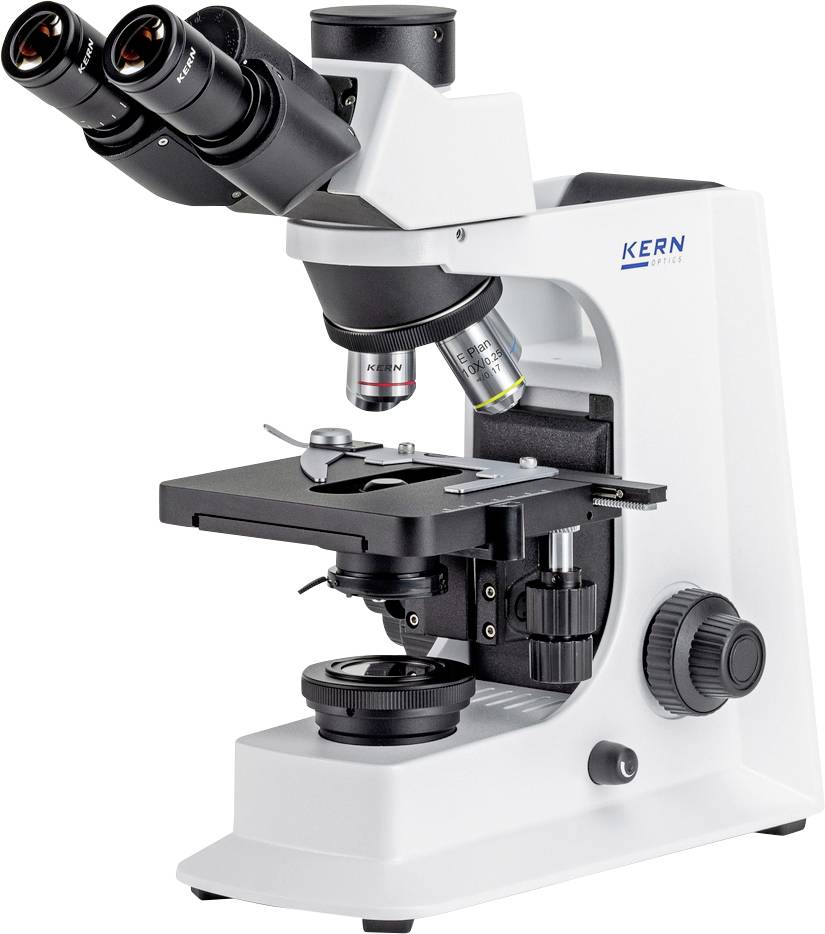

Kern OBL 137 OBL137 Transmission microscope Trinocular 1000 x Transmitted light

The OBL series is distinguished by its infinity optics and is therefore suitable for all applications for the demanding user transparency is well suited.
Through the robust and ergonomic stand is a safe and comfortable working.
Depending on your needs you models with a strong, infinitely dimmable 3W LED or a 20-W halogen lighting (Philips).
The fix-vorzentrierte and focusable 1.25 - Abbe condenser with aperture and diaphragm allows you a simplified Köhler lighting, without that the center can be adjusted.
The large mechanical cross-table and its object holder hold up to two products at the same time and focused by a two-sided coaxial coarse and fine focusing fast and easy.
A large selection of eyepieces, lenses and color filters as well as a dark field condenser, a simple polarisation unit, different phase contrast sets up to the HBO and LED-Fluorescence illuminator are available as accessories are available.

Area of application
Haematology, Urology, gynecology, dermatology, pathology, microbiology and Parasitology, immunology, sewage treatment plants, Oncology, entomology, veterinary, water analysis, breweries

Applications / Samples
Translucent and thin, low contrast, sophisticated products (e.g. living mammalian cells, bacteria, tissue)
