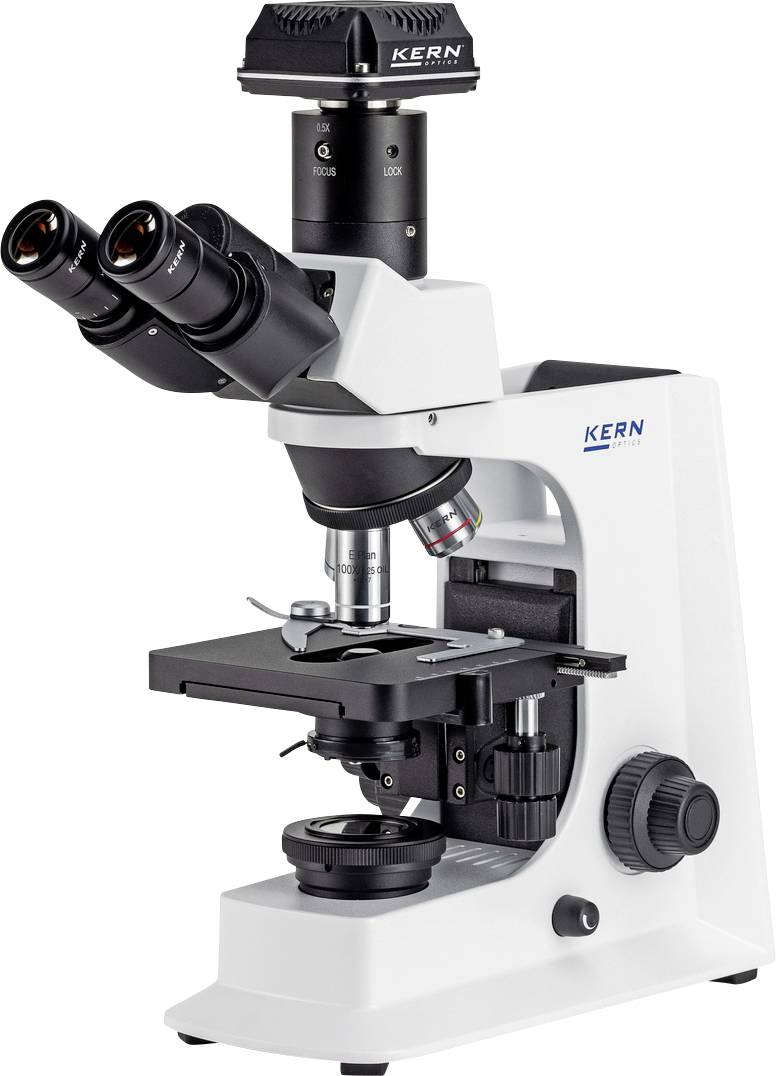

Kern OBL 137C832 OBL 137C832 Digital microscope set Trinocular 1000 x Transmitted light
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Kern OBL 137C832 OBL 137C832 Digital microscope set Trinocular 1000 x Transmitted light
- Transmitted light (infinity)
- With camera
- LED lighting
Technical specifications
- Product type
Digital microscope set
- Type
Trinocular
- Type
Upright
- Optical magnification (min.)
40 x
- Optical magnification (max.)
1000 x
- Lighting type
Transmitted light
- Bulb type
LED (monochrome)
- Bulb rating
3 W
- Operating voltage
100 - 240 V / AC
- Dim
(L x W x H) 39.5 x 20 x 39 cm
- Length
39.5 cm
- Width
20 cm
- Height
39 cm
- Weight
9 kg
- Features
dimmable
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2252546 Kern OBL 137C832 OBL 137C832 Digital microscope set Trinocular 1000 x Transmitted light
User & Safety Instructions
User & Safety Instructions 2252546 Kern OBL 137C832 OBL 137C832 Digital microscope set Trinocular 1000 x Transmitted light
Information
Information 2252546 Kern OBL 137C832 OBL 137C832 Digital microscope set Trinocular 1000 x Transmitted light
Description
The powerful OBL series is now also available as a complete digital solution for your live examination. Optionally with adapted tablet or C-mount camera. The suitable C-mount adapter is included in the delivery.
The OBL-1 series is characterized by its infinity optics and is therefore ideally suited for all transmitted light applications for the more demanding users. The robust and ergonomic base ensures safe and comfortable working
Depending on the application, you can choose from models with a strong, steplessly dimmable 3 W LED or a 20 W halogen lighting (Philips)
The 1.25 ABBE fixed-center and focusable condenser with aperture and illuminated field aperture allows you to achieve simplified Köhler illumination without the center being adjustable
The adapted C-mount camera is available in different designs and can be used universally
This text is machine translated.
The OBL-1 series is characterized by its infinity optics and is therefore ideally suited for all transmitted light applications for the more demanding users. The robust and ergonomic base ensures safe and comfortable working
Depending on the application, you can choose from models with a strong, steplessly dimmable 3 W LED or a 20 W halogen lighting (Philips)
The 1.25 ABBE fixed-center and focusable condenser with aperture and illuminated field aperture allows you to achieve simplified Köhler illumination without the center being adjustable
The adapted C-mount camera is available in different designs and can be used universally
This text is machine translated.
Features
- Contrast methods: Light field (standard), dark field (optional), polarization (optional), phase contrast (optional), fluorescence (optional)
- eyepieces: HWF 10x/Ø20mm
- Lenses: 4x/10x/40x/100x (E-Plan)
- Optical system: Infinity
- Cross table: 145x130mm
- Condensor: Abbe N.A. 1.25
- (with aperture) Illumination: 3W LED (transmitted light), simple Köhler illumination
- Resolution: 5 MP
- Interface: USB 3.0
- FPS: 14.2 - 101.2
- Sensor: 1/2.5" CMOS, color
Scope of delivery
- Dust protection hood
- Eyecups
- Operating instructions
- Power cable;
- Allen key
- Spare fuse
- Calibration slides
- C-mount adapter
- USB cable
System requirements
- Microsoft Windows XP
- Microsoft Windows Vista
- Microsoft Windows 7
- Microsoft Windows 8
- Microsoft Windows 8.1
- Microsoft Windows 10
