Kern OBN 135C825 OBN 135C825 Digital microscope set Trinocular 1000 x Transmitted light
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

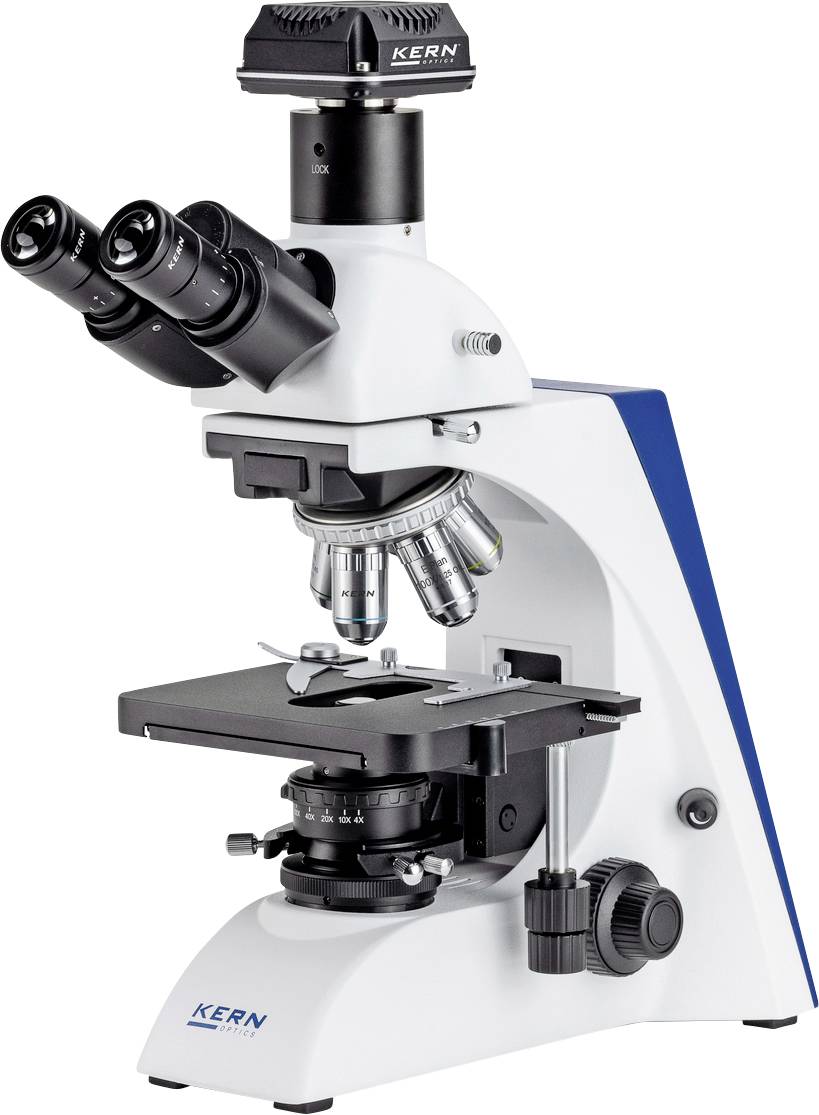

Transmitted light microscope digital set OBN 135C825
- Transmitted light (infinity)
- With camera
- LED lighting
Technical specifications
- Product type
Digital microscope set
- Type
Trinocular
- Type
Upright
- Optical magnification (min.)
40 x
- Optical magnification (max.)
1000 x
- Lighting type
Transmitted light
- Bulb type
LED (monochrome)
- Bulb rating
3 W
- Operating voltage
100 - 240 V / AC
- Dim
(L x W x H) 39 x 20 x 41 cm
- Length
39 cm
- Width
20 cm
- Height
41 cm
- Weight
13.5 kg
- Features
dimmable
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2252551 Kern OBN 135C825 OBN 135C825 Digital microscope set Trinocular 1000 x Transmitted light
User & Safety Instructions
User & Safety Instructions 2252551 Kern OBN 135C825 OBN 135C825 Digital microscope set Trinocular 1000 x Transmitted light
Information
Information 2252551 Kern OBN 135C825 OBN 135C825 Digital microscope set Trinocular 1000 x Transmitted light
Description
The professional and versatile OBN-S series is now also available as a complete digital solution for your live examination. Optionally with adapted tablet or C-mount camera. The suitable C-mount adapter is included in the delivery
The OBN series is characterized by its unbeatable and consistently high quality and ergonomic design. The variety of modular components allows the OBN series to offer a high degree of individuality for the professional user
Depending on the application, you can choose from models with a strong, steplessly dimmable 3 W LED or a 20 W halogen lighting (Philips)
This series features professional Köhler lighting with adjustable lens hood and a 1.25-Abbe centering and height-adjustable condenser with adjustable aperture
The adapted C-mount camera is available in different designs and can be used universally
This text is machine translated.
The OBN series is characterized by its unbeatable and consistently high quality and ergonomic design. The variety of modular components allows the OBN series to offer a high degree of individuality for the professional user
Depending on the application, you can choose from models with a strong, steplessly dimmable 3 W LED or a 20 W halogen lighting (Philips)
This series features professional Köhler lighting with adjustable lens hood and a 1.25-Abbe centering and height-adjustable condenser with adjustable aperture
The adapted C-mount camera is available in different designs and can be used universally
This text is machine translated.
Features
- Contrast methods: Light field (standard), dark field (optional), polarization (optional), phase contrast (option), fluorescence (option)
- eyepieces: HWF 10x/Ø20mm
- Lenses: 4x/10x/20x/40x/100x (plan)
- Optical system: Infinity
- Cross table: 175x145mm
- Condensor: Abbe N.A. 1.25
- (with aperture) Illumination: 3W (transmitted light), Köhler illumination
- Resolution: 5 MP
- Interface: USB 2.0
- FPS: 6.8 - 55
- Sensor: 1/2.5" CMOS, color
Scope of delivery
- Dust protection hood
- Eyecups
- Operating instructions
- Power cable;
- Allen key
- Spare fuse
- Calibration slides
- C-mount adapter
- USB cable
System requirements
- Microsoft Windows XP
- Microsoft Windows Vista
- Microsoft Windows 7
- Microsoft Windows 8
- Microsoft Windows 8.1
- Microsoft Windows 10
