Kern ODC 241 ODC 241 Microscope camera
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

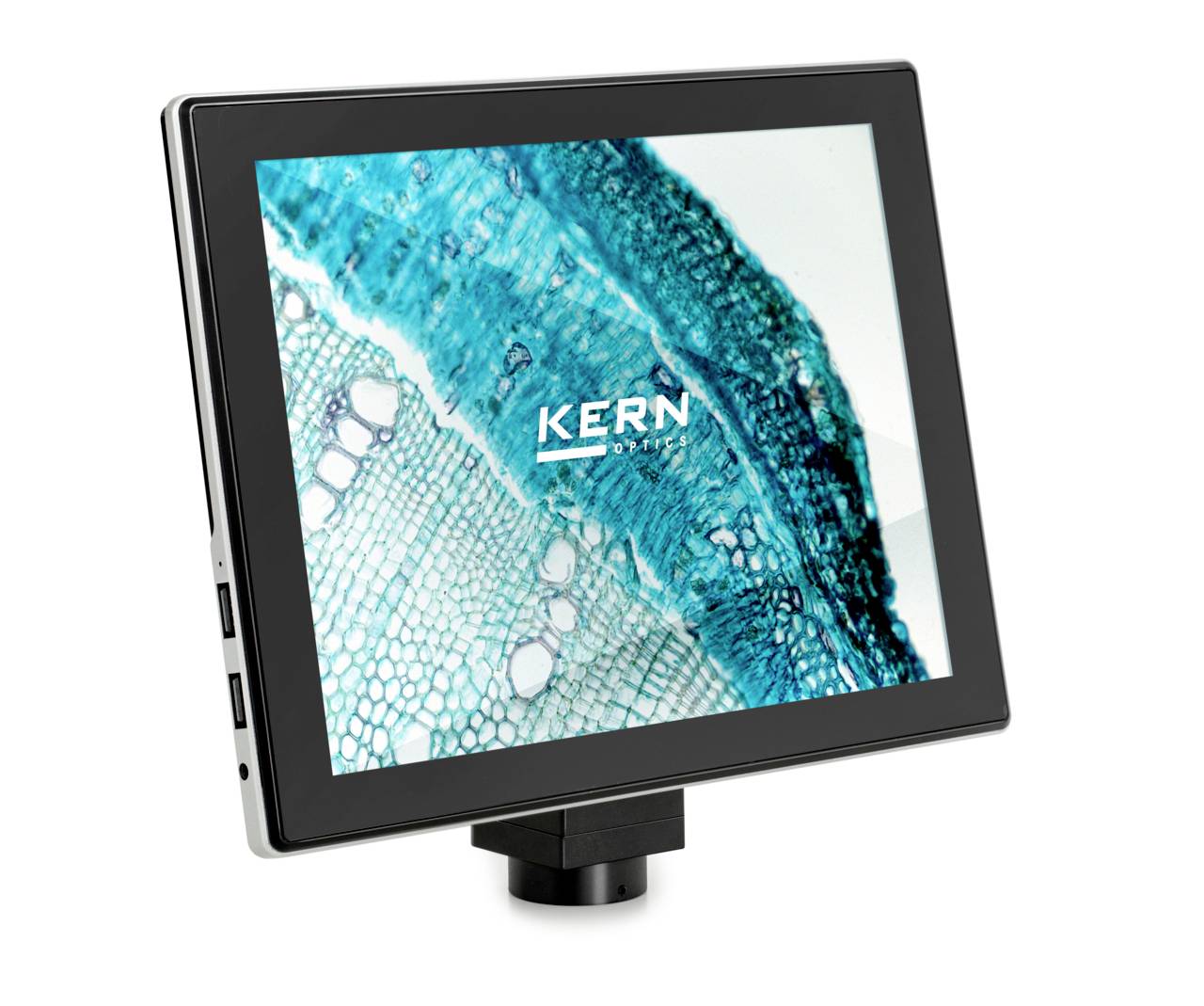

Kern ODC 241 tablet camera
- Tablet with built-in camera for optimal observation and digital documentation of the sample
- This text is machine translated.
Technical specifications
- Display type: LCD Touch
- Supplied power supply: Power supply
- Input voltage power supply unit / current [Max]: 100-240V AC 50/60Hz 0.5A
- Plug-in power supply/adapter for countries – included in delivery: EURO
- Mains power supply/adapter for countries - Optional: EURO,FROM,UK,US,CH
- Wall power supply type: Wall power supply
- Power supply included: Yes / No: Yes
- Battery included: Yes / No: No.
- Battery included: Yes / No: No.
- Interfaces: WLAN, USB 2.0, HDMI, SD card slot, wireless data transfer, HDMI micro
- 5 MP camera resolution
- Camera sensor size 1/2.8"
- Product type
Microscope camera
- Operating voltage
100 - 240 V / AC
- Dim
(W x H) 23.8 cm x 20.6 cm
- Width
23.8 cm
- Height
20.6 cm
- Weight
1 kg
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3778228 Kern ODC 241 ODC 241 Microscope camera
User & Safety Instructions
User & Safety Instructions 3778228 Kern ODC 241 ODC 241 Microscope camera
Information
Information 3778228 Kern ODC 241 ODC 241 Microscope camera
Description
Features
- A 2-in-1 solution in digital microscopy as a universal system for all trinocular microscopes with C-mount adapter. The ODC 241 microscope tablet camera consists of a large Android tablet in combination with a 5 MP camera
- The Kern ODC 241 tablet camera is specifically designed for easy and direct viewing of the sample on the screen. Ideal for use by students and students in education or for demonstration purposes in the laboratory
- The built-in 5 MP camera allows live transmission of the image to the Android tablet, as well as the creation of images and videos for documentation. Simple measurements, for example distance, area and angle measurements as well as a manual counting function are also available
- Automatic white balance and automatic contrast balancing can be performed quickly and easily, while WAS allows efficient working
- The integrated interfaces provide a wide range of additional functions, such as
- - Data storage on USB stick or SD card
- - Connect a USB mouse
- - Transfer the live image to an external screen via HDMI
- The tablet camera comes with pre-installed software and the power supply unit
- Cannot be combined with the following microscopes: OZM-5. OLM 170
