Buy Kern ODC 861 ODC861 Microscope camera

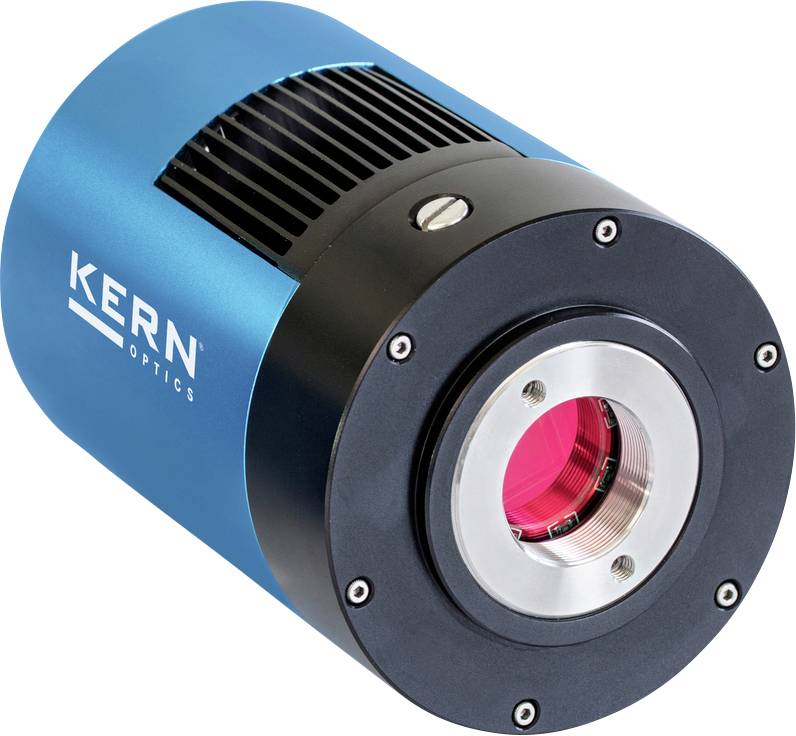

A blue-black camera with a red lens, labelled with 'Kern Optics'. It is likely used for optical observation or photography.

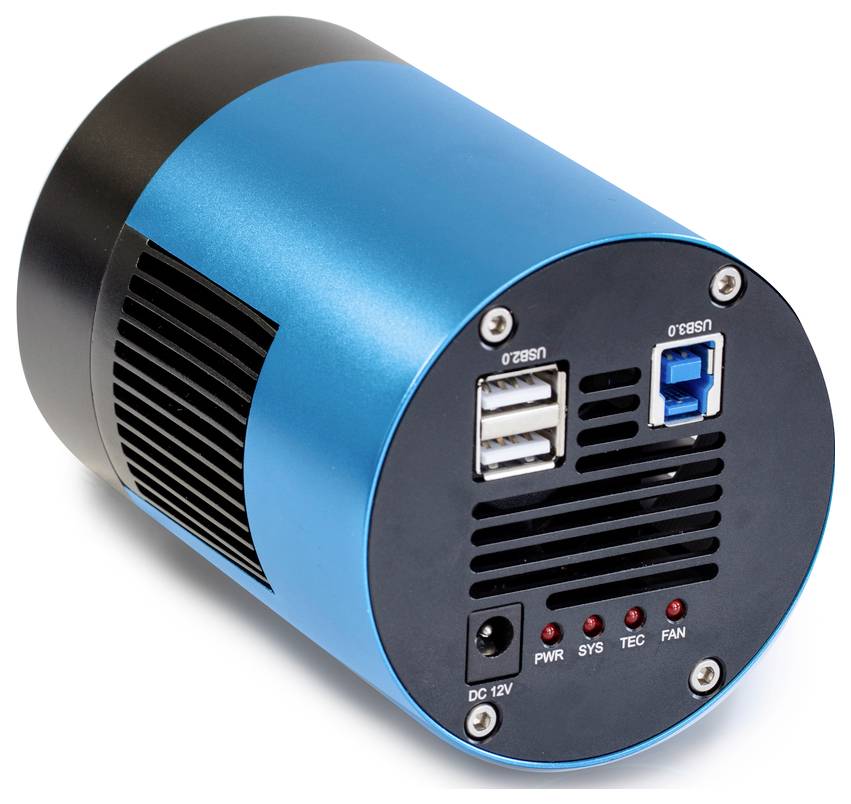

A cylindrical blue-black device with ventilation slots and connections for USB, power supply, and additional ports on the rear.

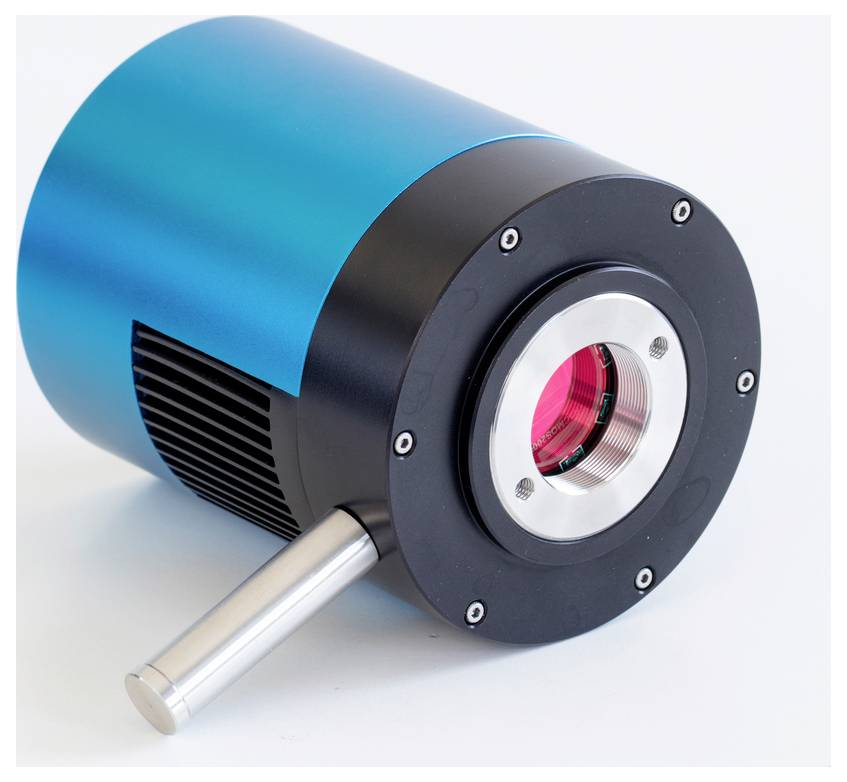

A blue and black camera with a cylindrical housing and silver handle on a white background.

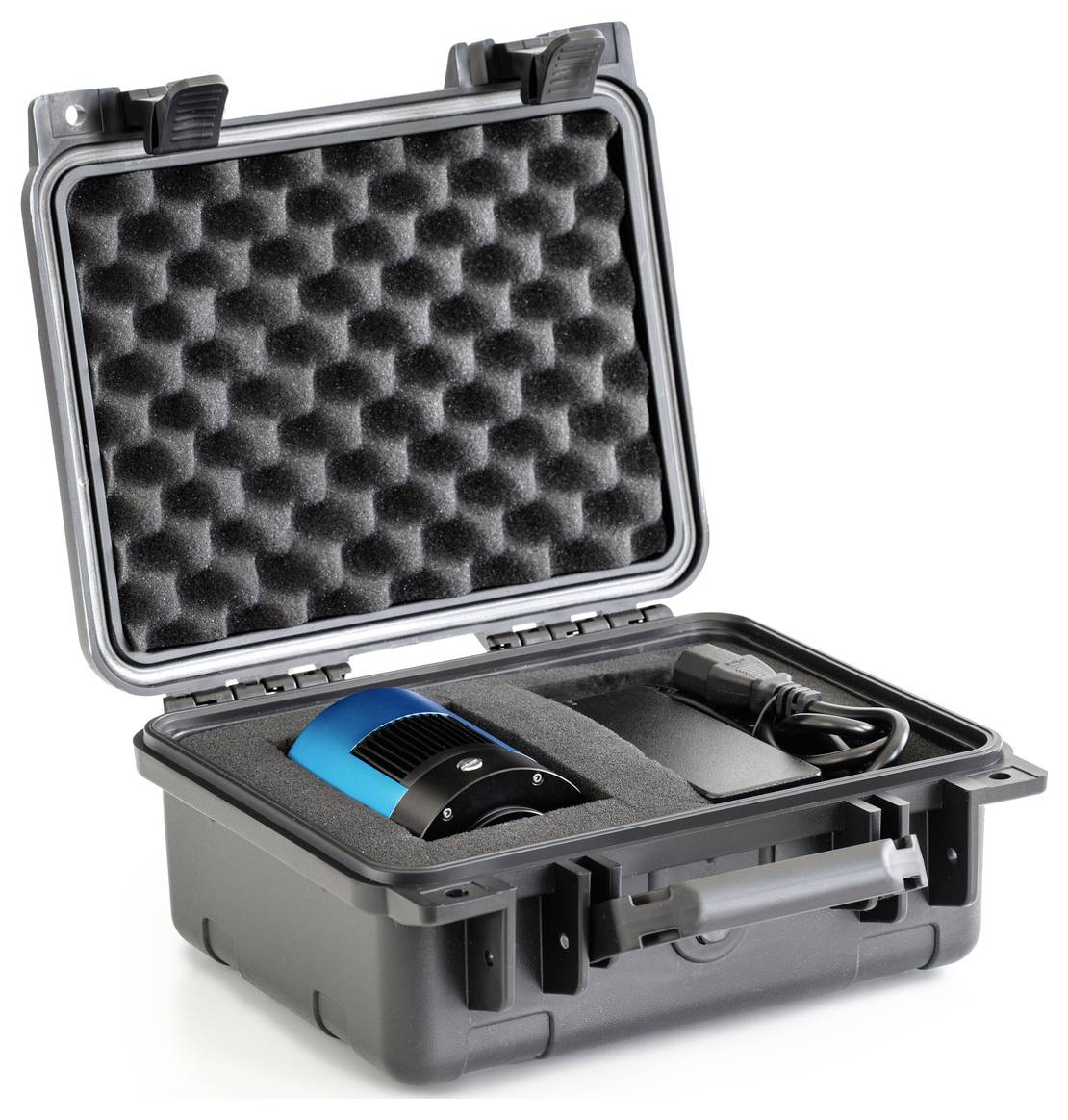

A blue projector in a black, padded hard-shell case. The case is open and contains a cable and accessories.

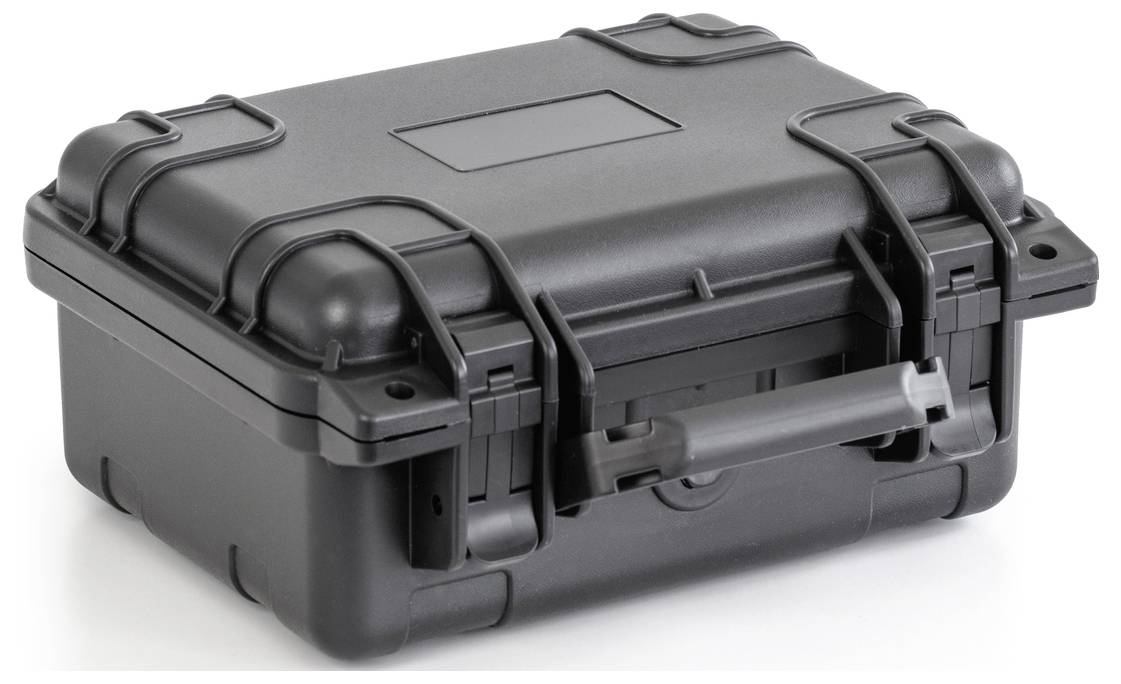

Black, robust protective plastic case with carrying handle and security locks. Ideal for transportation and storage.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Kern ODC 861 ODC861 Microscope camera

20 megapixels, CMOS, USB 3.0
With cooling for fluorescence applications
For Windows
Software included

Technical specifications

Product type: Microscope camera

Operating voltage: 100 - 240 V / AC

Dim: (L x W x H) 80 x 80 x 100 mm

Length: 80 mm

Width: 80 mm

Height: 100 mm

Weight: 1 kg

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2252670 Kern ODC 861 ODC861 Microscope camera

User & Safety Instructions

User & Safety Instructions 2252670 Kern ODC 861 ODC861 Microscope camera

Information

Information 2252670 Kern ODC 861 ODC861 Microscope camera

Description

The camera ODC 861 with Peltier cooling technology has been specially developed for fluorescence applications. It is able to compensate significantly for the noise caused by low light. With its high resolution and the light-sensitive Sony CMOS color sensor, it delivers first-class images. The practical and stable storage box serves as protection and for transporting this premium camera
The real-time images can be transferred directly to a PC or laptop with the integrated USB 3.0 interface. Alternatively, you can also use 2 USB 2.0 interfaces to connect the camera with the included camera
The power is supplied via an external 12V power unit CORE OXM 902 software to operate
Please order the C-Mount adapter suitable for YOUR CORE microscope (only 1.0× possible)
Can only be used in combination with transmitted light microscopes!

This text is machine translated.
