Kern OIV 345 OIV345 Video microscope 4.5 x Reflected light
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications

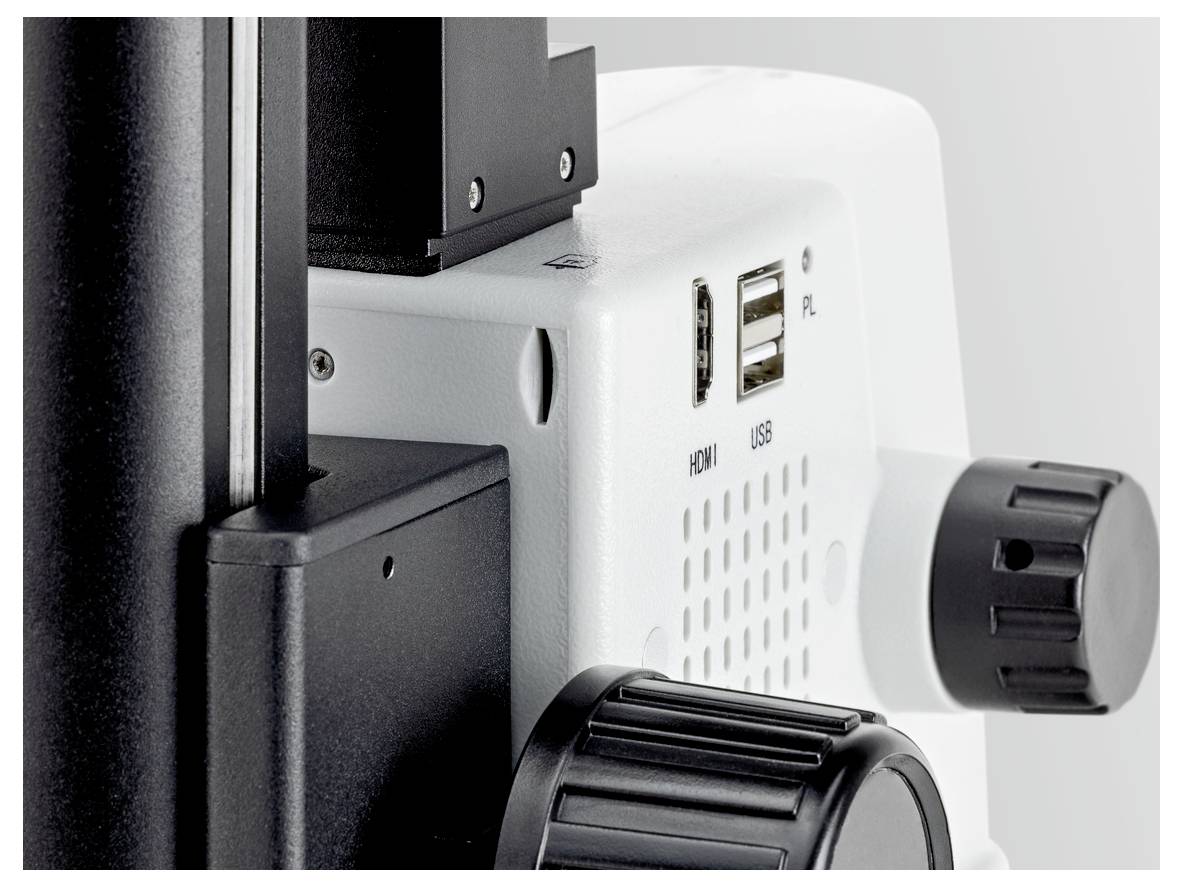

- Optical system Axial12" (30.48 cm) display5 MP camera resolutionMin of field of view 2.5 mmField of view max. 16 mmStorage: 128 GBInterface: HDMI MicroSD; card slot USB device
- Product type
Video microscope
- Type
Upright
- Optical magnification (min.)
0.7 x
- Optical magnification (max.)
4.5 x
- Clearance (min.)
100 mm
- Lighting type
Reflected light
- Bulb type
LED (monochrome)
- Bulb rating
3 W
- Operating voltage
100 - 240 V / AC
- Dim
(L x W x H) 26 x 32 x 45 cm
- Length
26 cm
- Width
32 cm
- Height
45 cm
- Weight
5.3 kg
- Features
dimmable
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2827121 Kern OIV 345 OIV345 Video microscope 4.5 x Reflected light
User & Safety Instructions
User & Safety Instructions 2827121 Kern OIV 345 OIV345 Video microscope 4.5 x Reflected light
Information
Information 2827121 Kern OIV 345 OIV345 Video microscope 4.5 x Reflected light
Description

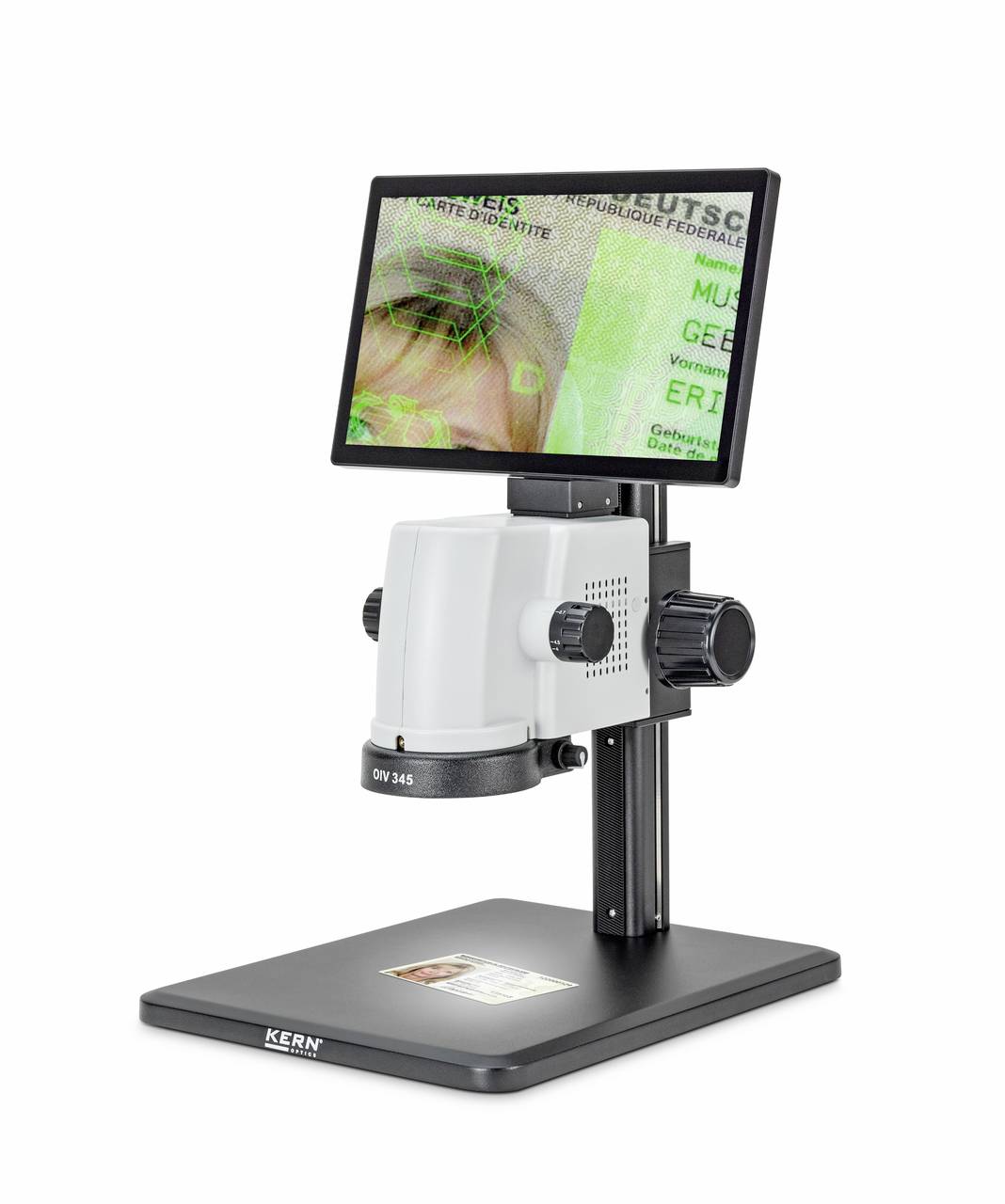

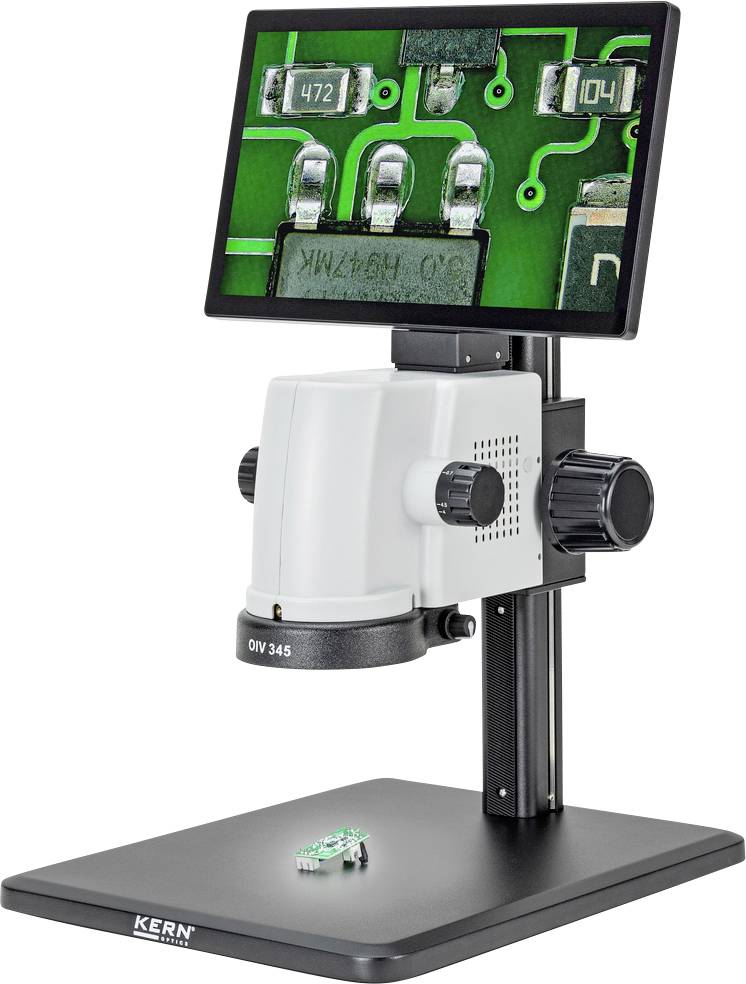

The Kern OIV 345 is a video microscope designed to optimize digital stereo microscopy. Our well thought-out, all-in-one axial optics allows you to view your samples on the screen directly and easily. The standard LED reflected light illumination (ring) ensures optimum illumination of your sample. Combined with the large working area, the acquisition of objects on the Ideal screen is suitable for industrial observation, analysis and documentation. The excellent optics enable a continuous sharp picture guidance within the entire zoom spectrum of 0.7x-5x. The 5 megapixel camera of the ocular-free microscope offers a smooth live viewing of your samples via the HD-monitor thanks to the HDMI-output. In addition, the intuitive software, the USB stick as well as the USB mouse, which are fixed components of the delivery, allow a simple digital editing and storage of your results. In the case of the OIV 345 the picture documentation is possible at the push of a button, without the diversion via the software. A dust protection cover and a multilingual operating instructions are included in the delivery. The entry-level video microscope with simple handling for all kinds of applications.
