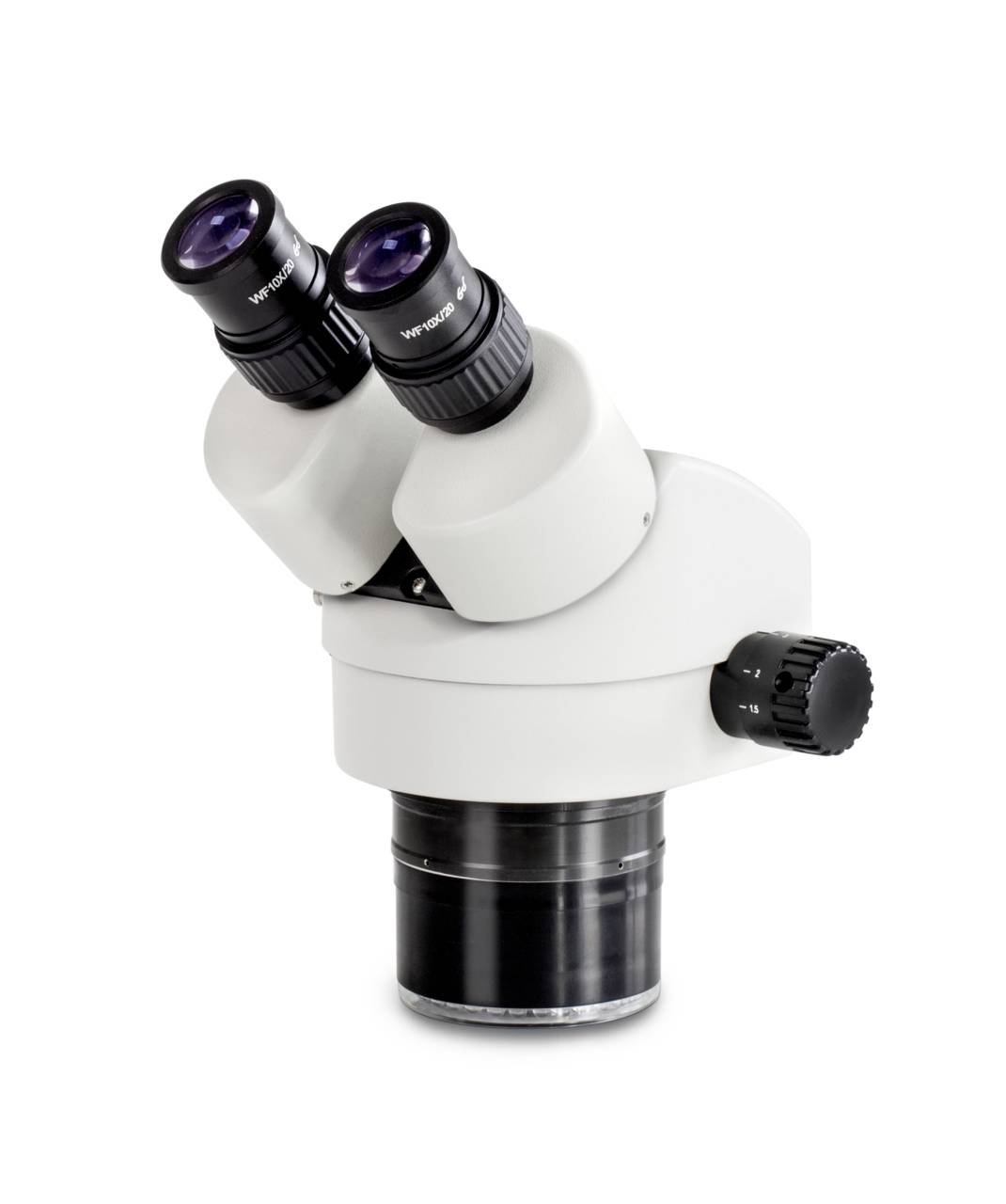

Kern OZL 460 OZL 460 Microscope head
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Stereo microscope Modular system - head Kern OZL 460
- Individuality, variety and flexible working through our modular system ▸ Stereo microscope heads
- This text is machine translated.
Technical specifications
- Input voltage power supply / current [Max]: 110V-240V
- Plug-in power supply/adapter for countries – included in delivery: EURO
- Mains adapter / adapter for countries - Optional: FROM,UK,US,CH
- Wall power supply type: Wall power supply
- Power supply included: Yes / No: No.
- Battery included: Yes / No: No.
- Battery included: Yes / No: No.
- Optical system: Greenough
- Tube Type: Binocular
- Tube tilt angle 45°
- Pupil distance: [Min]: 55 mm
- Pupil distance: [Max]: 75 mm
- Lens magnification: 0.7x - 4.5x
- Ocular Type: Eyepiece HWF 10x / Ø 20mm High Eye Point
- Eyepiece magnification: 10x
- Eyepiece field of vision: 20 mm
- Lighting type for reflected light: LED
- Illumination intensity reflected-light: 3W
- Zoom [Min]: 0.7x
- Zoom [Max]: 4.5x
- Magnification ratio 6.4:1
- Product type
Microscope head
- Weight
2000 g
- Type
Binocular
- Lighting type
Reflected light
- Series
OZB-M
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3776696 Kern OZL 460 OZL 460 Microscope head
User & Safety Instructions
User & Safety Instructions 3776696 Kern OZL 460 OZL 460 Microscope head
Information
Information 3776696 Kern OZL 460 OZL 460 Microscope head
Description
Features
- In order to provide you with complete flexibility for your special needs and applications, we offer you a large selection of stereo microscope heads, universal stands and external lighting, which are easy to combine
- Thanks to the different properties of the stereo microscope heads, as well as the flexibility of the universal stands and the professional fixing of our brackets, you can configure your desired microscope as you wish
- Various microscope heads from our product lines are available for this purpose, each as binocular or trinocular versions;
