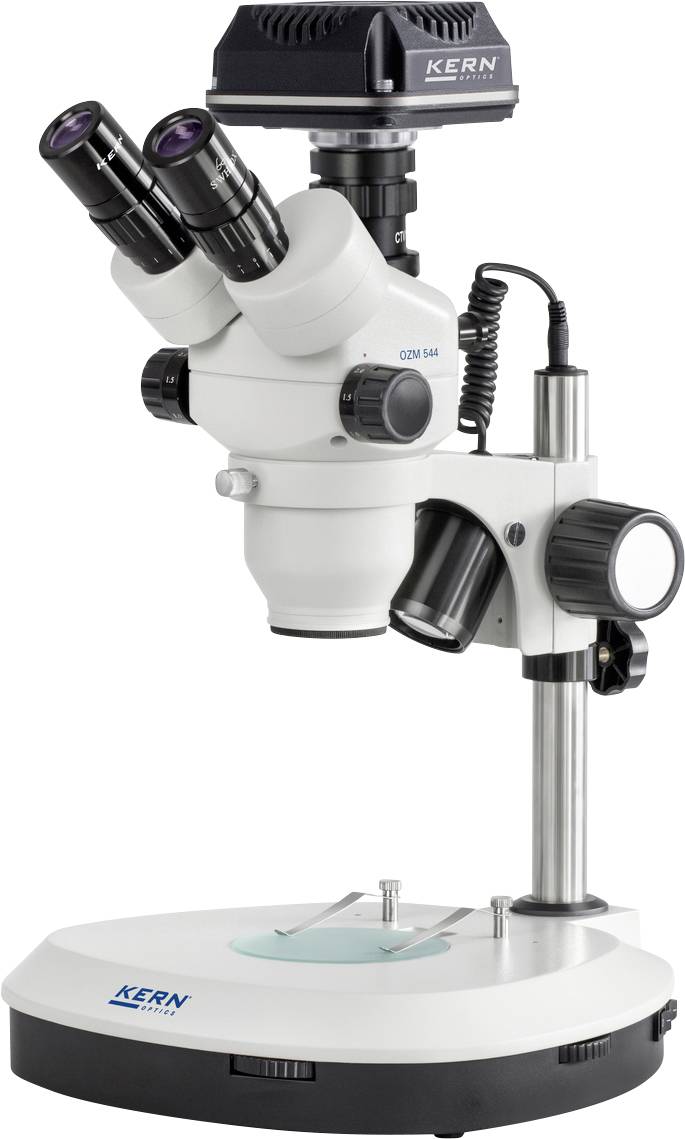

Kern OZM 544C825 OZM 544C825 Digital microscope set Trinocular 45 x Reflected light, Transmitted light
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Kern OZM 544C825 OZM 544C825 Digital microscope set Trinocular 45 x Reflected light, Transmitted light
- Stereo zoom (enough)
- With camera
- LED lighting
Technical specifications
- Product type
Digital microscope set
- Type
Trinocular
- Type
Upright
- Optical magnification (min.)
7 x
- Optical magnification (max.)
45 x
- Clearance (min.)
110 mm
- Lighting type
Reflected light
Transmitted light
- Bulb type
LED (monochrome)
- Bulb rating
3 W
- Operating voltage
100 - 240 V / AC
- Dim
(L x W x H) 30 x 24 x 43 cm
- Length
30 cm
- Width
24 cm
- Height
43 cm
- Weight
5.5 kg
- Features
dimmable
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2252522 Kern OZM 544C825 OZM 544C825 Digital microscope set Trinocular 45 x Reflected light, Transmitted light
User & Safety Instructions
User & Safety Instructions 2252522 Kern OZM 544C825 OZM 544C825 Digital microscope set Trinocular 45 x Reflected light, Transmitted light
Information
Information 2252522 Kern OZM 544C825 OZM 544C825 Digital microscope set Trinocular 45 x Reflected light, Transmitted light
Description
The outstanding OZM series is now also available as a complete digital solution for your live examination. Optionally with adapted tablet or C-mount camera. The suitable C-mount adapter is included in the delivery
THE KERN OZM-S contains excellent stereo zoom microscopes with above-average optical performance
The extremely strong and continuously dimmable 3W LED on and transmitted light illumination provides for an especially good and flexible illumination of your sample
In addition to the large working distance, an extra large field of vision and its brilliant resolution, THE CORE OZM-S delivers color fidelity and depth-sharp images with high contrast
The adapted C-mount camera is available in different designs and can be used universally
This text is machine translated.
THE KERN OZM-S contains excellent stereo zoom microscopes with above-average optical performance
The extremely strong and continuously dimmable 3W LED on and transmitted light illumination provides for an especially good and flexible illumination of your sample
In addition to the large working distance, an extra large field of vision and its brilliant resolution, THE CORE OZM-S delivers color fidelity and depth-sharp images with high contrast
The adapted C-mount camera is available in different designs and can be used universally
This text is machine translated.
Features
- Contrast methods: Light field (standard)
- Eyepieces: HSWF 10x/Ø23mm
- Field of vision: Ø32,8-5.1mm
- Lenses: Zoom 0.7x-4.5x
- Optical system: Green
- working distance: 110mm (standard)
- Stand: Column
- Lighting: 3W LED (transmitted light + reflected light)
- Resolution: 5 MP
- Interface: USB 2.0
- FPS: 6.8 - 55
- Sensor: 1/2.5" CMOS, color
Scope of delivery
- Dust protection hood
- Eyecups
- Operating instructions
- Power cable;
- Allen key
- Spare fuse
- Calibration slides
- C-mount adapter
- USB cable
System requirements
- Microsoft Windows XP
- Microsoft Windows Vista
- Microsoft Windows 7
- Microsoft Windows 8
- Microsoft Windows 8.1
- Microsoft Windows 10
