Buy Kern Platform scales IOC 100K-3L Weight range 150 kg Readability 2 g, 5 g via PSU

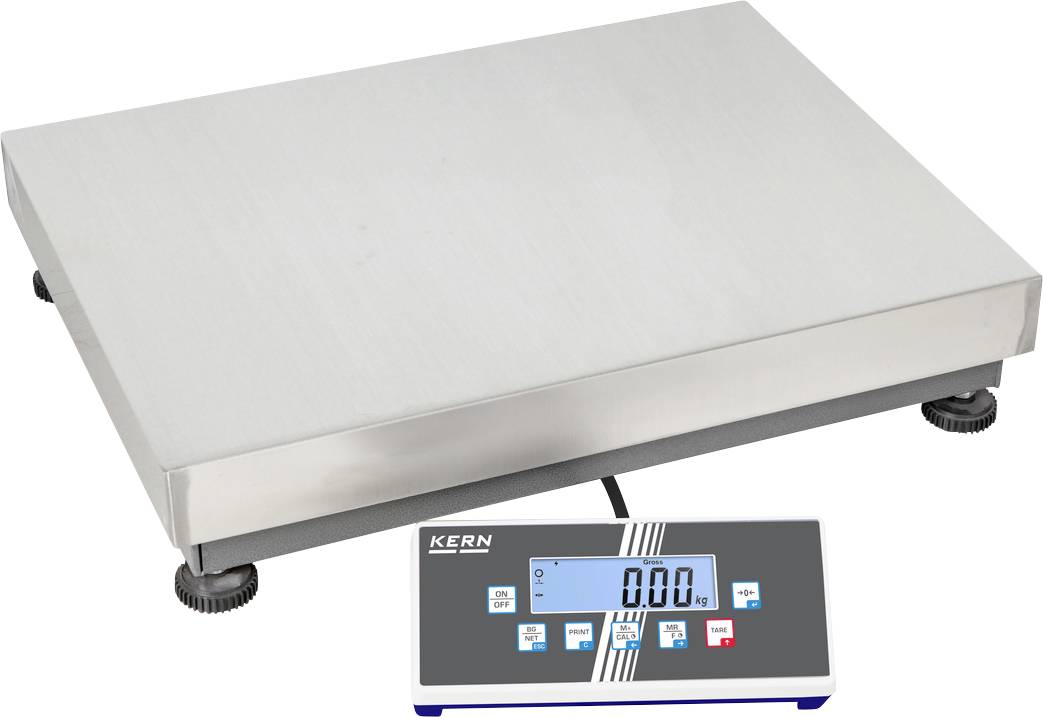

Industrial weighing scale with a large, flat weighing surface and digital display on a separate module. The display shows '0.00'.

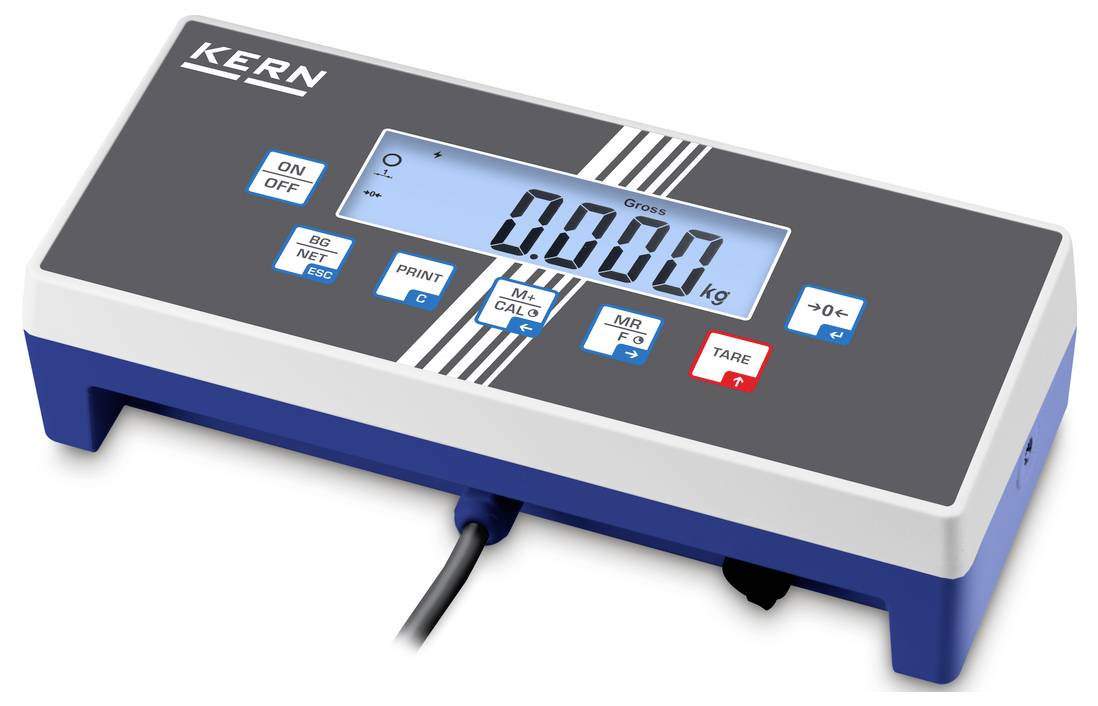

Electronic scales with a digital display, showing '0.000 kg'. Buttons for on/off, print, tare and other settings.

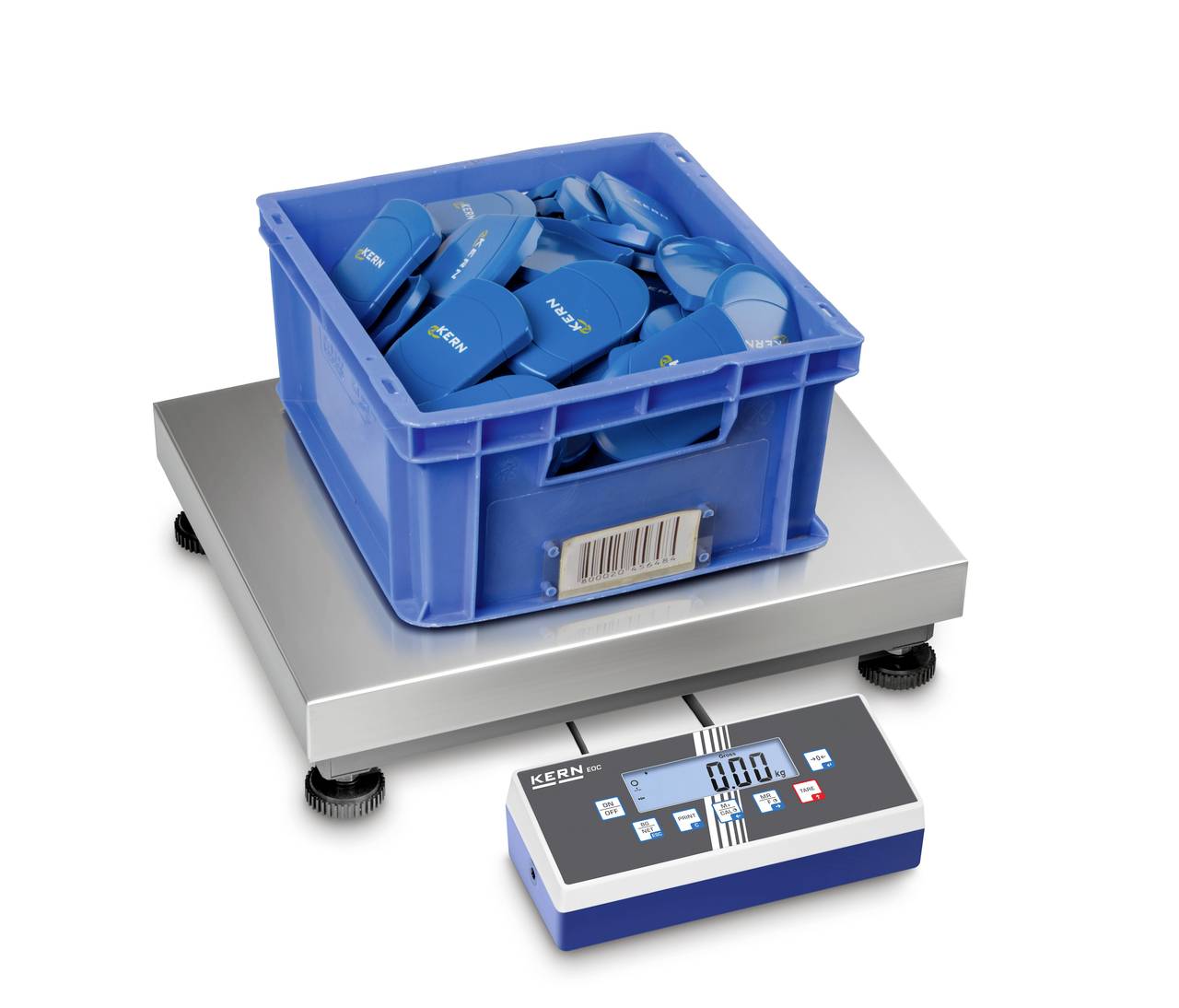

A blue box with several blue objects is sitting on a digital weighing scale. The display shows 0.00.

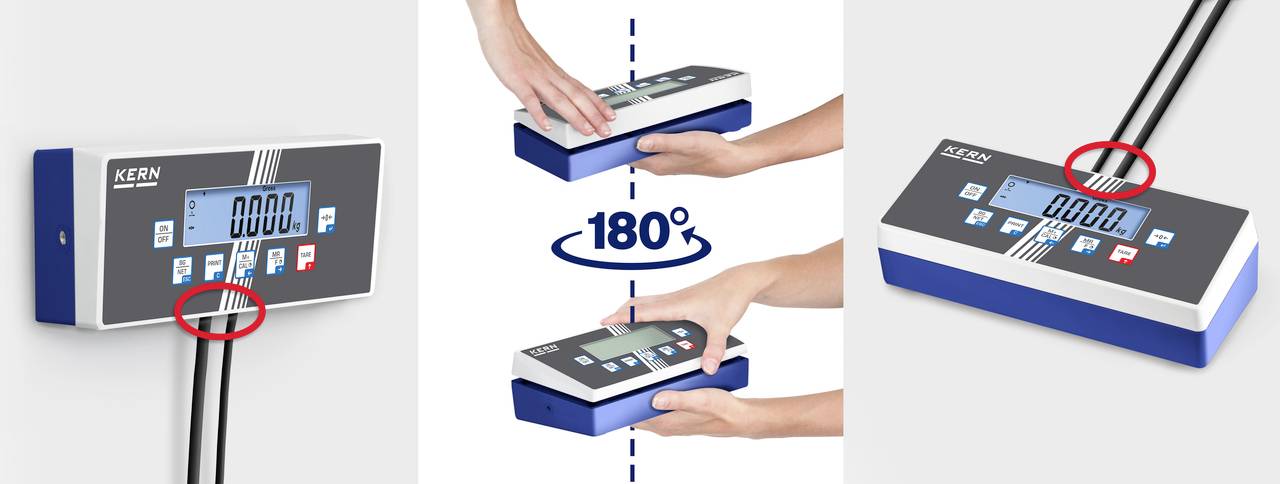

'Three images show a KERN display that can be rotated 180 degrees during operation. Focus on button-activated function.'

1/4

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Display type: LCD
Display digit height - large: 25 mm

Weight range: 150 kg

Product type: Platform scales

Readability: 2 g
5 g

Display: Digital

Power supply (LOV): via PSU

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 500 x 650 x 150 mm

Weight: 22 kg

Weight resolution: 2 g

Calibratable: No

Weighing plate: Stainless steel

Width: 650 mm

Height: 150 mm

Length: 500 mm

Reproducibility: 0.002 kg
0.005 kg

Type: IOC 100K-3L

Features: Calibratable

Top plate (width): 650 mm

Top plate (length): 500 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2498146 Kern Platform scales IOC 100K-3L Weight range 150 kg Readability 2 g, 5 g via PSU

User & Safety Instructions

User & Safety Instructions 2498146 Kern Platform scales IOC 100K-3L Weight range 150 kg Readability 2 g, 5 g via PSU

Information

Information 2498146 Kern Platform scales IOC 100K-3L Weight range 150 kg Readability 2 g, 5 g via PSU

Description

Industry 4.0: A wide range of (optional) data interfaces enable easy transfer of weighing data to tablets, laptops, PCs, networks, smartphones, Printers, etc. High mobility: Thanks to battery operation (optional) and compact, lightweight design suitable for use at several locations (laboratory, production, quality inspection, order picking etc.). Platform: Stainless steel weighing plate, painted steel substructure, silicone-coated aluminum load cell, dust and splash-water protection IP65. Spirit level and foot screws for exact leveling of the scale as standard, thus exact weighing results. Query and remote control of the scale via external control devices or computers using Kern Communication Protocol (KCP). The KCP is a standardized interface command set for CORE scales and other instruments that allows the retrieval and control of all relevant parameters and device functions. Kern devices with KCP can be connected to computers, industrial controls and other digital systems very easily. The KCP protocol is largely compatible with the MT-SICS protocol. Only possible via RS-232 data interface, further interfaces on request.

This text is machine translated.
